Product Description

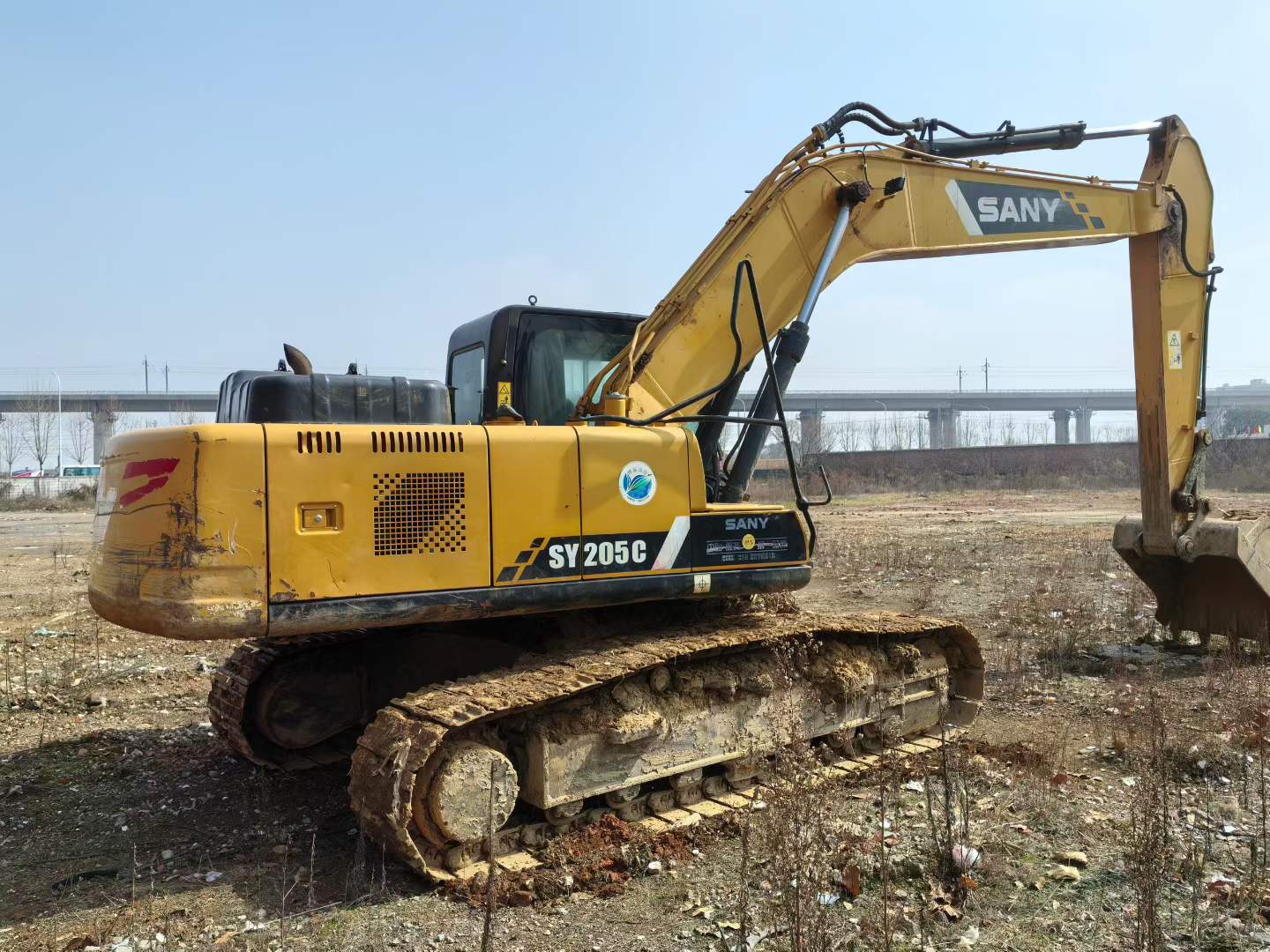

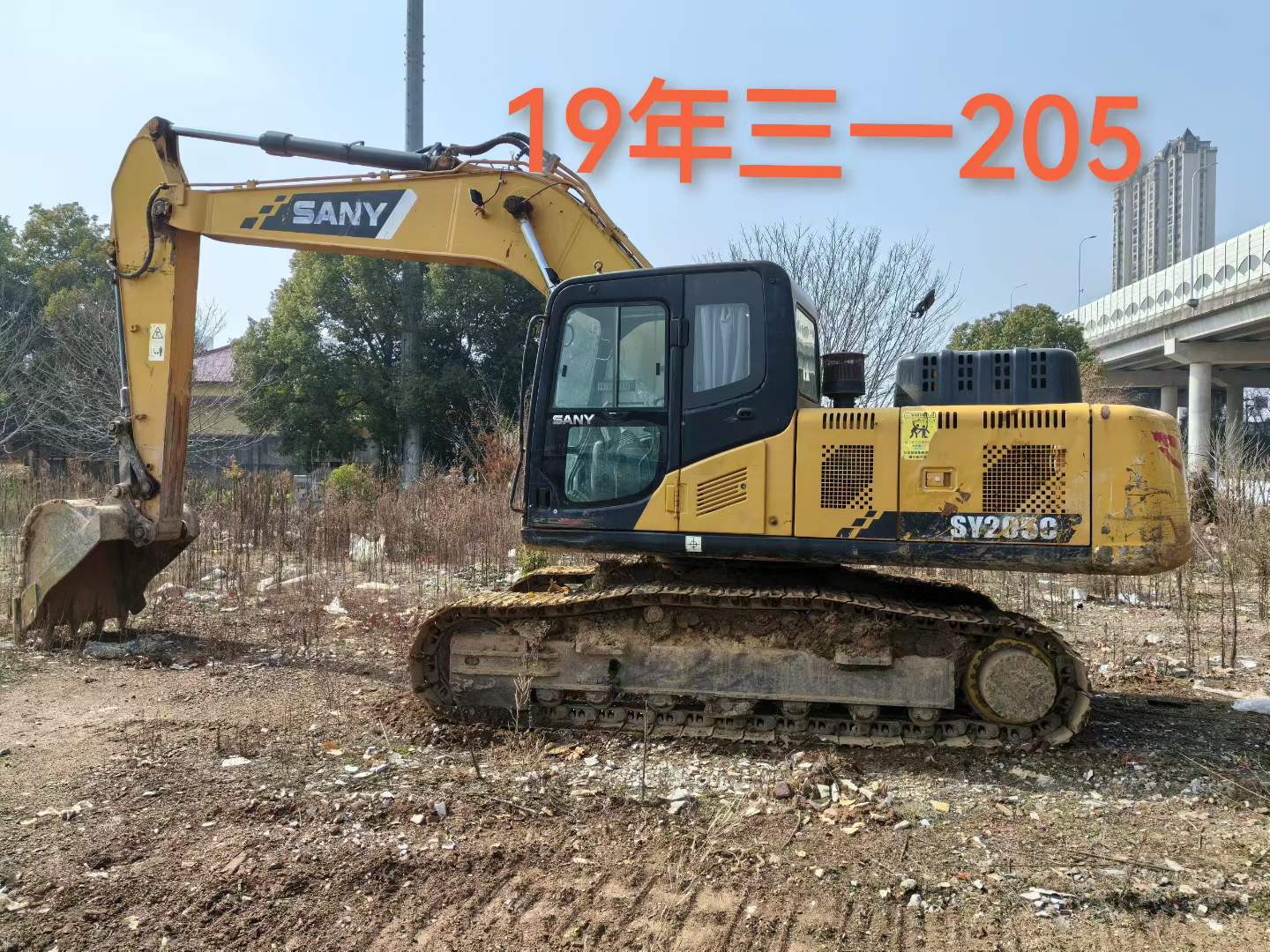

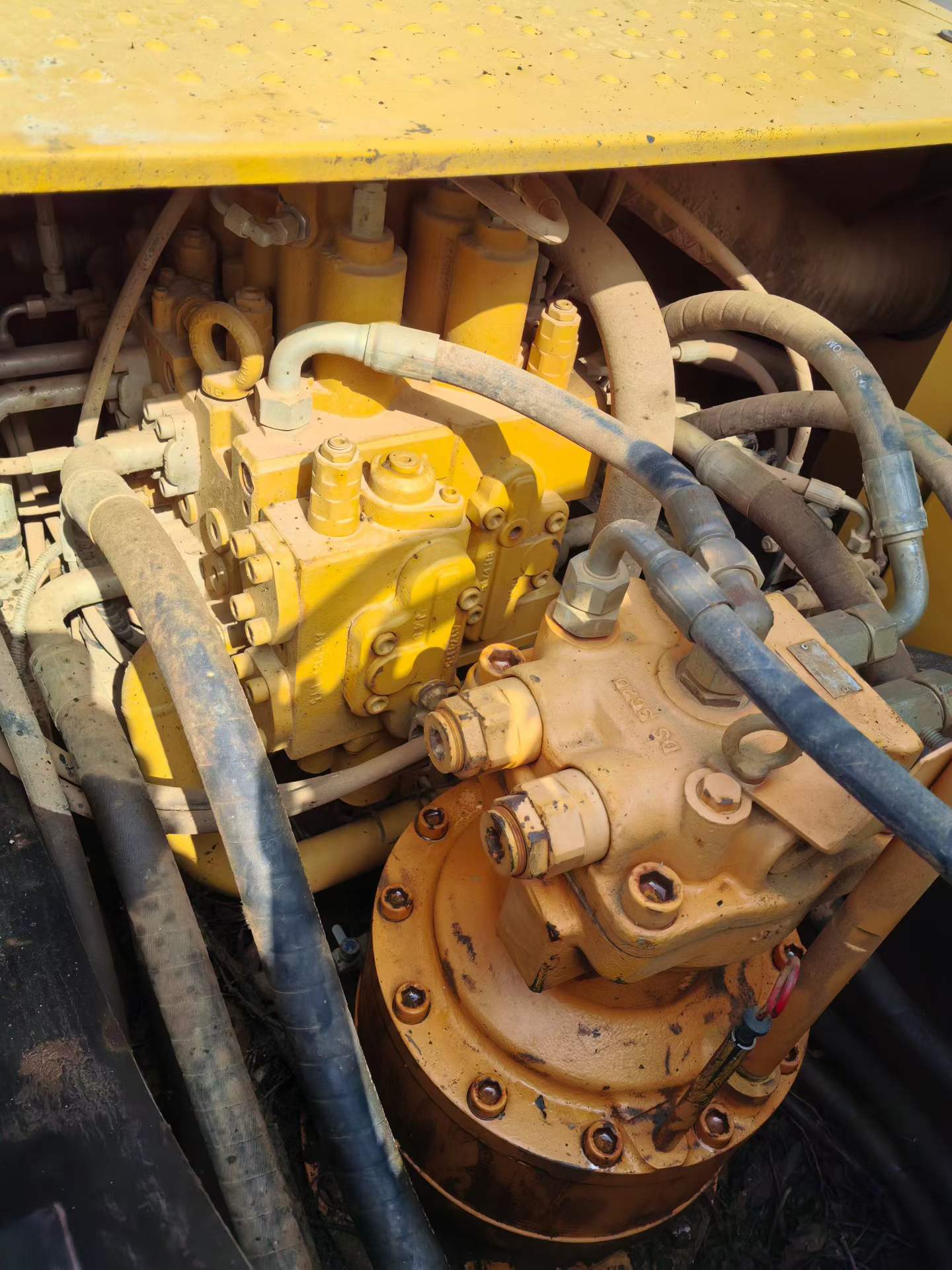

Engineered for precision and all-day productivity, this 2019 Sany SY205C delivers exceptional operator comfort and control across demanding jobsites. Powered by a robust 118kW engine at 2000rpm, this 20-ton excavator combines responsive hydraulics with superior visibility from its full-height cabin, enabling accurate positioning and confident operation in tight spaces.
- Optimized Operator Environment: Spacious cab design with panoramic visibility and ergonomic controls reduces fatigue during extended shifts
- Precise Maneuverability: 2900mm rear turning radius and 3730mm front working device radius facilitate work in confined areas
- Stable Performance: 21,500kg working weight and 47.3kPa ground pressure deliver reliable stability without excessive ground disturbance
- Versatile Reach: 10,280mm maximum digging radius and 6,600mm digging depth handle diverse excavation requirements
- Smooth Operation: 11rpm rotation speed and dual travel speeds (5.4/3.3 km/h) provide controlled, efficient movement
Currently located in Nanchang, Jiangxi, this Chinese-manufactured excavator offers depend
| Specifications | Value |
|---|---|
| No. | 1019587 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
