Product Description

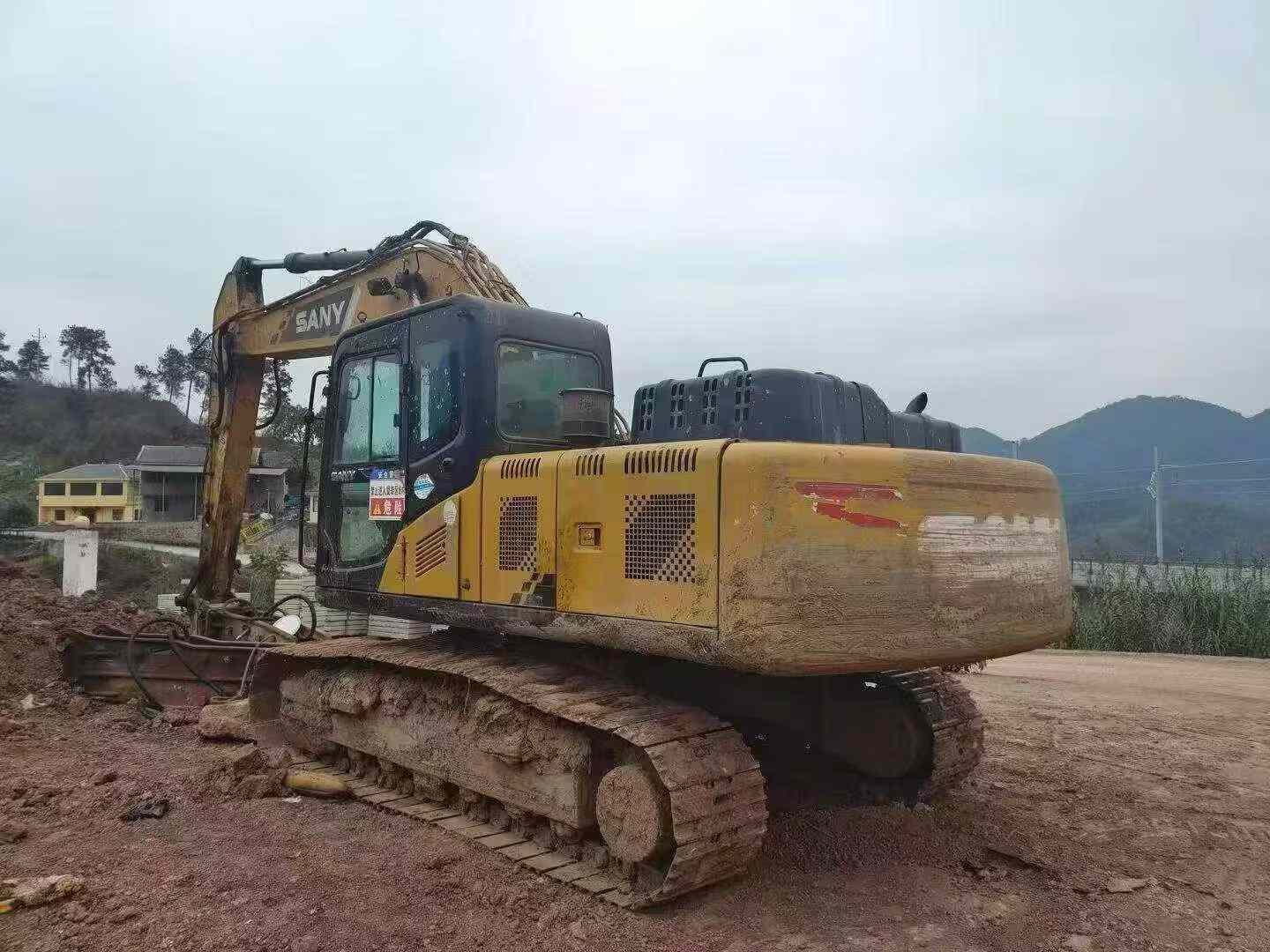

With a robust 20-ton capacity, the Sany SY205C excavator, manufactured in 2019, is designed for immediate deployment on your worksite. Equipped with a powerful 118 kW engine, this machine delivers a bucket digging force of 138 kN, making it ideal for demanding tasks such as digging and grading. Its versatile 0.9 to 1.1 m³ bucket capacity ensures efficient material handling, while the 70% climbing ability and 47.3 Kpa ground specific pressure allow for operation in varied terrains. The SY205C features a maximum digging depth of 6600 mm and a maximum excavation height of 9600 mm, providing extensive reach and flexibility. Ready to work, this excavator is located in 四川泸州, ensuring quick mobilization to your project site.
- Working weight: 21,500 kg
- Bucket capacity: 0.9~1.1 m³
- Maximum digging depth: 6600 mm
- Travel speed: 5.4/3.3 km/h
- Total transport dimensions: 9680 x 2980 x 3440 mm
| Specifications | Value |
|---|---|
| No. | 1020434 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
