Product Description

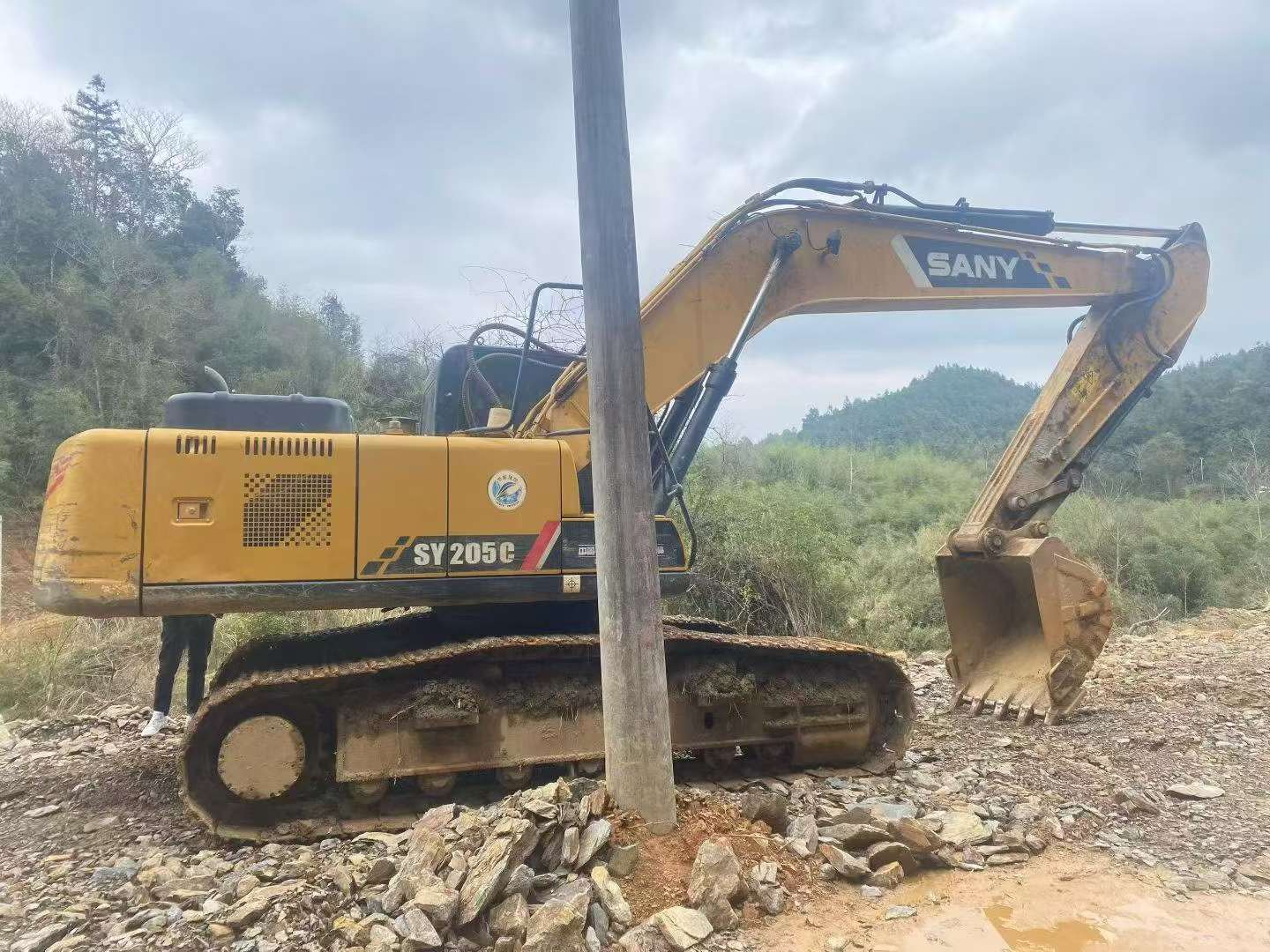

Acquire proven excavation power without the premium price tag. This 2019 Sany SY205C delivers 20-ton performance with a 118kW engine and 0.9-1.1m³ bucket capacity—ideal for earthmoving, trenching, and site preparation across demanding jobsites. With just four years of service, this machine offers the reliability of modern engineering at a fraction of new equipment costs, making it a strategic choice for contractors seeking maximum ROI.
- Powerful Digging Force: 138kN bucket force and 109kN arm force handle tough materials efficiently
- Impressive Reach: 10,280mm maximum digging radius and 6,600mm digging depth expand operational versatility
- Robust Mobility: 70% gradeability and 5.4km/h travel speed ensure productivity on challenging terrain
- Compact Transport Dimensions: 9,680mm length fits standard trailers for cost-effective relocation
- Current Location: Jiangxi, China—ready for inspection and international shipping
Invest smart. Secure high-performance excavation capability while preserving capital for other operational priorities. Contact Fair Trade Machinery today for detailed specifica
| Specifications | Value |
|---|---|
| No. | 1023425 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
