Product Description

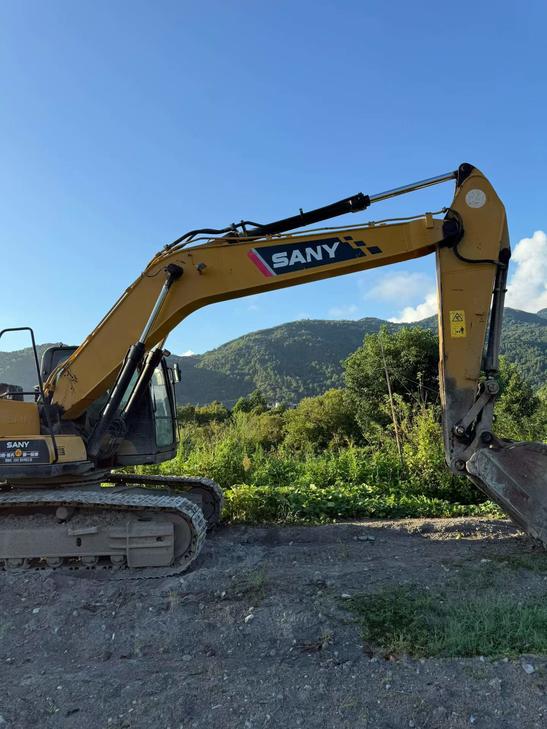

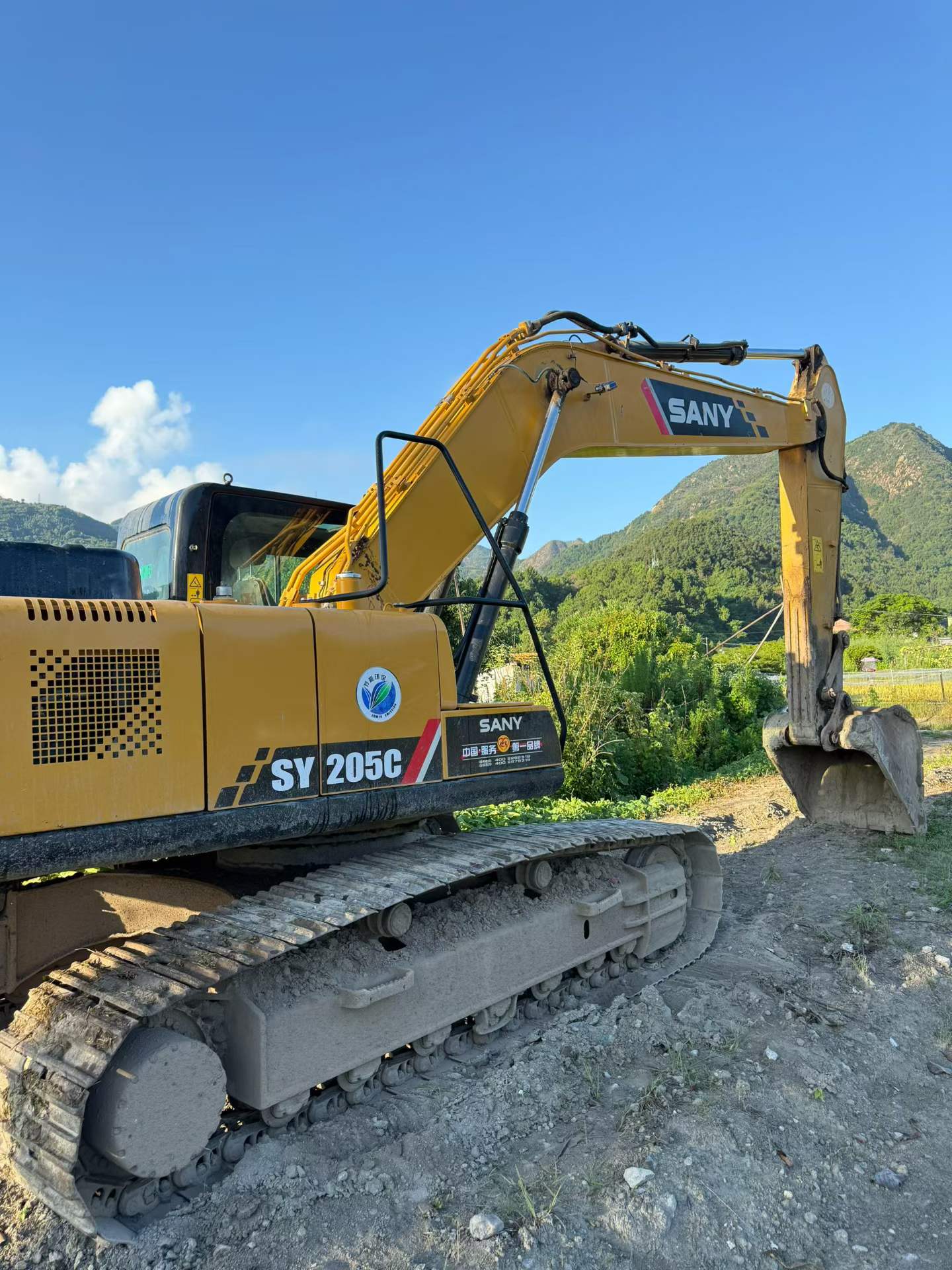

Built for demanding excavation work, this 2019 Sany SY205C medium excavator delivers consistent performance across construction, grading, and demolition applications. Operating at 20 tons with a 118kW rated power output, this machine handles heavy-duty tasks with a maximum digging depth of 6,600mm and bucket digging force of 138kN. Currently located in Wenzhou, Zhejiang, this backhoe-equipped excavator arrives site-ready with proven Chinese manufacturing quality.
- 21,500kg working weight with 0.9-1.1m³ bucket capacity for material handling efficiency
- 10,280mm maximum digging radius covers extensive work areas without repositioning
- 70% (35°) climbing ability tackles challenging terrain and slope work
- Compact 2,900mm rear turning radius enables operation in confined job sites
- Dual travel speeds (5.4/3.3 km/h) optimize productivity and fuel economy
- 440mm ground clearance provides reliable undercarriage protection
Engineered for contractors requiring dependable digging power and operational versatility, this SY205C combines reach, force, and maneuverability for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 1029844 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
