2019 Sany SY205C

1/9

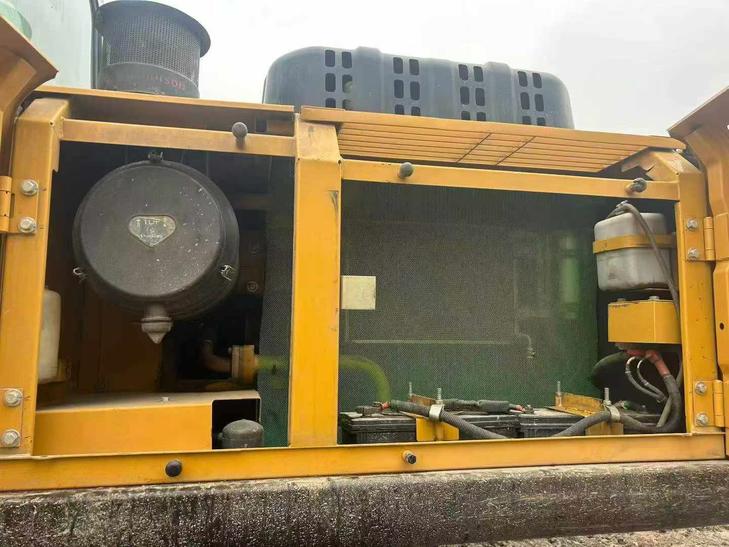

Buy Sany SY205C Used Excavator / 1
Buy Sany SY205C Used Excavator / 2
Buy Sany SY205C Used Excavator / 3
Buy Sany SY205C Used Excavator / 4
Buy Sany SY205C Used Excavator / 5
Buy Sany SY205C Used Excavator / 6
Buy Sany SY205C Used Excavator / 7
Buy Sany SY205C Used Excavator / 8

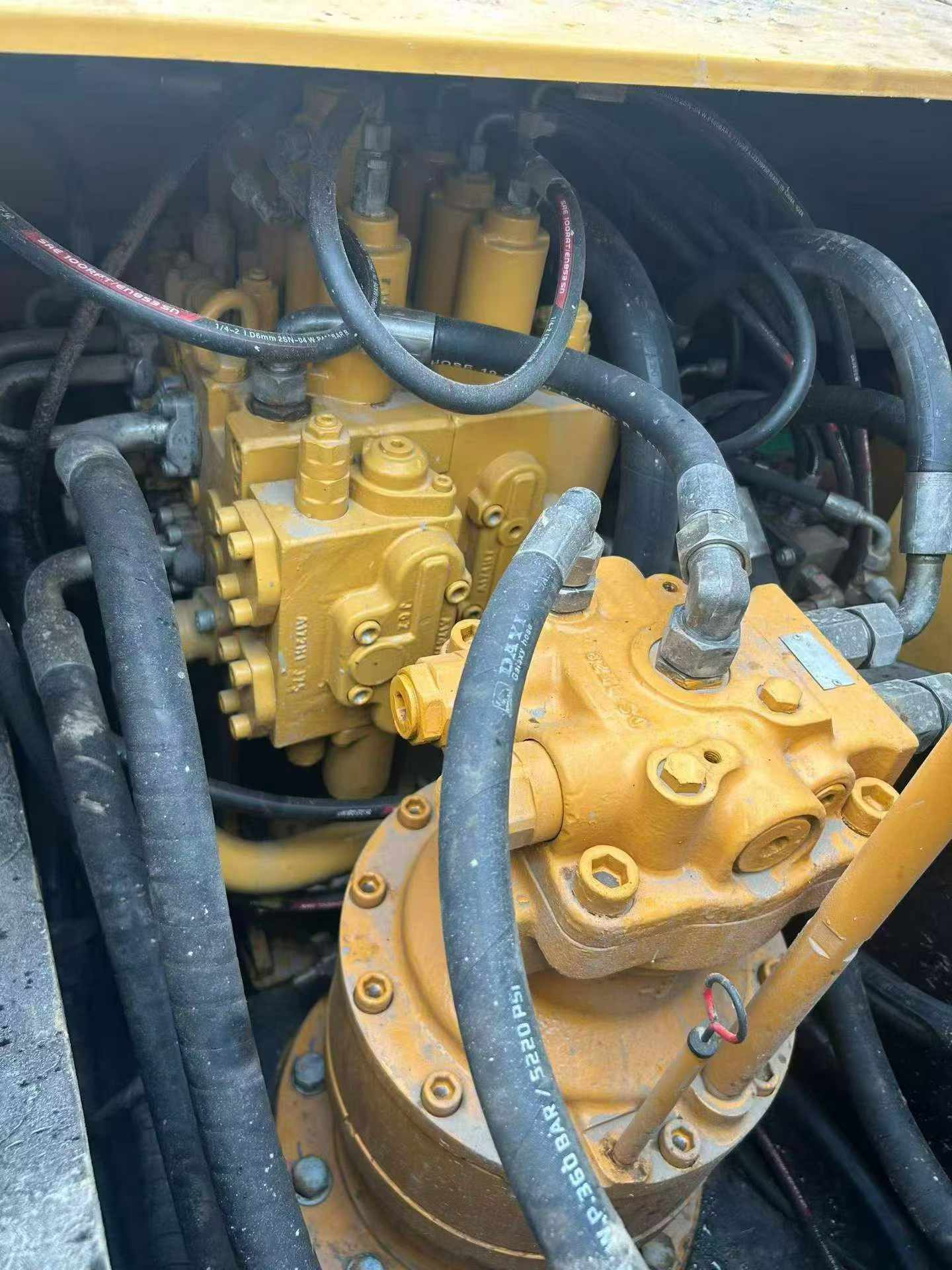

Buy Sany SY205C Used Excavator / 9

Product Description

Ready to ship from Zhejiang, China — this 2019 Sany SY205C puts 20-ton excavator performance in your hands without the factory wait. Skip the lead times and get a proven 21,500 kg machine deployed to your site fast.

Powered by a 118 kW / 2000 rpm engine, the SY205C delivers 138 kN bucket digging force and 109 kN arm digging force, with a 0.9–1.1 m³ backhoe bucket ready for demanding dig cycles. A maximum digging depth of 6,600 mm and 10,280 mm reach make it a versatile performer across civil, infrastructure, and earthmoving applications.

  • Working weight: 21,500 kg | Bucket capacity: 1.0 m³
  • Rated power: 118 kW @ 2,000 rpm
  • Max digging depth: 6,600 mm | Max reach: 10,280 mm
  • Max excavation height: 9,600 mm | Max unloading height: 6,730 mm
  • Travel speed: 5.4 / 3.3 km/h | Climbing ability: 70% (35°)
  • Track plate width: 600 mm | Ground pressure: 47.3 kPa
  • Transport dimensions: 9,680 × 2,980 × 3,440 mm

Available now in Zhejiang — positioned for efficient export logistics to ports worldwide. Contact Fair Trade Machinery today to confirm availability and shipping terms.

SpecificationsValue
No.1071140
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)0.9~1.1(1.0)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)118/2000
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)138
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4160
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3360
Maximum height at minimum turning radius (mm)7680
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1071140

Brand Name:

Sany

Model Number:

SY205C

Year:

2019

Location:

Zhejiang China

Pub Date
