Product Description
Ready to ship from Zhejiang, China — this 2019 Sany SY205C puts 20-ton excavator performance in your hands without the factory wait. Skip the lead times and get a proven 21,500 kg machine deployed to your site fast.
Powered by a 118 kW / 2000 rpm engine, the SY205C delivers 138 kN bucket digging force and 109 kN arm digging force, with a 0.9–1.1 m³ backhoe bucket ready for demanding dig cycles. A maximum digging depth of 6,600 mm and 10,280 mm reach make it a versatile performer across civil, infrastructure, and earthmoving applications.
- Working weight: 21,500 kg | Bucket capacity: 1.0 m³
- Rated power: 118 kW @ 2,000 rpm
- Max digging depth: 6,600 mm | Max reach: 10,280 mm
- Max excavation height: 9,600 mm | Max unloading height: 6,730 mm
- Travel speed: 5.4 / 3.3 km/h | Climbing ability: 70% (35°)
- Track plate width: 600 mm | Ground pressure: 47.3 kPa
- Transport dimensions: 9,680 × 2,980 × 3,440 mm
Available now in Zhejiang — positioned for efficient export logistics to ports worldwide. Contact Fair Trade Machinery today to confirm availability and shipping terms.
| Specifications | Value |
|---|---|
| No. | 1071160 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |

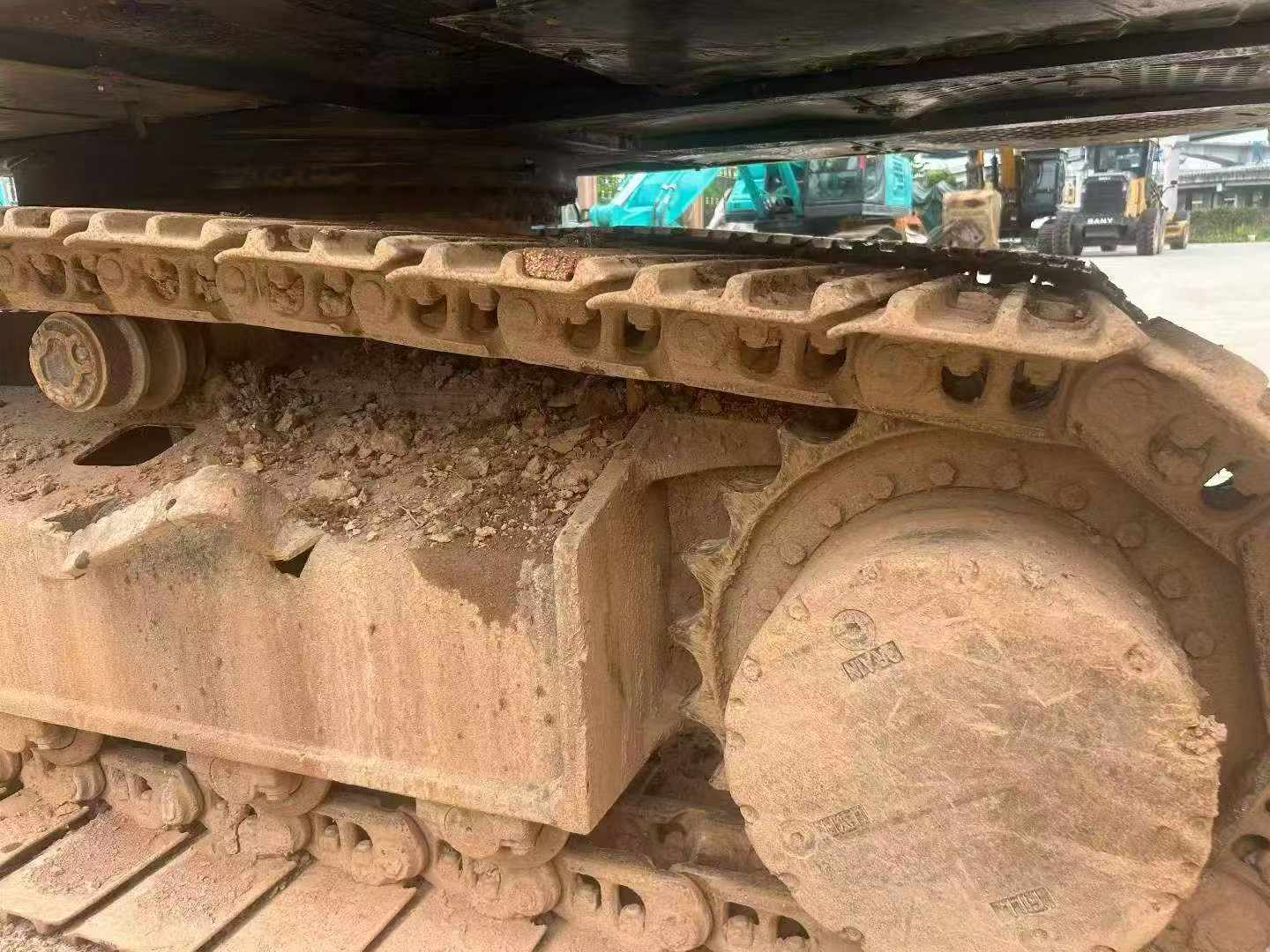

| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
