Product Description

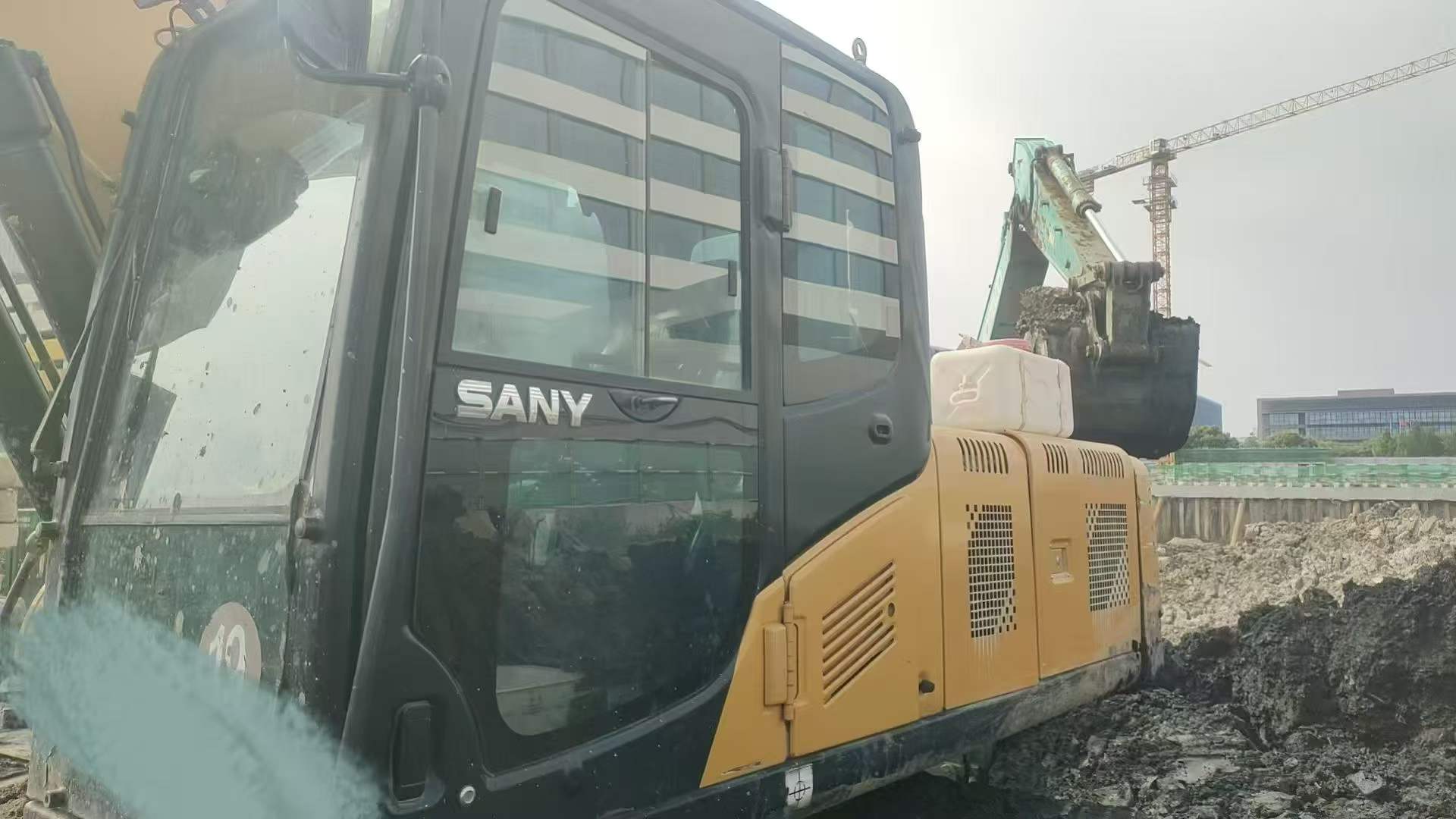

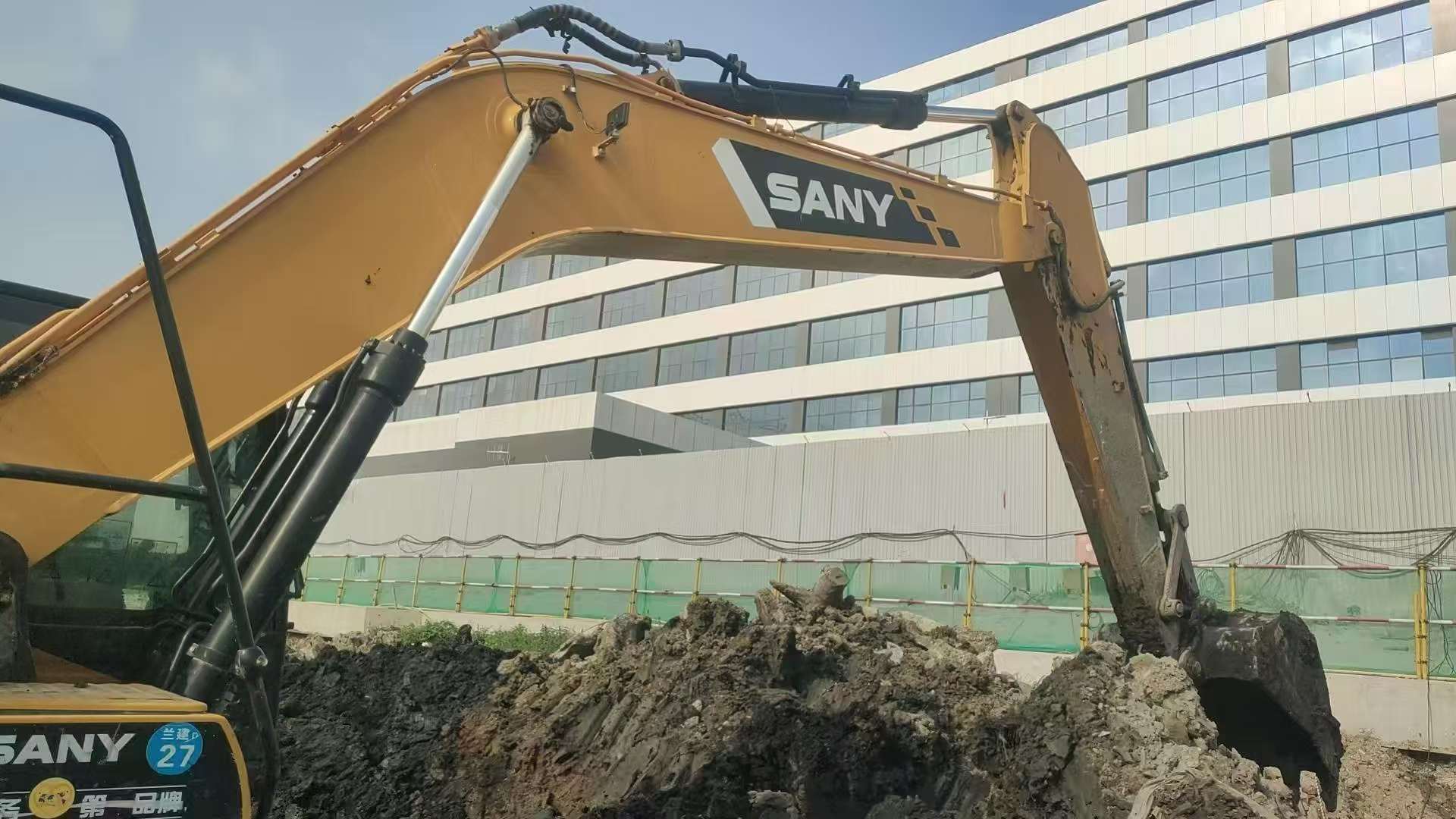

This 2019 Sany SY205C excavator represents a solid mid-size solution for contractors seeking reliable performance in earthmoving and construction applications. Manufactured in December 2019, this machine offers proven hydraulic efficiency and operator comfort characteristic of Sany's 20-ton class equipment.
Currently located in Anhui, China, this unit is available for inspection and export coordination. The SY205C is known for its fuel efficiency, straightforward maintenance access, and robust undercarriage design suitable for varied site conditions.
- Year: 2019 (December production)
- Manufacturer: Sany Heavy Industry
- Model: SY205C
- Location: Anhui Province, China
- Operating weight class: ~20 tons
Ideal for general excavation, trenching, and material handling. Contact us for detailed inspection reports, shipping quotes, and availability.
| Specifications | Value |
|---|---|
| No. | 1074781 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
