Product Description

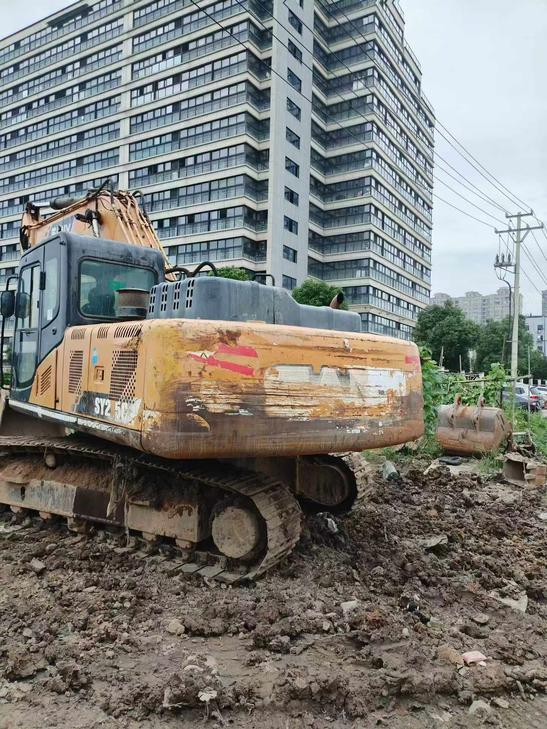

This 2019 Sany SY205C hydraulic excavator is currently available for inspection at our Zhejiang, China facility. With approximately 7 years of operational history, this mid-size crawler excavator represents solid value for contractors and construction professionals seeking reliable earthmoving capacity.
The SY205C is recognized in the industry for its 20-ton operating weight class and versatile performance across various applications including trenching, loading, and general excavation work. This unit comes with documented visual verification including photographs and video footage available upon request.
Key features of the Sany SY205C include:
- Robust hydraulic system for efficient digging performance
- Crawler undercarriage designed for stability on diverse terrain
- Operator cabin with standard controls
- Proven Sany engineering and parts availability
Contact our team to schedule an inspection or request additional documentation for this machine located in Zhejiang.
| Specifications | Value |
|---|---|
| No. | 1084281 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
