Product Description

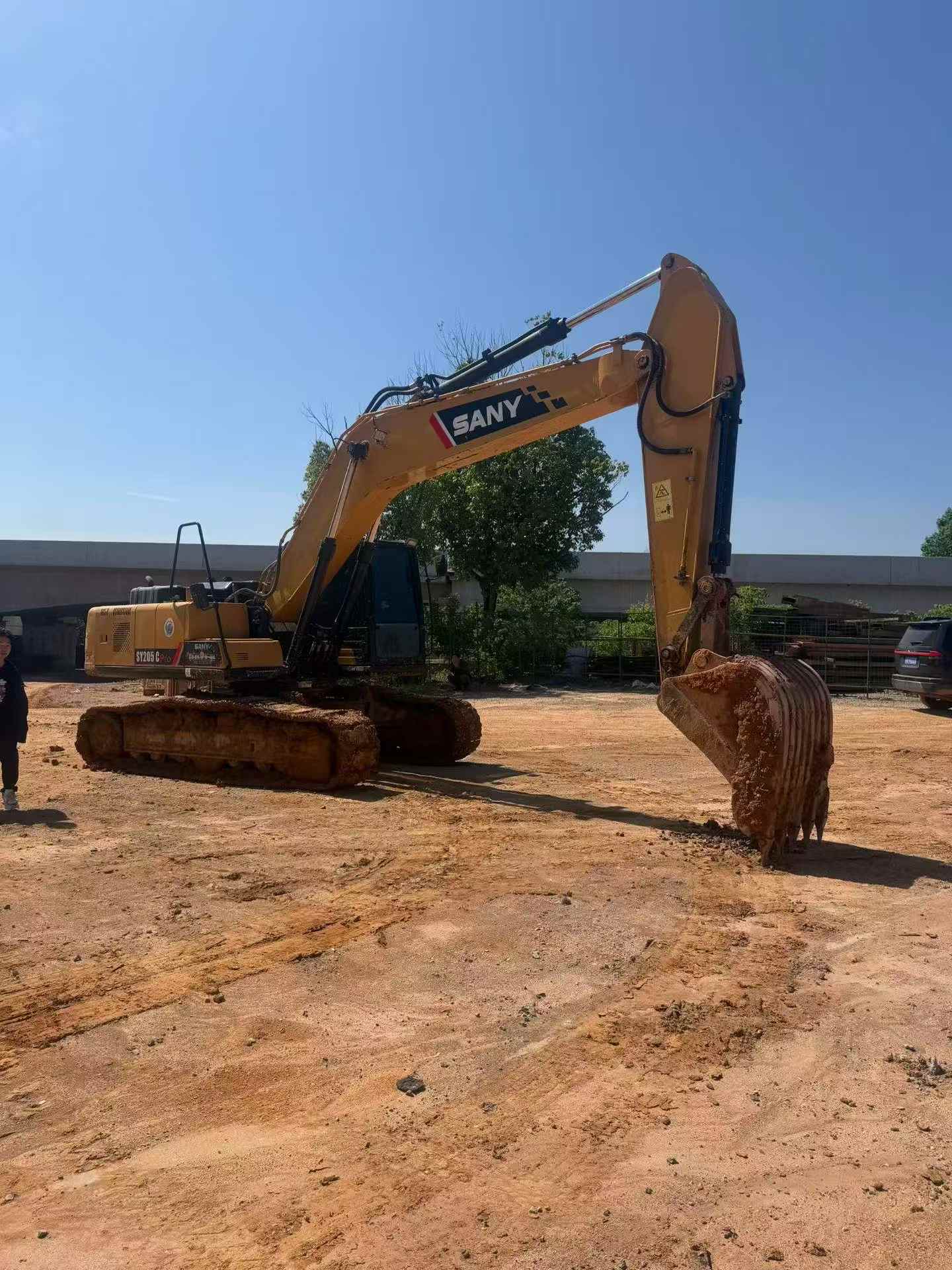

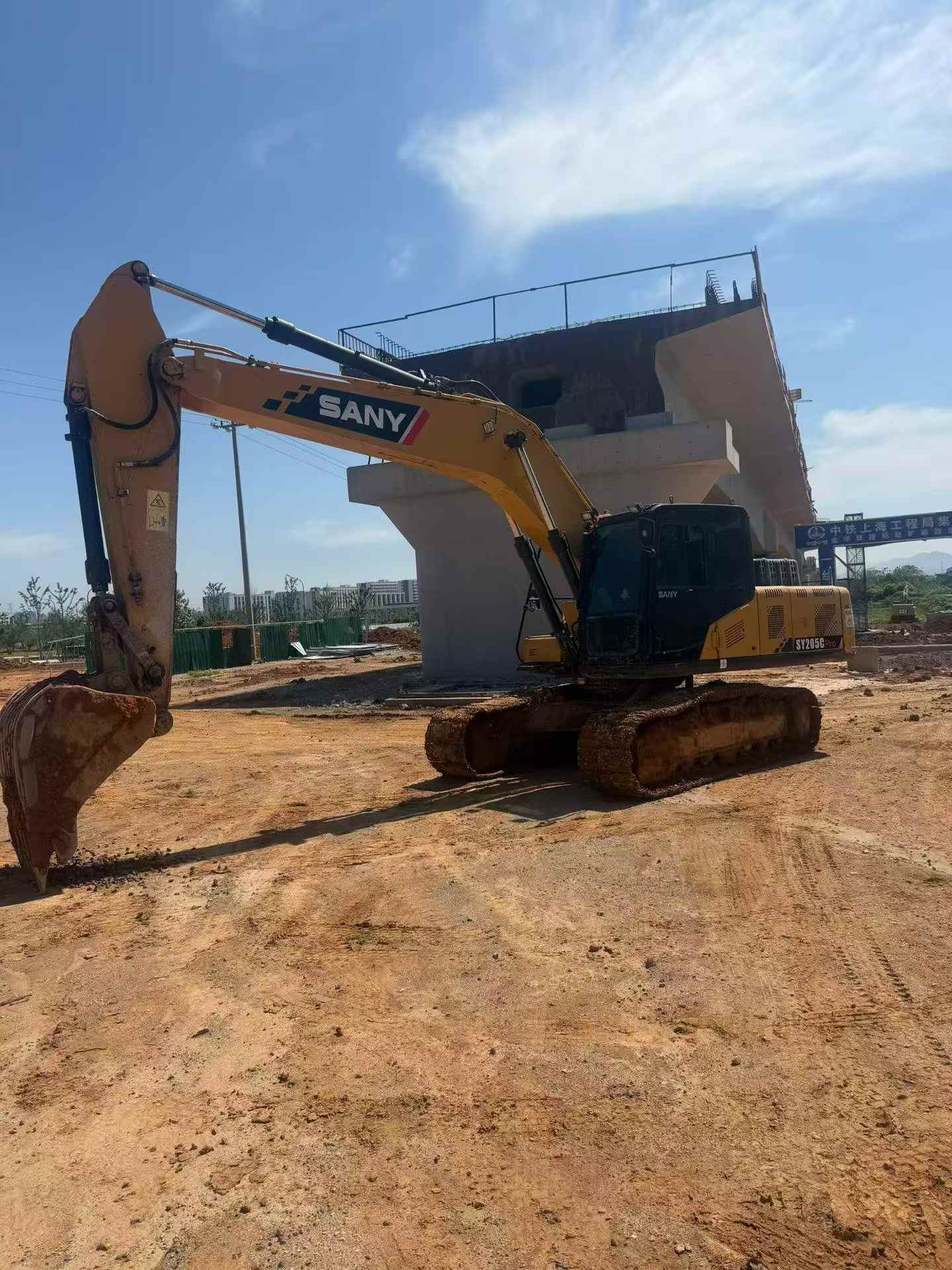

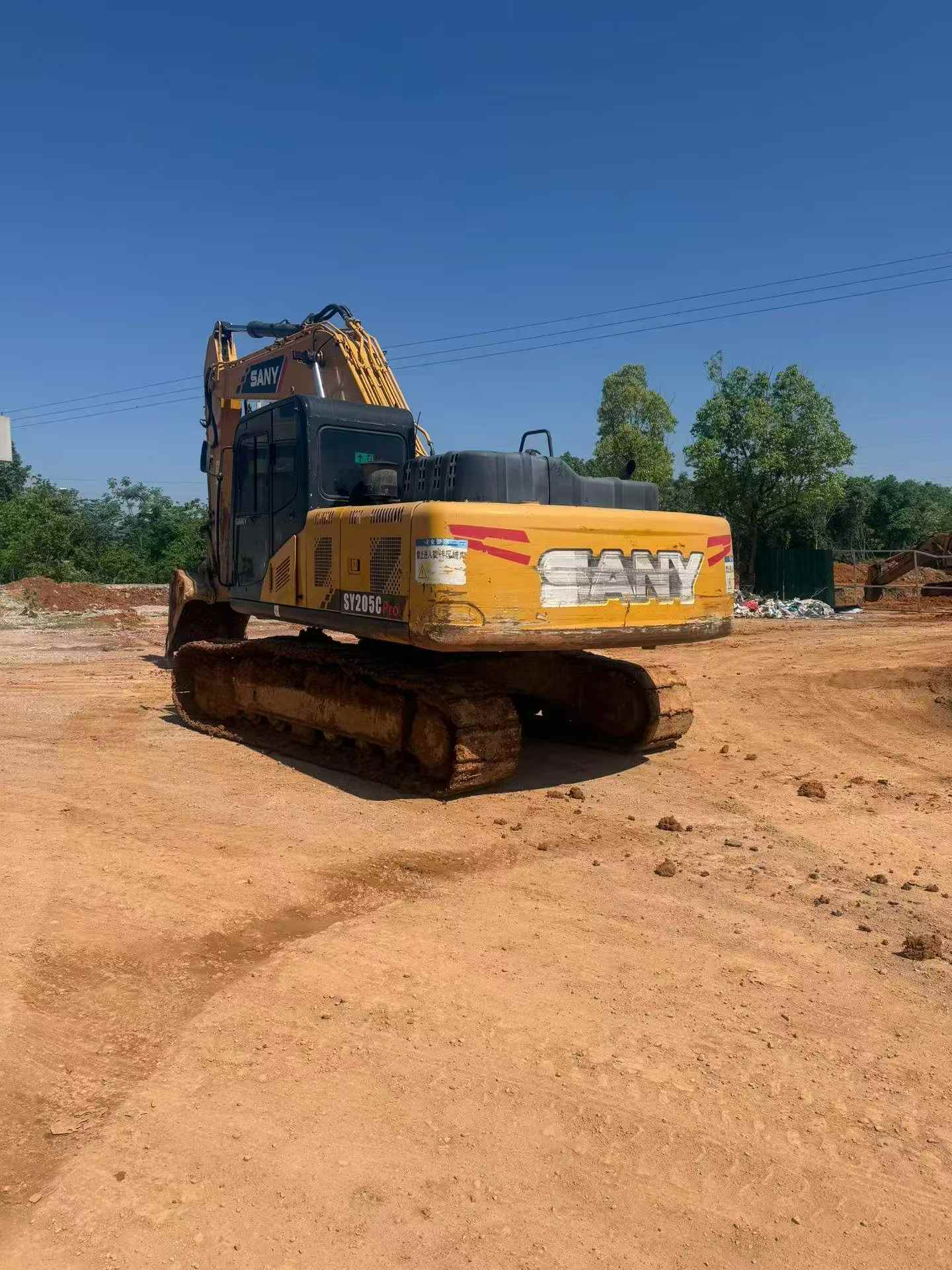

This 2019 Sany SY205C excavator offers reliable performance for demanding applications. Built by one of China's leading heavy equipment manufacturers, this 20-ton class machine combines proven hydraulic technology with operational efficiency.
The SY205C features a robust undercarriage designed for stability across varied terrain, a spacious operator cabin with ergonomic controls, and a fuel-efficient engine that balances power with economy. Standard equipment includes a hydraulic quick coupler system and reinforced boom structure for extended service life.
Currently located in Zhejiang, China, this unit is available for inspection. Suitable for earthmoving, trenching, material handling, and general construction work.
- Year: 2019
- Model: Sany SY205C
- Operating Weight: ~20 tons
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1101022 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
