Product Description

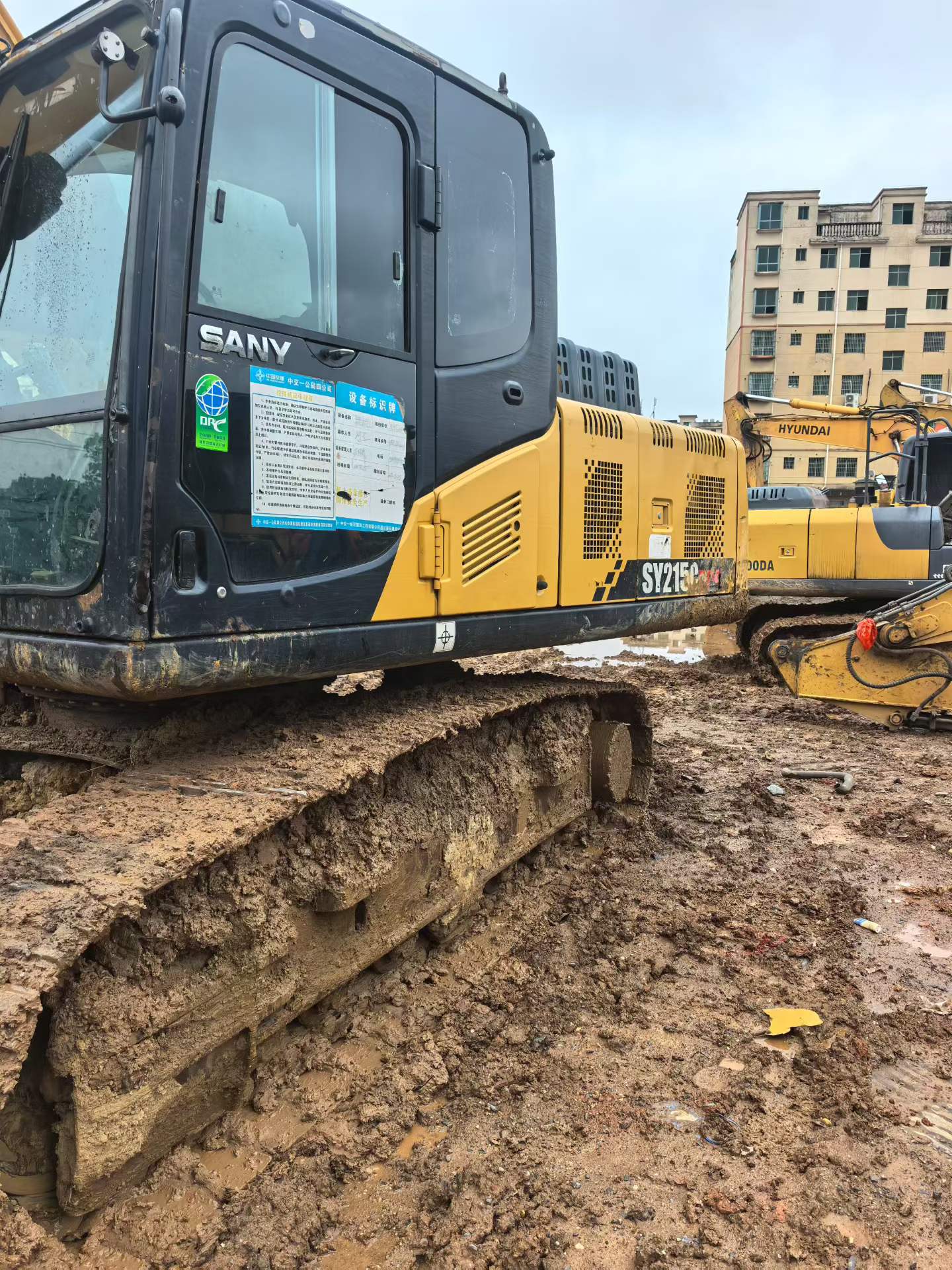

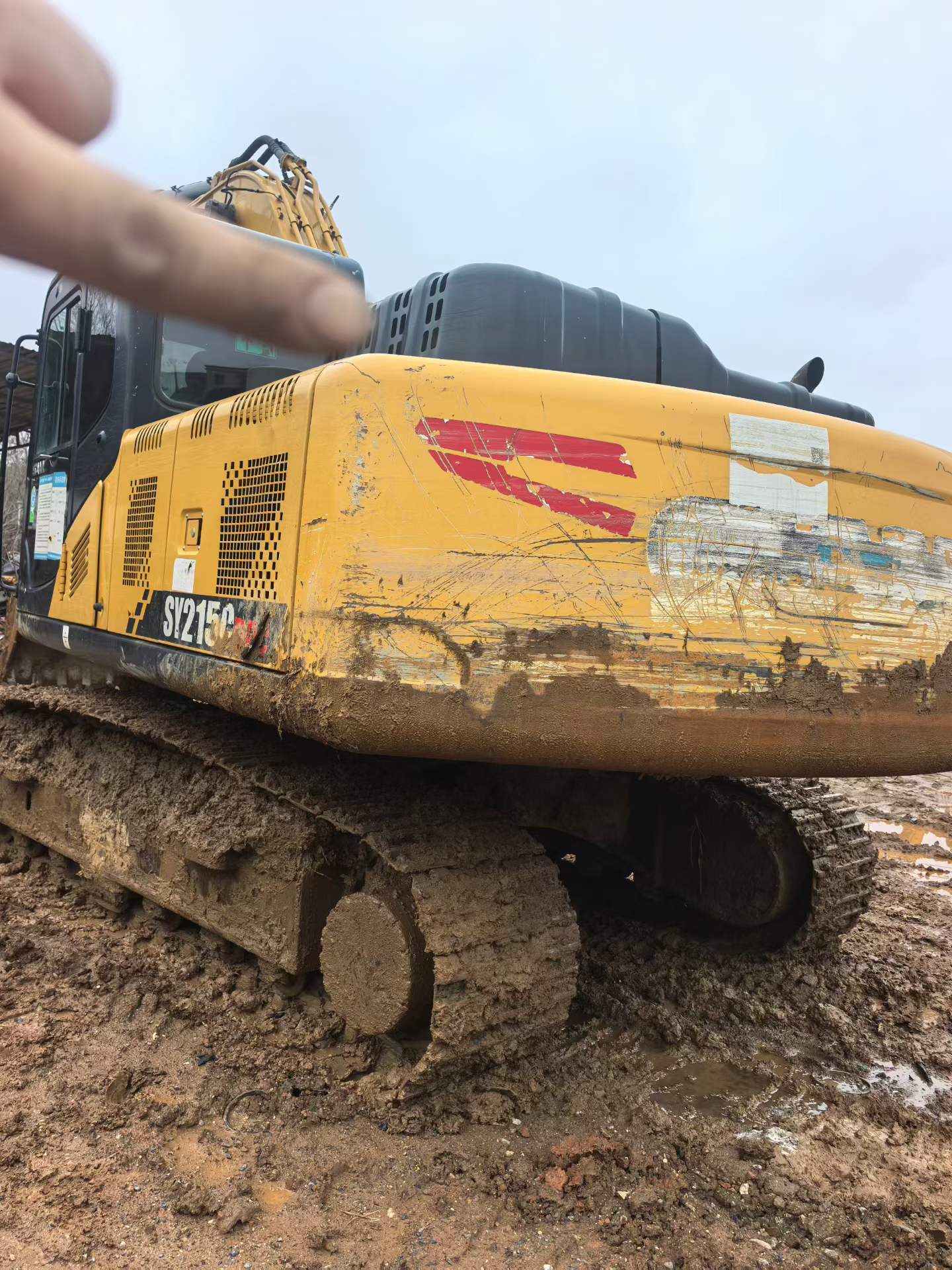

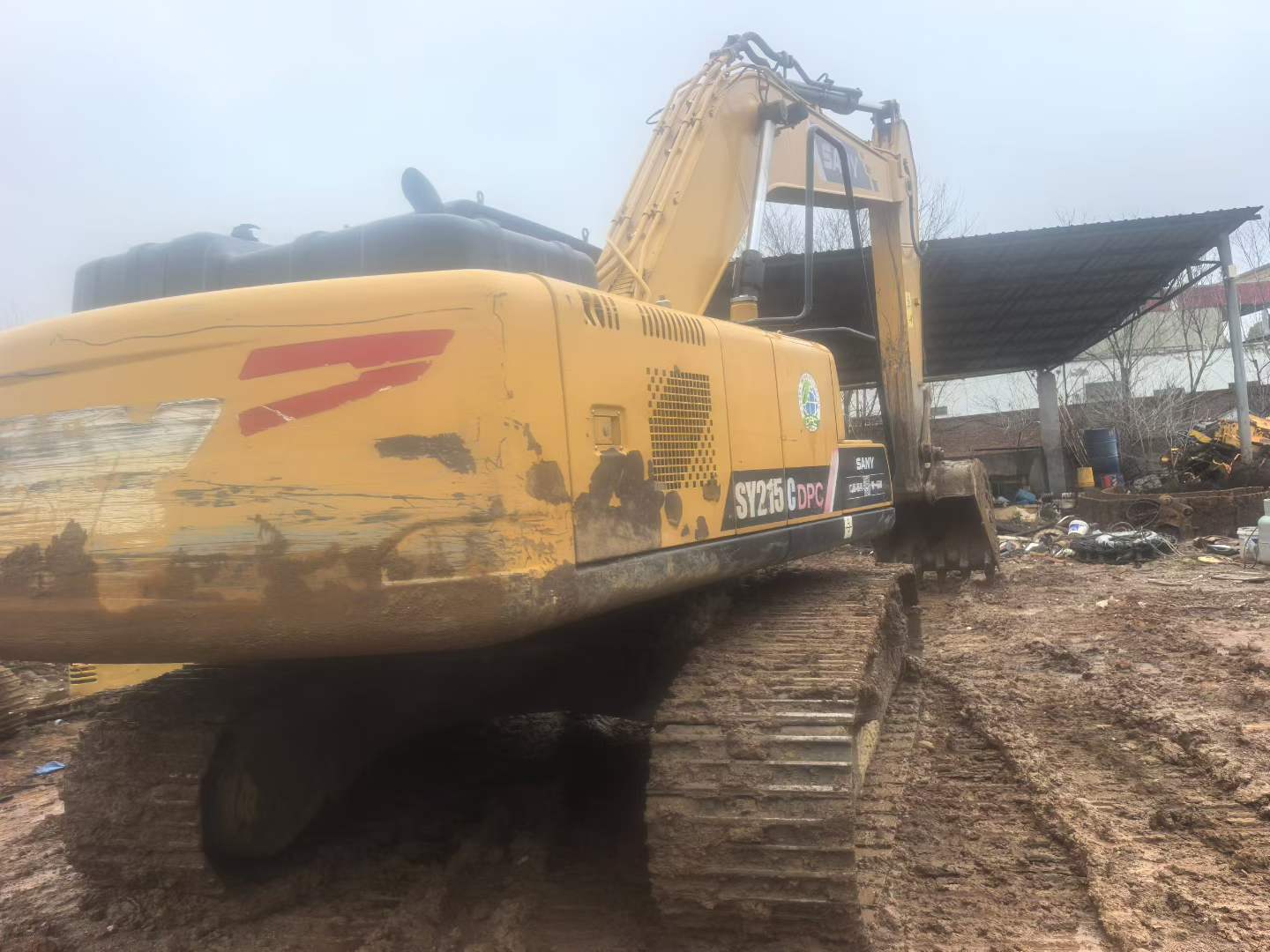

With 20 tons of operational capacity, the Sany SY205C excavator, available now in 江西宜春, ensures fast deployment to your site. Skip the factory lead times and get to work with a machine that boasts a 118 kW power output at 2000 rpm, enabling efficient and powerful performance. Designed for speed and logistics, this excavator features a travel speed of up to 5.4 km/h and a climbing ability of 70% or 35°, making it ideal for challenging terrains. The backhoe bucket, with a capacity of 0.9 to 1.1 m³, delivers robust digging forces of 138 kN and 109 kN for the bucket and rod, respectively. Built in China, this model is ready to handle demanding tasks with a total transport length of 9680 mm and a width of 2980 mm, ensuring easy transportation and maneuverability on-site.
| Specifications | Value |
|---|---|
| No. | 1019995 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

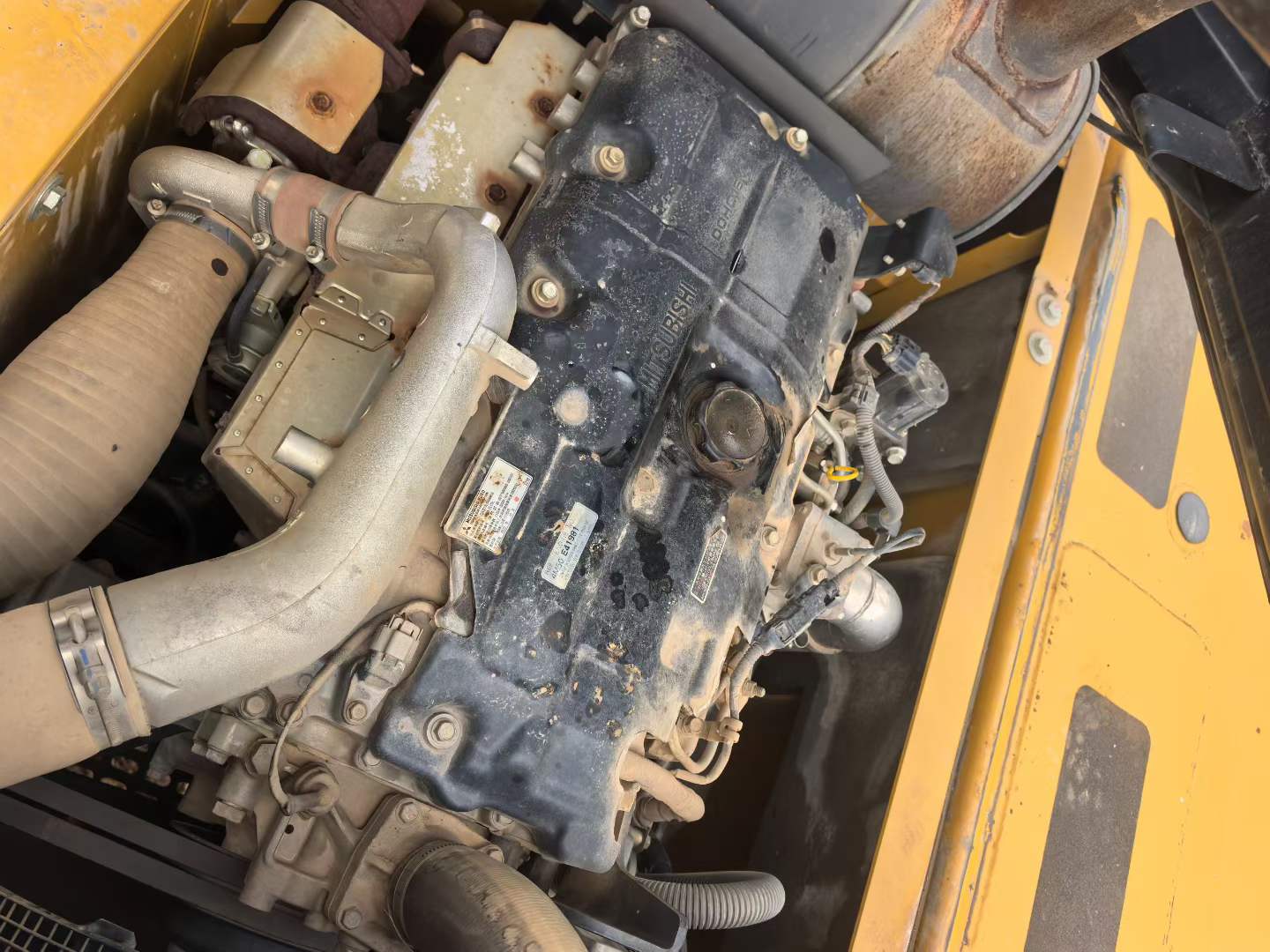

| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
