Product Description

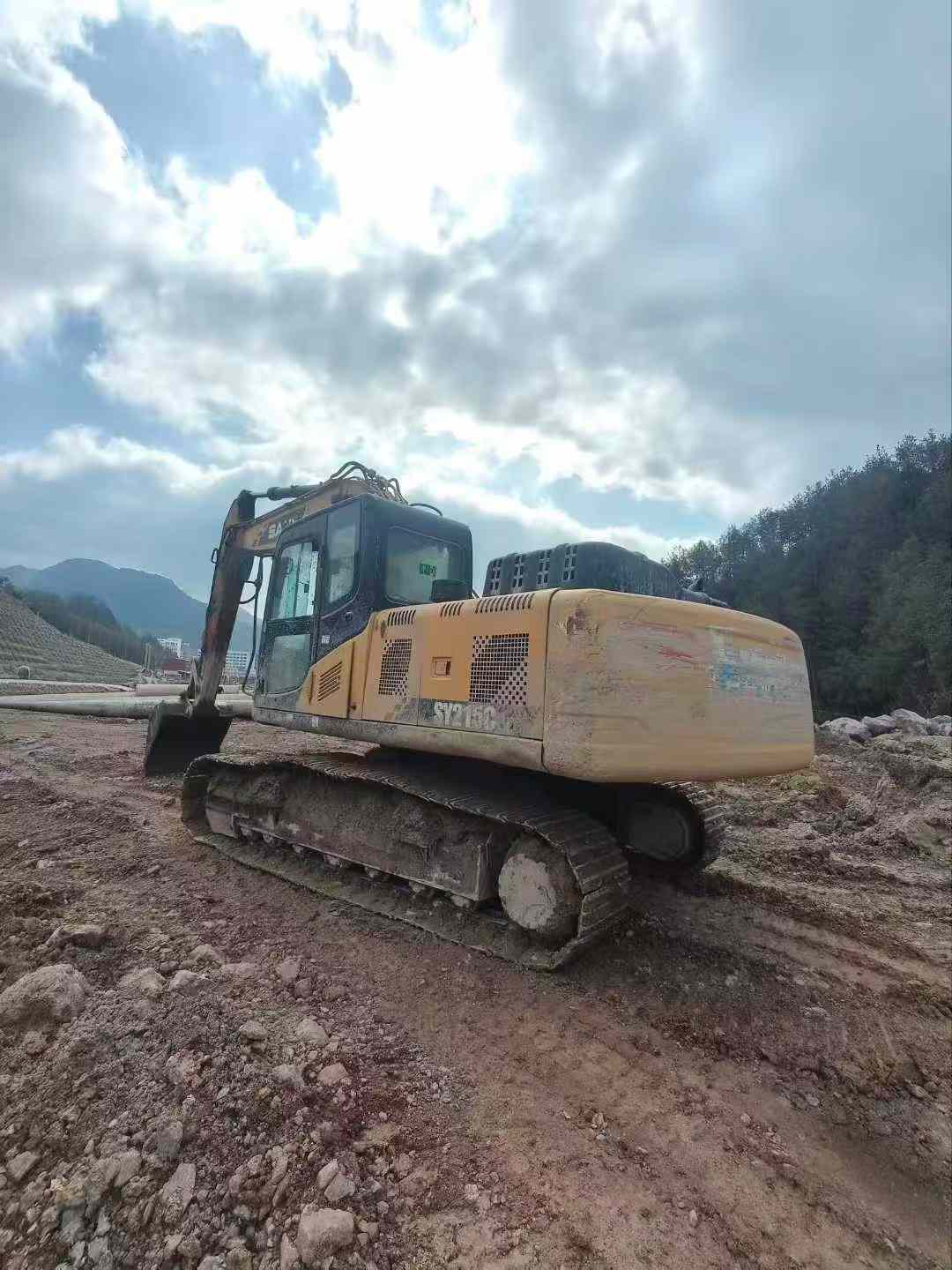

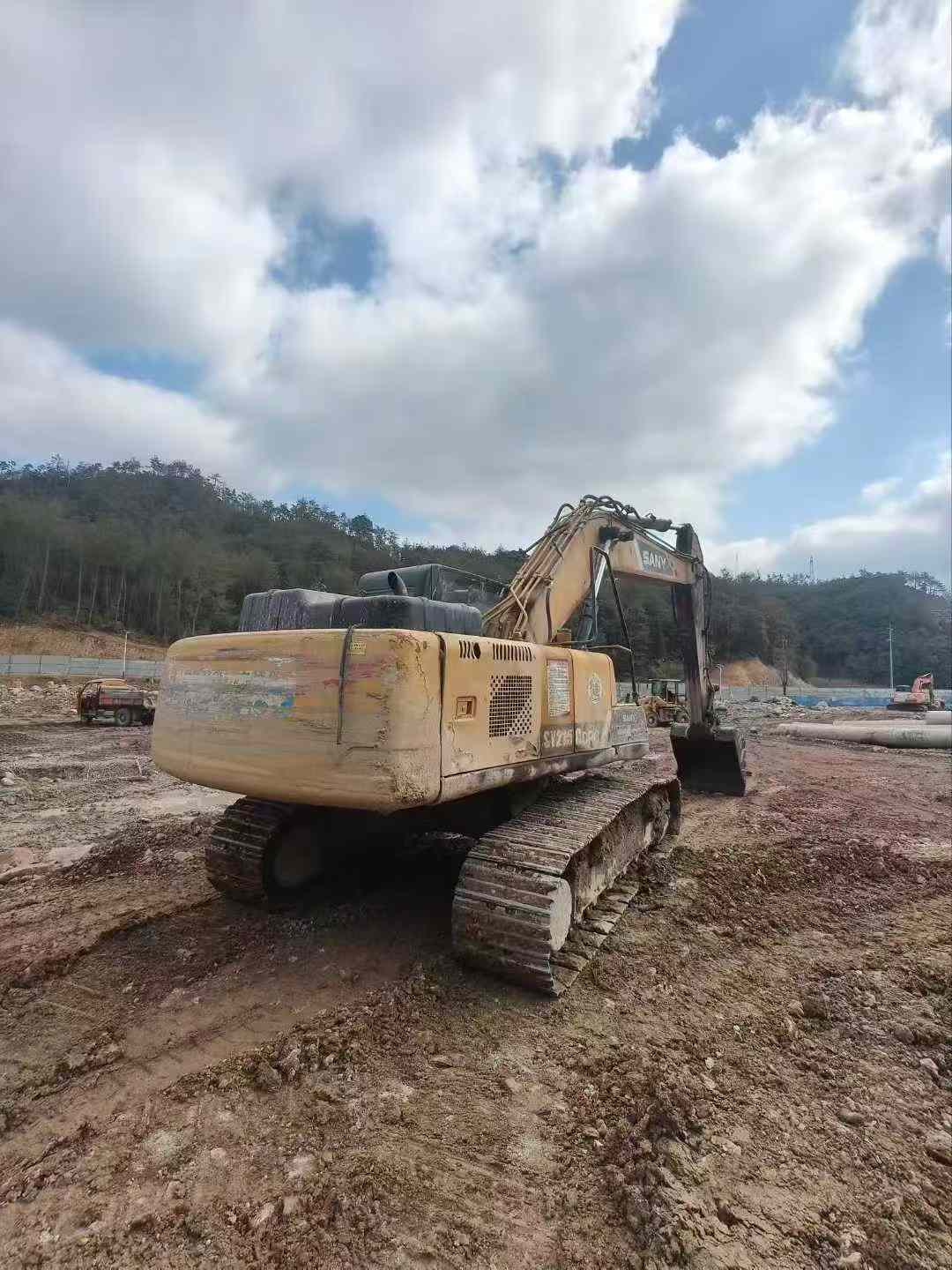

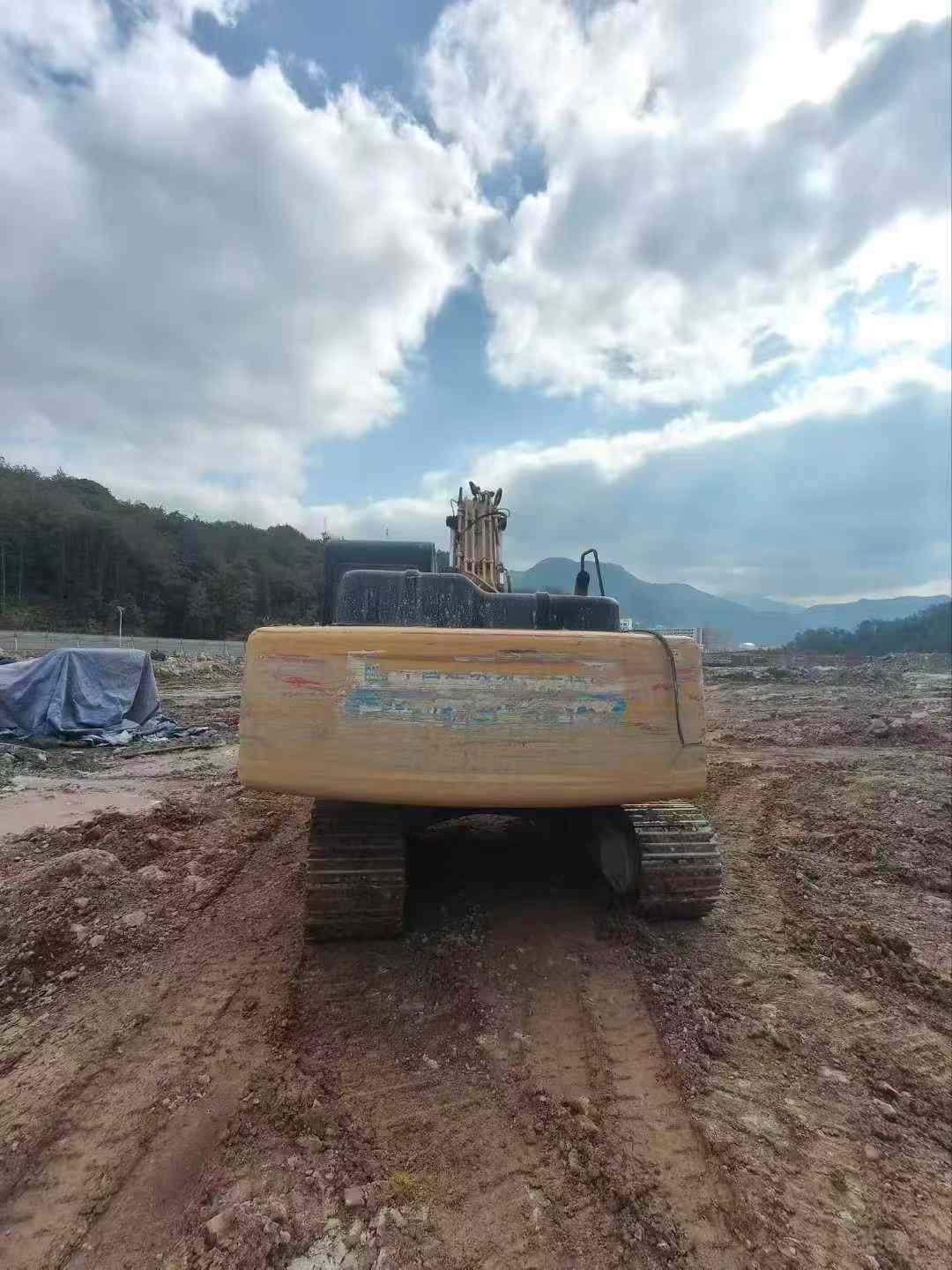

Built for demanding excavation work, this 2020 Sany SY205C arrives ready to tackle your next project. Operating at 20 tons with a robust 118kW engine, this mid-size excavator delivers serious digging power—138kN bucket force and 109kN arm force—making it capable of breaking through tough ground conditions on construction sites, utility projects, and land development operations.
With a maximum digging depth of 6,600mm and reach extending to 10,280mm, you'll handle trenching, foundation work, and material loading with efficiency. Its 0.9-1.1m³ bucket capacity moves substantial earth volumes per cycle, while the compact 2,980mm transport width allows access to confined urban jobsites.

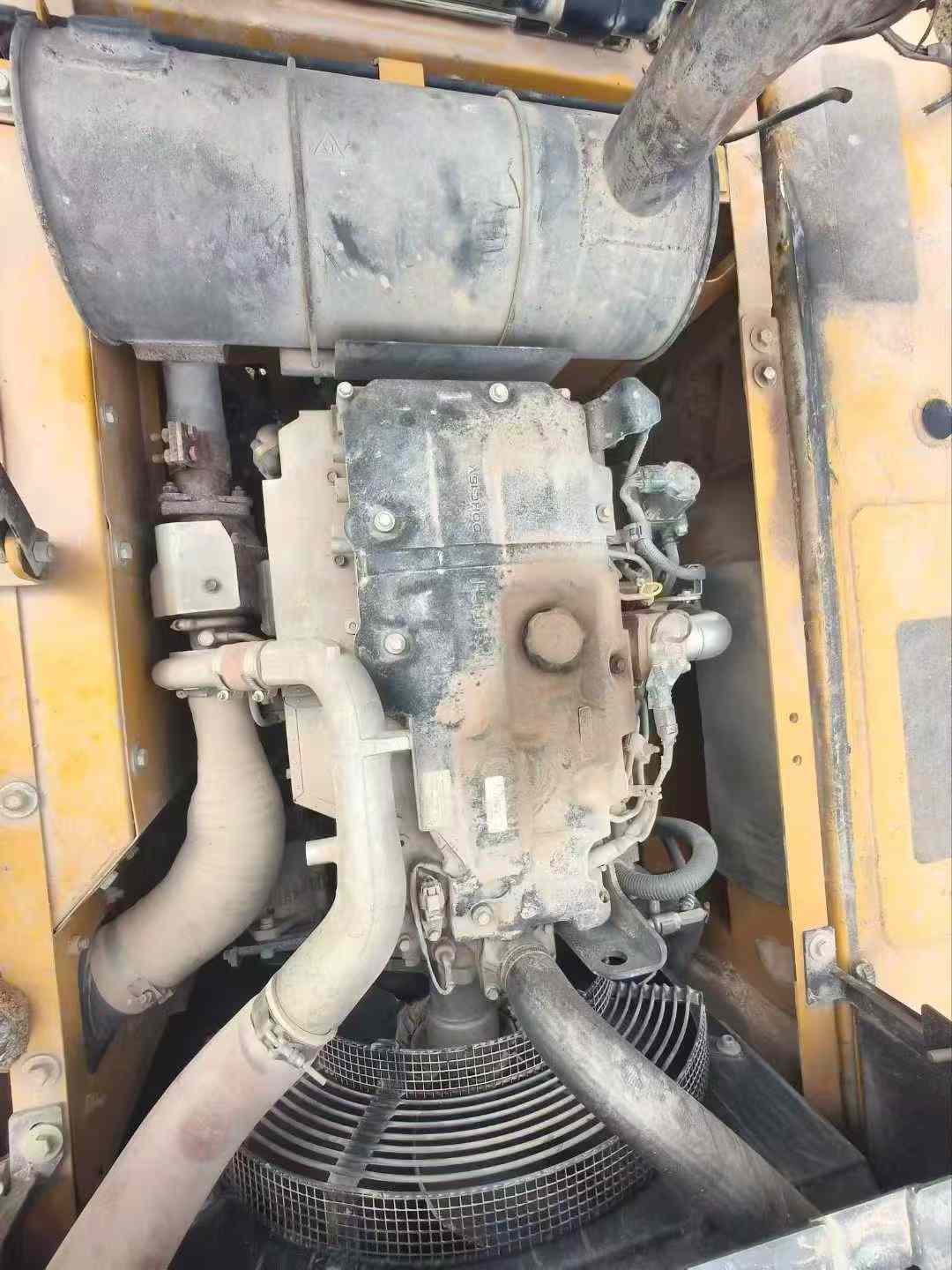

- Powerful 118kW engine rated at 2000rpm for consistent performance
- 21,500kg working weight provides excellent stability during operation
- 5.4km/h travel speed for rapid repositioning across site
- 70% gradeability conquers challenging terrain without hesitation
- Located in Lishui, Zhejiang—ready for immediate deployment
Currently positioned in Zhejiang province, this machine represents proven Chinese manufacturing quality at an accessible price point for contractors requiring dependable e
| Specifications | Value |
|---|---|
| No. | 1020927 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
