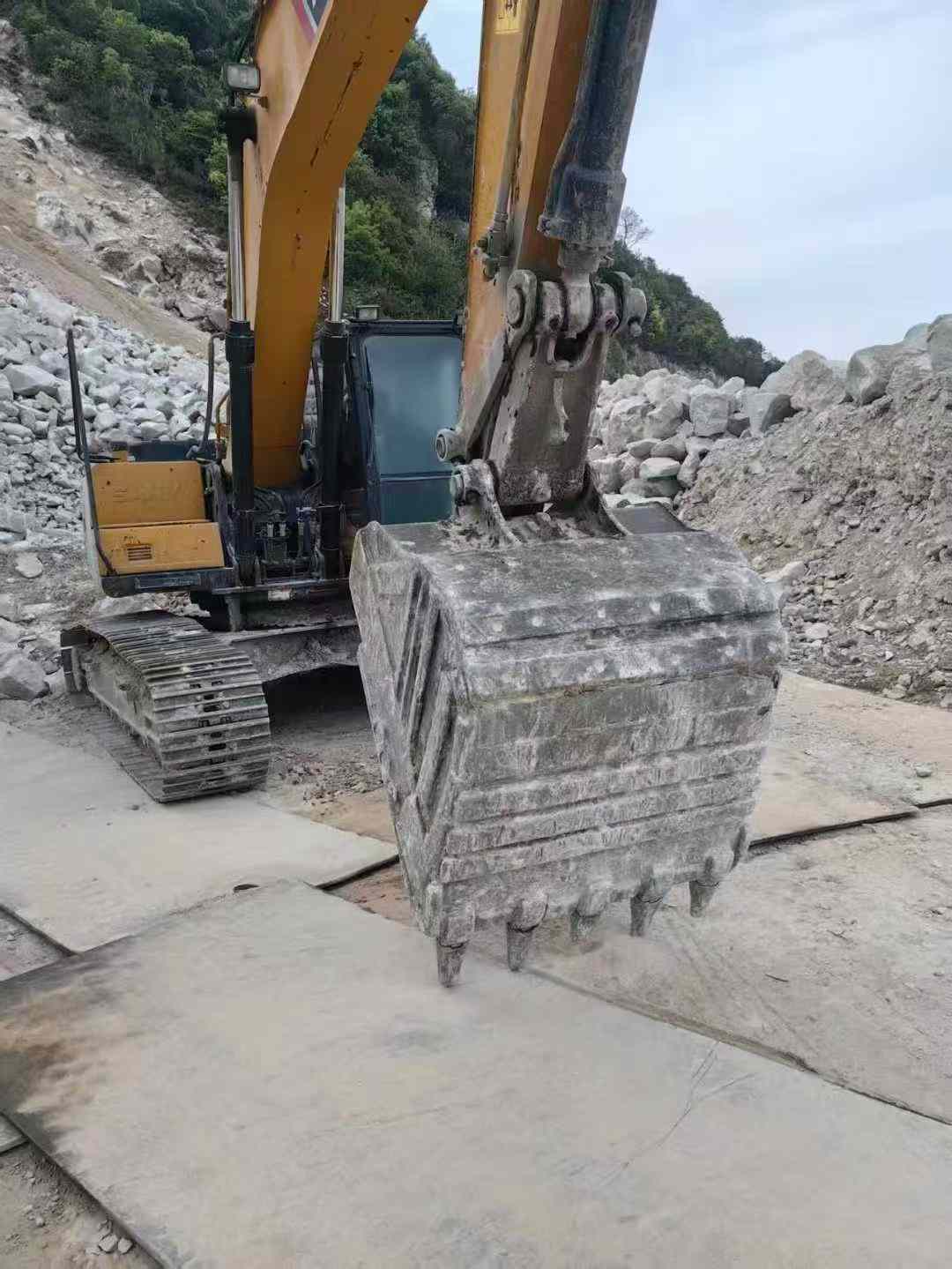

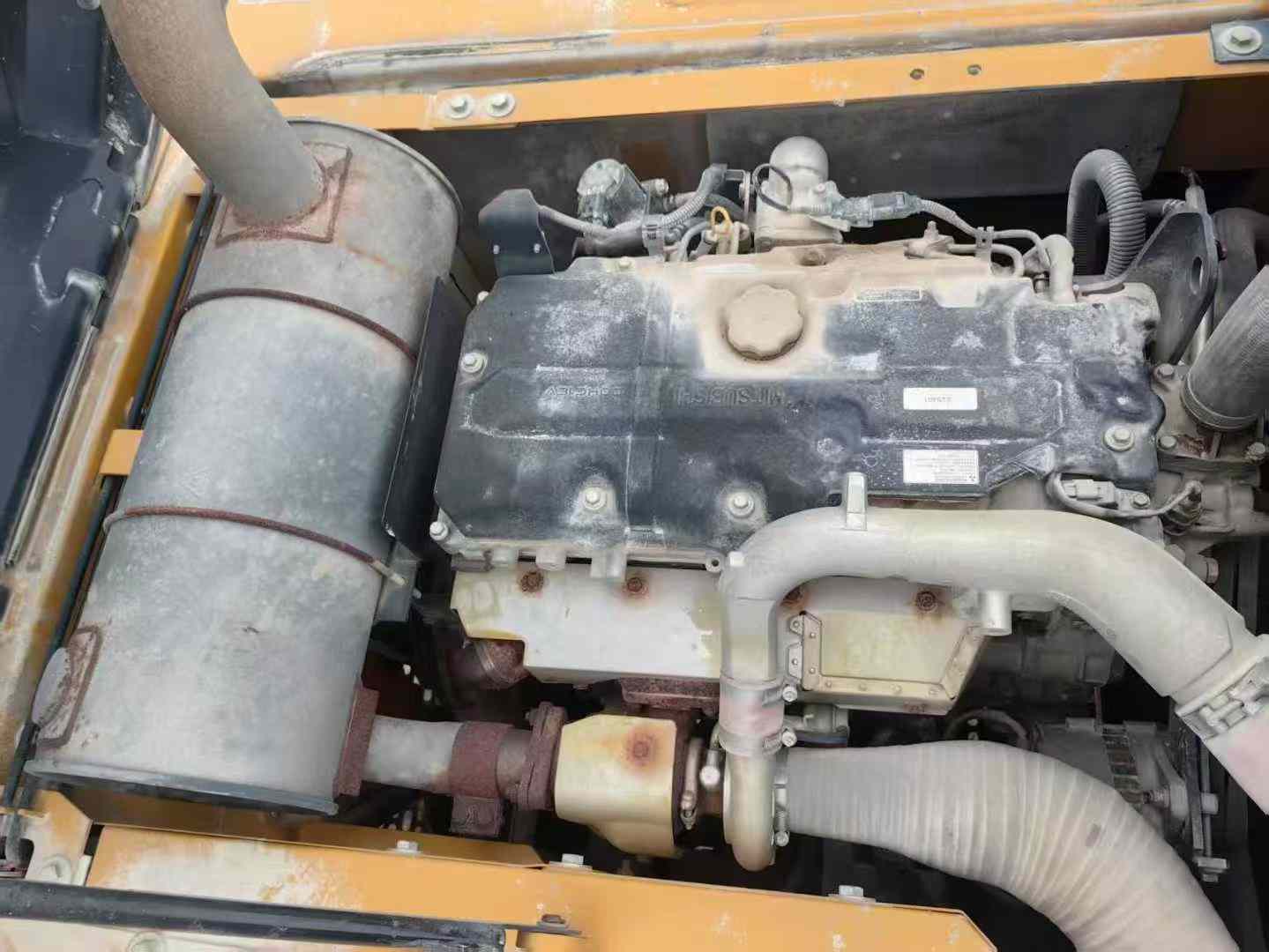

Expand your operational capacity with this 2020 Sany SY205C excavator, currently available in Hangzhou, Zhejiang. Built for contractors managing multiple jobsites simultaneously, this 20-ton machine delivers the performance consistency your fleet demands. Powered by a robust 118kW engine and equipped with a 0.9-1.1m³ bucket, it handles excavation, loading, and trenching with proven reliability across residential, commercial, and infrastructure projects.
- Maximum Digging Reach: 10,280mm ensures productivity on deep foundation and utility work
- Digging Depth: 6,600mm capability for standard excavation requirements
- Powerful Breakout Force: 138kN bucket force tackles compacted soils and mixed materials
- Compact Transport Dimensions: 9,680mm length simplifies fleet logistics and trailer deployment
- Extended Working Range: 9,600mm max excavation height for loading operations
Ready to integrate seamlessly into existing Sany fleets or complement mixed equipment lineups. Factory-built quality from China with specifications that match contractor-grade workloads. Contact Fair Trade Machinery for comp
| Specifications | Value |
|---|---|
| No. | 1024099 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
