Product Description

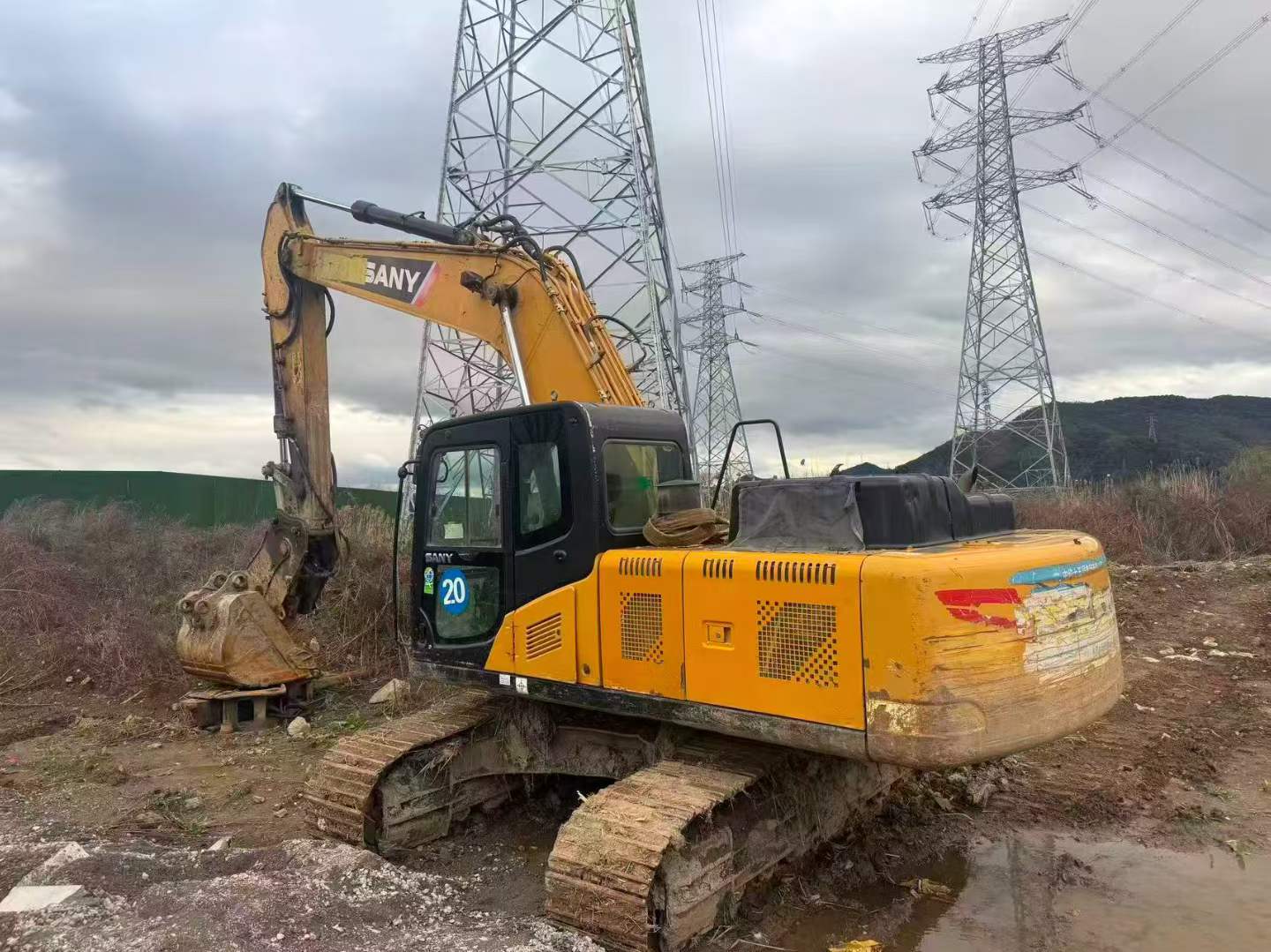

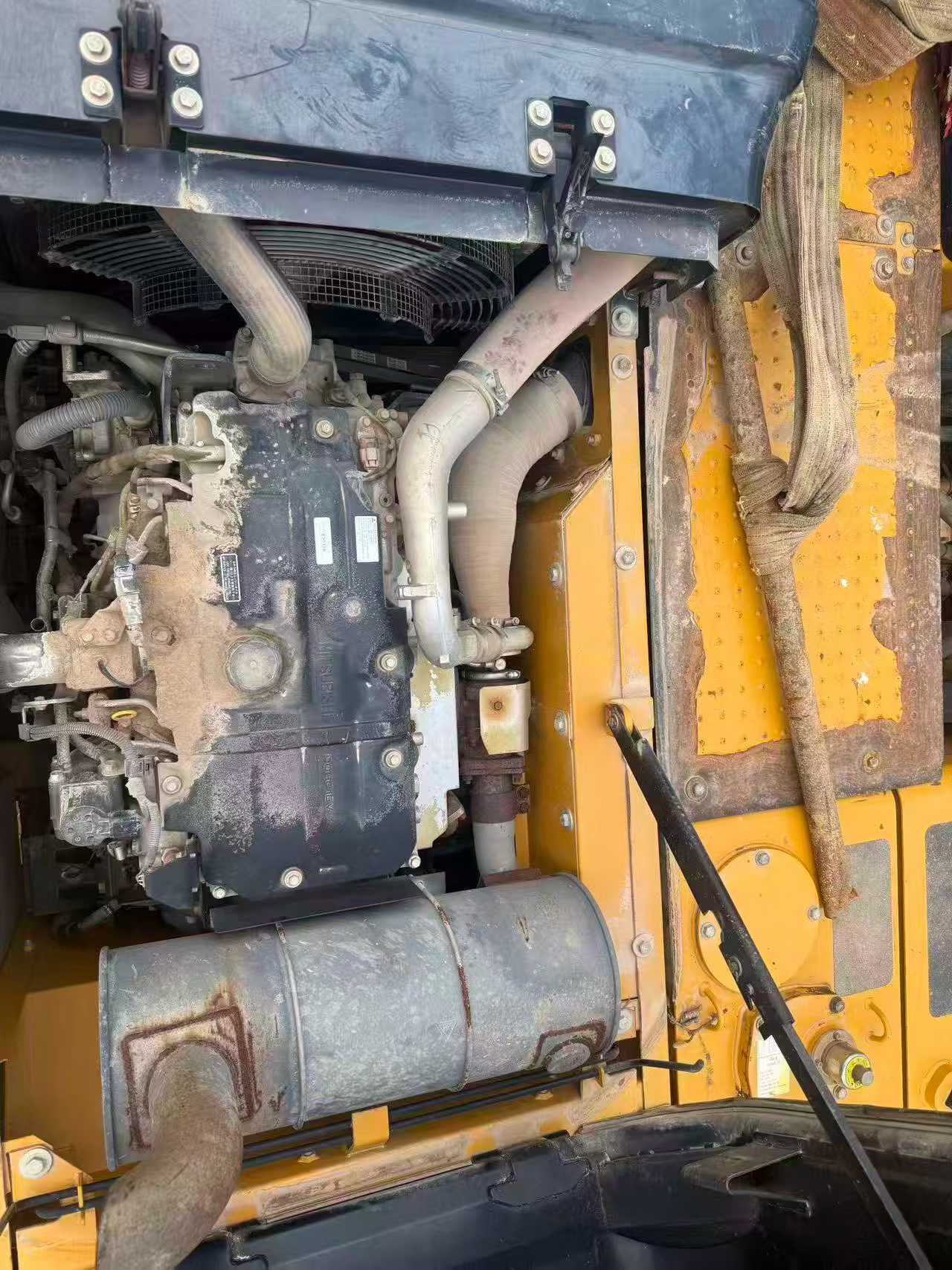

Engineered with a robust 118kW power unit delivering peak torque at 2000 rpm, this 2020 Sany SY205C demonstrates superior hydraulic performance through its 138kN bucket digging force and 109kN arm digging force. Operating at 21,500kg working weight, the machine combines precision engineering with practical capability across a 10,280mm maximum digging radius and 6,600mm digging depth. China's manufacturing expertise is evident in the SY205C's well-balanced design, featuring optimized ground pressure at 47.3kPa that ensures stability without sacrificing mobility.
- Hydraulic Power: 138kN bucket force, 109kN arm force for demanding excavation tasks
- Working Capacity: 0.9-1.1m³ backhoe bucket handles high-volume material movement
- Performance Metrics: 70% (35°) grading ability, 11 rpm rotation speed for efficient operation
- Operational Range: 9,600mm max dig height, 6,730mm unloading height
- Compact Transport: 9,680mm length fits standard logistics requirements
- Current Location: Maoming, Guangdong—ready for international shipping
Backed by Sany's proven track record in
| Specifications | Value |
|---|---|
| No. | 1024117 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
