Product Description

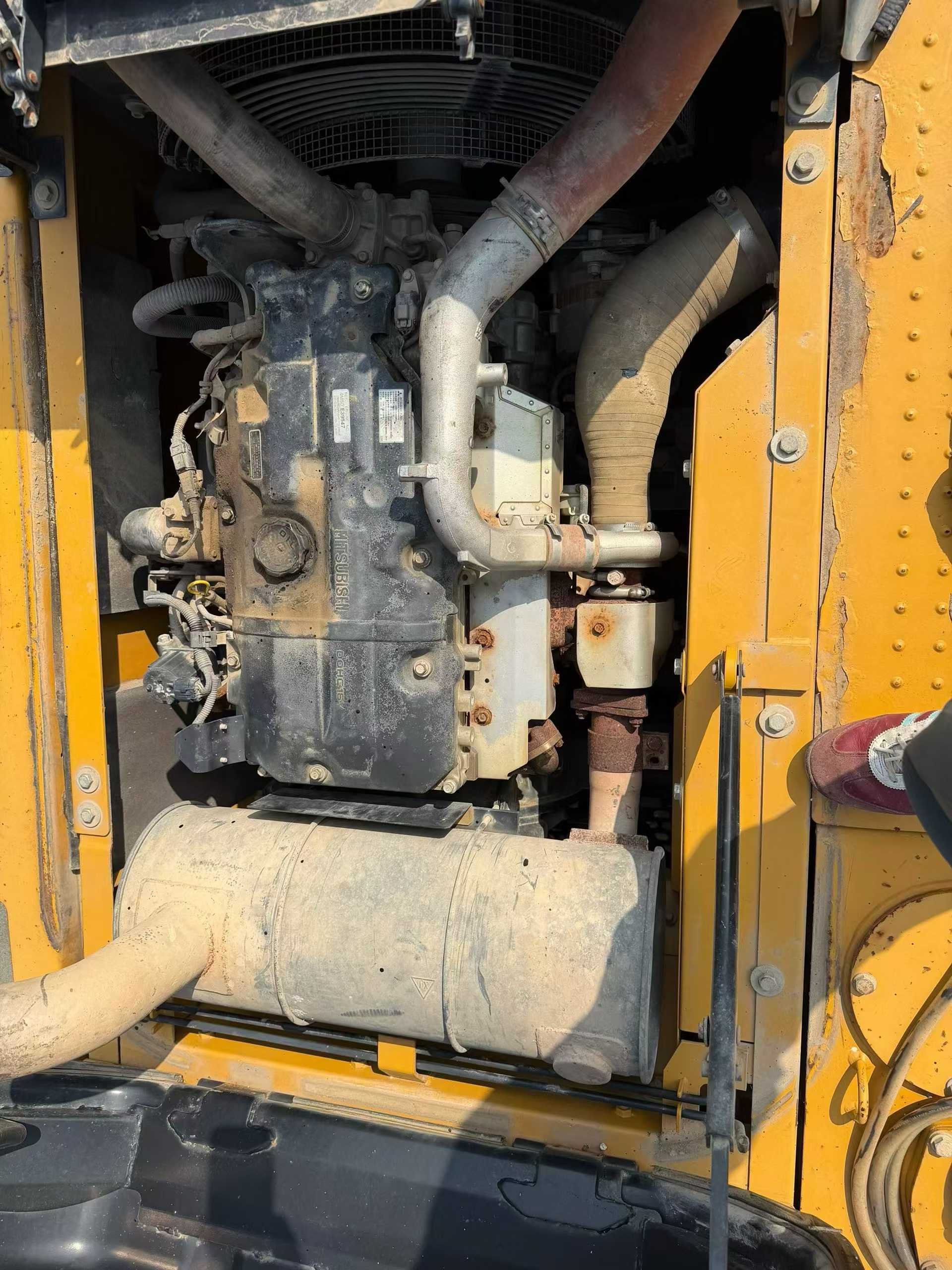

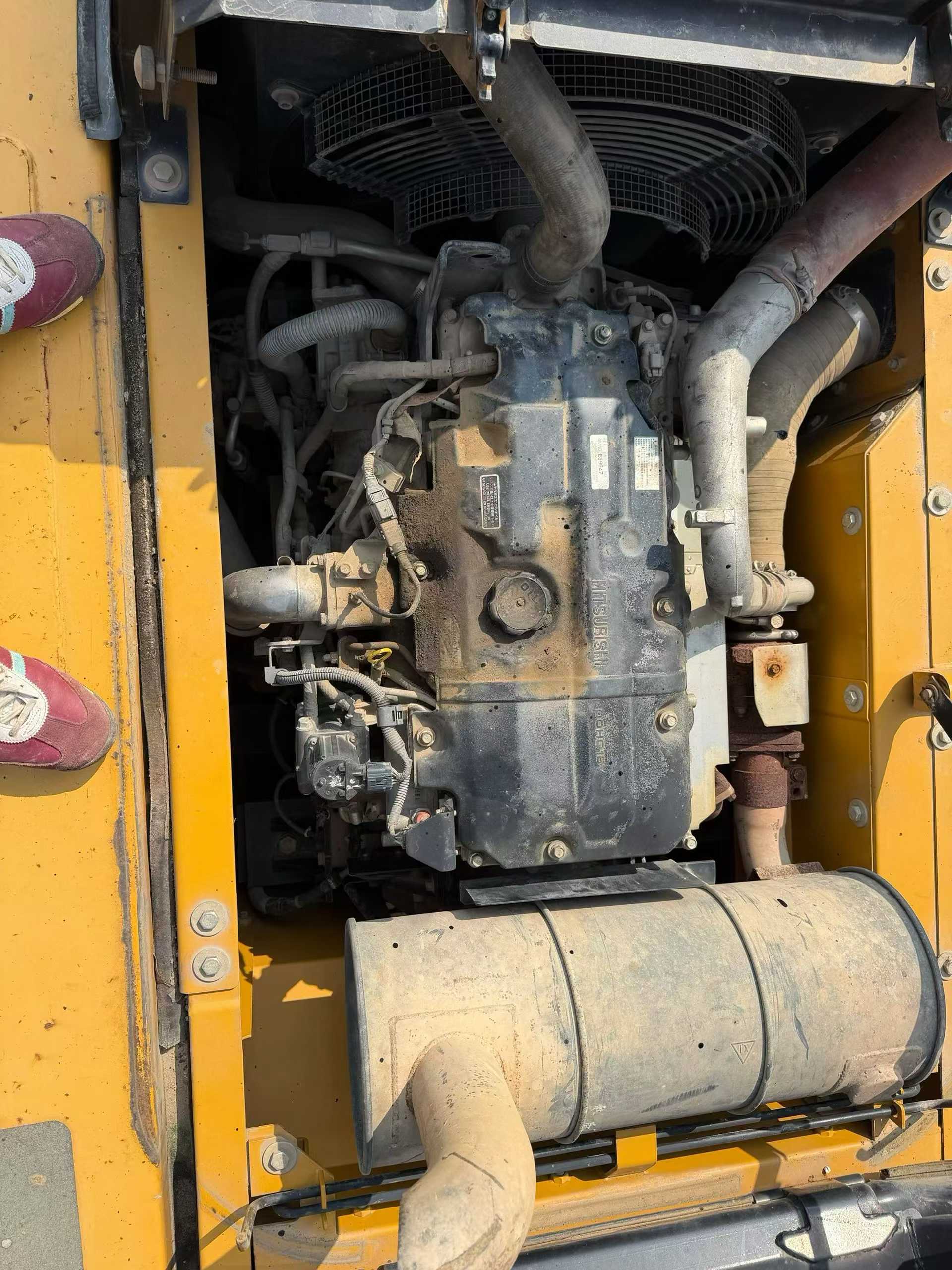

Proven performance meets robust engineering in this 2020 Sany SY205C excavator, now available from our Foshan, Guangdong facility. With four years of operational history, this 20-ton workhorse demonstrates Sany's commitment to build quality and long-term reliability. Powered by a 118kW engine delivering consistent performance at 2000 rpm, this machine handles demanding excavation tasks with a maximum digging depth of 6,600mm and reach extending to 10,280mm. The 0.9-1.1m³ bucket capacity strikes an optimal balance between productivity and fuel efficiency.
- Operating Weight: 21,500 kg – stable platform for precision work
- Digging Force: 138kN bucket / 109kN arm – tackles tough ground conditions
- Travel Speed: 5.4/3.3 km/h – efficient site mobility
- Climbing Ability: 70% (35°) – handles challenging terrain
- Track Configuration: 600mm plates, 2,380mm gauge – superior stability
Built for contractors who demand durability, this SY205C has established its credentials in real-world applications. Chinese manufacturing excellence backed by operational proof.
| Specifications | Value |
|---|---|
| No. | 1025135 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
