Product Description

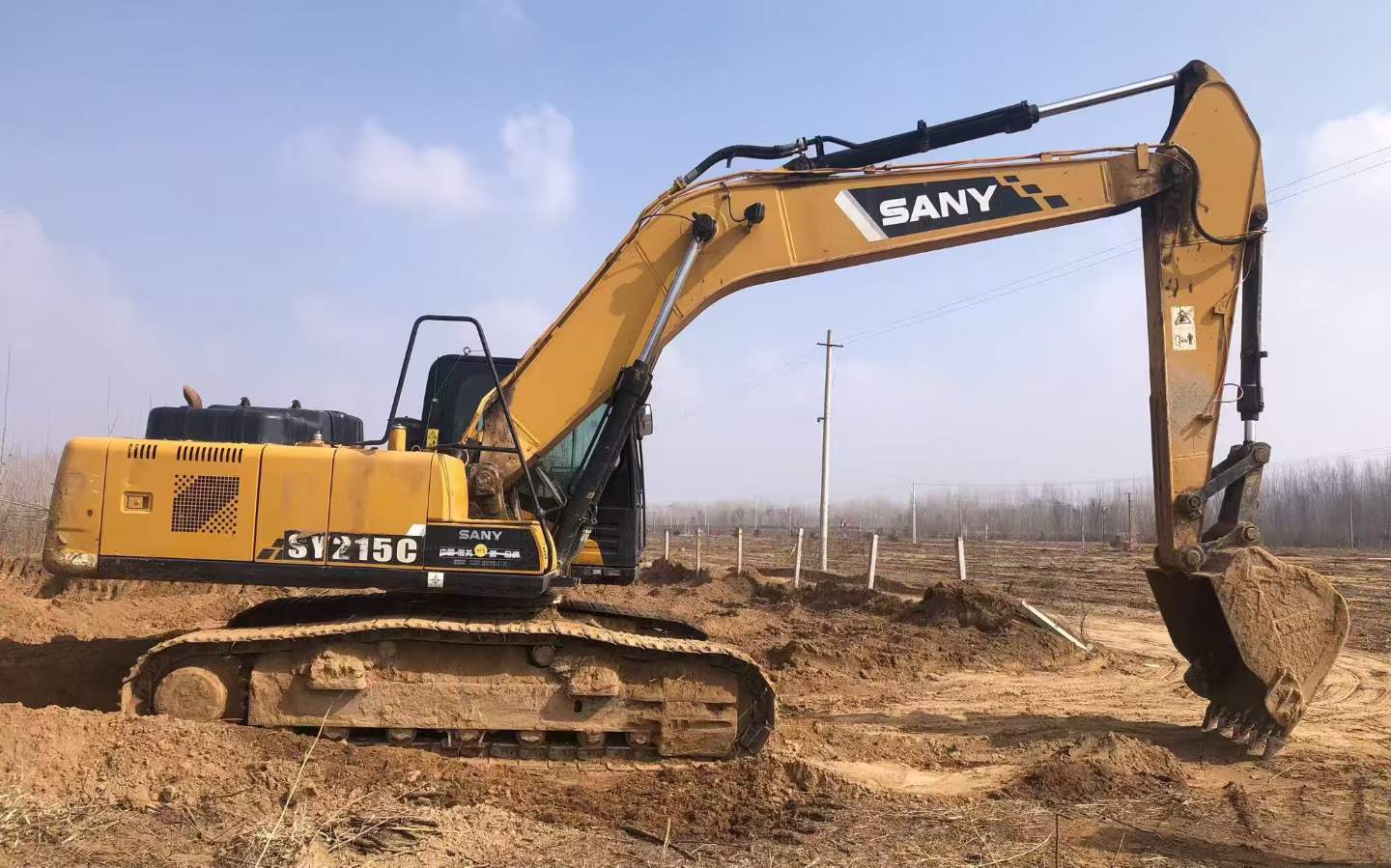

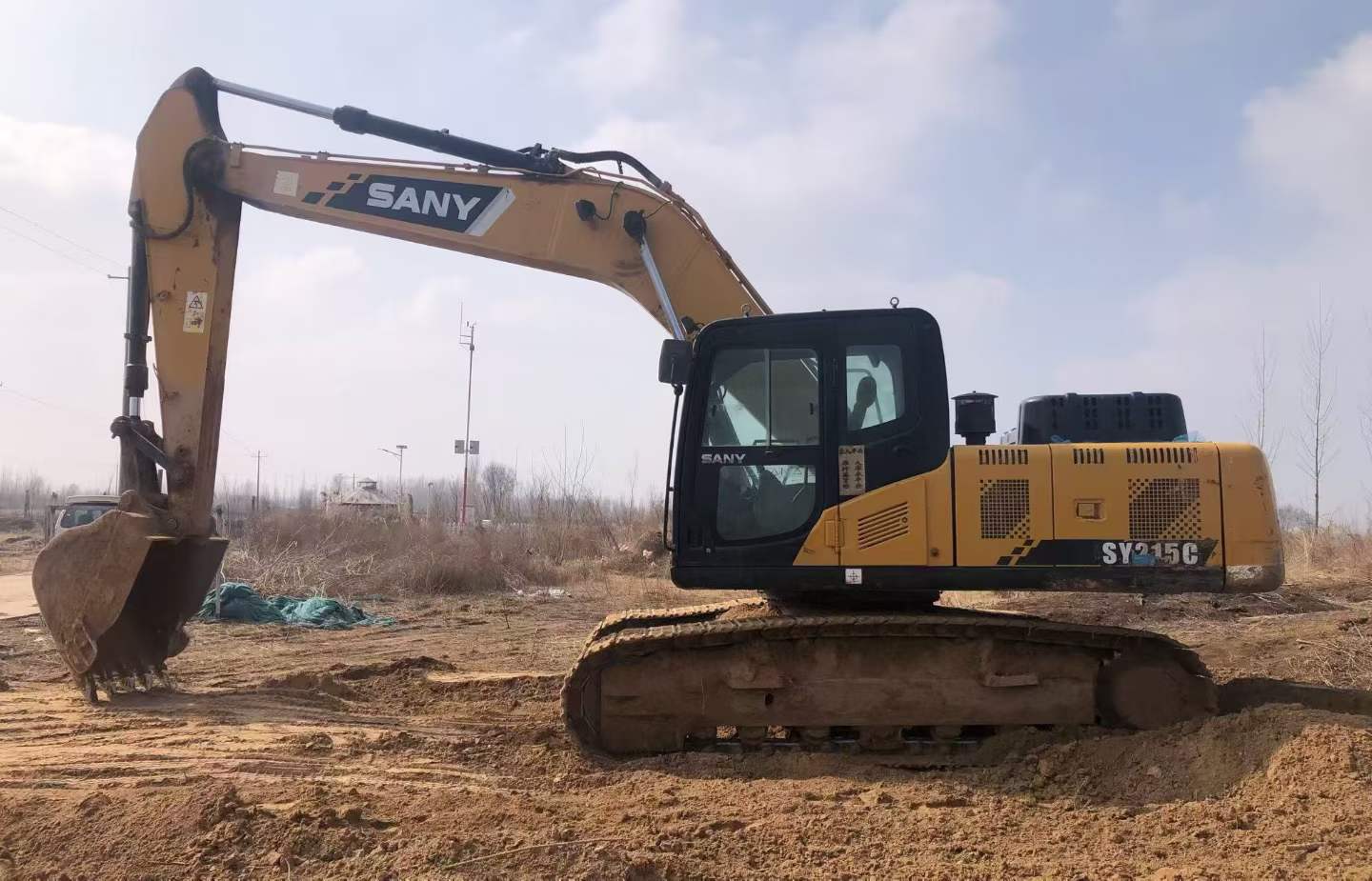

Built for precision and all-day productivity, this 2020 Sany SY205C delivers reliable performance in a 20-ton package. Powered by a robust 118 kW engine, it combines exceptional digging force—138 kN bucket and 109 kN arm—with responsive hydraulics that give operators exact control over every movement. A maximum digging reach of 10,280 mm and depth capacity of 6,600 mm make it highly versatile across excavation, grading, and material handling applications.
Operator comfort drives efficiency on this machine. Standard features include:
- Spacious cab with 3,075 mm height and panoramic visibility for safe maneuvering
- Low ground pressure (47.3 kPa) for enhanced stability on soft terrain
- Dual travel speeds (5.4/3.3 km/h) for adaptable site navigation
- Compact tail swing radius (2,900 mm) for confined workspace operation
- Impressive 70% gradeability for challenging slopes
Currently located in Shandong, China, this SY205C represents proven Chinese engineering with straightforward maintenance and parts availability. Ready for immediate deployment in construction, demolition, or earthmoving projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1025222 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
