Product Description

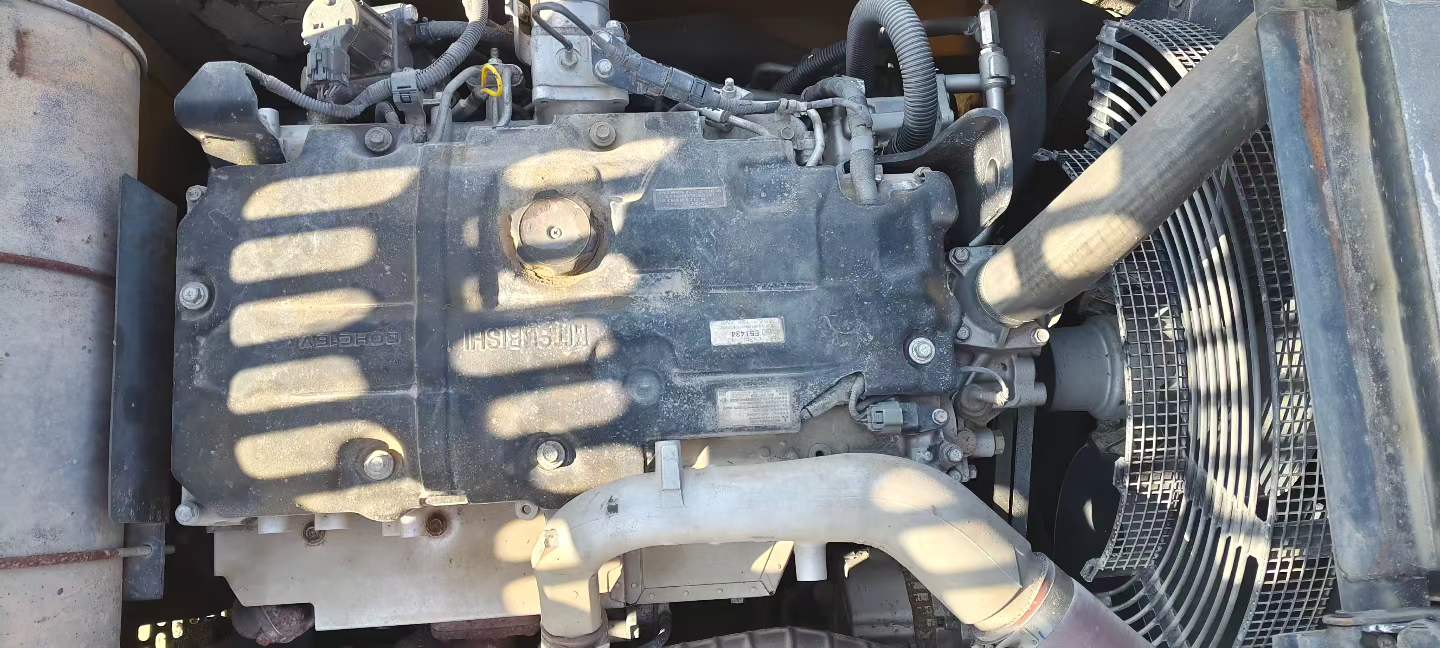

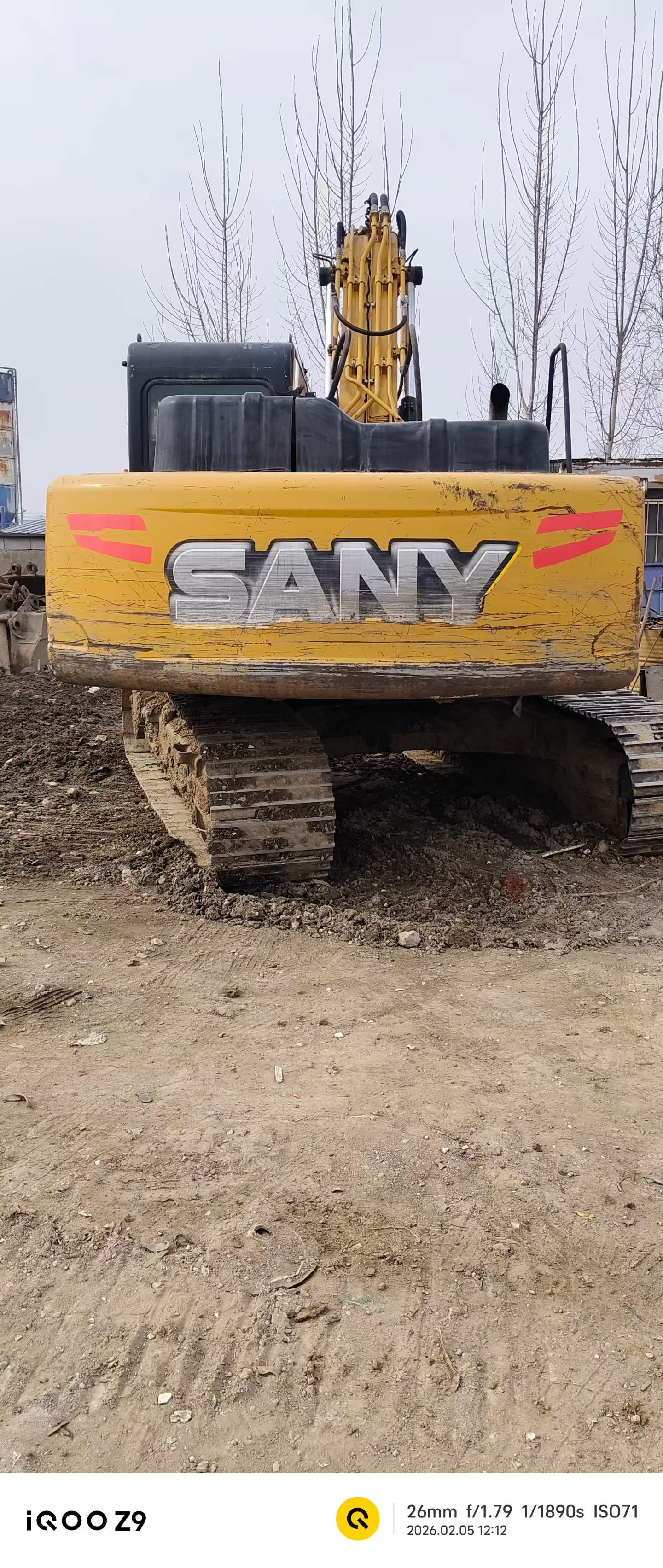

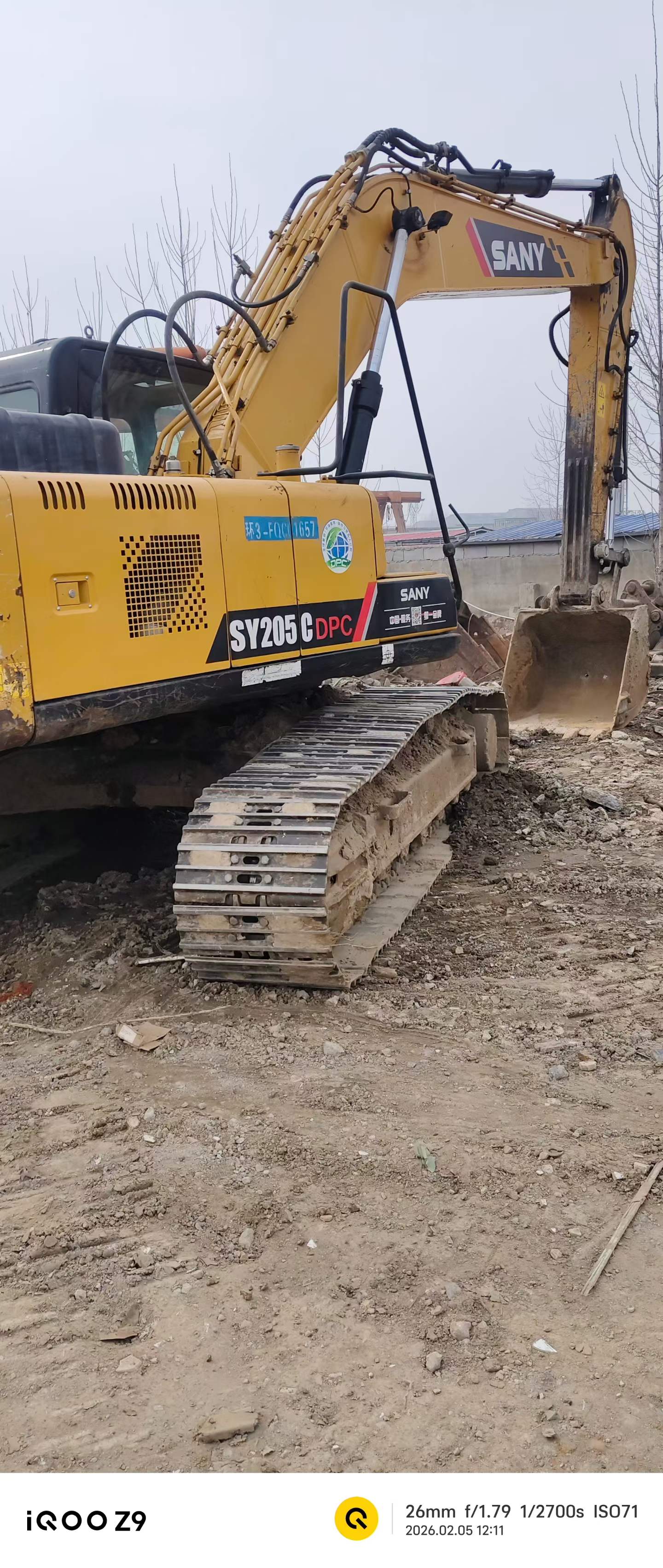

Built for productivity, this 2020 Sany SY205C delivers 20-ton performance across demanding excavation, grading, and demolition applications. Powered by a robust 118kW engine at 2000rpm, this machine generates 138kN bucket digging force and 109kN arm digging force—enough to tackle hard-packed soil, rocky terrain, and structural removal with consistent efficiency. Currently located in Shandong Linyi, it arrives site-ready with proven Chinese manufacturing quality.
- Operating weight: 21,500kg with 0.9-1.1m³ bucket capacity
- Maximum digging depth: 6,600mm; reach extends to 10,280mm
- Maximum dumping height: 6,730mm for efficient truck loading
- Transport dimensions: 9,680mm × 2,980mm × 3,440mm
- Travel speed: 5.4km/h (high) / 3.3km/h (low) for quick repositioning
- Climbing ability: 70% grade / 35° for challenging access routes
- 600mm track plates on 2,380mm gauge ensure stability
Designed for contractors requiring immediate deployment, this excavator combines reach, power, and maneuverability. Backhoe configuration handles trenching, foundation work, and site preparation without modification. Ready to ship globally from China.
| Specifications | Value |
|---|---|
| No. | 1025934 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
