Product Description

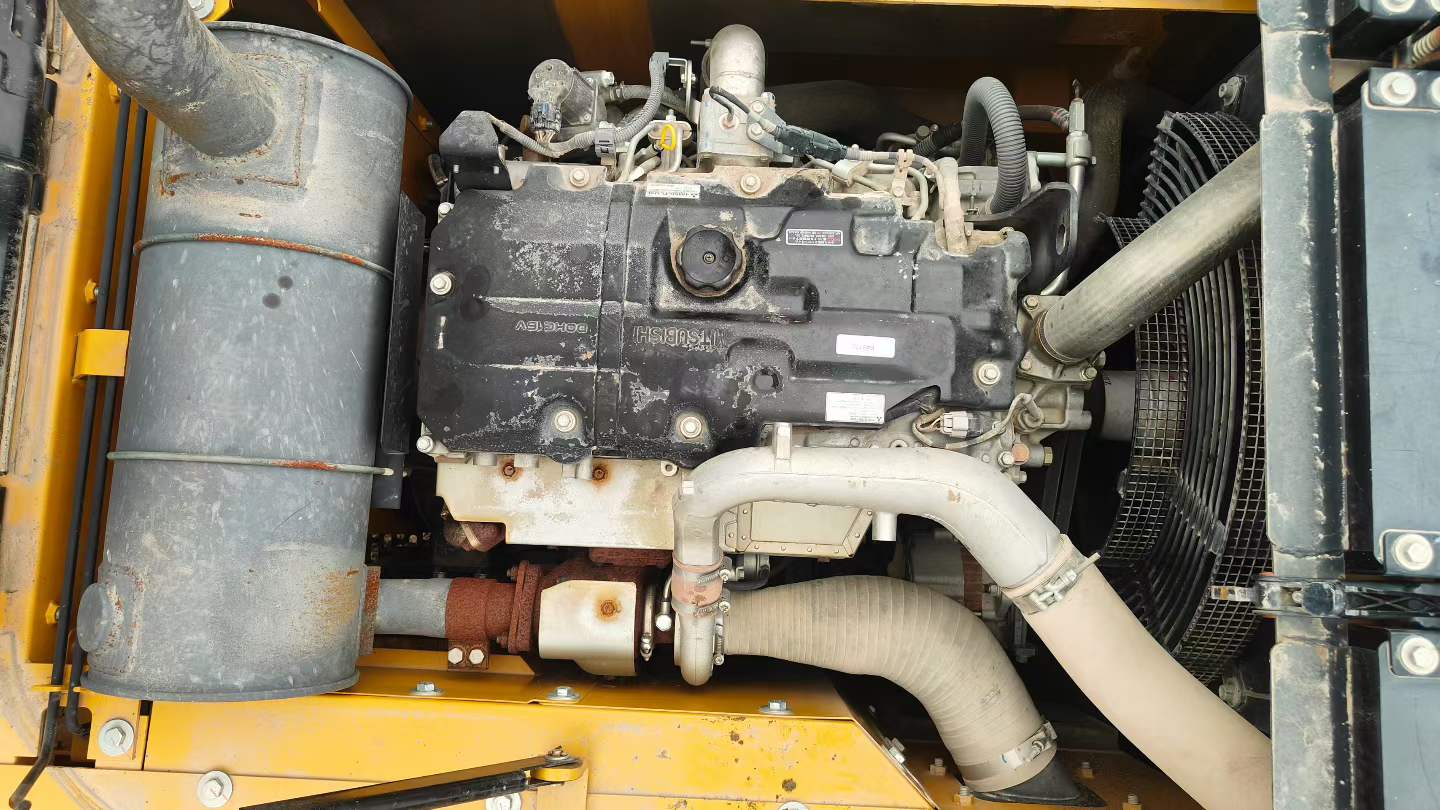

Engineered with a robust 118kW power plant delivering peak torque at 2000 rpm, this 2020 Sany SY205C excavator represents proven Chinese manufacturing capability in the 20-ton class. Operating at 21,500 kg working weight, the machine generates 138 kN bucket digging force and 109 kN arm digging force—figures that translate directly to productivity in demanding earthmoving applications.
Hydraulic efficiency combines with intelligent design across critical performance metrics:
- Maximum digging reach of 10,280 mm with 6,600 mm depth capability
- 0.9-1.1 m³ bucket capacity optimized for medium-duty excavation
- 47.3 kPa ground pressure minimizes surface disturbance
- 70% gradeability (35°) for versatile terrain navigation
- 3,730 mm front swing radius enables confined-space operation
Mounted on 600 mm track plates with 3,360 mm ground contact length, stability remains consistent during full-extension cycles. Dual travel speeds (5.4/3.3 km/h) provide operational flexibility. Currently located in Suqian, Jiangsu, this SY205C offers documented specifications and transport dimensions (9,680 × 2,980 × 3,440 mm) suitable for standard logistics planning.
| Specifications | Value |
|---|---|
| No. | 1026869 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
