Product Description

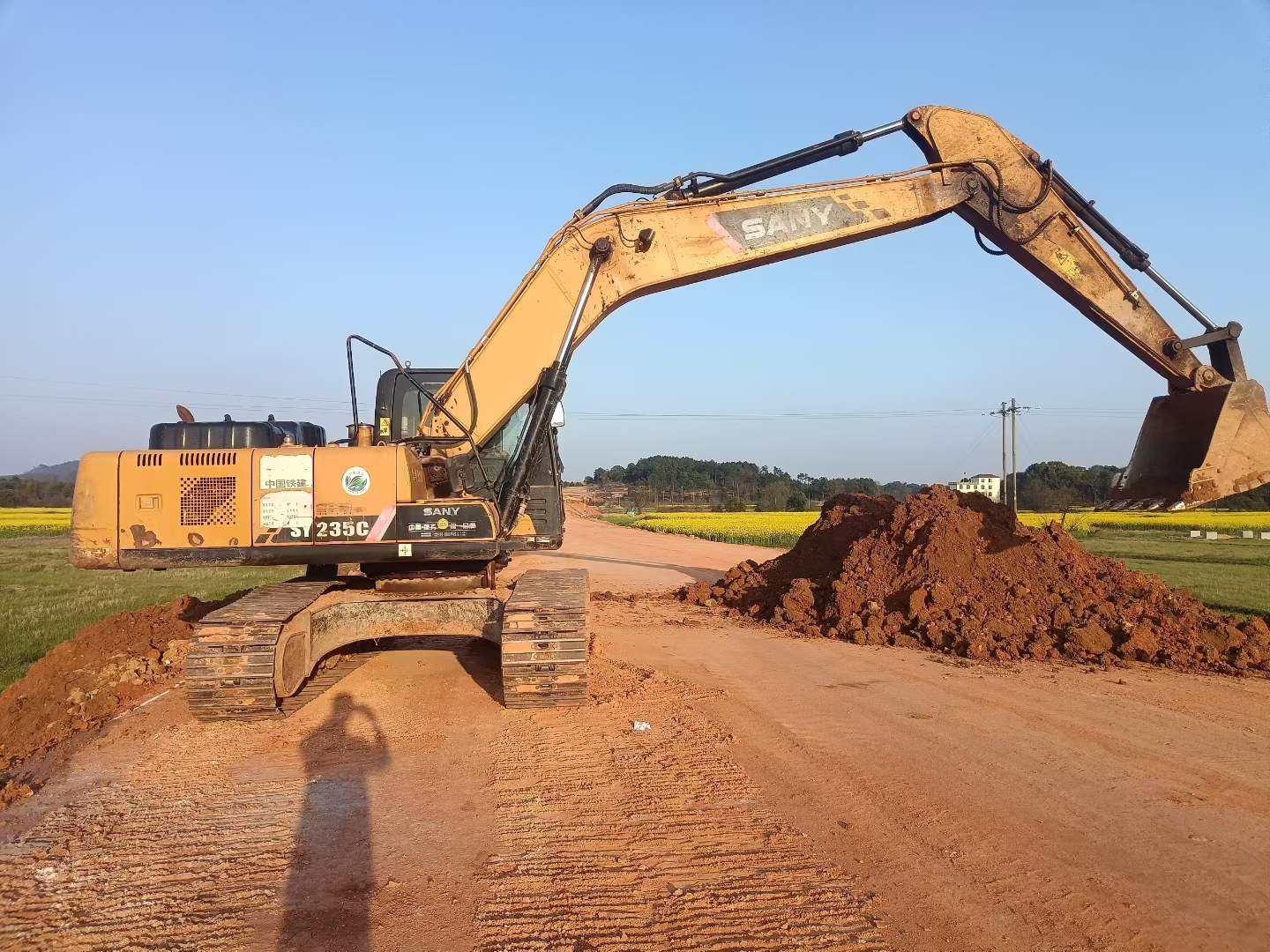

Built to endure the toughest jobsites, this 2020 Sany SY205C excavator delivers proven performance with over four years of field-tested reliability. Powered by a robust 118kW engine and weighing 21,500kg, this 20-ton workhorse handles demanding excavation tasks with a maximum digging depth of 6,600mm and a reach extending to 10,280mm. Its impressive 138kN bucket digging force and 109kN arm digging force tackle challenging ground conditions without hesitation.
Engineered for productivity, this machine features a 0.9-1.1m³ bucket capacity and maintains exceptional stability with 47.3kPa ground pressure. Capable of climbing 70% grades and rotating at 11rpm, it maneuvers efficiently across varied terrain. Currently located in Jiangxi Ji'an, this Chinese-manufactured excavator represents Sany's commitment to durable construction equipment.
- Year: 2020 | Brand: Sany | Model: SY205C
- Operating Weight: 21,500kg | Rated Power: 118kW@2000rpm
- Max Digging Depth: 6,600mm | Max Reach: 10,280mm
- Bucket Capacity: 0.9-1.1m³ | Digging Force: 138kN
- Transport Dimensions: 9,680 × 2,980 × 3,440mm
| Specifications | Value |
|---|---|
| No. | 1030274 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
