Product Description

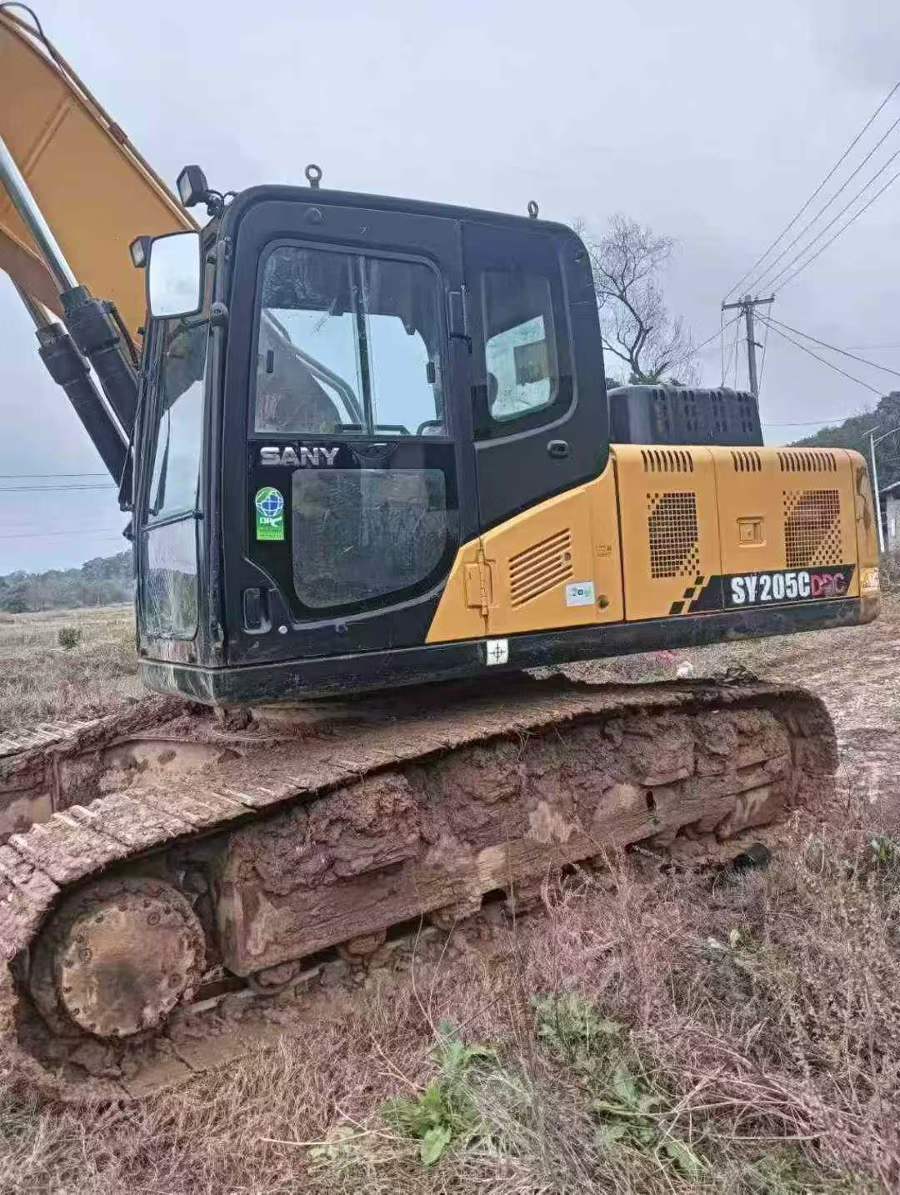

Engineered with a robust 118kW power plant delivering peak torque at 2000 RPM, this 2020 Sany SY205C excavator represents precision manufacturing from one of China's leading heavy equipment producers. Operating at 20 tons with a working weight of 21,500 kg, the machine combines a powerful hydraulic system generating 138kN bucket digging force and 109kN arm digging force for superior ground penetration and material handling.
Built for demanding jobsites, the SY205C features a 0.9-1.1m³ backhoe bucket capacity paired with exceptional reach parameters: 10,280mm maximum digging radius and 6,600mm digging depth. Track-mounted on 600mm plates with 2,380mm gauge, it maintains optimal 47.3kPa ground pressure while achieving 70% (35°) climbing capability. The compact swing radius of 2,900mm and 3,730mm front device turning radius enable efficient operation in confined spaces.
Key Technical Specifications:
- Rated Power: 118kW @ 2000 RPM
- Hydraulic Force: 138kN bucket / 109kN arm
- Working Range: 10.28m reach, 9.6m max height
- Transport Dimensions: 9680 × 2980 × 3440mm
- Current Location: Hunan Province, China
| Specifications | Value |
|---|---|
| No. | 1030790 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
