Product Description

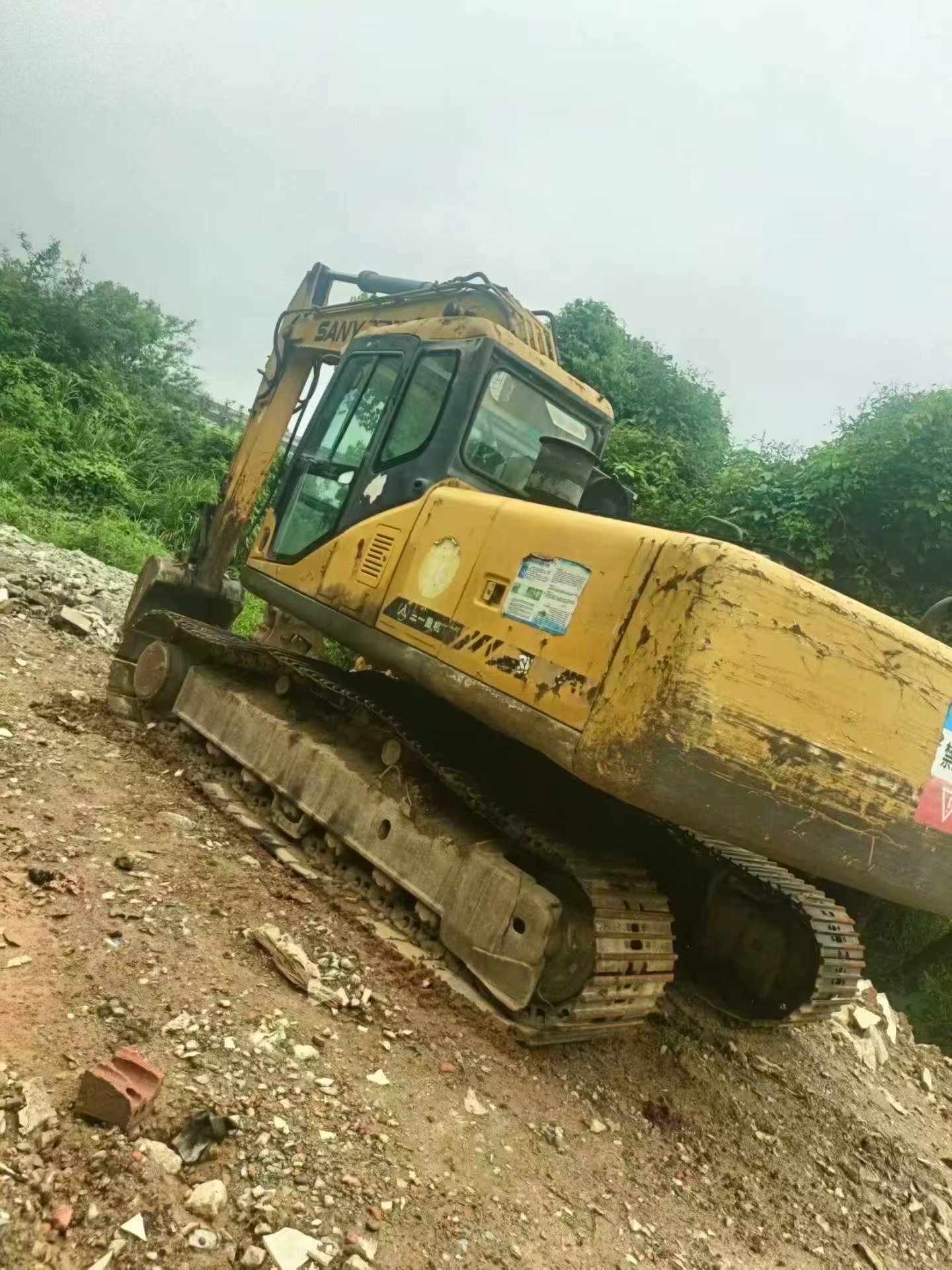

With a working weight of 21,500 kg and a bucket capacity ranging from 0.9 to 1.1 m³, this 20-ton Sany SY205C excavator, manufactured in 2020, is a proven workhorse. Built to last, it features a robust design that ensures durability and reliability on the job site. Equipped with traditional power, it delivers a rated power of 118 kW at 2000 rpm, making it capable of handling demanding tasks with ease.
- Ground specific pressure: 47.3 Kpa
- Climbing ability: 70% / 35°
- Bucket digging force: 138 kN
- Travel speed: 5.4/3.3 km/h
- Maximum digging depth: 6600 mm
Located in Fujian, China, this excavator is ready to tackle your next project, offering a combination of strength and efficiency. Its impressive performance metrics and solid build quality make it a reliable choice for any construction or excavation task.
| Specifications | Value |
|---|---|
| No. | 1057068 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
