Product Description

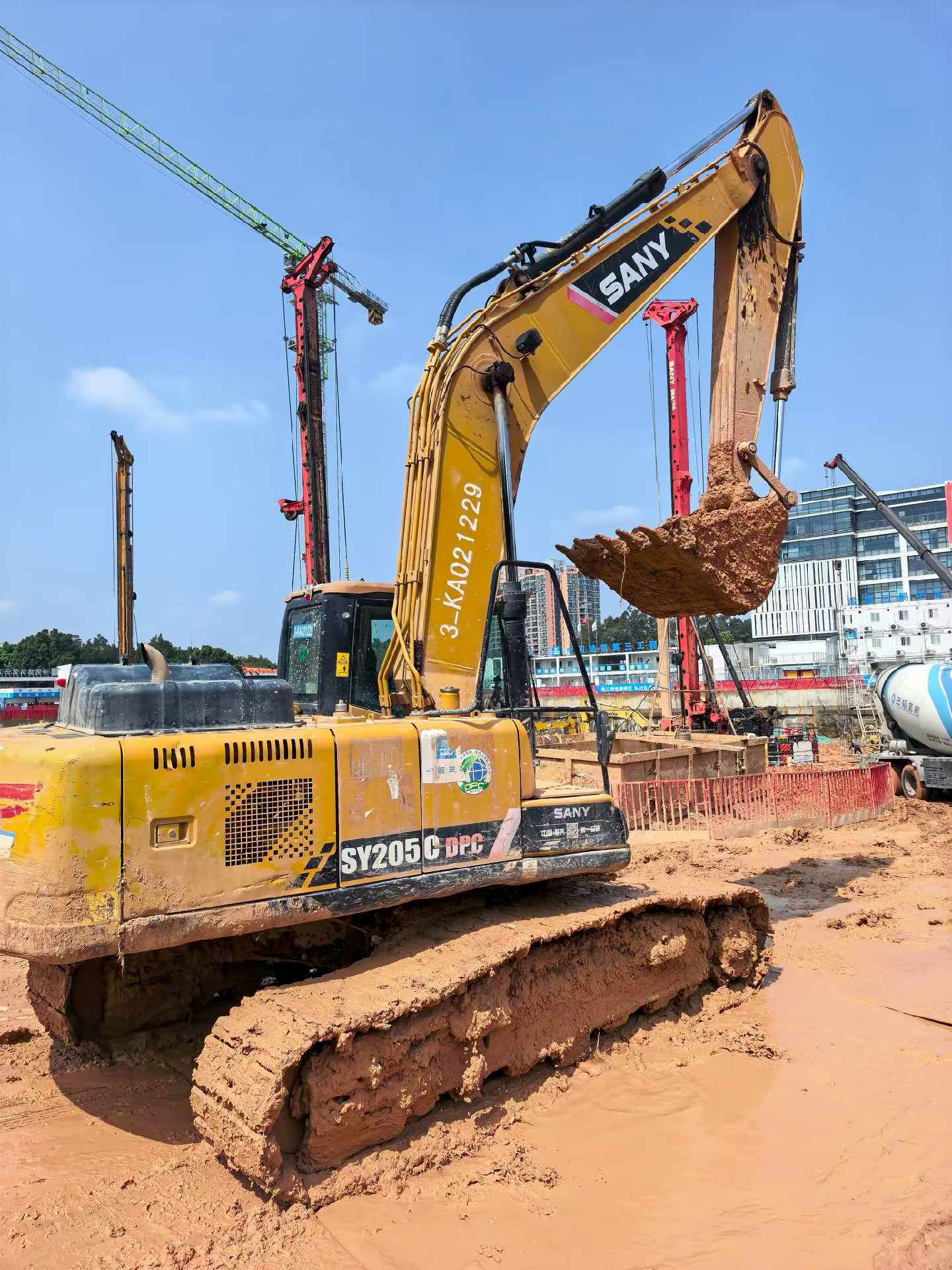

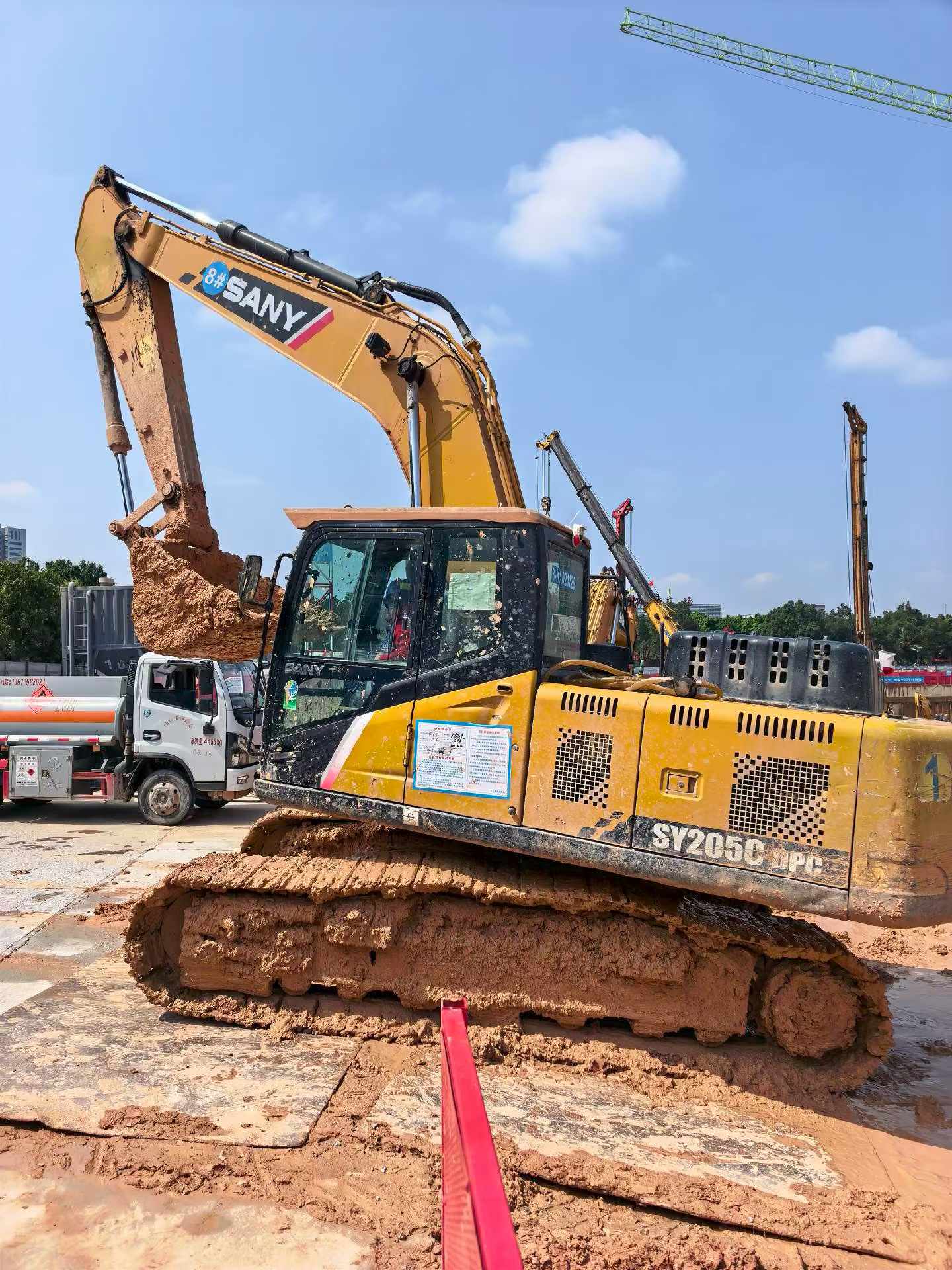

Built for demanding excavation work, this 2021 Sany SY205C delivers consistent performance across digging, grading, and demolition applications. Operating at 20 tons with a 118kW rated power output, this machine handles deep foundation work with a maximum digging depth of 6,600mm and reaches 10,280mm horizontally. The 0.9-1.1m³ backhoe bucket configuration provides efficient material handling for medium to large-scale projects.
Equipped with 138kN bucket digging force and 109kN rod digging force, this excavator tackles compacted soil and challenging ground conditions effectively. The 70% climbing ability and 47.3kPa ground pressure enable operation on varied terrain without sacrificing stability. With dual travel speeds of 5.4/3.3 km/h and an 11rpm rotation speed, repositioning between work zones remains efficient throughout the shift.
- Maximum unloading height: 6,730mm for direct truck loading
- Compact transport dimensions: 9,680mm length, 2,980mm width
- 440mm ground clearance for site mobility
- Currently located in Guangzhou, Guangdong
- China-manufactured with proven Sany engineering
| Specifications | Value |
|---|---|
| No. | 1023930 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
