Product Description

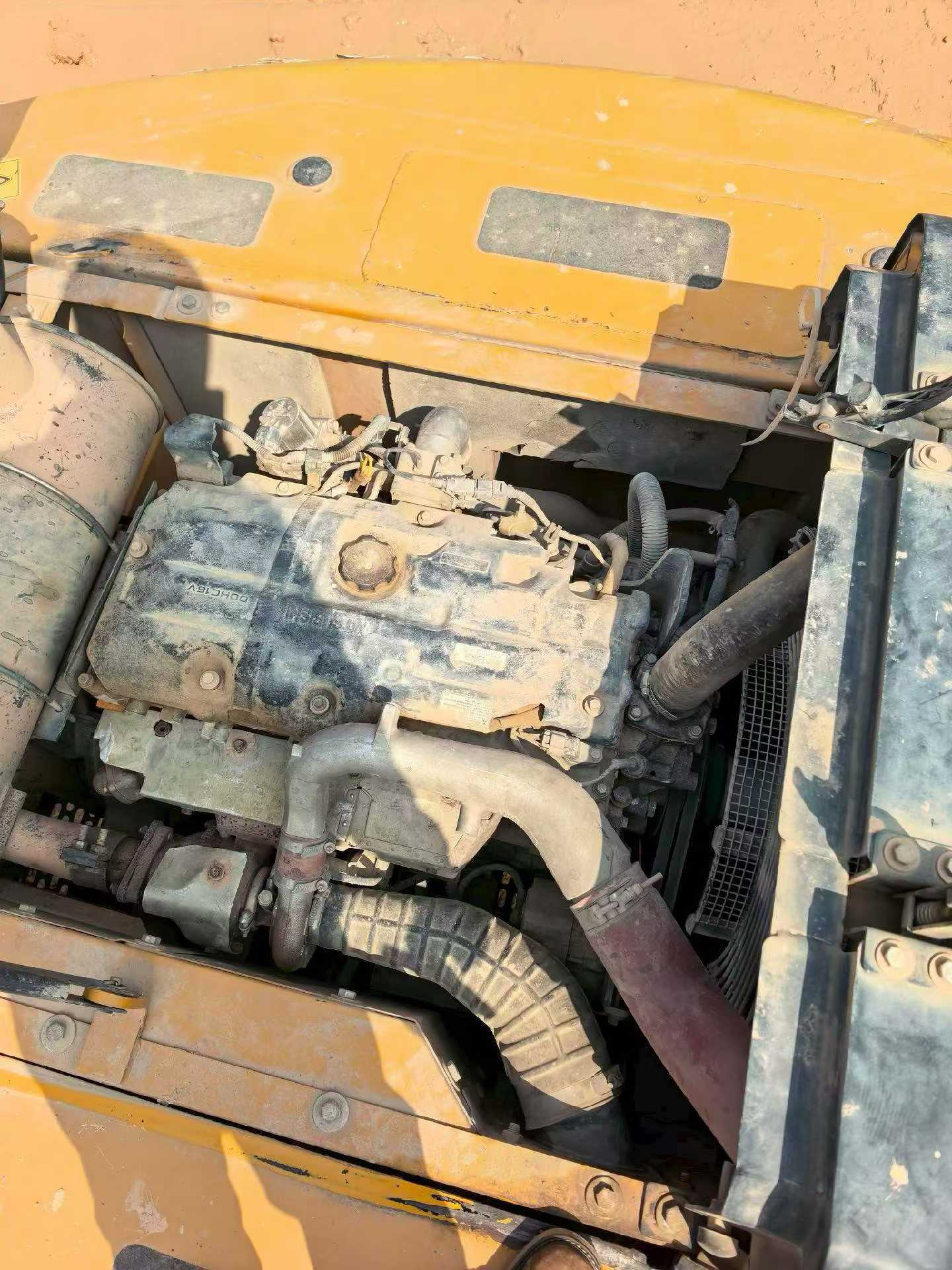

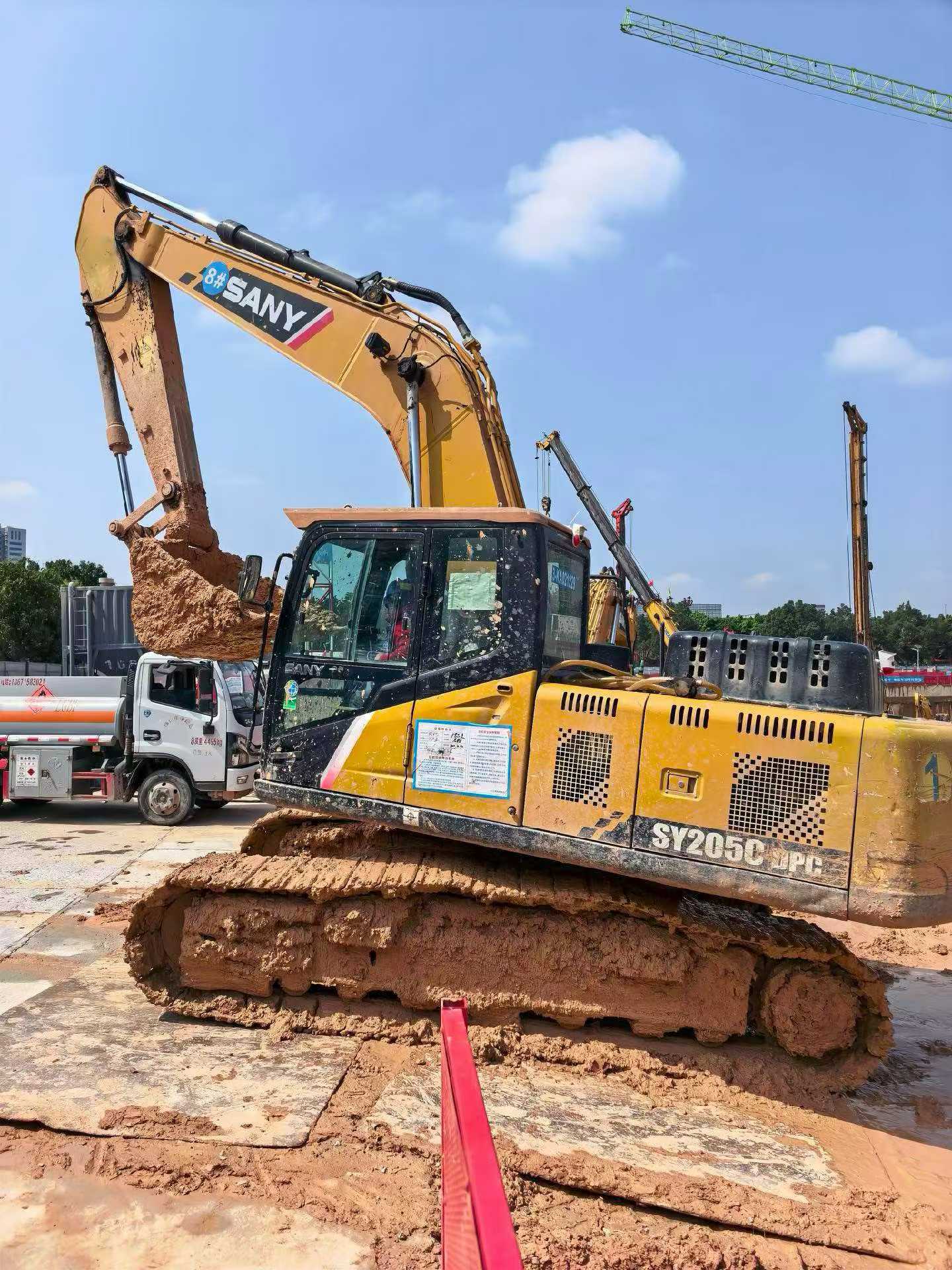

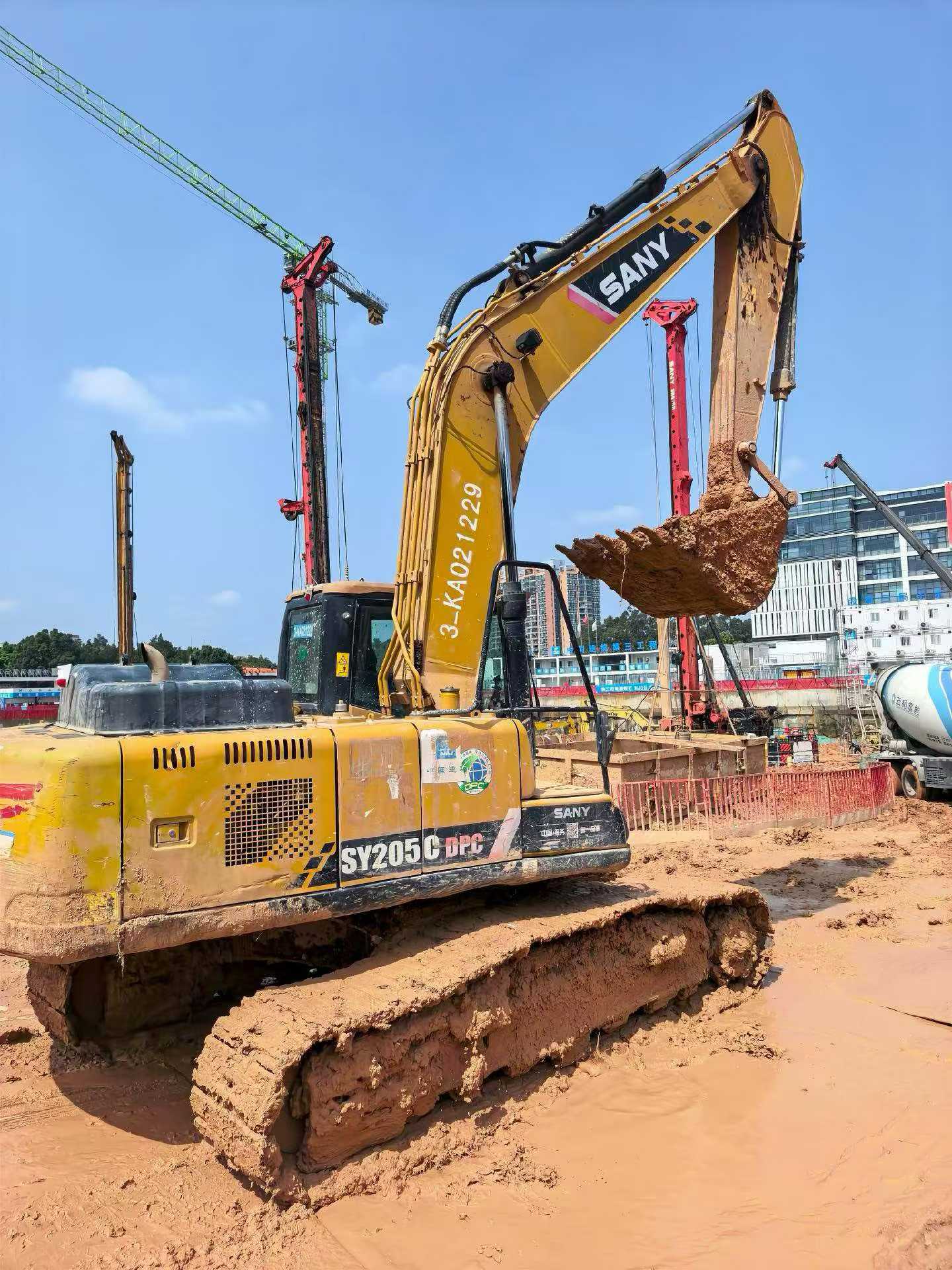

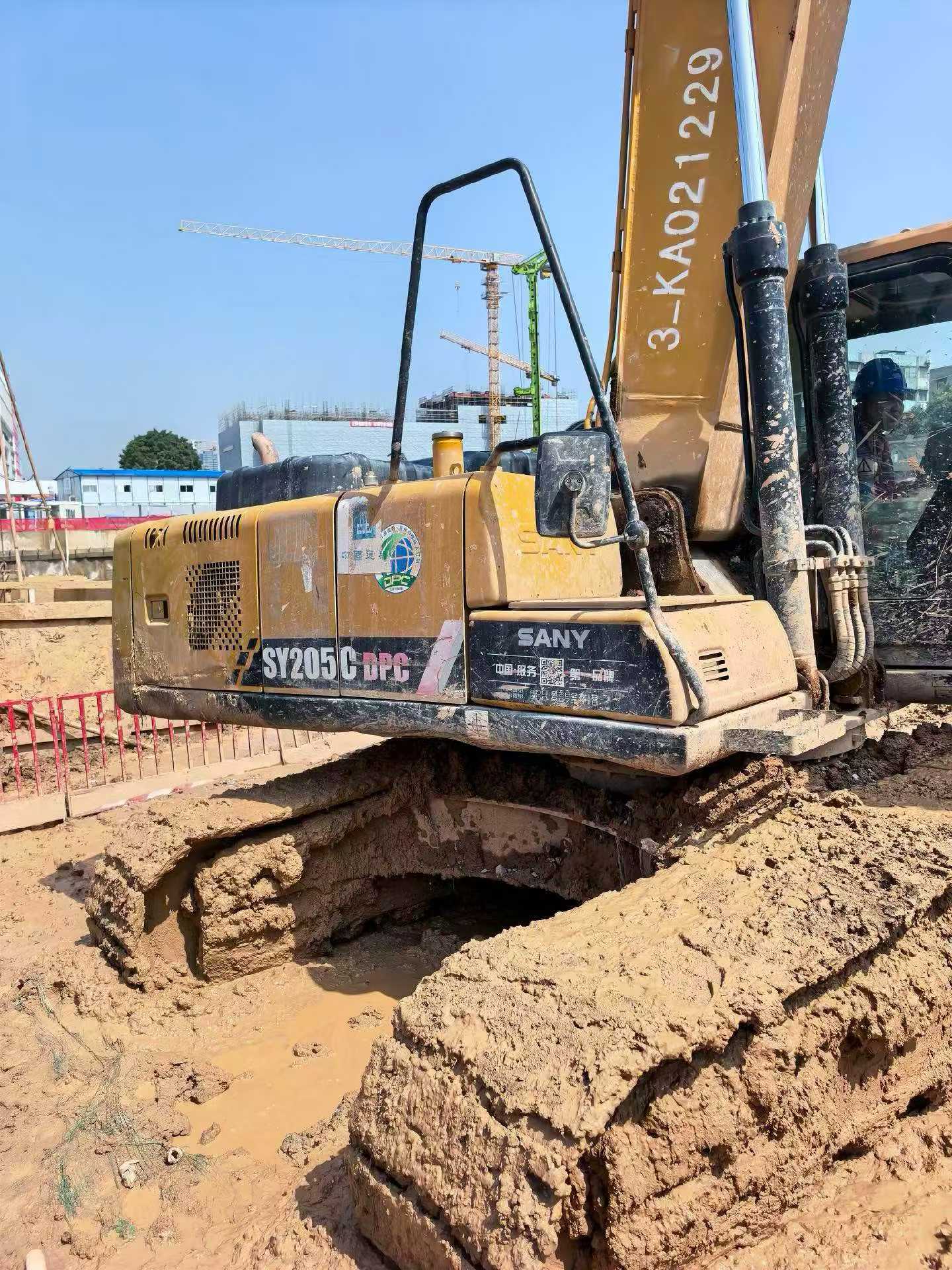

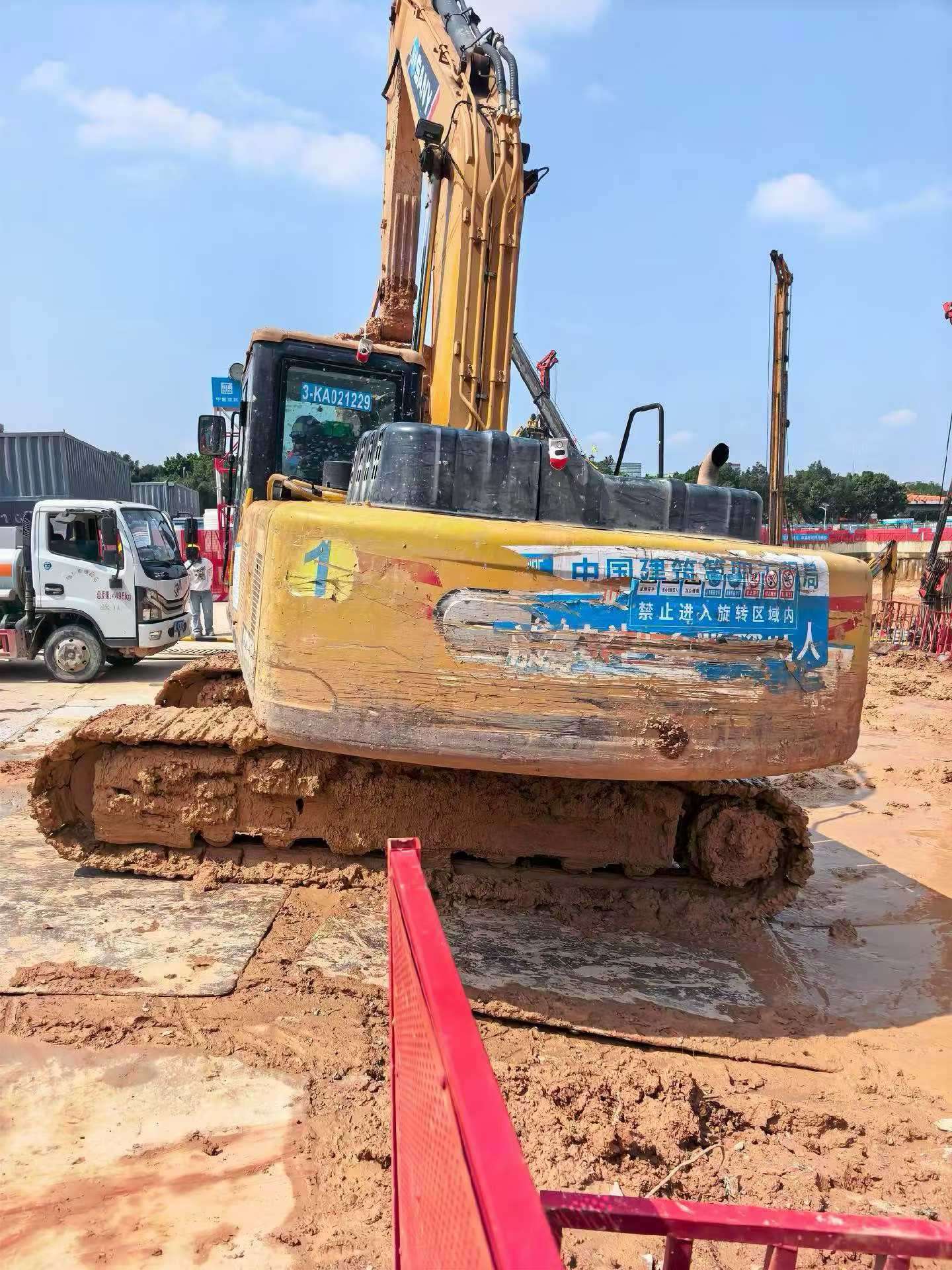

Expand your operational capacity with this 2021 Sany SY205C excavator, currently stationed in Foshan, Guangdong. Built for contractors managing multiple jobsites simultaneously, this 20-ton machine delivers the redundancy and reliability your fleet demands. Powered by a robust 118kW engine, it tackles a 70% grade with confidence while maintaining a 10,280mm maximum digging radius and 6,600mm excavation depth—specs that mirror your primary equipment without the premium price tag.
- Operating Weight: 21,500 kg with 0.9-1.1m³ bucket capacity
- Digging Performance: 138kN bucket force / 109kN arm force for versatile material handling
- Mobility: 5.4 km/h travel speed, 2,900mm rear turning radius for confined sites
- Transport Dimensions: 9,680 × 2,980 × 3,440mm—fits standard lowboy trailers
- Ground Pressure: 47.3 kPa minimizes site disturbance across soft terrain
Keep projects moving when your lead machines are committed elsewhere. This China-manufactured unit offers immediate deployment capability with factory-standard specifications intact.
| Specifications | Value |
|---|---|
| No. | 1024753 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
