Product Description

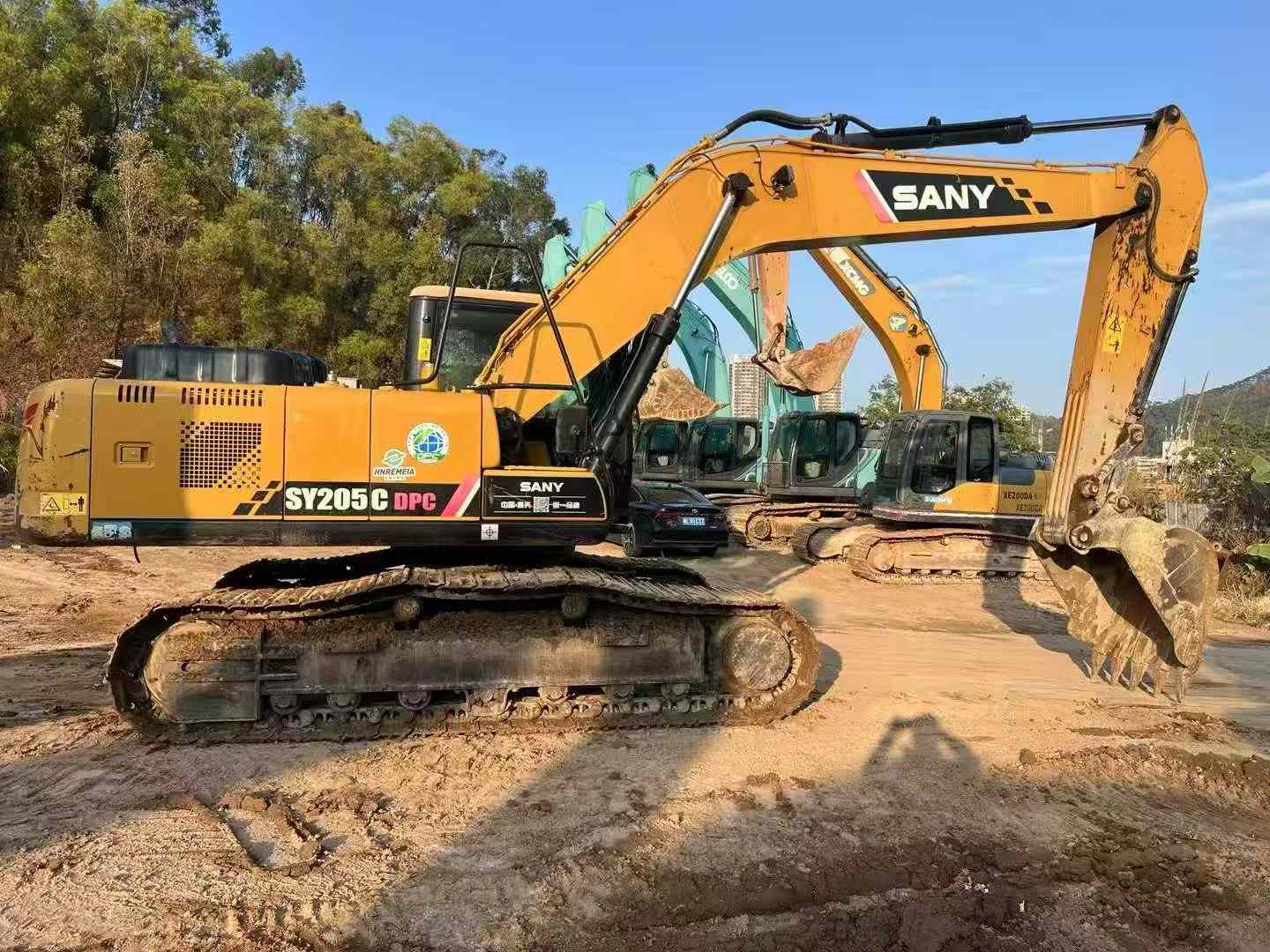

Built for precision and all-day productivity, this 2021 Sany SY205C medium excavator delivers 20-ton performance with exceptional operator-focused engineering. Powered by a robust 118kW engine, this machine combines 138kN bucket digging force with refined hydraulic controls that respond instantly to operator input. The spacious cab provides panoramic visibility across a 10,280mm maximum digging radius, while ergonomic controls reduce fatigue during extended shifts.
- Working Weight: 21,500 kg with stable 47.3 kPa ground pressure
- Digging Performance: 6,600mm max depth, 9,600mm max height reach
- Operator Comfort: 3,075mm full cab height with superior sightlines
- Mobility: 11 rpm swing speed, 70% gradeability, 2,900mm rear turning radius
- Bucket Capacity: 0.9-1.1m³ standard configuration
- Travel Speed: Dual-speed 5.4/3.3 km/h for efficient site navigation
Currently located in Huizhou, Guangdong, this Chinese-manufactured excavator offers proven reliability for contractors demanding responsive handling and stable operation on diverse job sites.
| Specifications | Value |
|---|---|
| No. | 1025011 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
