Product Description

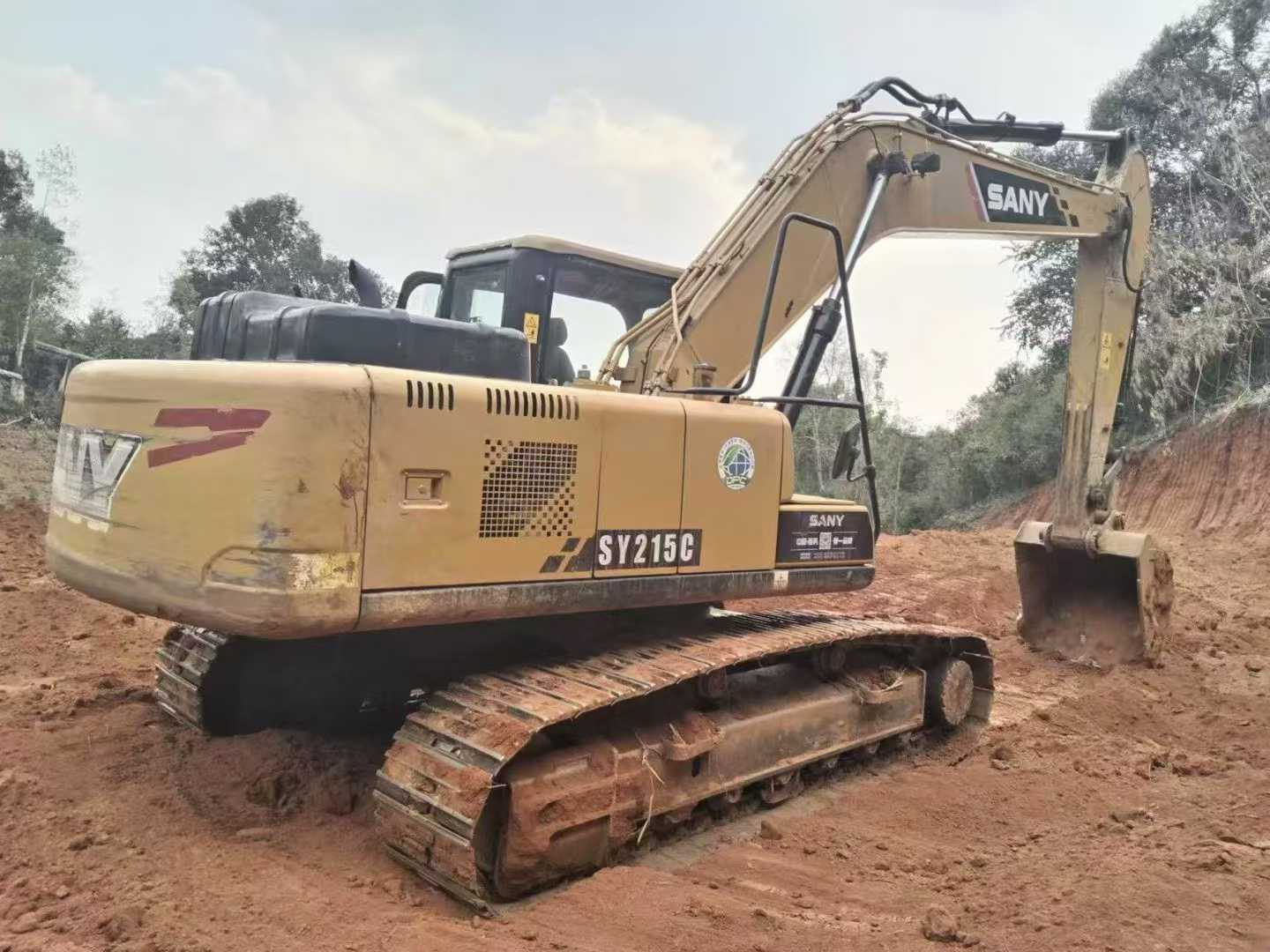

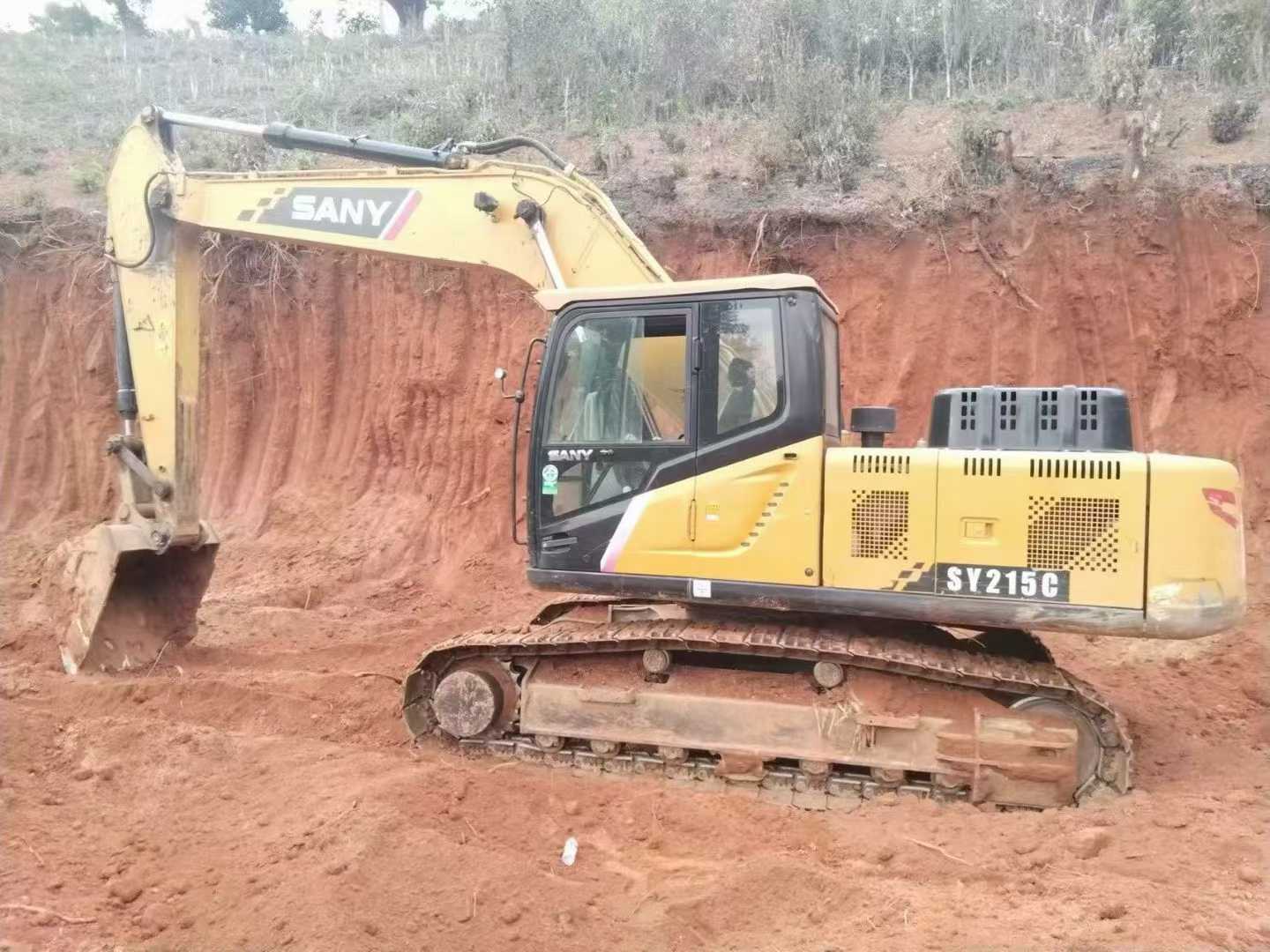

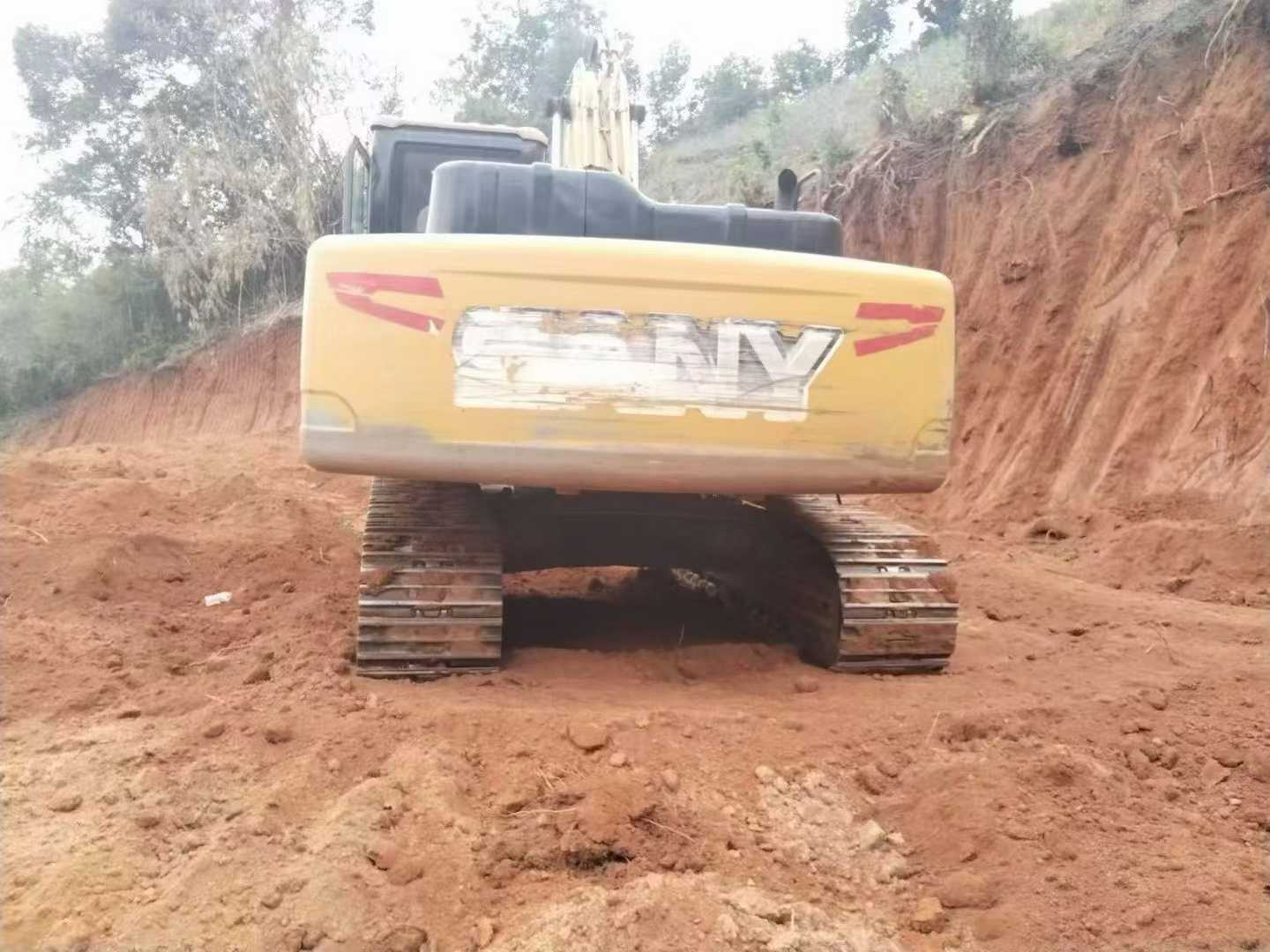

Built for operators who demand precision and control, this 2021 Sany SY205C excavator combines proven engineering with practical design. Weighing 21,500 kg and powered by a 118 kW engine, this 20-ton machine delivers reliable performance across demanding job sites. Currently located in Kunming, Yunnan, this backhoe-equipped unit features a 0.9-1.1 m³ bucket capacity and exceptional digging force—138 kN bucket force and 109 kN stick force—ensuring efficient material handling in varied soil conditions.
Operator-focused features enhance daily productivity:
- Full cab design with 3,075 mm height provides excellent visibility across the 10,280 mm maximum digging radius
- Stable platform with 47.3 kPa ground pressure minimizes ground disturbance while maintaining 70% (35°) climbing ability
- Responsive 11 rpm rotation speed and 2,900 mm rear swing radius enable smooth, controlled movements in confined spaces
- Dual travel speeds (5.4/3.3 km/h) offer flexibility between transport and precision positioning
- 440 mm ground clearance and 3,360 mm track contact length ensure stability on uneven terrain
Ready for immediate deployment with standard backhoe configuration and Chinese ma
| Specifications | Value |
|---|---|
| No. | 1026471 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
