Product Description

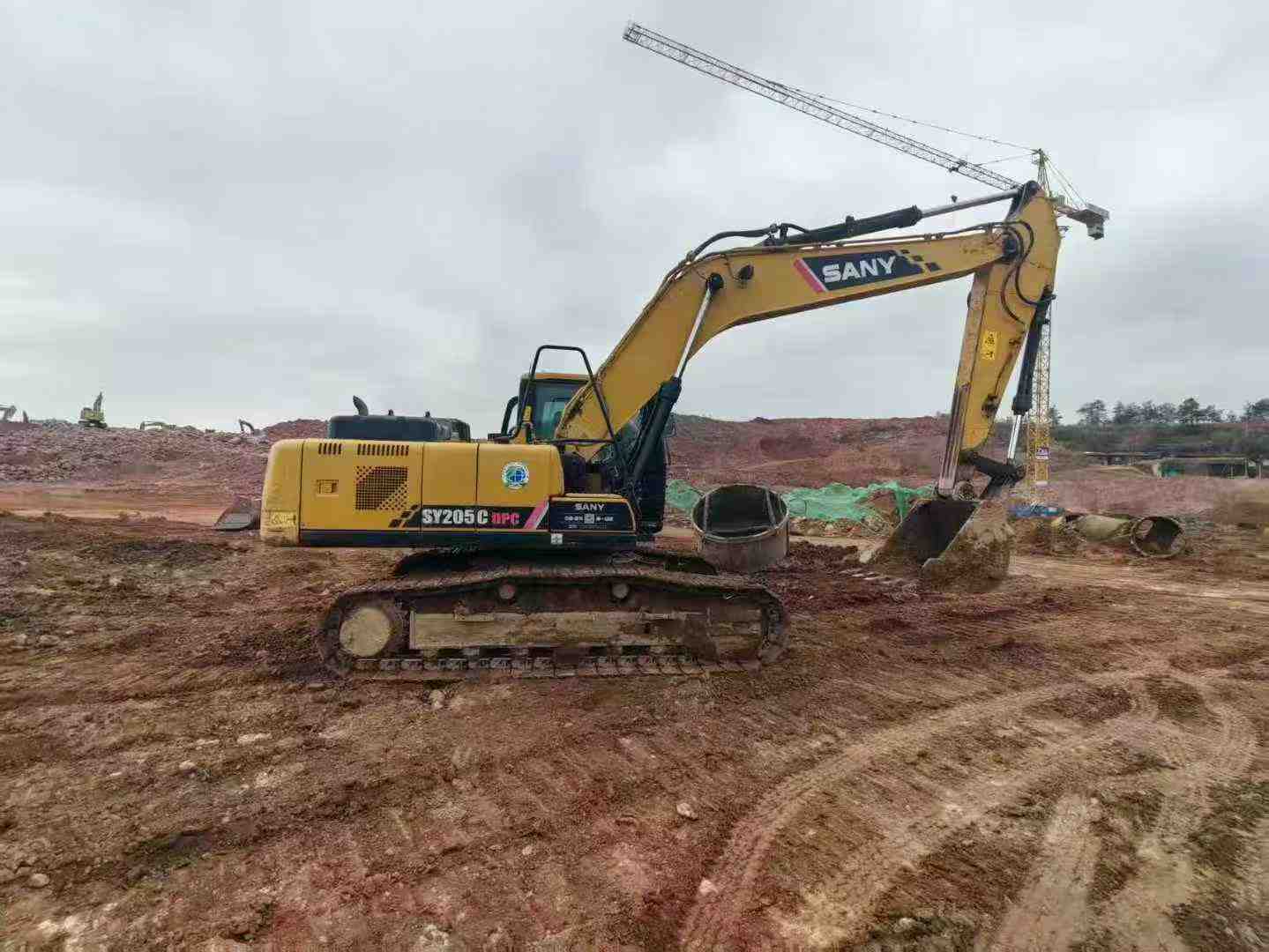

Expand your fleet capacity with this 2021 Sany SY205C excavator, currently stationed in Hangzhou, Zhejiang. Built for contractors managing multiple job sites, this 20-ton workhorse delivers 118kW of rated power and a robust 0.9-1.1m³ bucket capacity to handle demanding excavation, loading, and trenching operations without disrupting your primary equipment schedules.
Engineered with a 138kN bucket digging force and 109kN arm force, this Chinese-manufactured unit provides reliable performance across residential, commercial, and infrastructure projects. The compact 2,980mm transport width and 440mm ground clearance enable efficient mobilization between sites, while the 10,280mm maximum digging radius and 6,600mm digging depth tackle diverse excavation requirements.
- Operating weight: 21,500kg with traditional powertrain
- Performance specs: 70% gradeability, 11rpm swing speed
- Reach capabilities: 9,600mm max dig height, 6,730mm dump height
- Transport dimensions: 9,680mm length × 2,980mm width × 3,440mm height
Secure dependable backup capacity that keeps projects moving forward when your lead machines require maintenance or face unexpected downtime.
| Specifications | Value |
|---|---|
| No. | 1027074 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
