Product Description

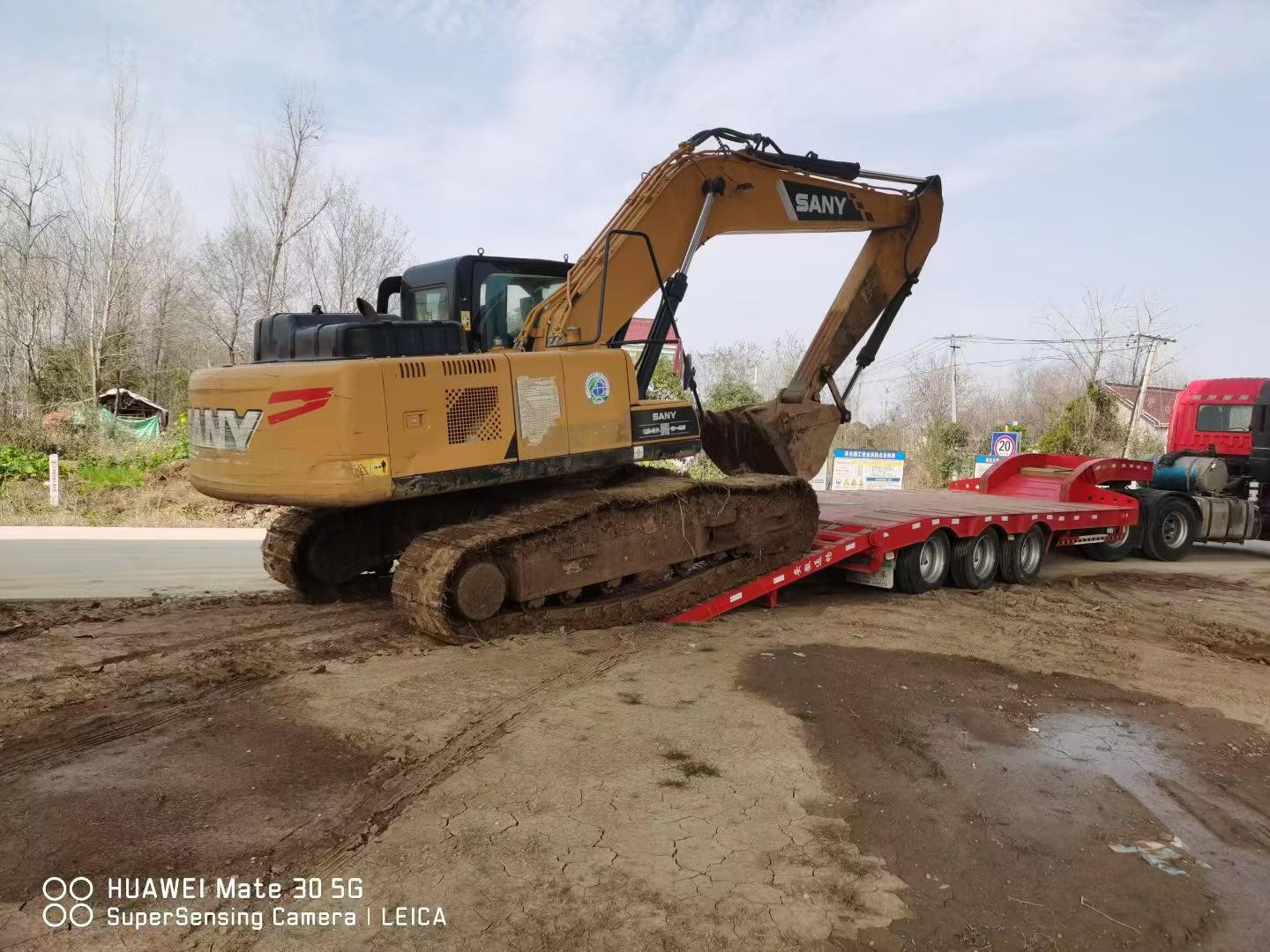

Built for relentless performance, this 2021 Sany SY205C excavator demonstrates the proven engineering that has made Sany a trusted name in heavy construction. Operating at 20 tons with a robust 118kW rated power output, this machine delivers consistent productivity across demanding jobsites. Its 0.9-1.1m³ bucket capacity and 138kN bucket digging force tackle tough excavation tasks with authority, while the 10,280mm maximum digging radius provides exceptional reach for large-scale operations.
Engineered in China with rigorous quality standards, this workhorse features a 21,500kg working weight that balances stability with maneuverability. The 600mm track plates and 47.3kPa ground pressure ensure reliable traction without excessive surface damage. With a maximum digging depth of 6,600mm and climbing ability of 70% (35°), this SY205C handles challenging terrain conditions that would stop lesser machines.
- Proven 118kW power system for sustained operation
- Three-year track record of dependable service
- Rod digging force: 109kN for efficient material handling
- Currently located in Anhui, ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1031380 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
