Product Description

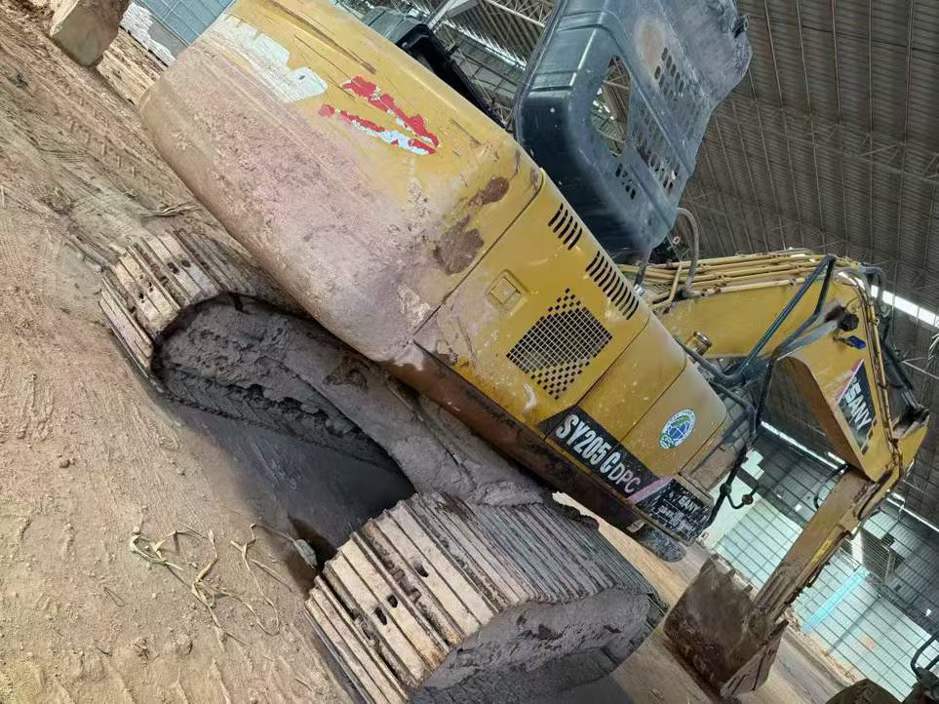

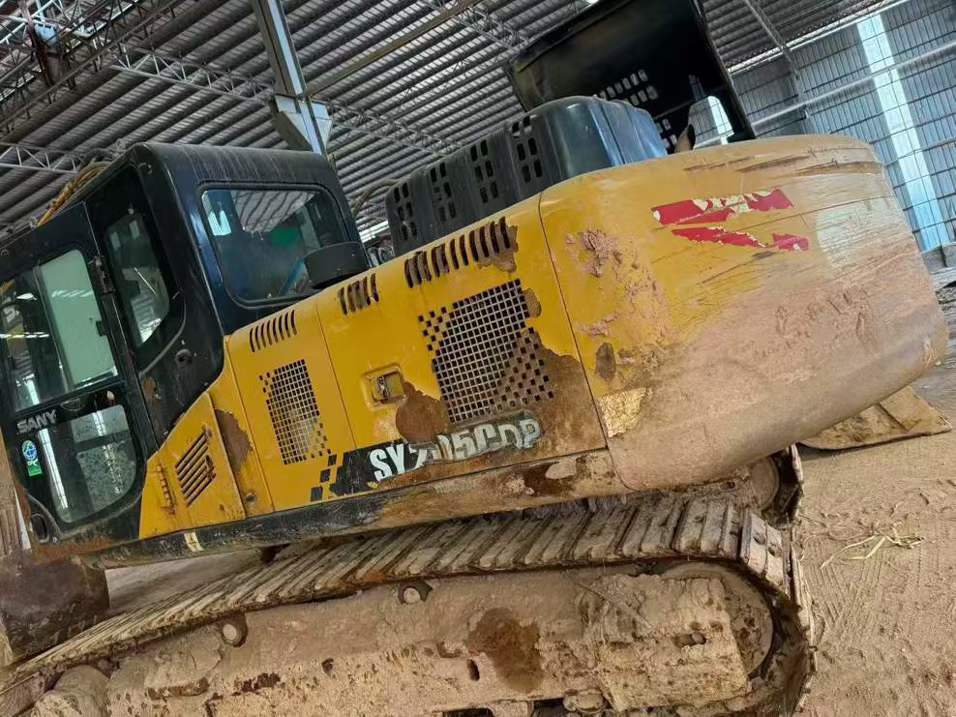

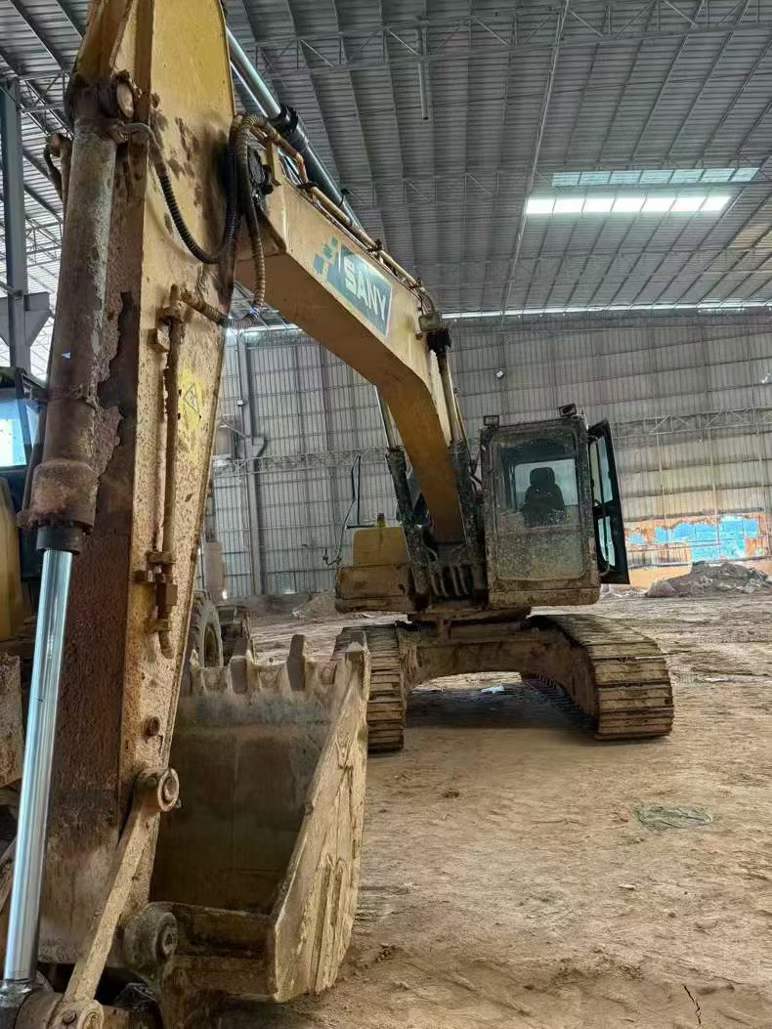

Built in 2021, this Sany SY205C excavator delivers proven performance with the backing of one of China's most trusted heavy equipment manufacturers. Operating at 20 tons with a robust 118kW engine, this machine combines a 0.9-1.1m³ bucket capacity with impressive digging force—138kN bucket force and 109kN arm force—making it capable of handling demanding excavation tasks across construction and mining sites.
Sany's global parts network ensures minimal downtime and straightforward maintenance, a critical advantage when purchasing used equipment. With maximum digging depth reaching 6,600mm and a 10,280mm working radius, this SY205C offers versatile reach for trenching, loading, and site preparation. Currently located in Hunan, China, this excavator represents a smart investment backed by Sany's strong resale value and widespread dealer support.
- 20-ton operating weight with 118kW rated power
- Maximum digging depth: 6,600mm
- Bucket capacity: 0.9-1.1m³
- Excellent parts availability through Sany's global network
- Strong resale value retention in secondary markets
| Specifications | Value |
|---|---|
| No. | 1031421 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
