Product Description

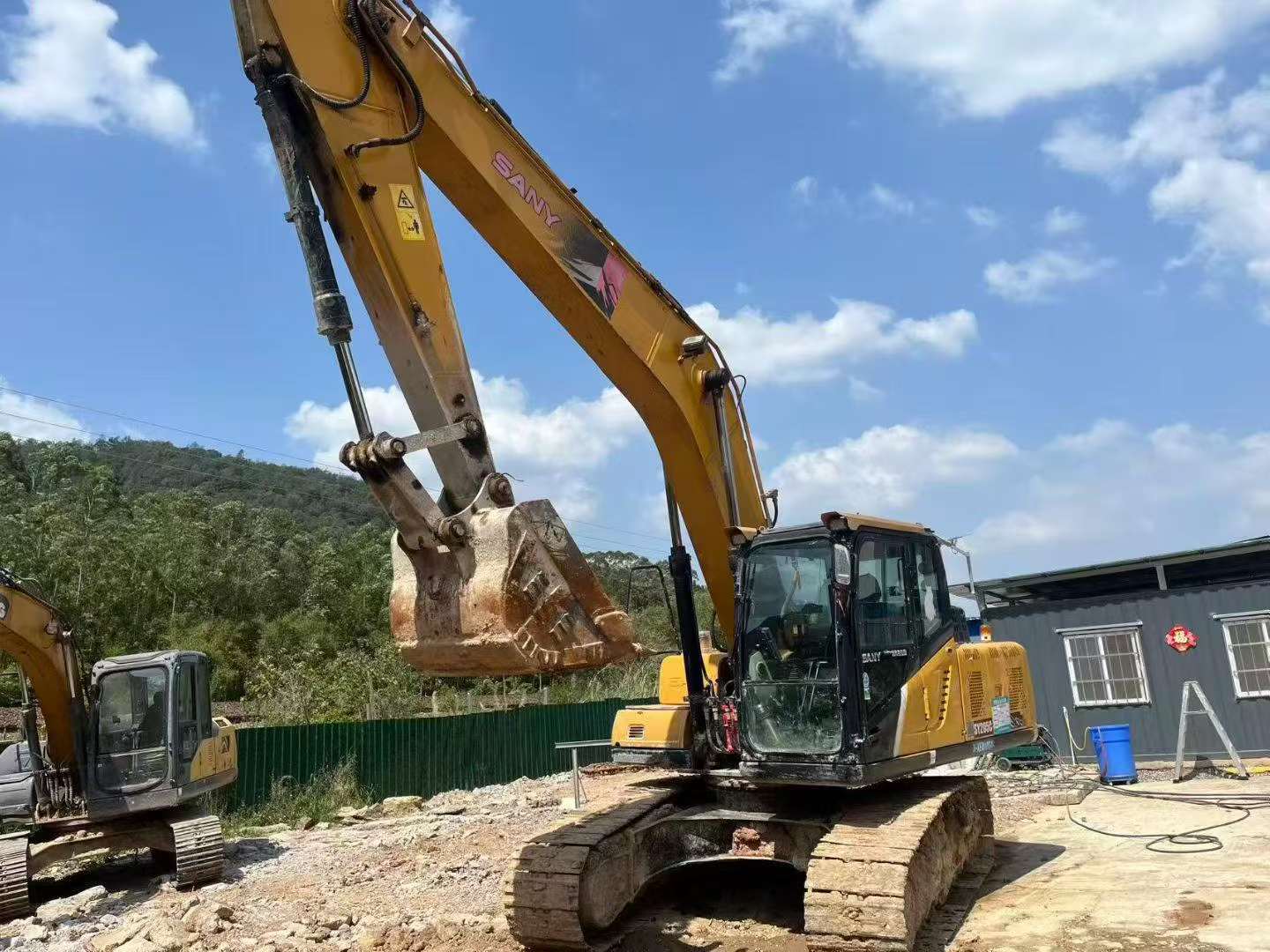

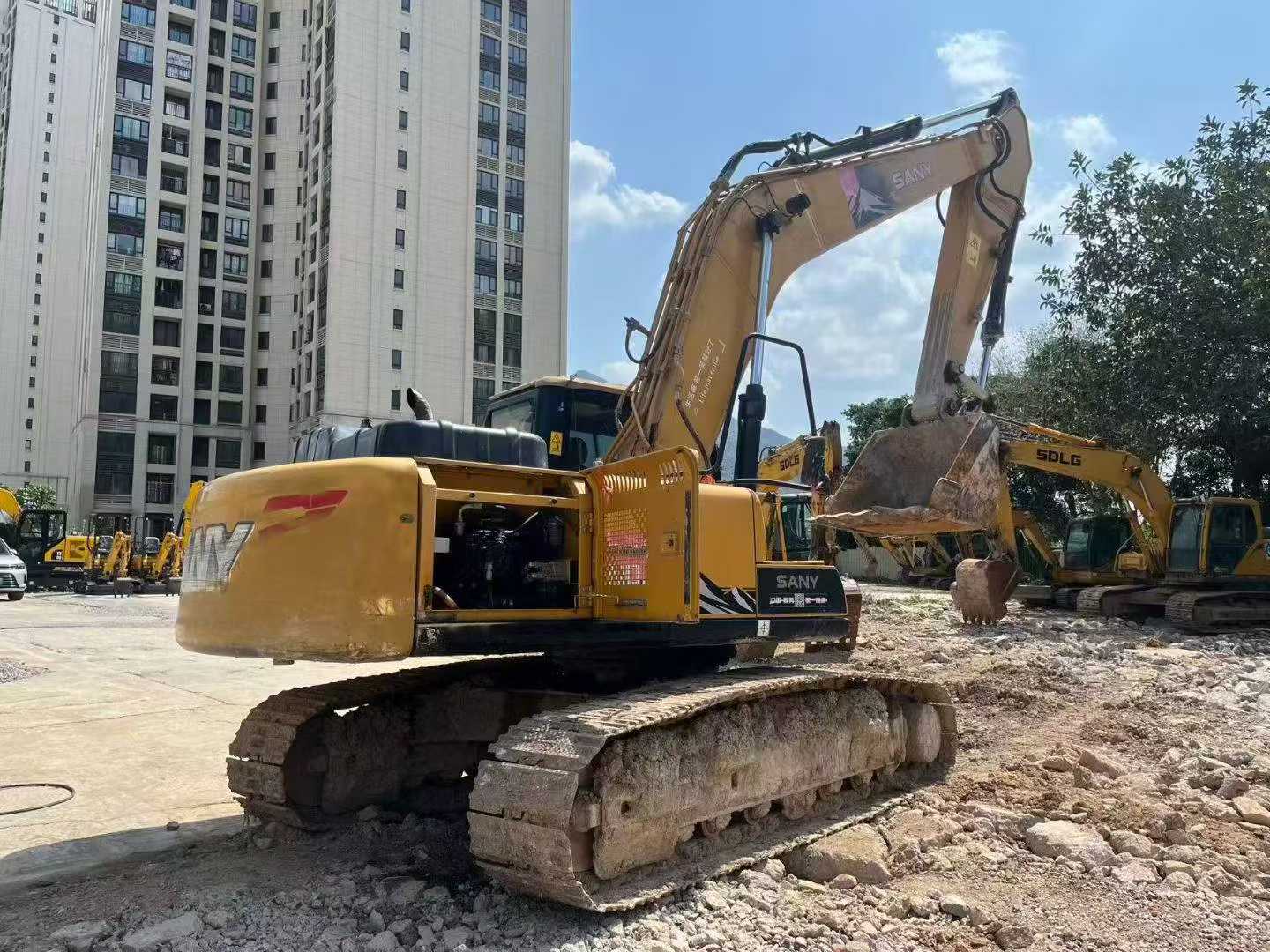

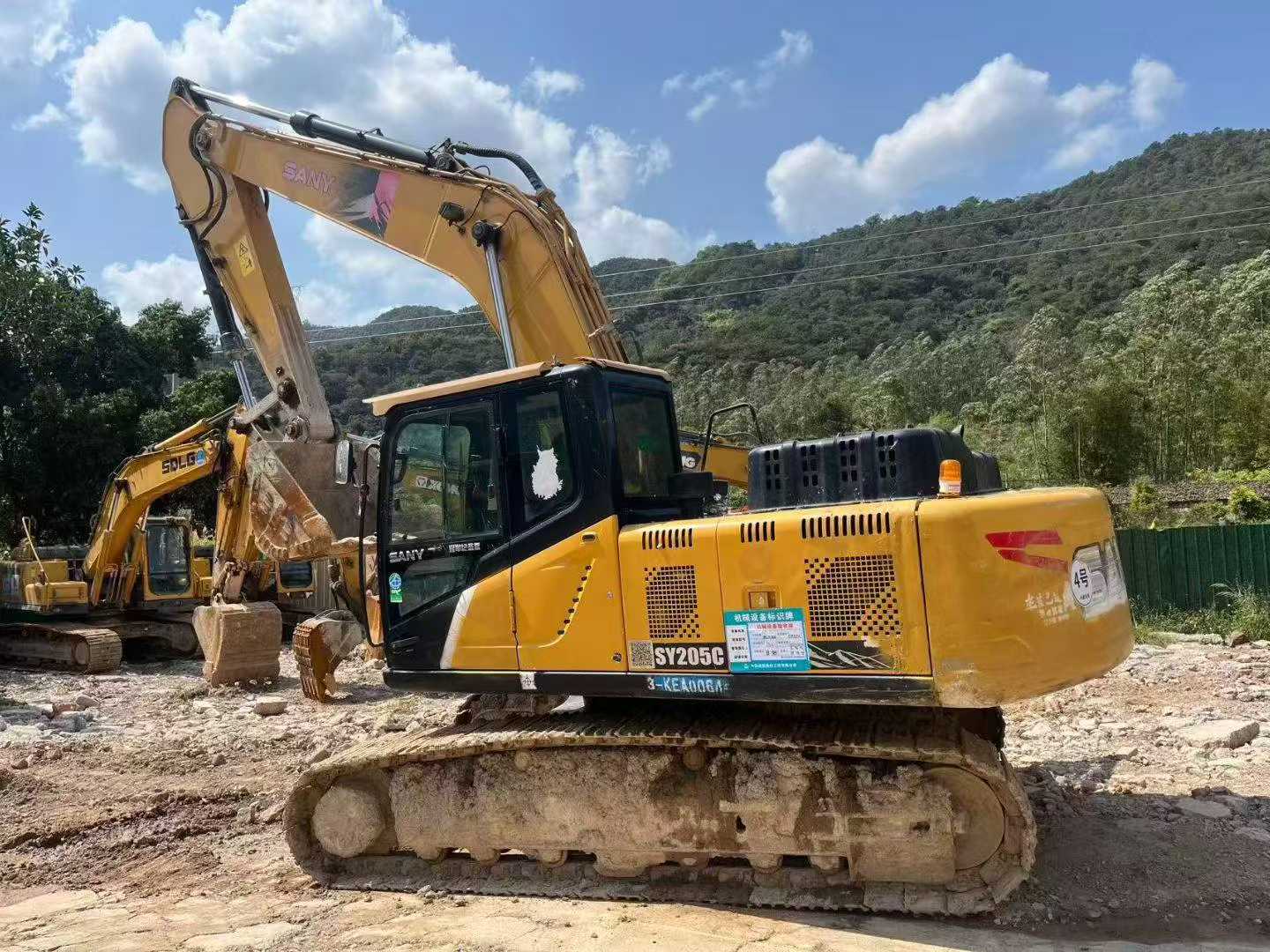

Expand your operational capacity with this 2021 Sany SY205C, a proven 20-ton excavator engineered for contractors managing multiple job sites simultaneously. Powered by a robust 118kW engine and equipped with a 0.9-1.1m³ bucket, this machine delivers consistent productivity whether deployed as primary equipment or strategic backup during peak demand periods.
Built for versatility across diverse terrain, this mid-size excavator combines a 10,280mm maximum digging radius with 6,600mm digging depth—ideal for trenching, foundation work, and site preparation. The 21,500kg working weight provides stability without sacrificing transportability, while 70% grading capability ensures confident performance on challenging slopes.

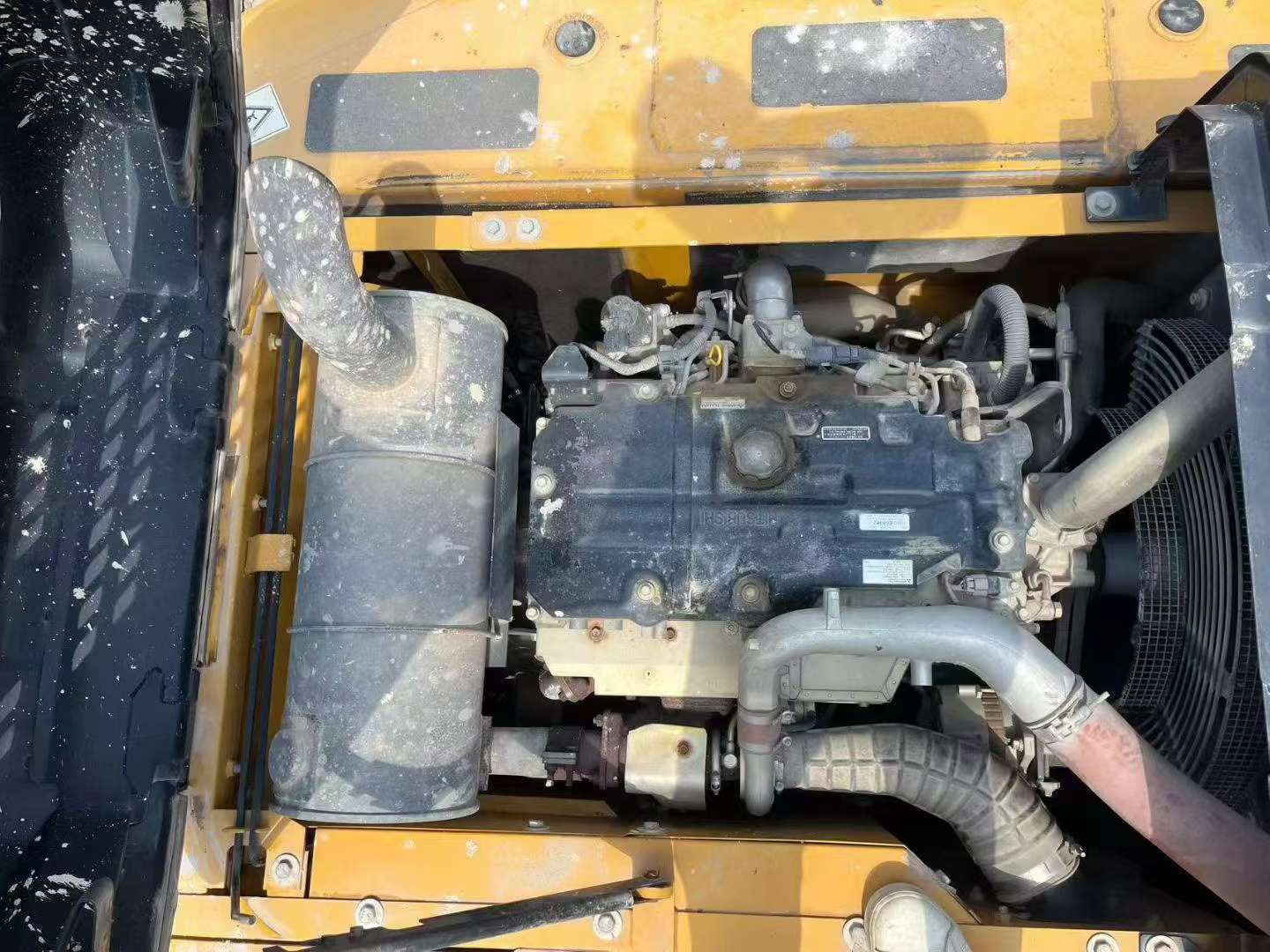

- 118kW rated power at 2000rpm for reliable all-day operation
- 138kN bucket digging force handles compacted soils and rocky conditions
- 3,730mm minimum turning radius enables efficient work in confined areas
- Currently located in Guangxi, ready for immediate fleet integration
Reduce downtime risks and maintain project momentum by adding this dependable Sany unit to your equipment roster. Contact Fair Trade Machinery today for detailed inspection reports and com
| Specifications | Value |
|---|---|
| No. | 1042517 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
