2021 Sany SY205C

1/9
Buy Sany SY205C Used Excavator / 1

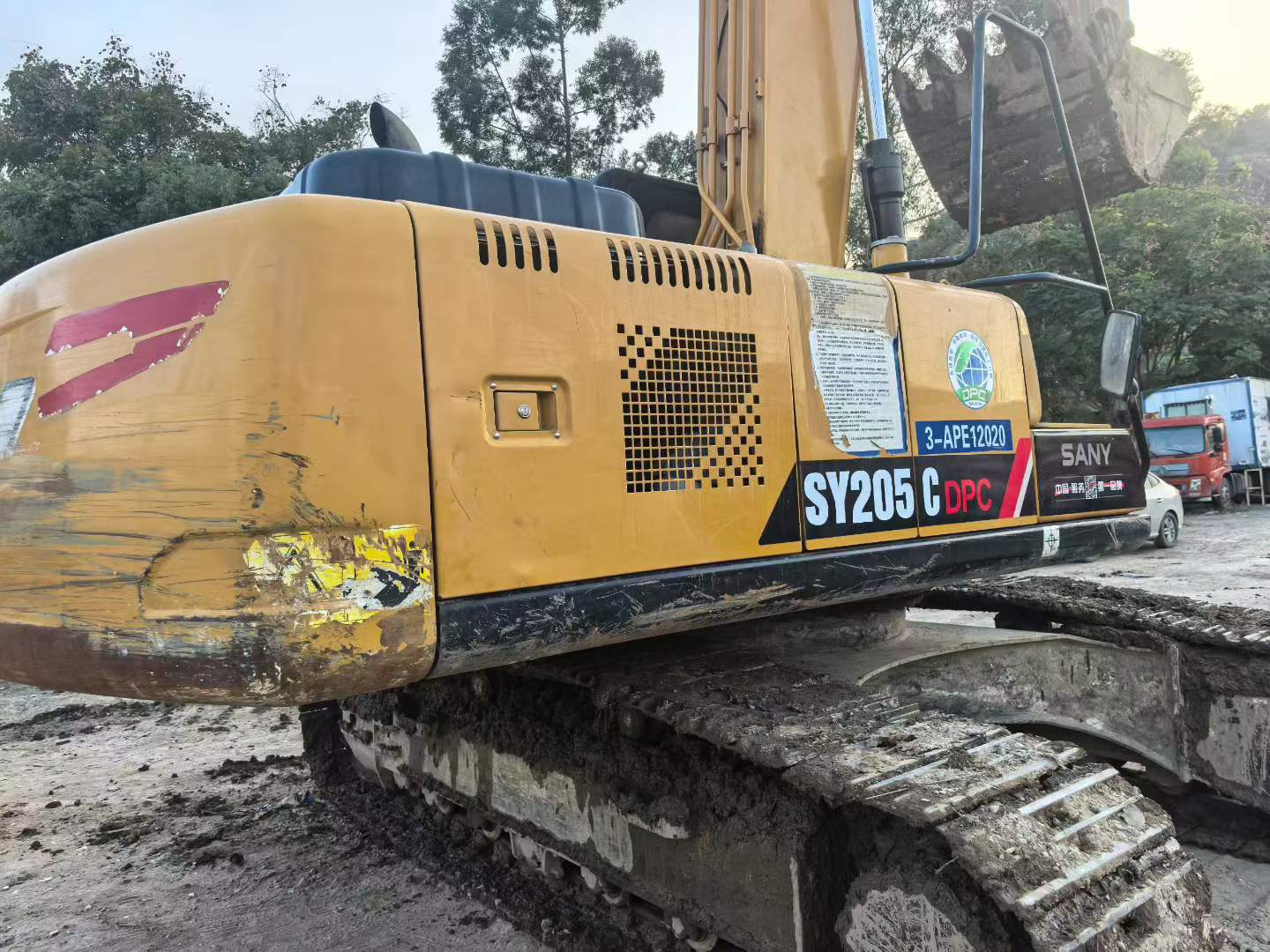

Buy Sany SY205C Used Excavator / 2

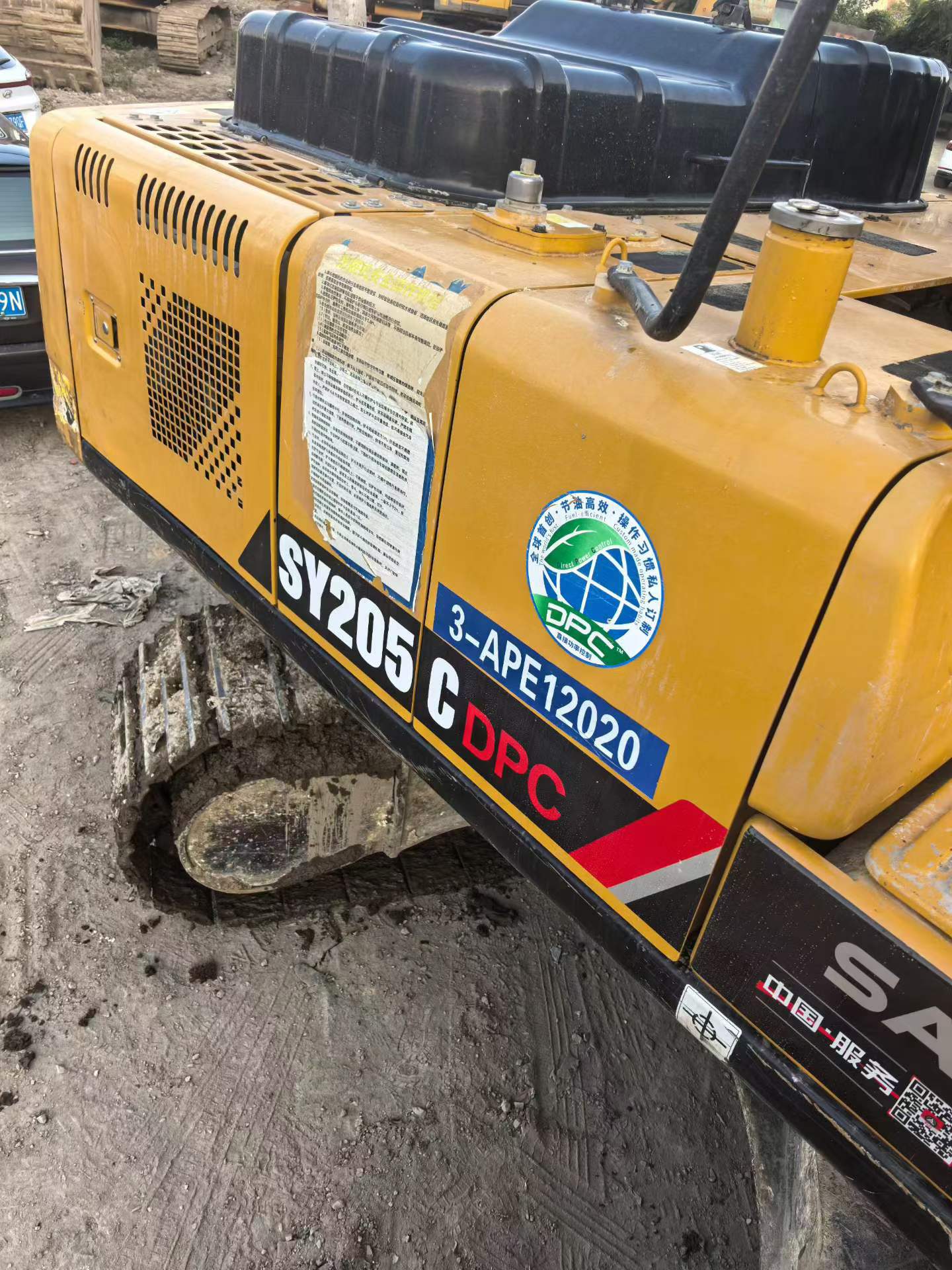

Buy Sany SY205C Used Excavator / 3
Buy Sany SY205C Used Excavator / 4

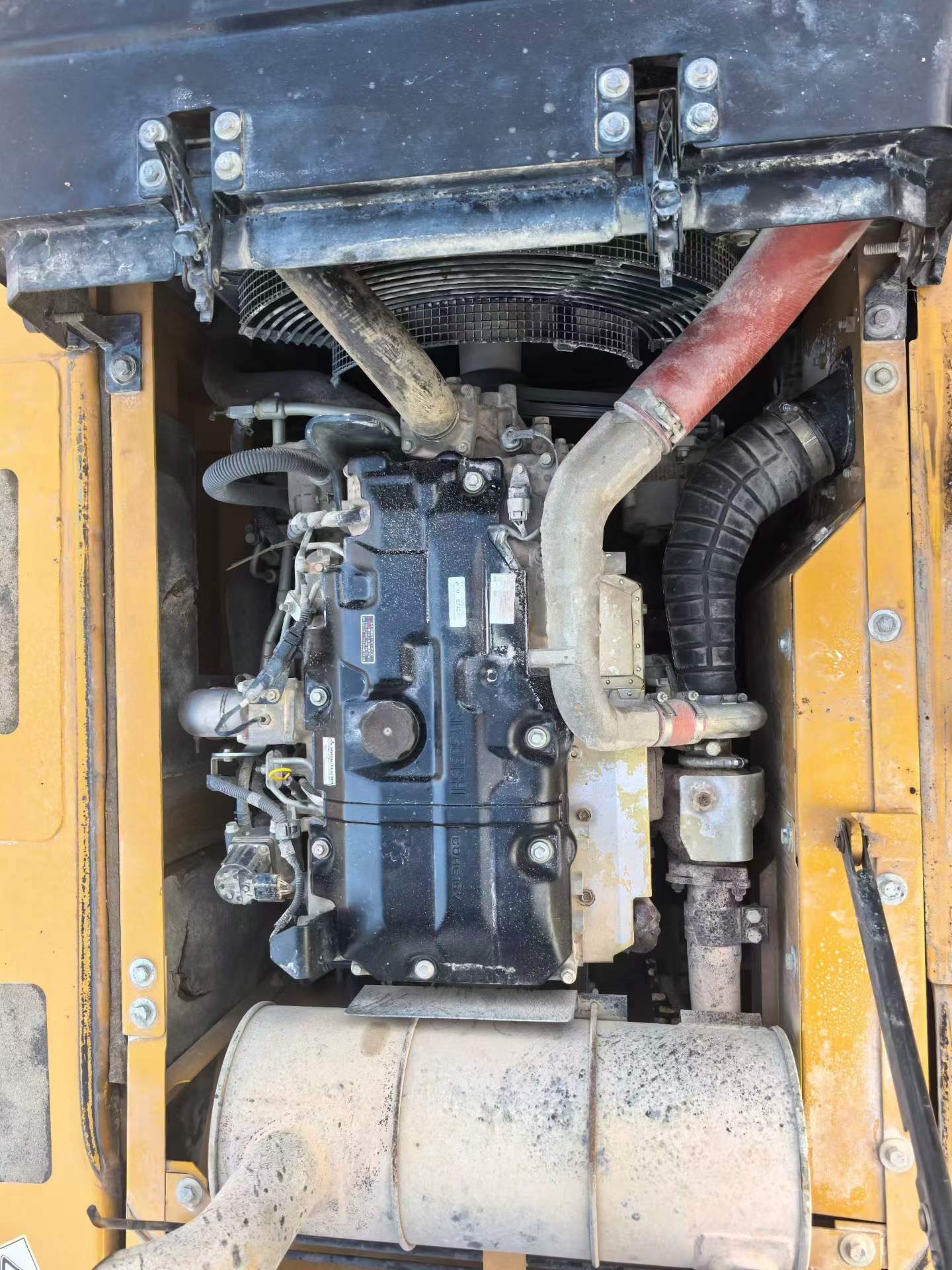

Buy Sany SY205C Used Excavator / 5

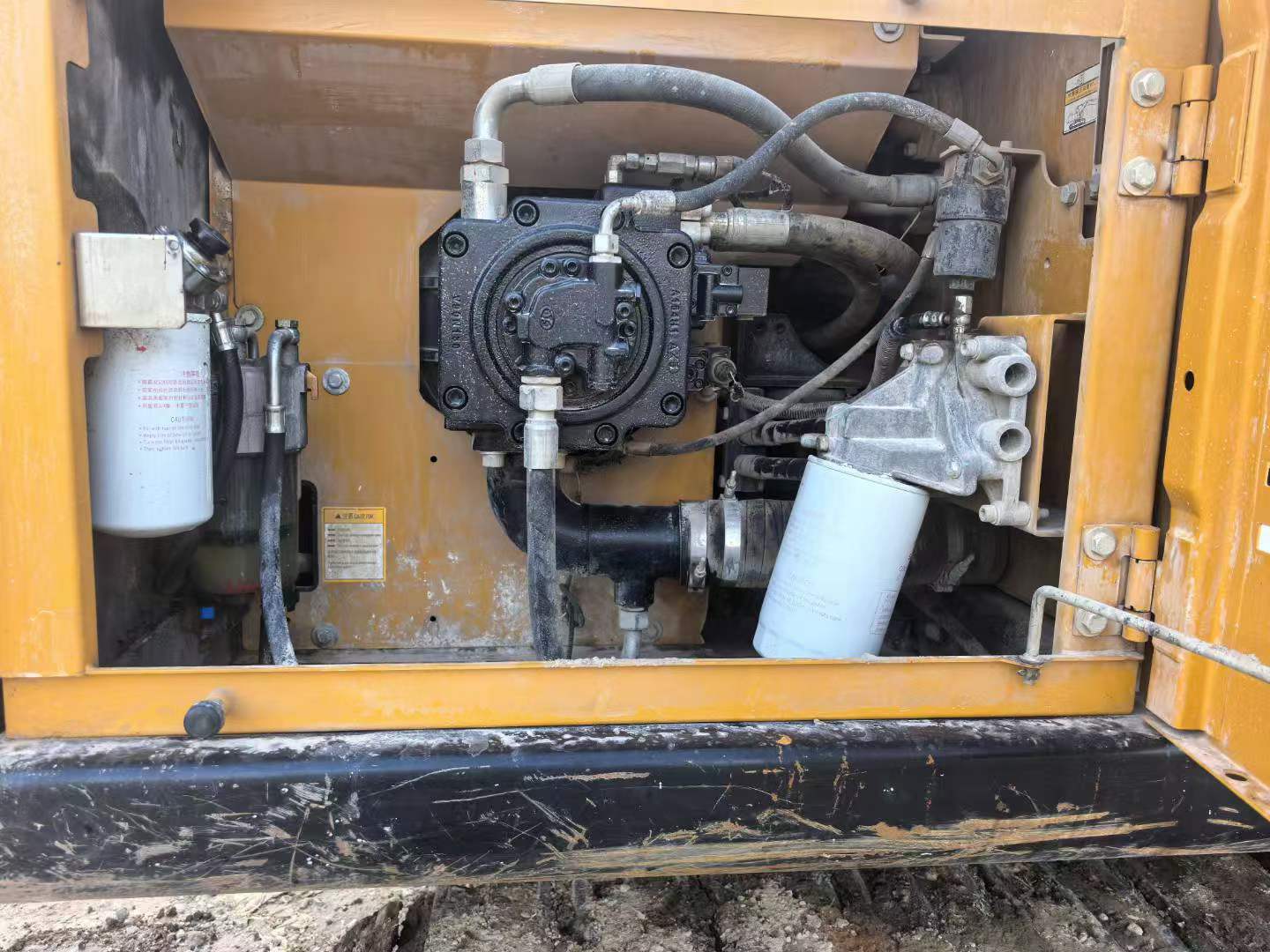

Buy Sany SY205C Used Excavator / 6

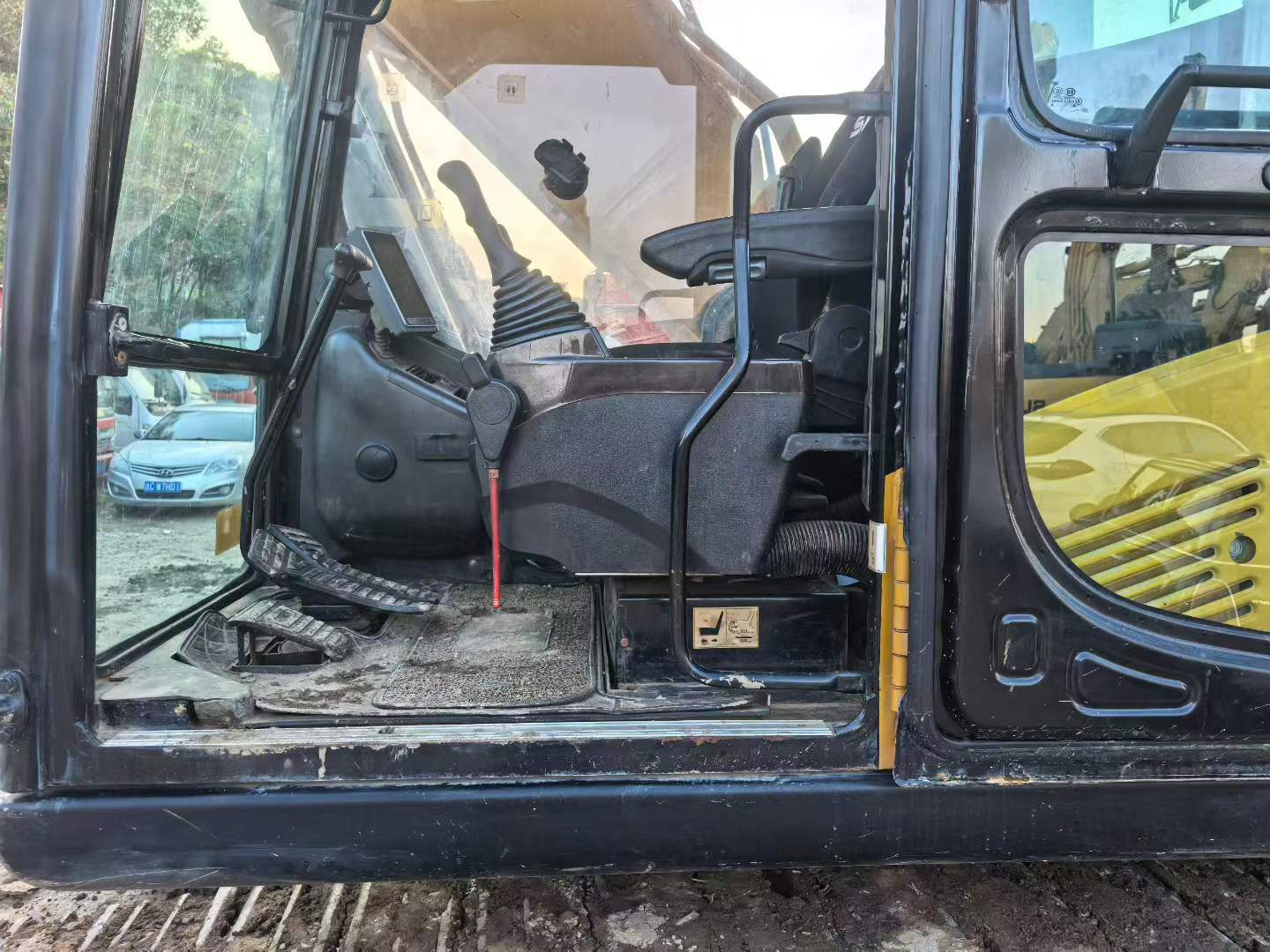

Buy Sany SY205C Used Excavator / 7

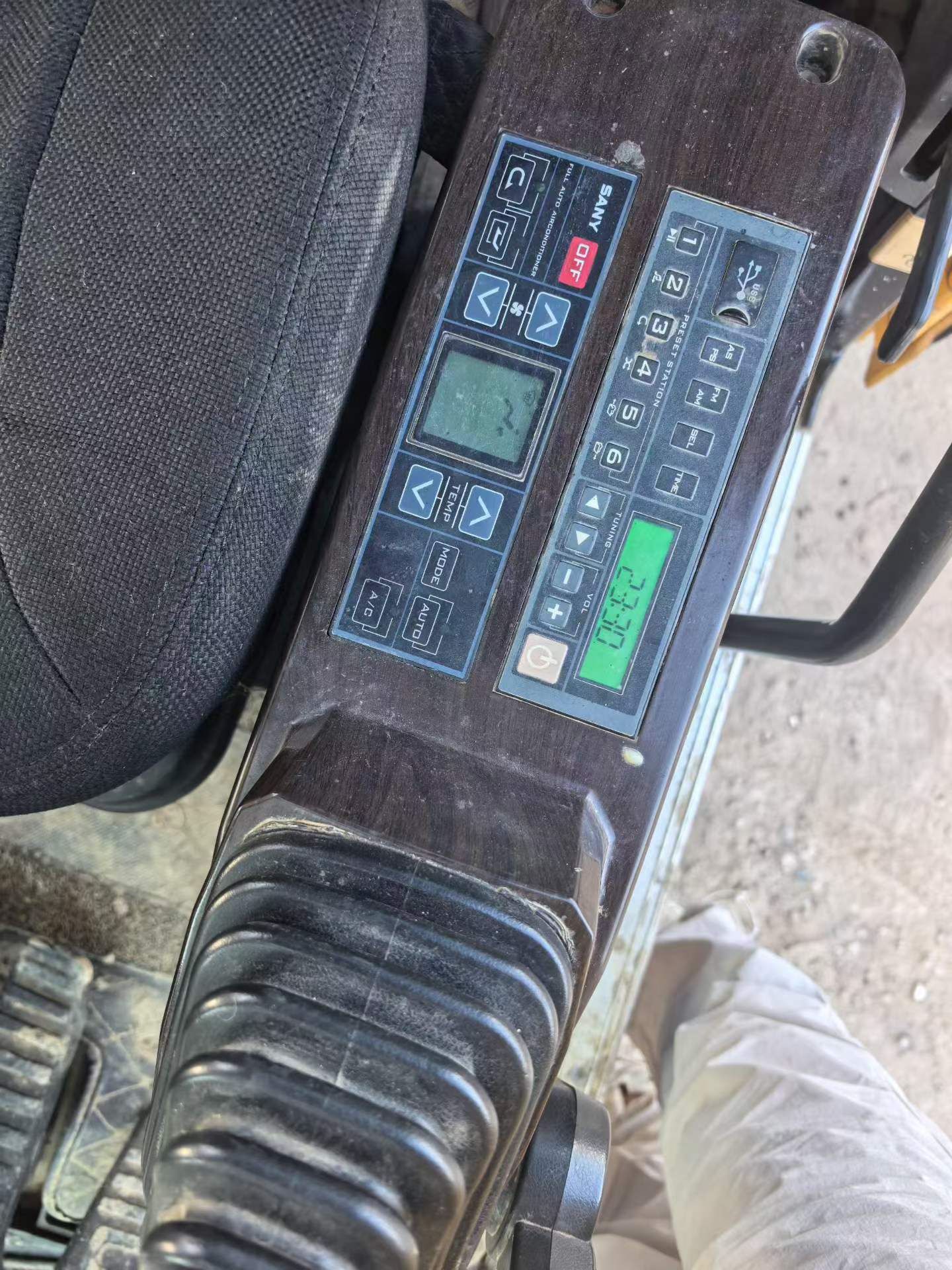

Buy Sany SY205C Used Excavator / 8

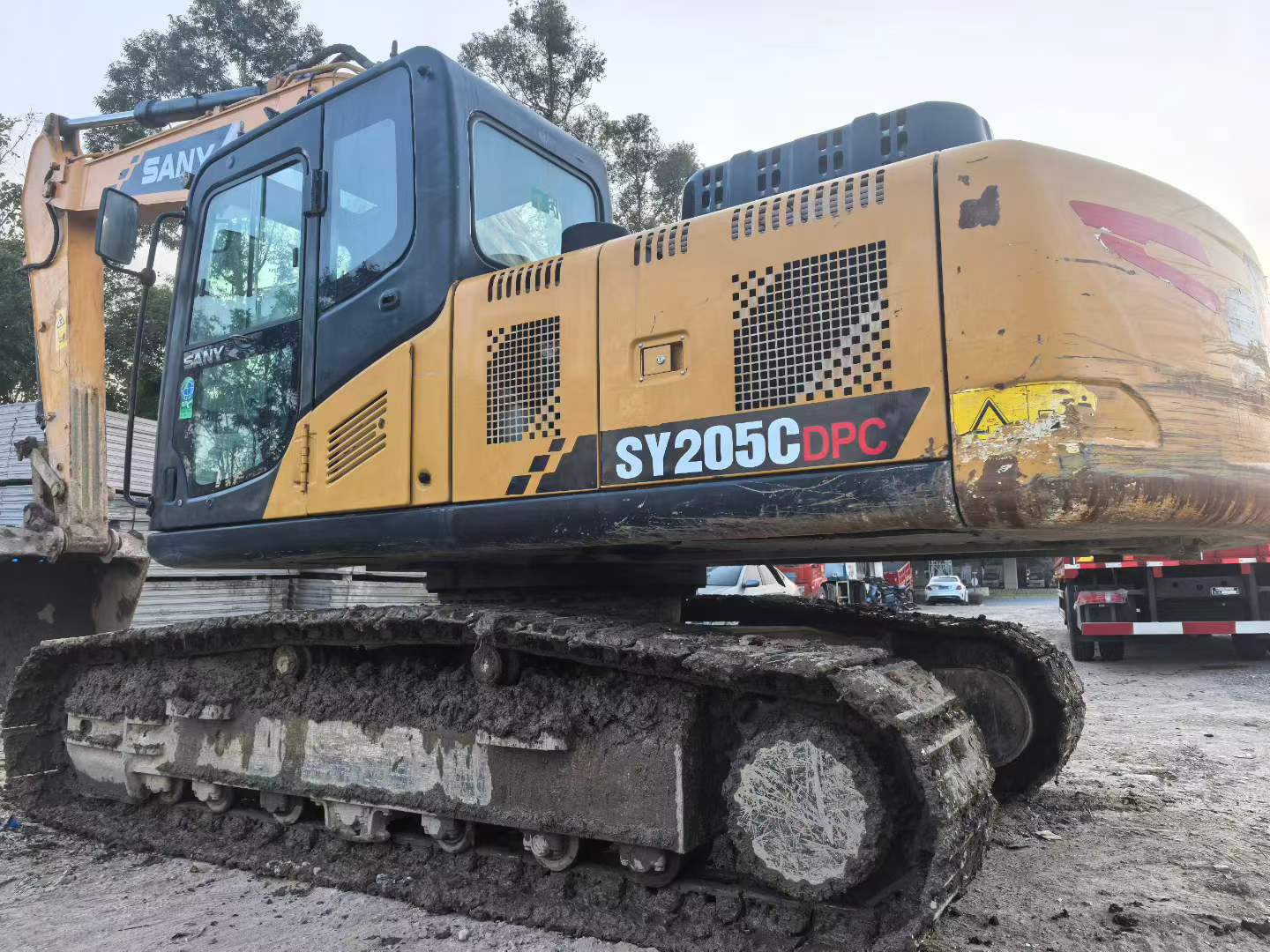

Buy Sany SY205C Used Excavator / 9

Product Description

Built for high-output excavation work, this 2021 Sany SY205C delivers 20-ton performance across digging, grading, and demolition applications. Powered by a robust 118kW engine at 2000rpm, this crawler excavator generates 138kN bucket digging force and 109kN arm digging force—sufficient power to tackle compacted soil, rock breaking, and foundation work without hesitation.

Currently located in Wenzhou, Zhejiang, this machine arrives site-ready with proven capabilities:

  • Maximum digging depth of 6600mm and reach extending to 10280mm for deep trenching and slope work
  • 0.9–1.1m³ backhoe bucket capacity optimized for loading trucks and mass excavation
  • Operating weight of 21,500kg provides stability during heavy lifting and demolition tasks
  • 70% gradeability (35°) enables operation on challenging terrain and embankments
  • 600mm track plates with 47.3kPa ground pressure minimize surface damage on sensitive sites

Factory-built in China with traditional hydraulic power systems, this SY205C requires no adaptation period. Operators can immediately deploy this excavator for utility installation, site preparation, or material handling operations.

SpecificationsValue
No.1048521
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)0.9~1.1(1.0)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)118/2000
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)138
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4160
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3360
Maximum height at minimum turning radius (mm)7680
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1048521

Brand Name:

Sany

Model Number:

SY205C

Year:

2021

Location:

Zhejiang China
