Product Description

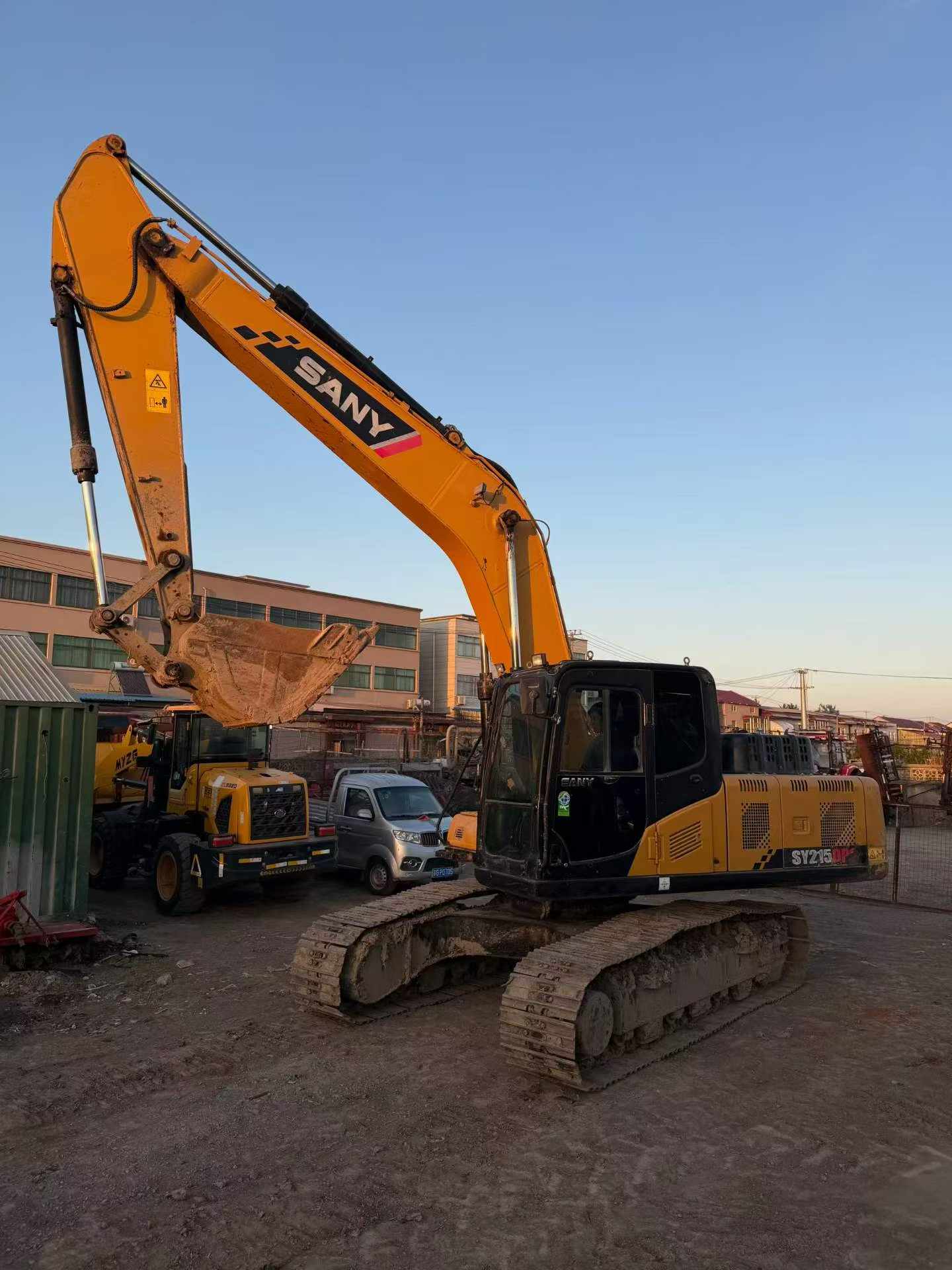

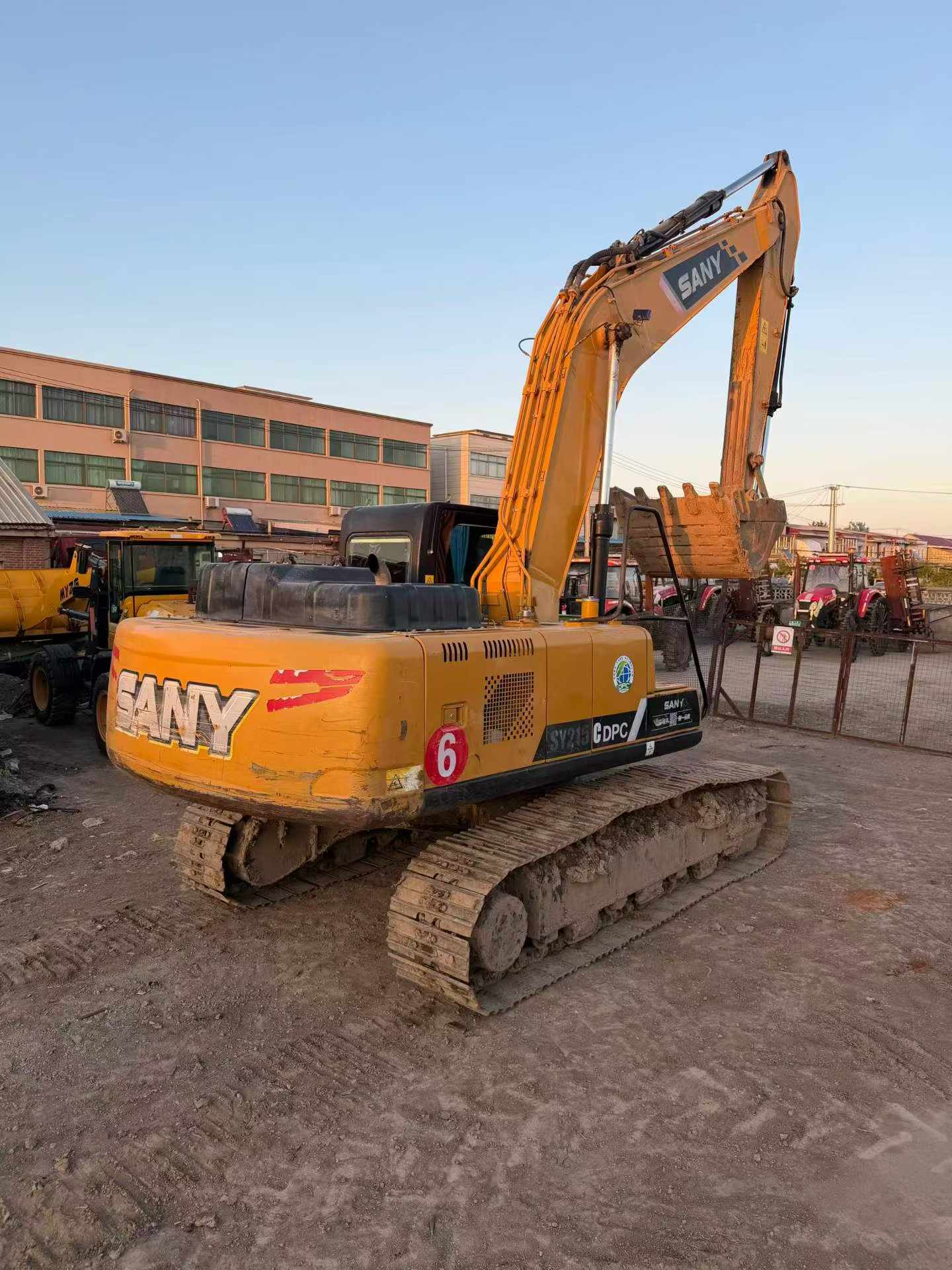

Built to endure the demands of serious earthmoving, the Sany SY205C is a proven 20-ton workhorse that has held its own since 2021. Manufactured in China to Sany's rigorous production standards, this backhoe excavator combines robust construction with dependable diesel performance — rated at 118 kW / 2000 rpm — making it a reliable choice for contractors who need consistent output day after day.
With a bucket capacity of 0.9–1.1 m³, a bucket digging force of 138 kN, and a maximum digging depth of 6,600 mm, this machine handles demanding dig cycles without compromise. Ground pressure sits at just 47.3 kPa, protecting sensitive job sites, while a 70% climbing ability confirms it performs on uneven terrain.
- Working weight: 21,500 kg
- Rated power: 118 kW / 2,000 rpm
- Bucket digging force: 138 kN
- Maximum digging depth: 6,600 mm
- Maximum digging radius: 10,280 mm
- Maximum excavation height: 9,600 mm
- Travel speed: 5.4 / 3.3 km/h
- Track plate width: 600 mm
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1059042 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
