2021 Sany SY205C

1/6
Buy Sany SY205C Used Excavator / 1
Buy Sany SY205C Used Excavator / 2
Buy Sany SY205C Used Excavator / 3
Buy Sany SY205C Used Excavator / 4
Buy Sany SY205C Used Excavator / 5
Buy Sany SY205C Used Excavator / 6

Product Description

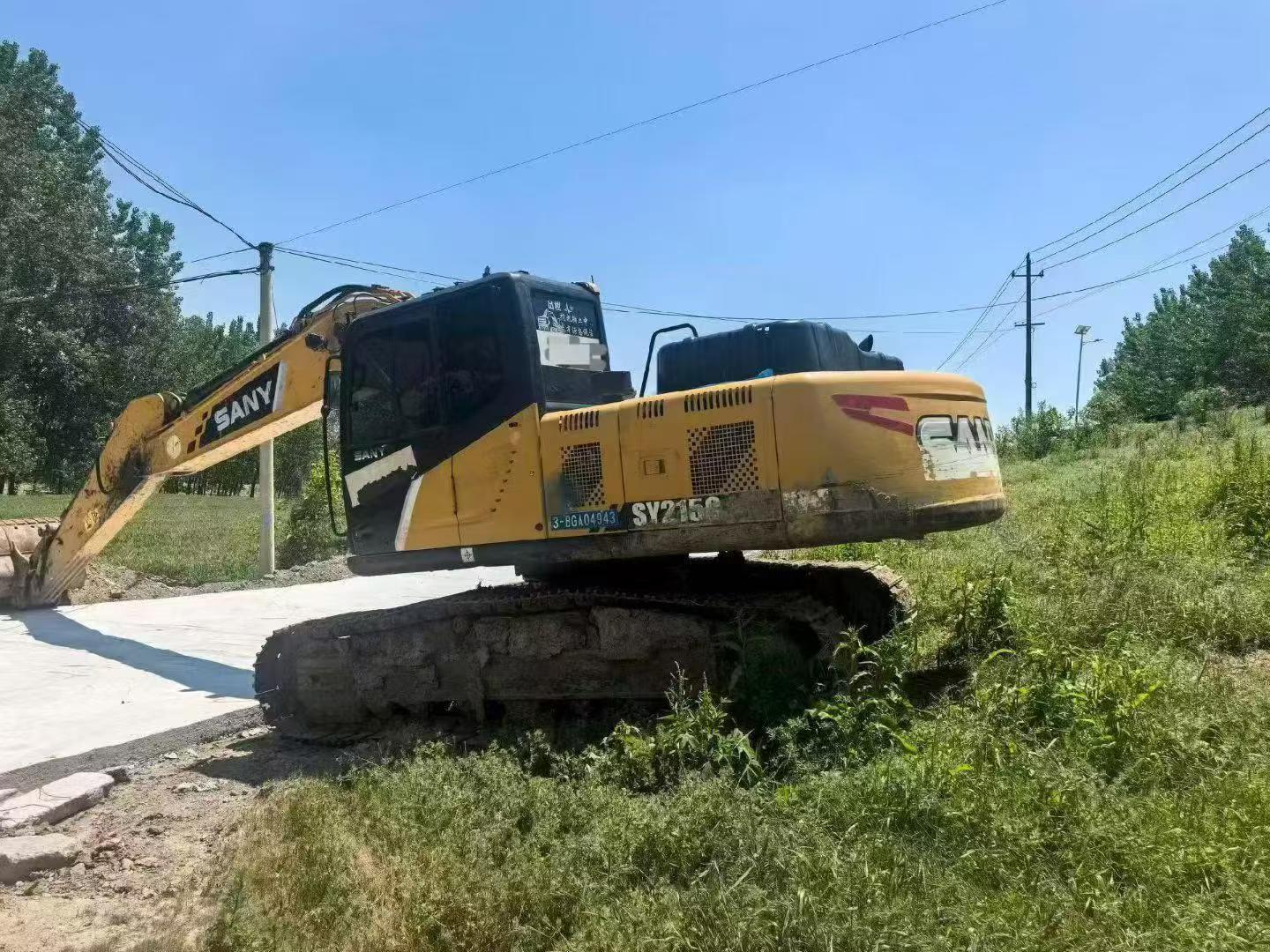

Built to endure the demands of serious earthmoving, the Sany SY205C is a 20-ton backhoe excavator with a proven track record since its 2021 manufacture in China. Powered by a 118 kW engine at 2,000 rpm, this machine delivers consistent, reliable performance across a wide range of job site conditions — a true workhorse that holds its value through years of hard use.

  • Operating Weight: 21,500 kg
  • Bucket Capacity: 0.9–1.1 m³ (rated 1.0 m³)
  • Bucket Digging Force: 138 kN
  • Rod Digging Force: 109 kN
  • Maximum Digging Depth: 6,600 mm
  • Maximum Digging Radius: 10,280 mm
  • Maximum Excavation Height: 9,600 mm
  • Travel Speed: 5.4 / 3.3 km/h
  • Climbing Ability: 70% / 35°
  • Ground Pressure: 47.3 kPa
  • Track Plate Width: 600 mm
  • Location: Jiangsu, China

Sourced directly from Jiangsu, this unit is available for global export. Its durable construction and well-documented specifications make it a dependable choice for contractors who need a machine that works as hard as they do.

SpecificationsValue
No.1070973
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)0.9~1.1(1.0)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)118/2000
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)138
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4160
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3360
Maximum height at minimum turning radius (mm)7680
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1070973

Brand Name:

Sany

Model Number:

SY205C

Year:

2021

Location:

Jiangsu China

Pub Date
