Product Description
This 2021 Sany SY205C excavator is a reliable earthmoving machine currently located in Shanghai, China. With approximately 3 years of operational history, this mid-size crawler excavator has been primarily utilized for earthwork applications, demonstrating the durability and performance that Sany equipment is known for in the construction industry.
The SY205C represents Sany's proven 20-ton class excavator platform, designed for general excavation, trenching, and material handling operations. This unit has been maintained for earthmoving duties and is ready for immediate deployment on construction sites, infrastructure projects, or land development applications.
Key features of this model include:

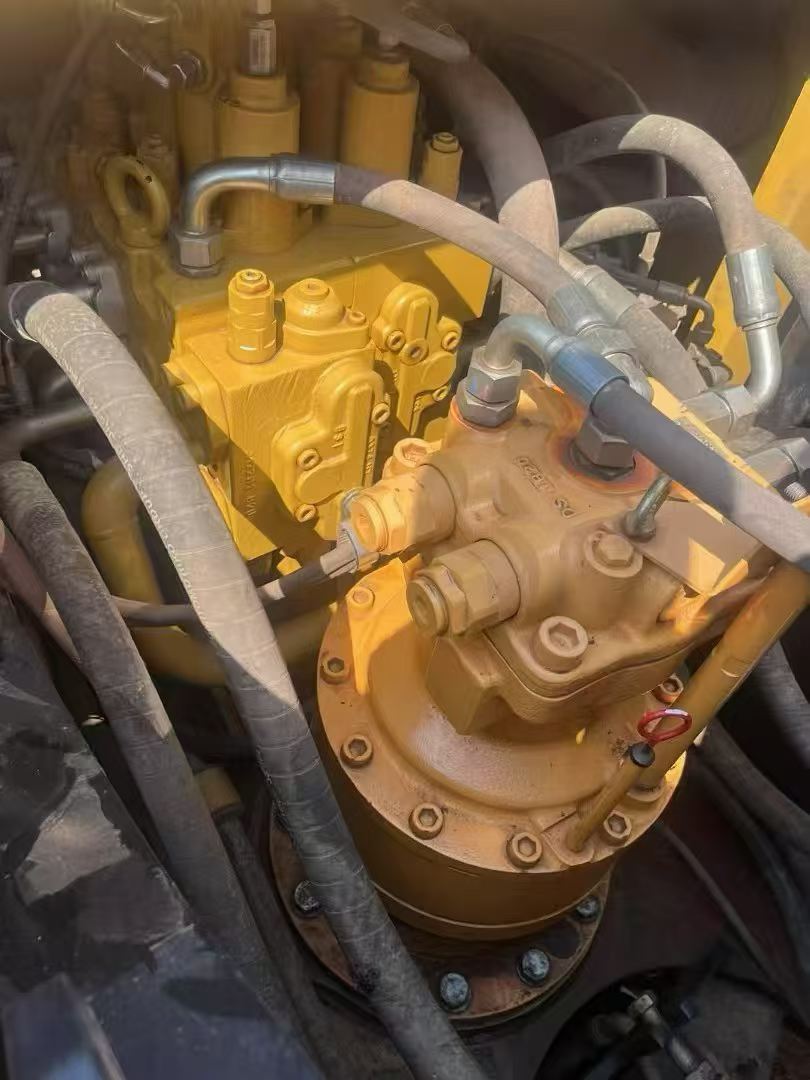

- Robust hydraulic system for efficient digging performance
- Spacious operator cabin with ergonomic controls

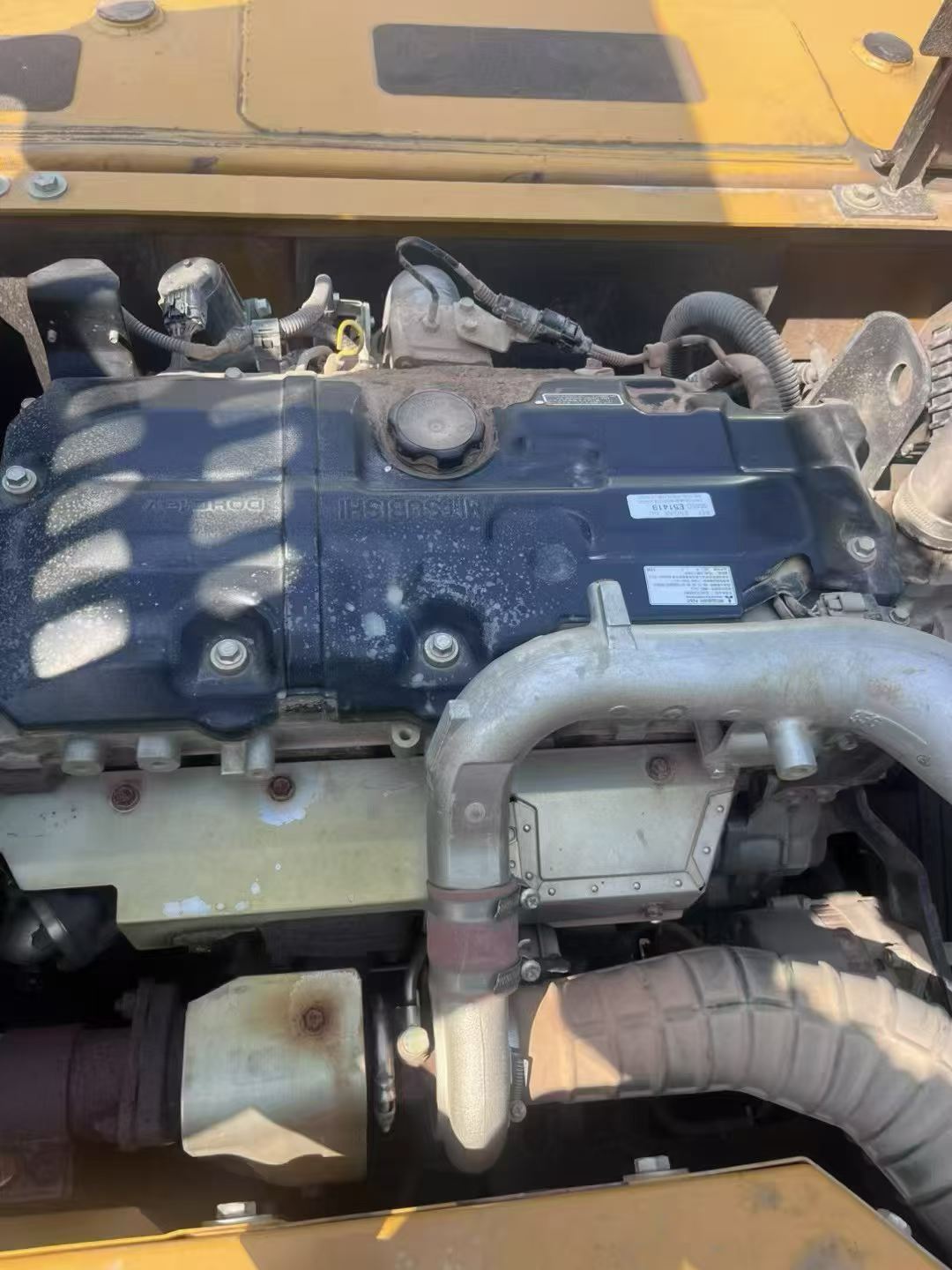

- Fuel-efficient engine designed for extended operation

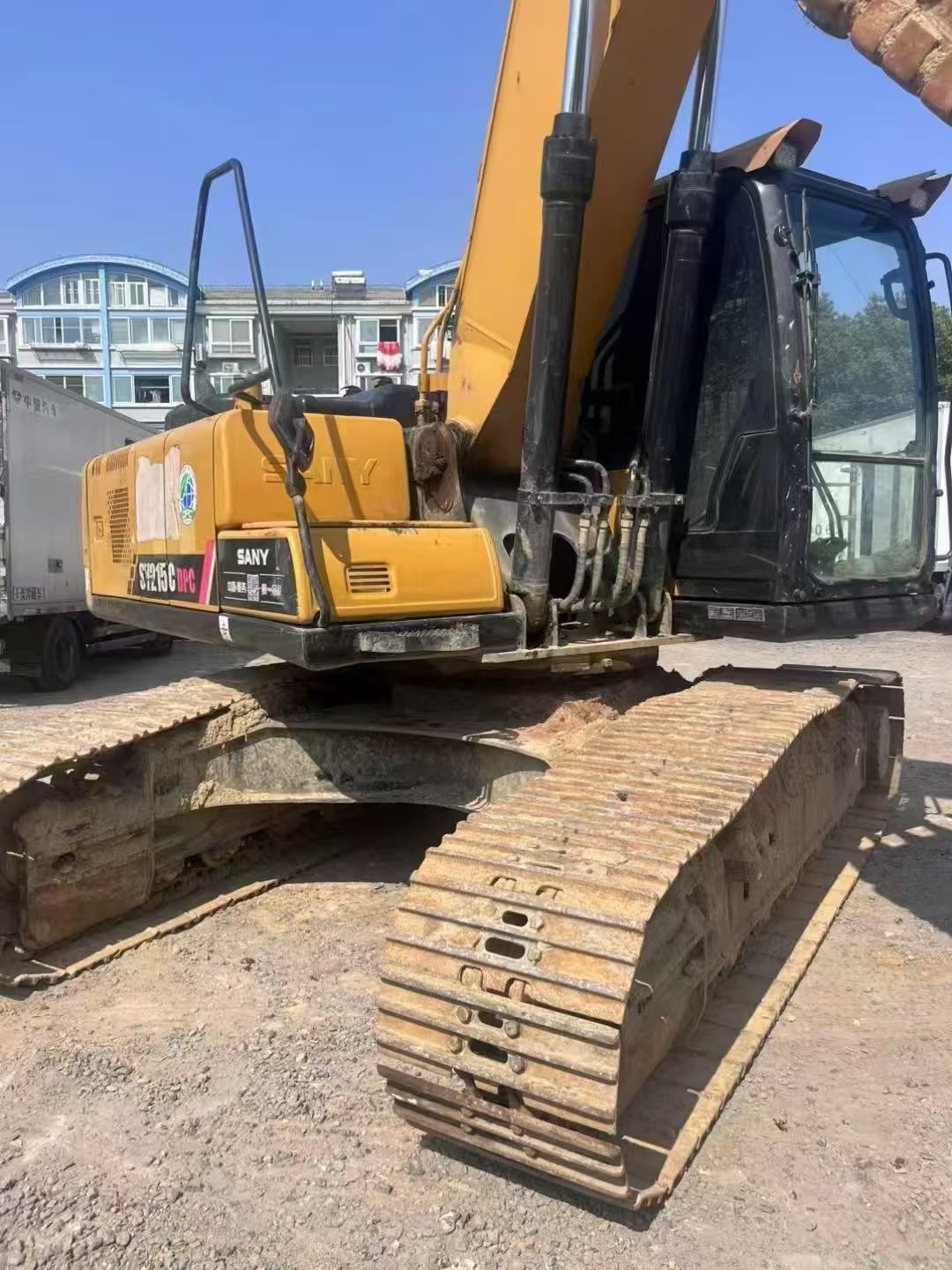

- Durable undercarriage suitable for varied terrain
Available for inspection in Shanghai. Ideal for contractors seeking dependable earthmoving equipment with recent manufacturing date.
| Specifications | Value |
|---|---|
| No. | 1139197 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
