2022 Sany SY205C

1/9

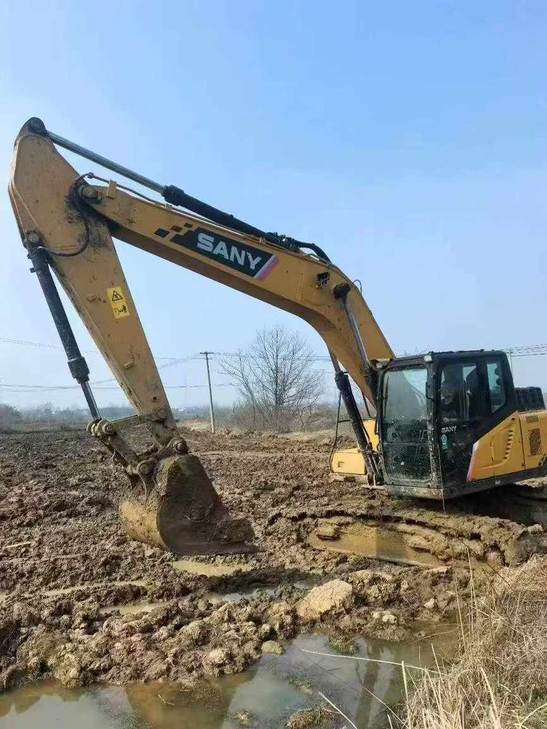

Used Sany SY205C Excavator 2022 Model / 1

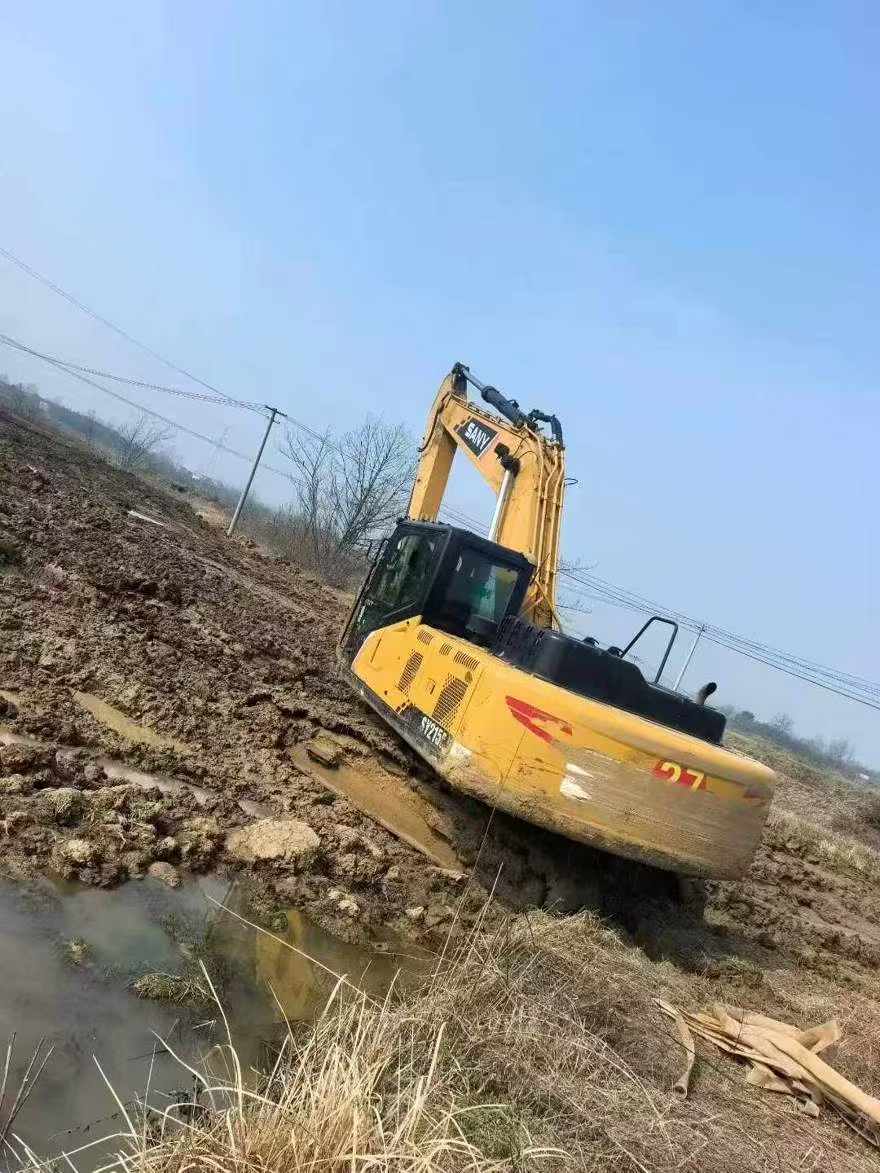

Used Sany SY205C Excavator 2022 Model / 2
Used Sany SY205C Excavator 2022 Model / 3

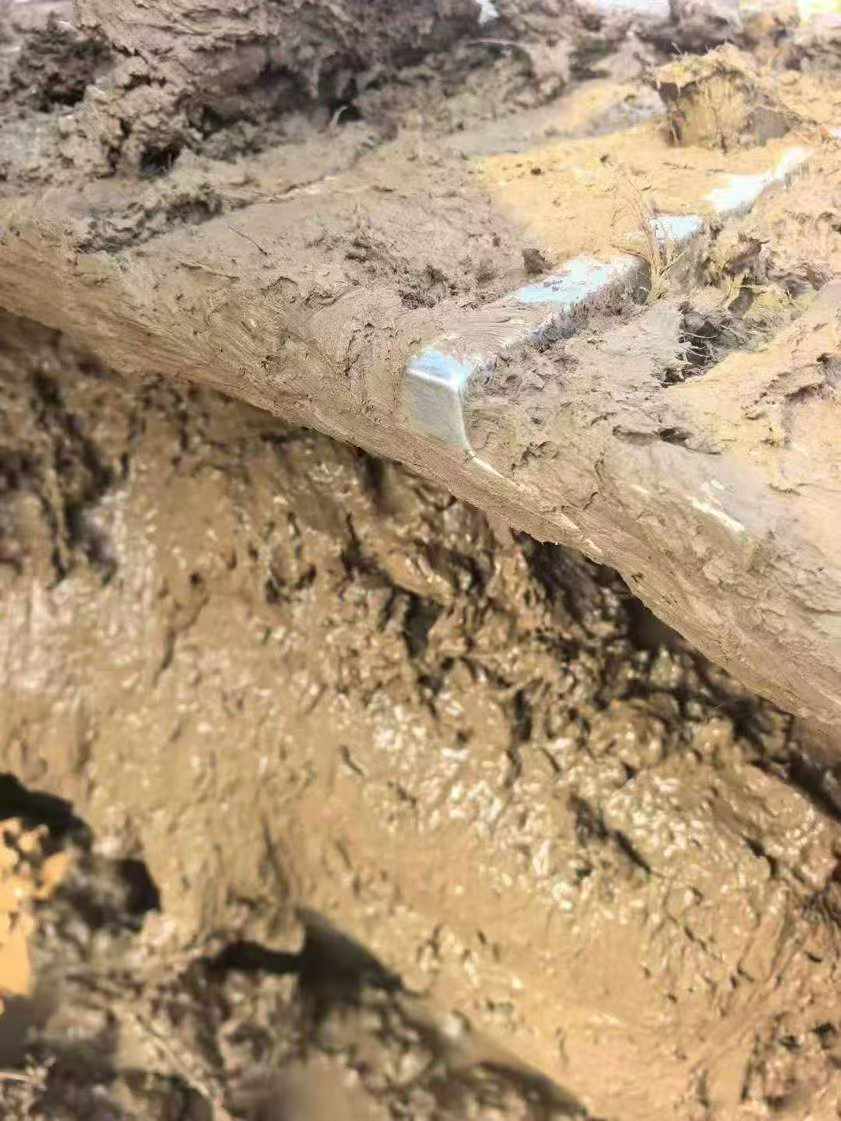

Used Sany SY205C Excavator 2022 Model / 4
Used Sany SY205C Excavator 2022 Model / 5
Used Sany SY205C Excavator 2022 Model / 6
Used Sany SY205C Excavator 2022 Model / 7

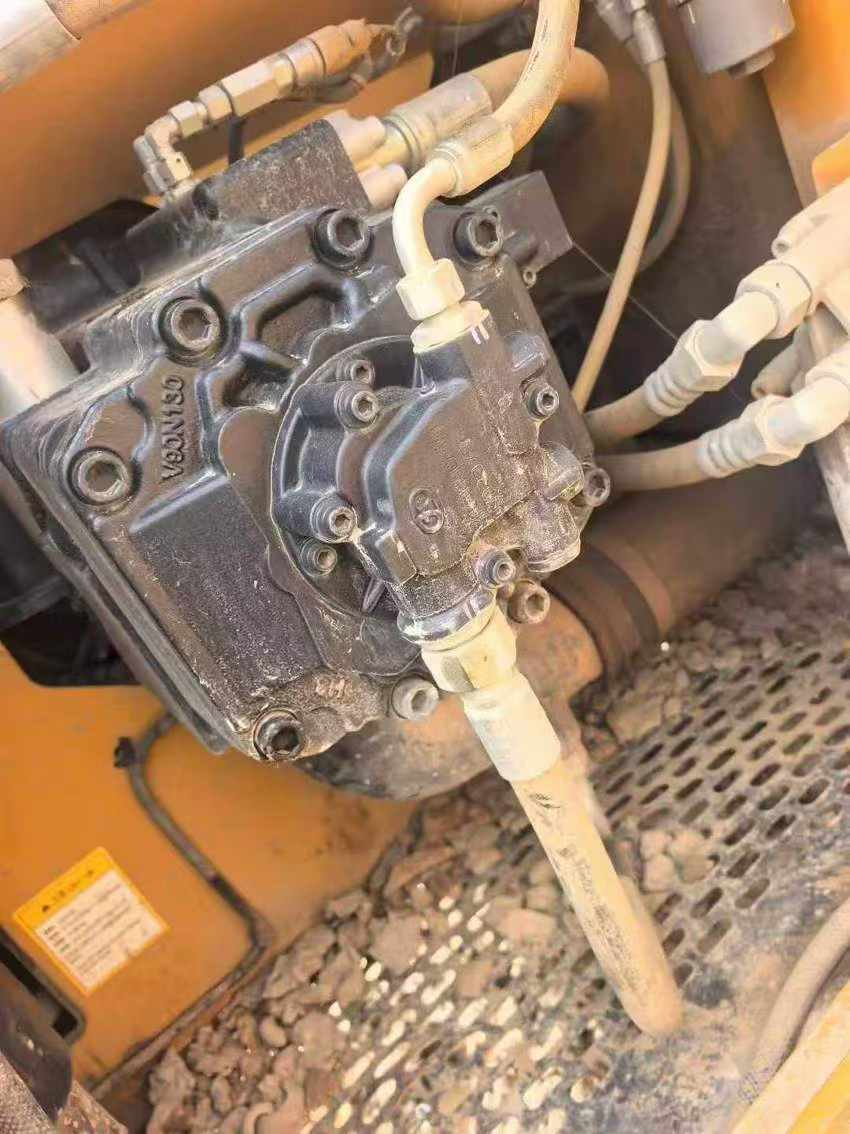

Used Sany SY205C Excavator 2022 Model / 8

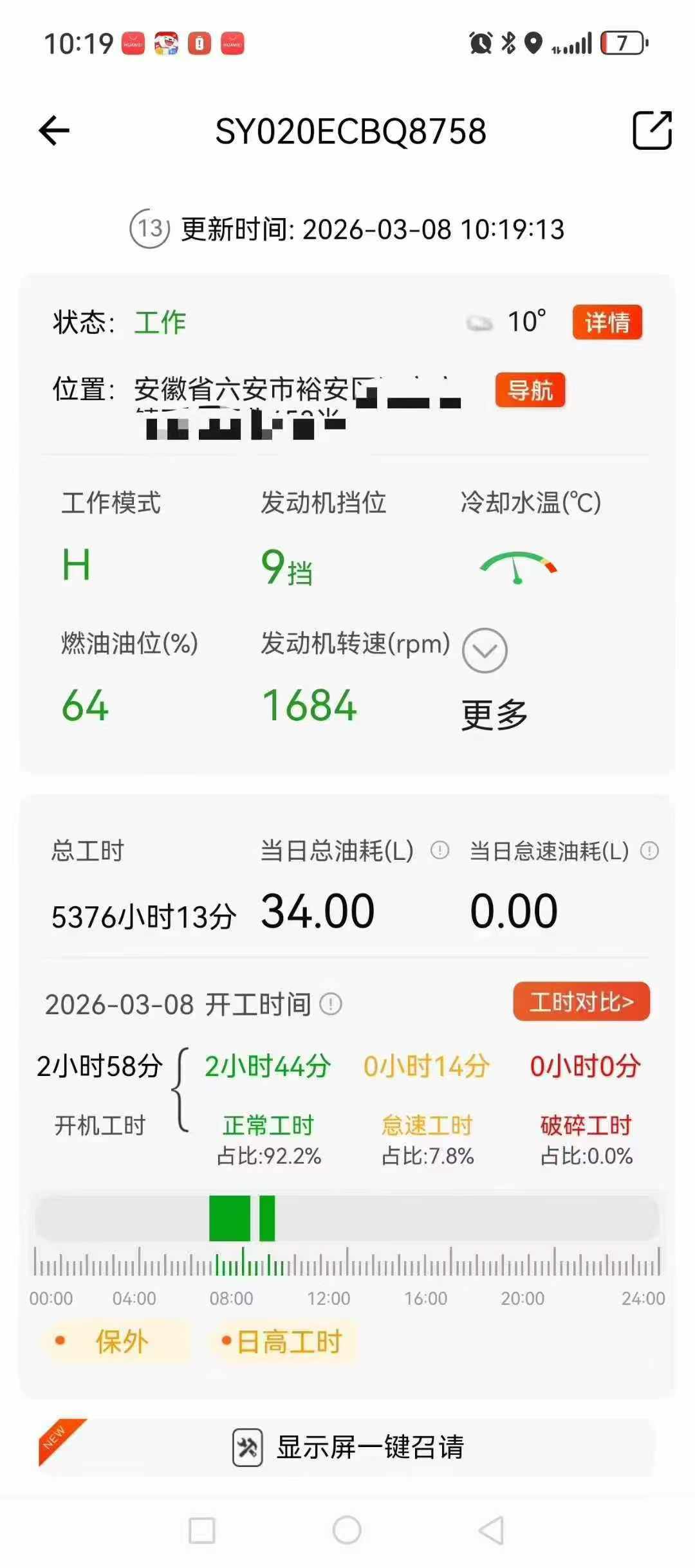

Used Sany SY205C Excavator 2022 Model / 9

Product Description

Backed by one of the world's fastest-growing construction equipment manufacturers, this 2022 Sany SY205C excavator delivers proven performance with the security of long-term parts support. Operating at 20 tons with a robust 118kW engine, this machine combines a 1.0m³ bucket capacity with impressive digging force—138kN bucket force and 109kN arm force—making it suitable for demanding excavation, grading, and loading applications across construction and infrastructure projects.

Sany's extensive global dealer network ensures replacement parts remain accessible and affordable throughout the machine's service life, a critical advantage when purchasing used equipment. With 6,600mm maximum digging depth and 10,280mm reach, this SY205C handles substantial earthmoving tasks while maintaining fuel efficiency through its traditional power system. Currently located in Fujian, China, this excavator represents exceptional value in the secondary market.

  • 20-ton operating weight with 21,500kg working capacity
  • 118kW rated power at 2,000 RPM for consistent productivity
  • Strong resale value backed by Sany's growing market presence
  • Comprehensive parts availability through established supply chains
SpecificationsValue
No.1031481
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)0.9~1.1(1.0)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)118/2000
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)138
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4160
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3360
Maximum height at minimum turning radius (mm)7680
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1031481

Brand Name:

Sany

Model Number:

SY205C

Year:

2022

Location:

Fujian China

Pub Date:
