Product Description
Built for precision and productivity, this 2022 Sany SY205C delivers exceptional operator-focused performance across demanding job sites. Powered by a robust 118kW engine at 2000rpm, this 20-ton excavator combines reliable Chinese engineering with operator-centric design features that reduce fatigue and maximize efficiency throughout extended shifts.

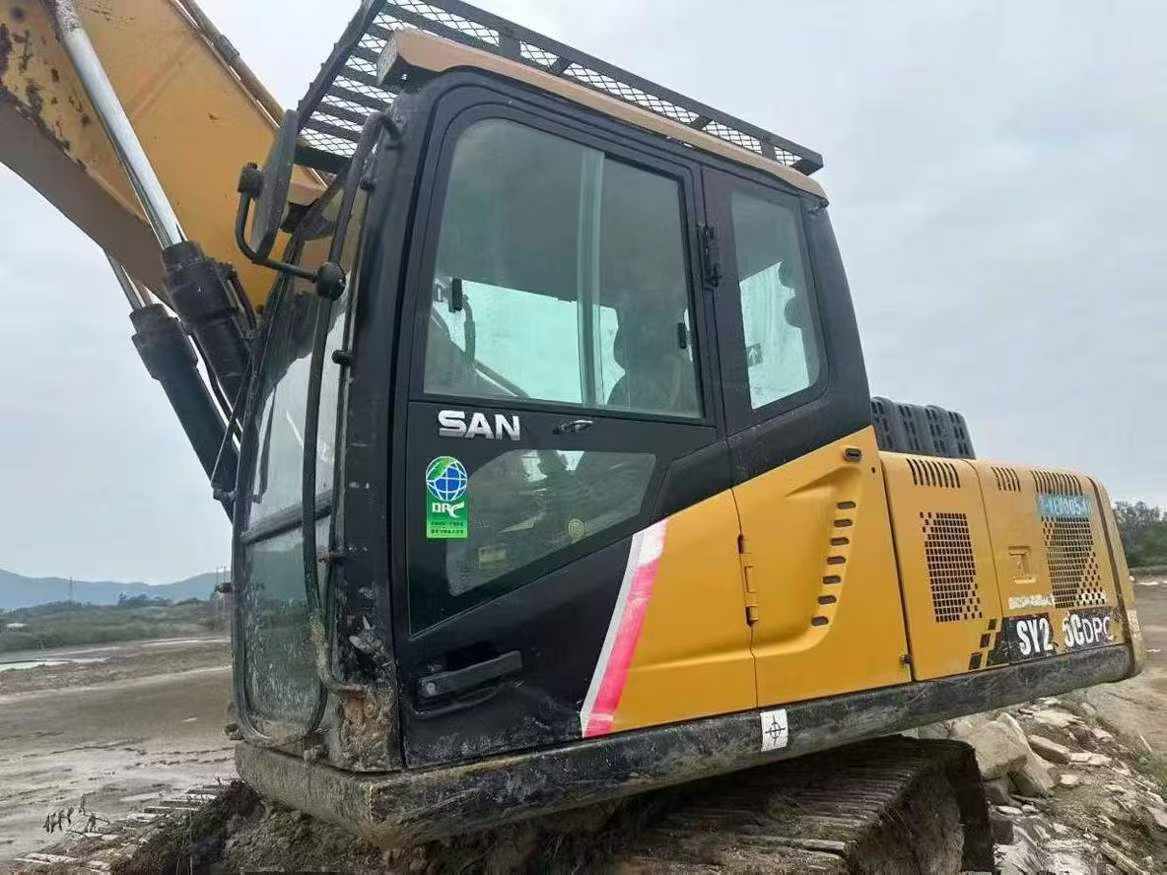

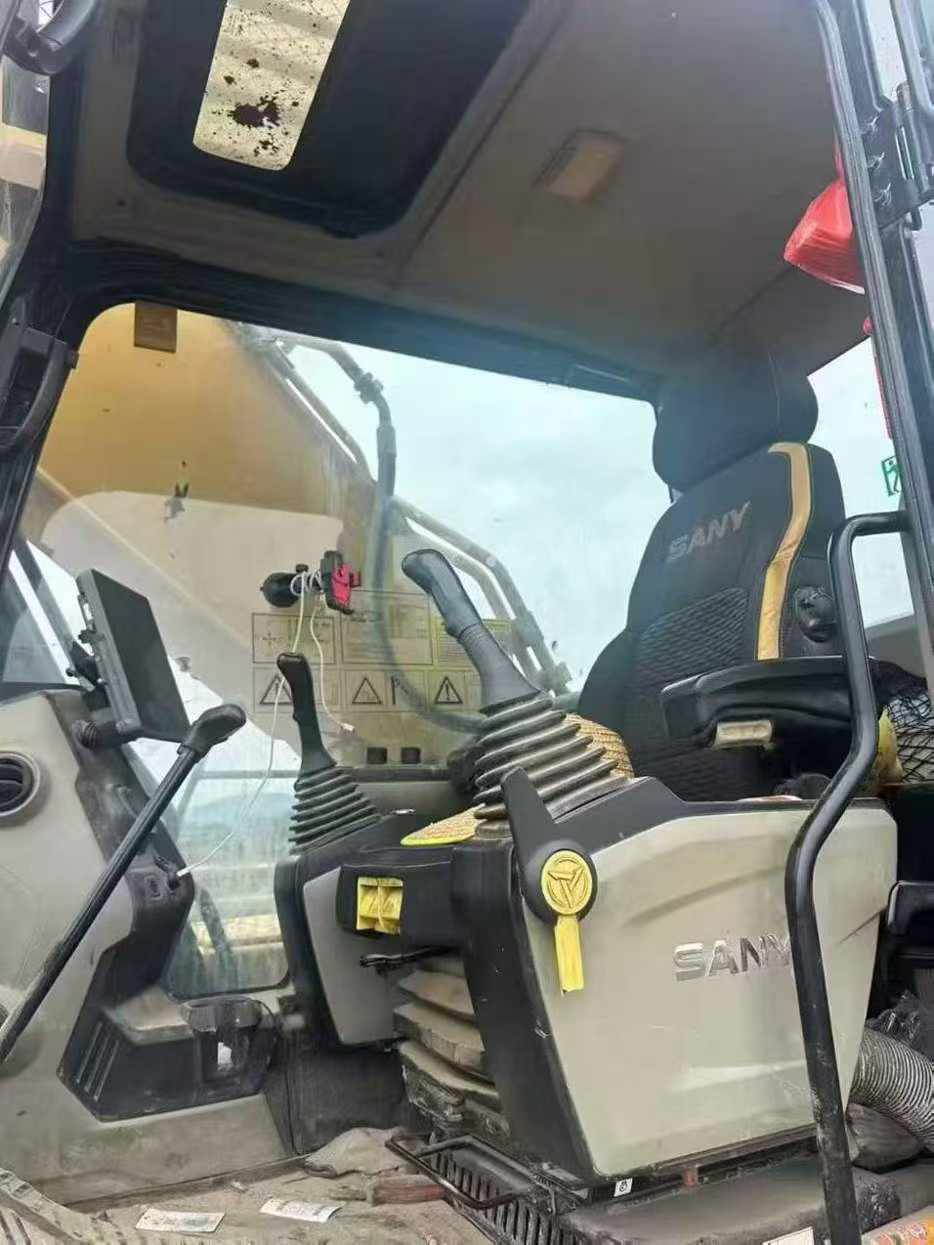

Operators benefit from superior visibility and control thanks to the thoughtfully designed cabin positioned 3075mm above ground, providing commanding sightlines to the 10,280mm maximum digging radius. The machine's 47.3 kPa ground pressure ensures excellent stability on varied terrain, while the 11 rpm rotation speed enables smooth, controlled movements. With bucket digging force reaching 138kN and a 0.9-1.1m³ capacity, material handling becomes consistently productive.
- Comfortable, high-visibility cabin for all-day operation
- Responsive controls with 5.4km/h high-speed travel
- Impressive 70% (35°) climbing capability for challenging grades
- Compact 2900mm rear turning radius for confined spaces
- Maximum digging depth of 6600mm
- Currently located in Huizhou, Guangdong
| Specifications | Value |
|---|---|
| No. | 1032554 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
