Product Description

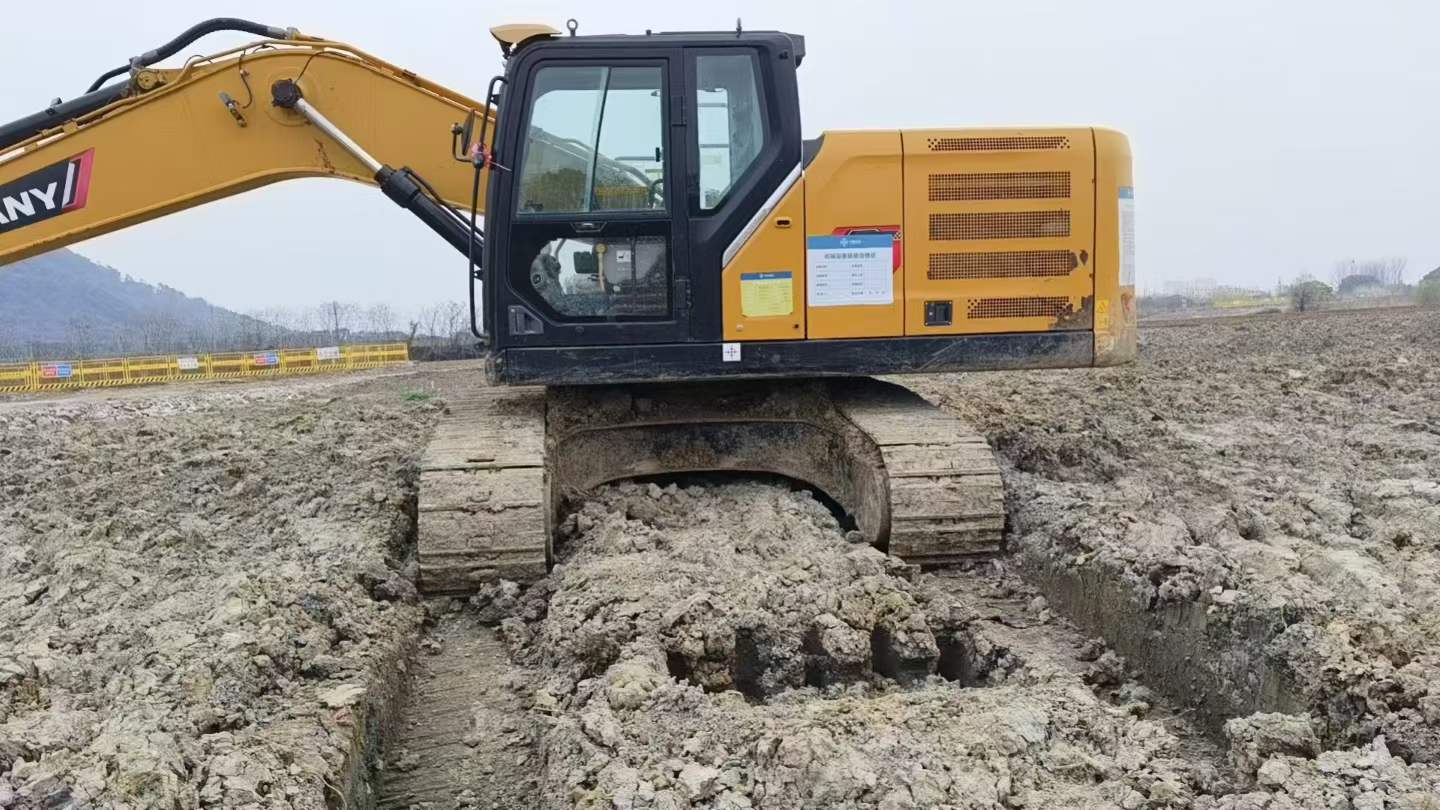

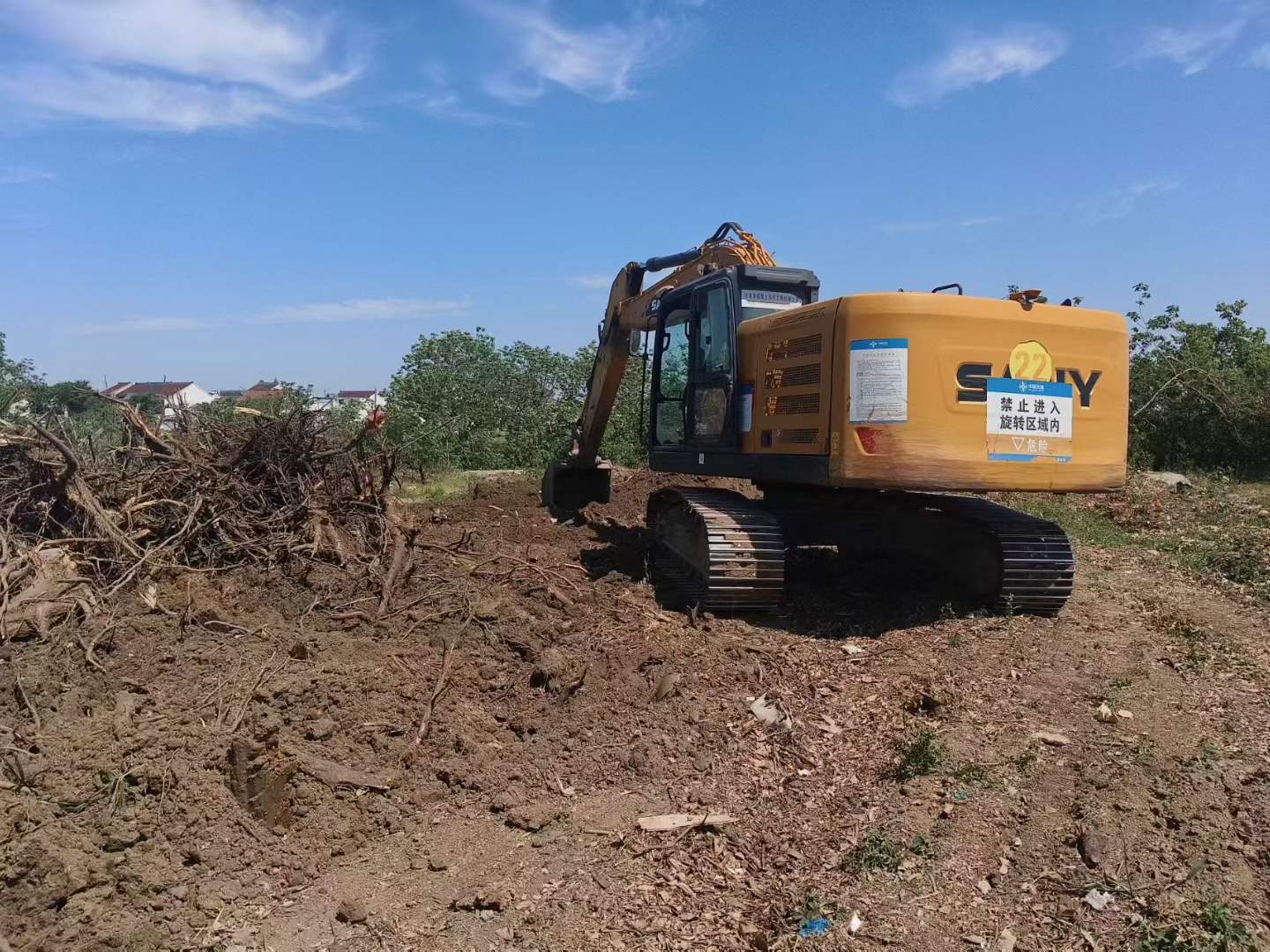

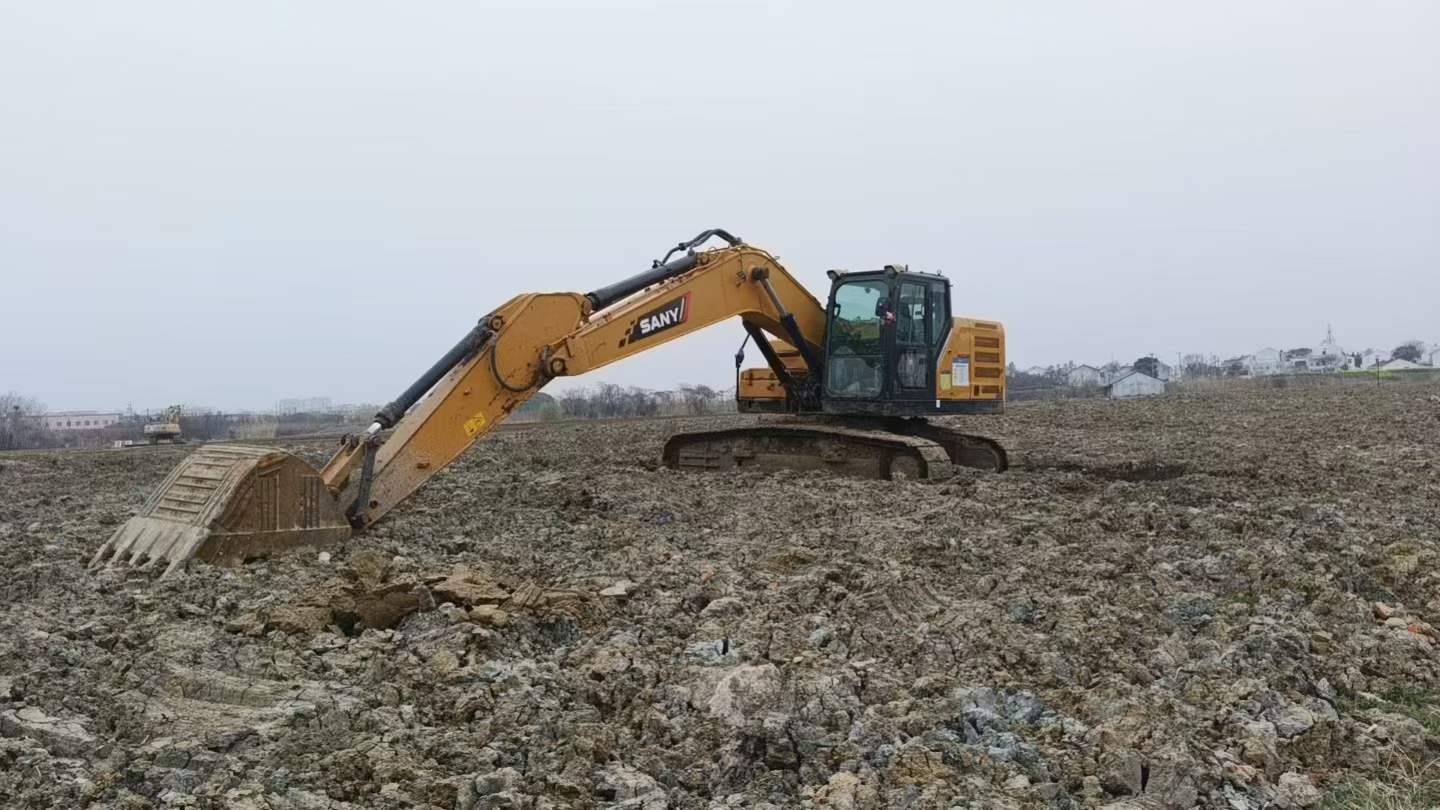

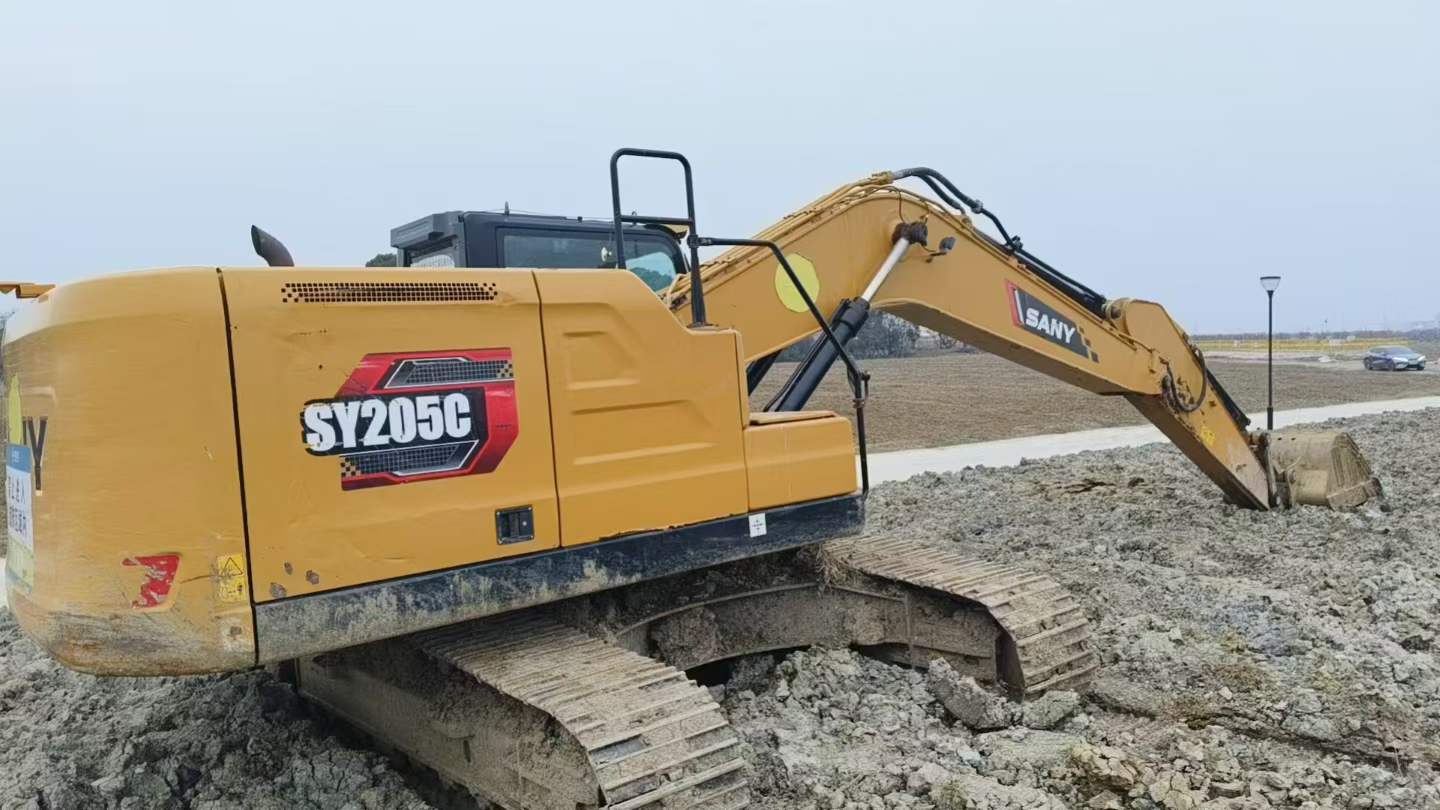

Expand your operational capacity with this 2023 Sany SY205C excavator, currently available from our Wuxi, Jiangsu facility. Built for contractors managing multiple jobsites simultaneously, this 20-ton machine delivers 118kW of reliable power and maintains proven uptime in demanding applications. With a 0.9-1.1m³ bucket capacity and 138kN bucket digging force, it handles everything from foundation work to utility trenching without missing a beat.
- Fleet-Ready Performance: 21,500kg working weight provides stable operation across varied terrain
- Consistent Output: 10,280mm maximum digging radius and 6,600mm digging depth cover standard commercial requirements
- Maneuverability: 2,900mm rear turning radius fits confined urban sites and residential projects
- Dual-Speed Travel: 5.4/3.3 km/h transport speeds optimize positioning between work zones
- Minimal Downtime: Factory-fresh 2023 model with full Chinese manufacturing support
Contractors running tight schedules need equipment that integrates immediately into existing operations. This SY205C requires no learning curve for experienced o
| Specifications | Value |
|---|---|
| No. | 1025481 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
