Product Description

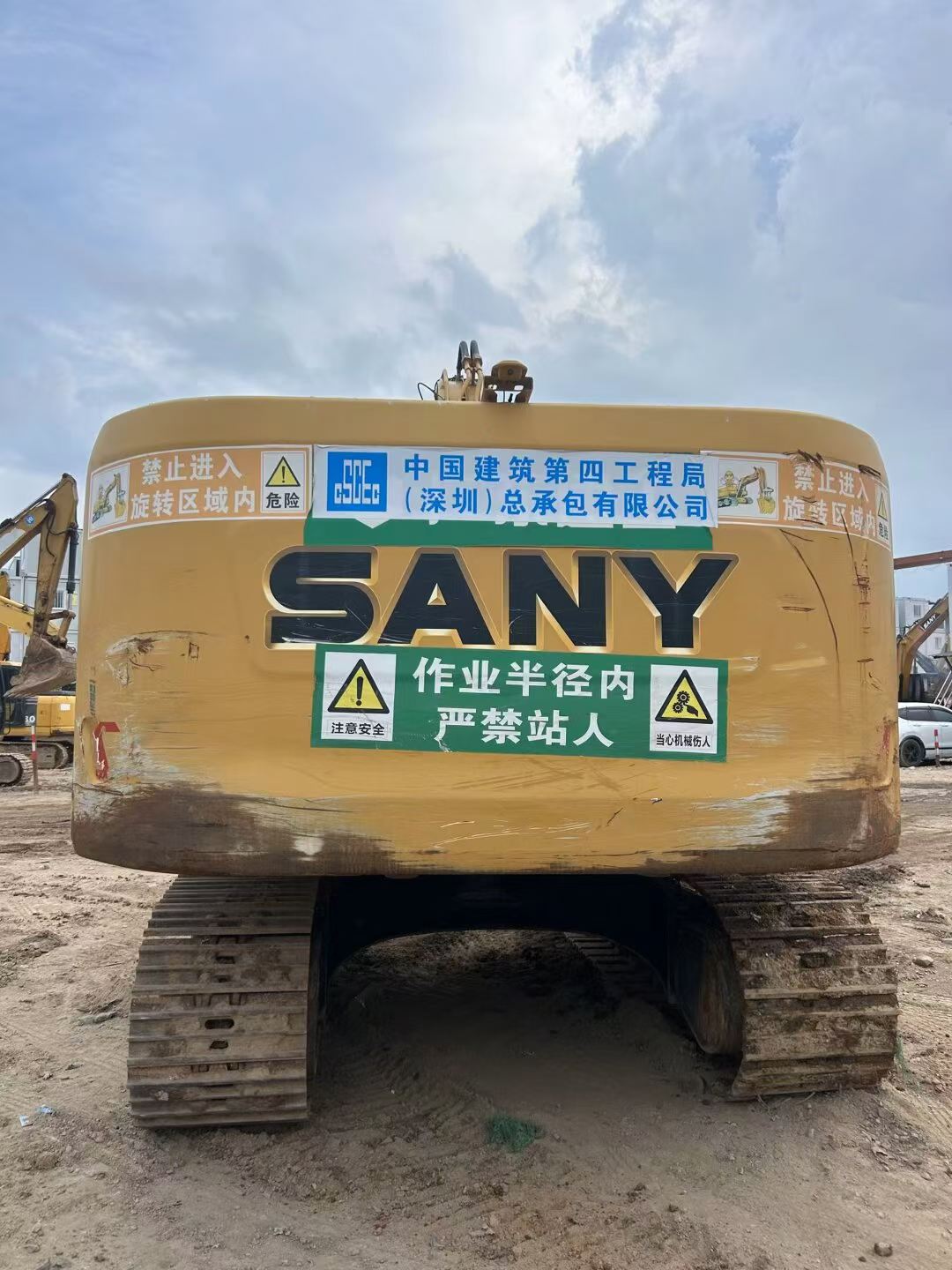

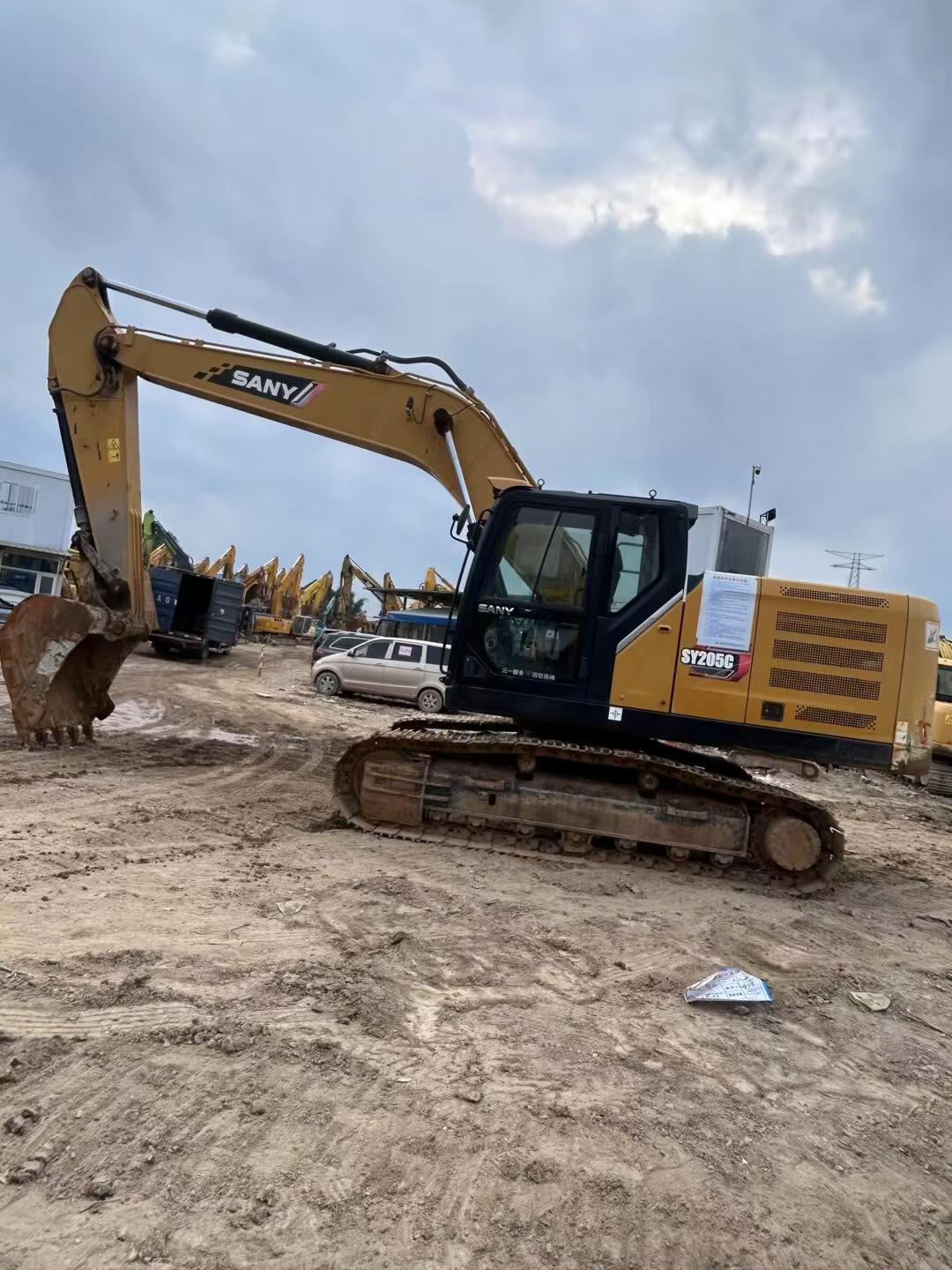

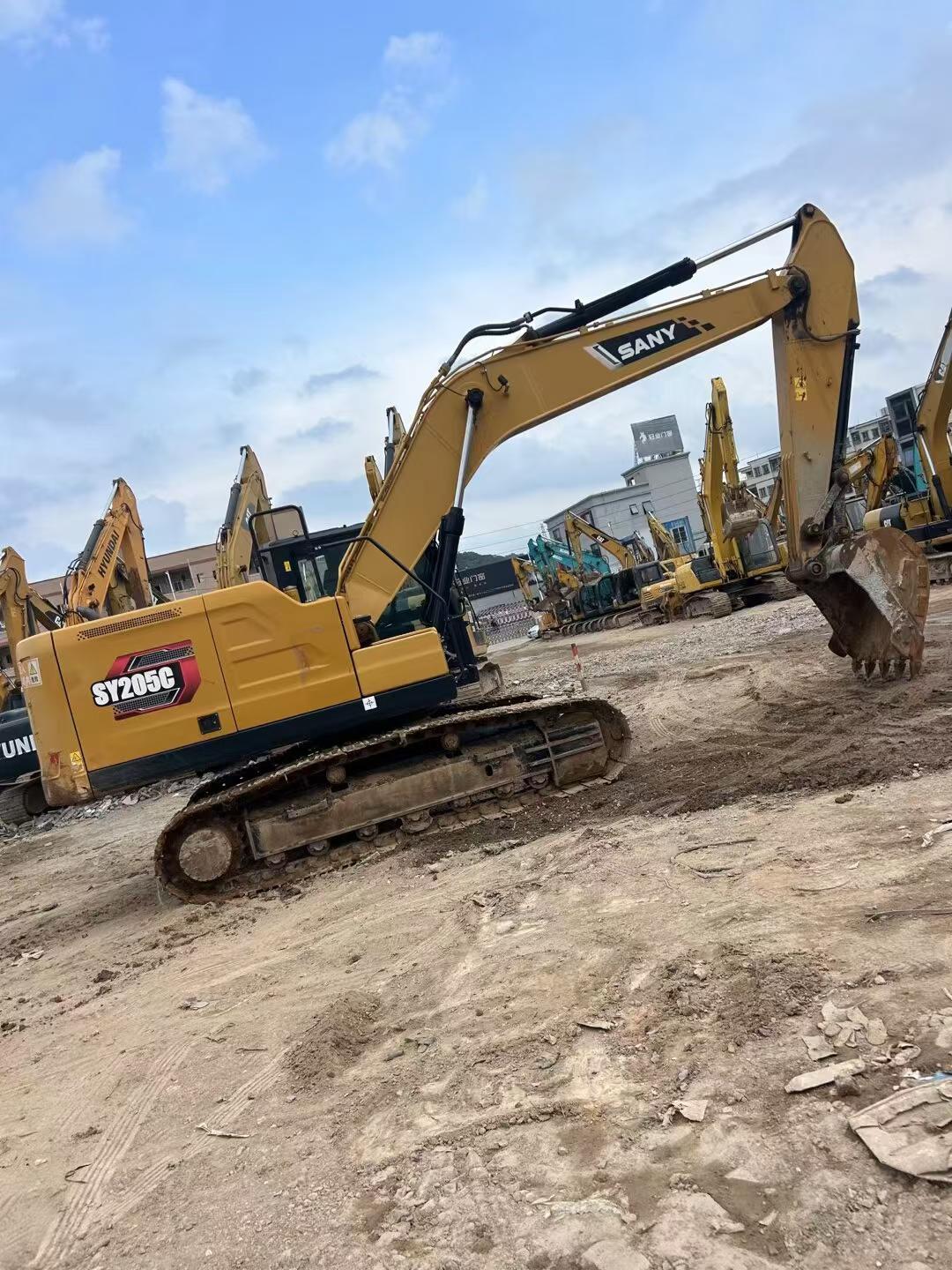

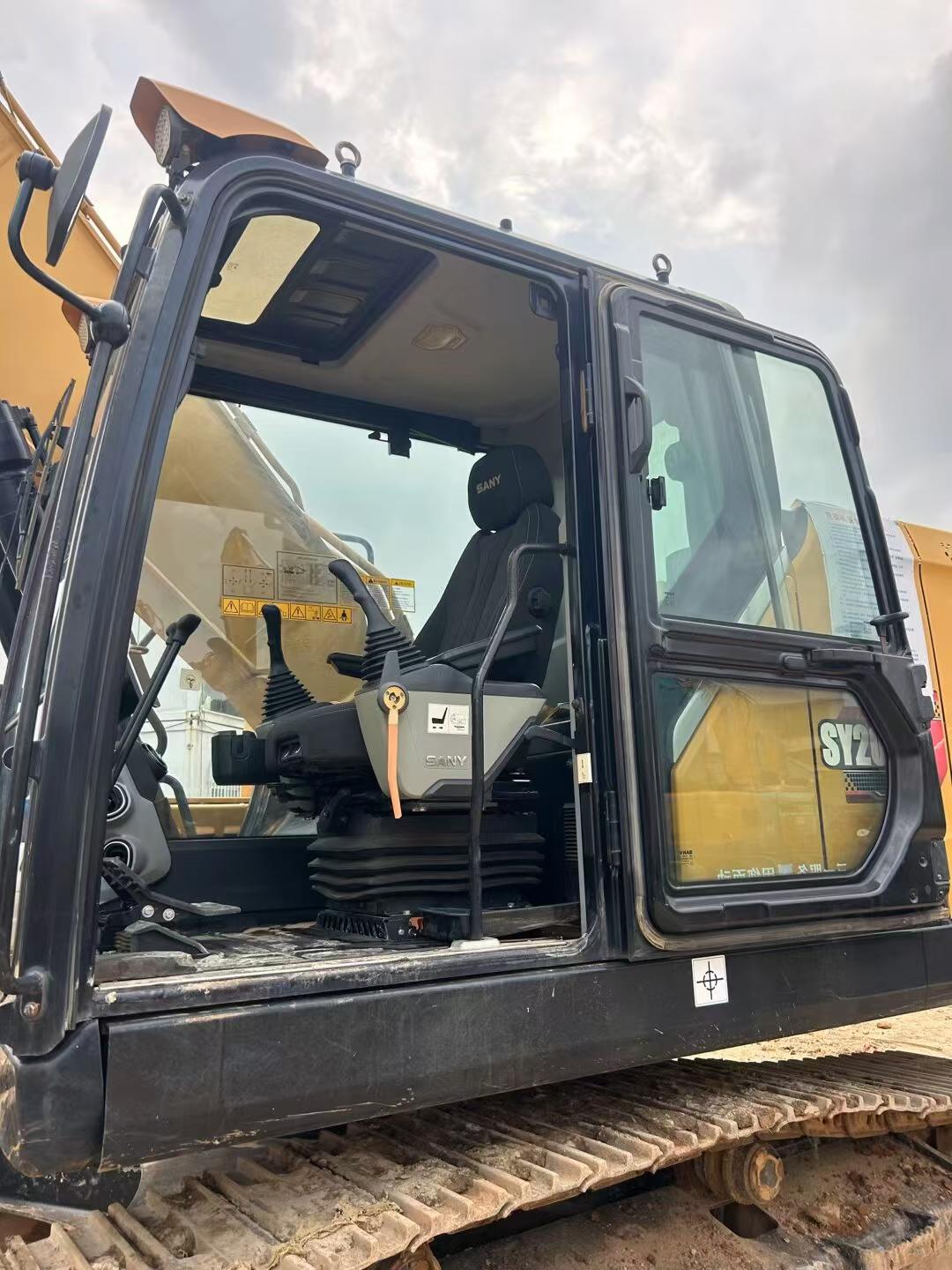

Discover the reliability and efficiency of the 2023 Sany SY205C, a robust excavator designed for demanding earthmoving tasks. Located in Guangdong, China, this used machine has been meticulously maintained and has clocked only 3,700 safe operating hours, ensuring its performance remains top-notch without the need for additional inspections. Ideal for construction and excavation projects, the SY205C offers a blend of power, durability, and cost-effectiveness, making it a smart investment for any industrial operation.
- Year: 2023
- Brand: Sany
- Model: SY205C
- Operating Hours: 3,700
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1132247 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

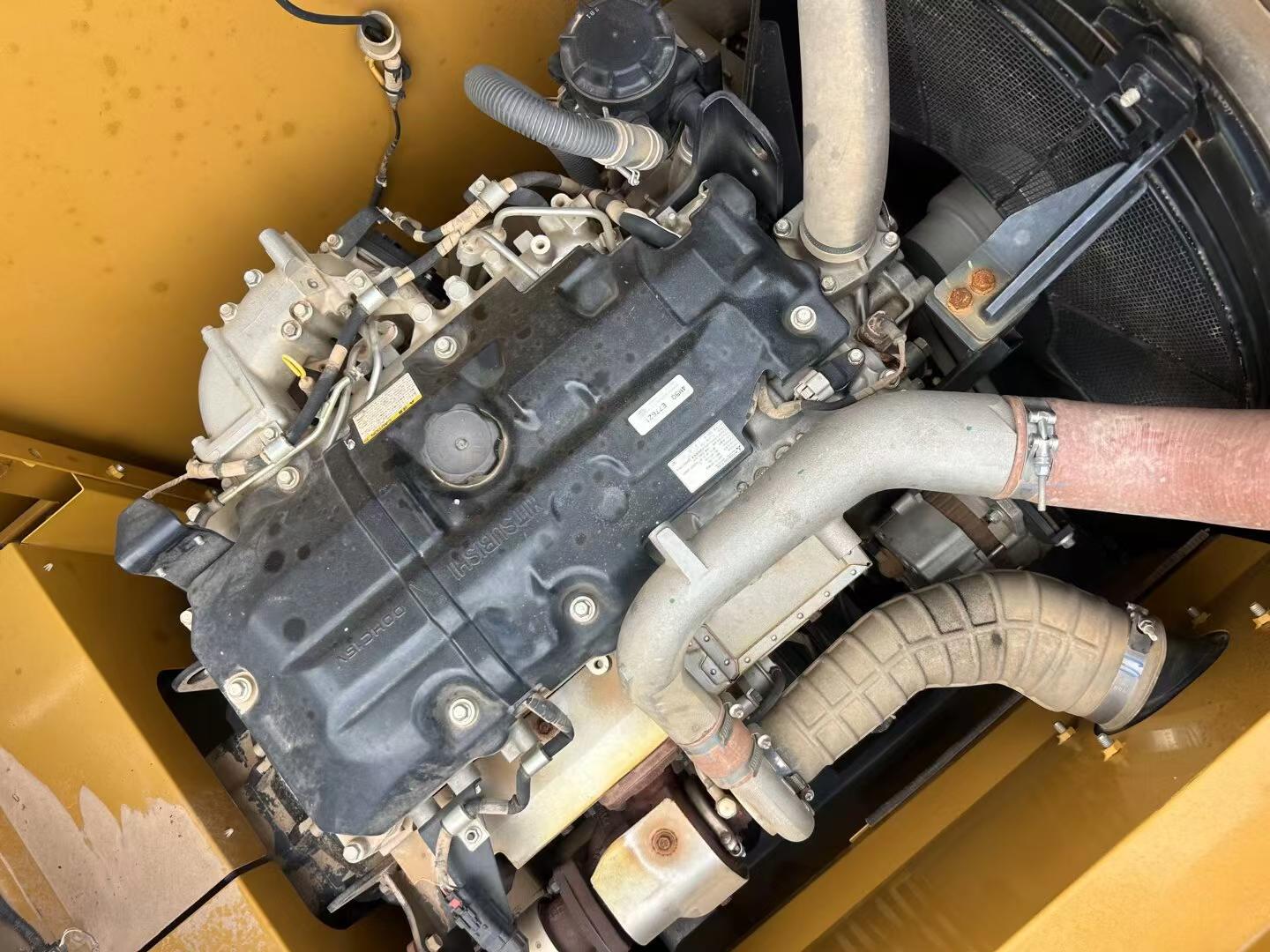

| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |

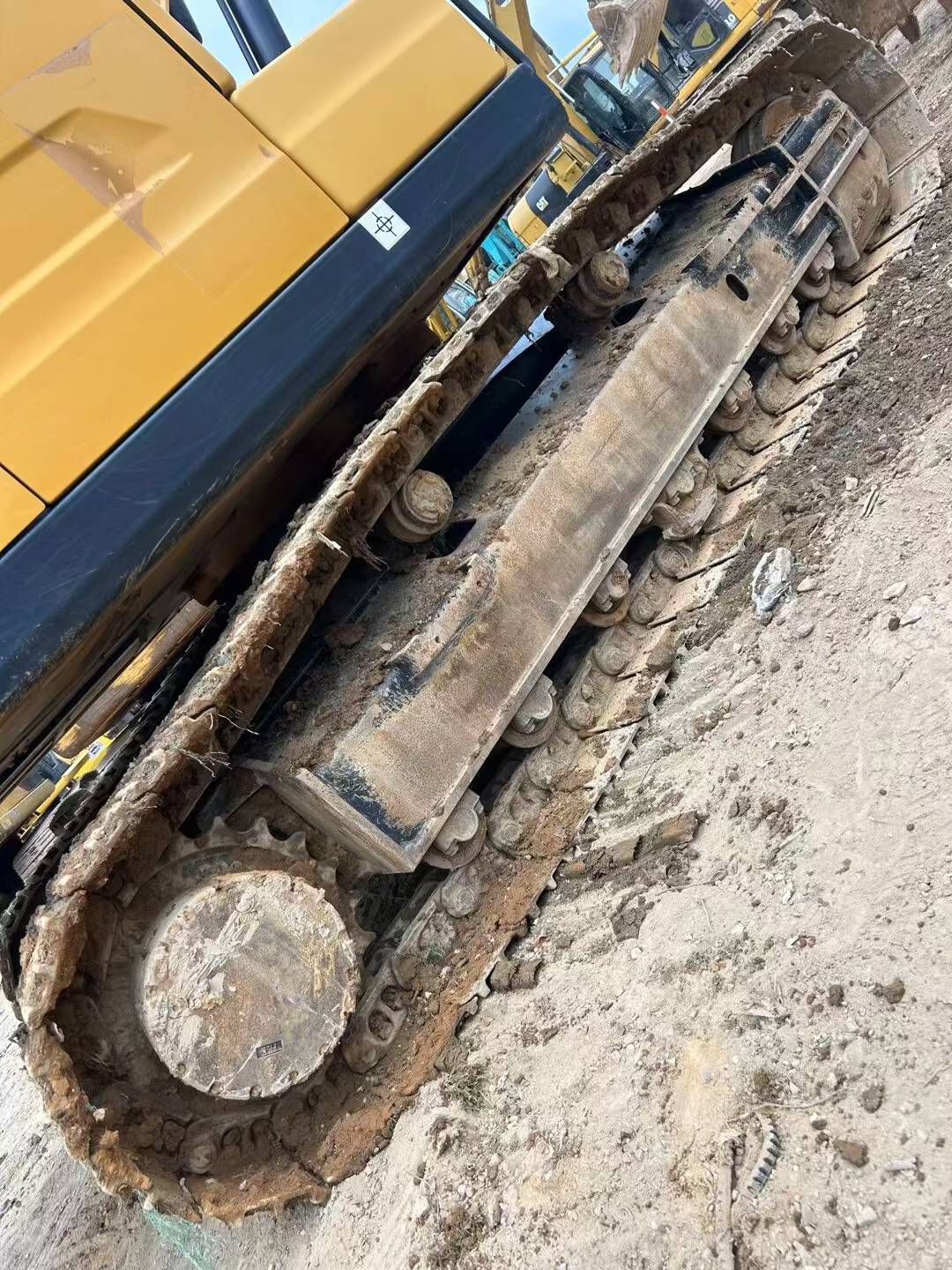

| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
