Product Description

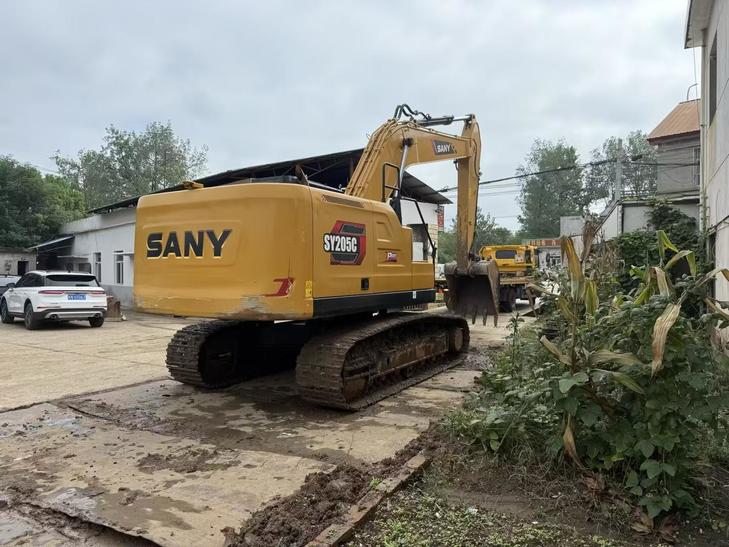

Engineered with a robust 118kW diesel engine delivering peak torque at 2,000 RPM, this 2024 Sany SY205C excavator represents proven Chinese manufacturing excellence in the 20-ton class. Operating at 21,500kg working weight, the machine generates exceptional digging performance with 138kN bucket force and 109kN arm force, powered by advanced hydraulic systems designed for demanding earthmoving applications.
Technical specifications demonstrate superior operational capability:
- Maximum digging reach of 10,280mm with 6,600mm depth capacity
- 0.9–1.1m³ backhoe bucket handles high-volume material transfer
- 11 RPM swing speed enables efficient cycle times on congested jobsites
- 70% gradeability (35°) conquers challenging terrain conditions
- 47.3kPa ground pressure minimizes surface disturbance
- 5.4km/h travel speed maximizes productivity between dig zones
Compact 2,980mm transport width and 3,360mm track contact length provide stability without sacrificing maneuverability. Currently located in Anhui Province, this SY205C combines Sany's reputation for durable construction with comprehensive performance metrics suited for infrastructure development, mining support,
| Specifications | Value |
|---|---|
| No. | 1019711 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
