Product Description

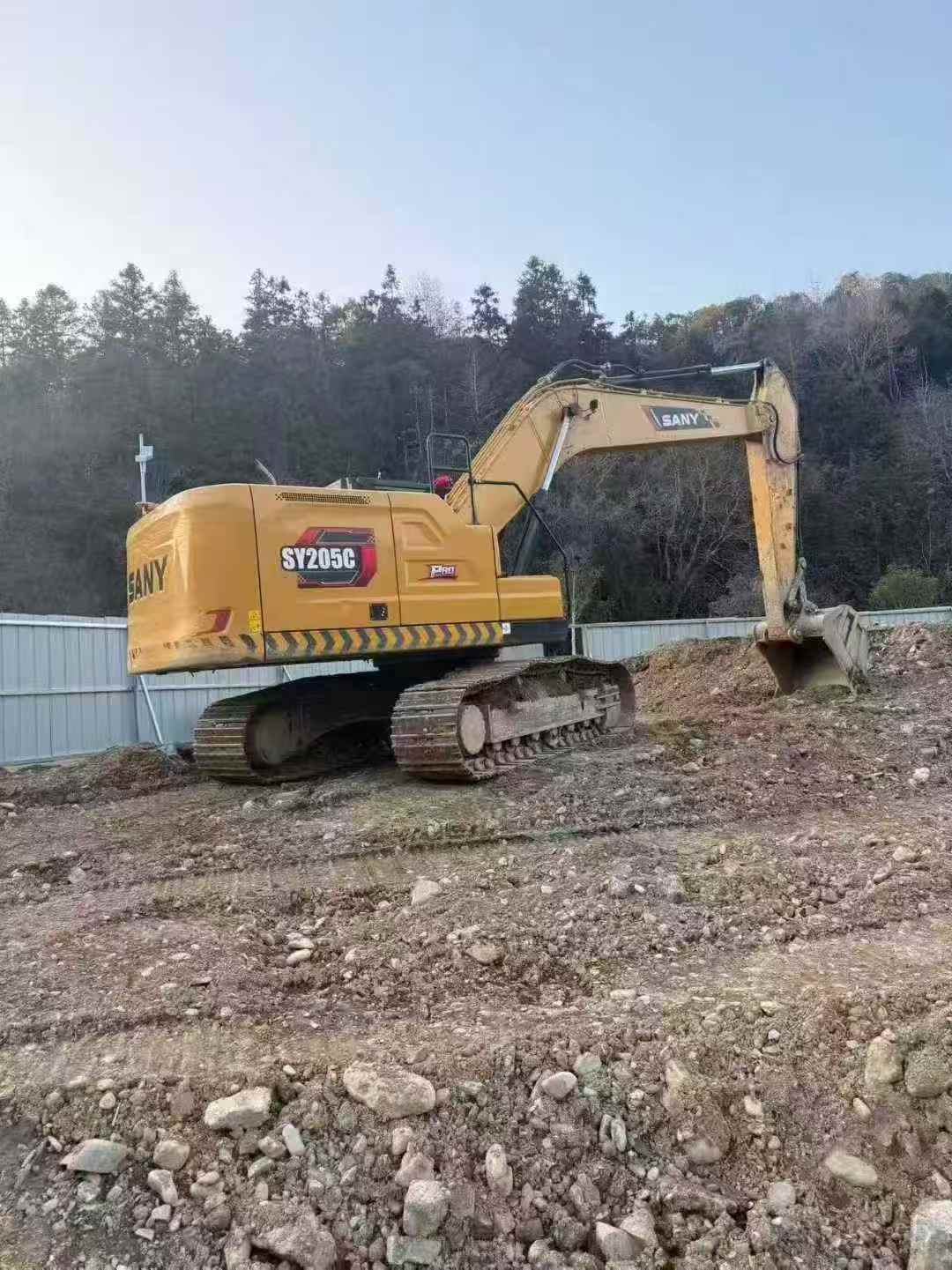

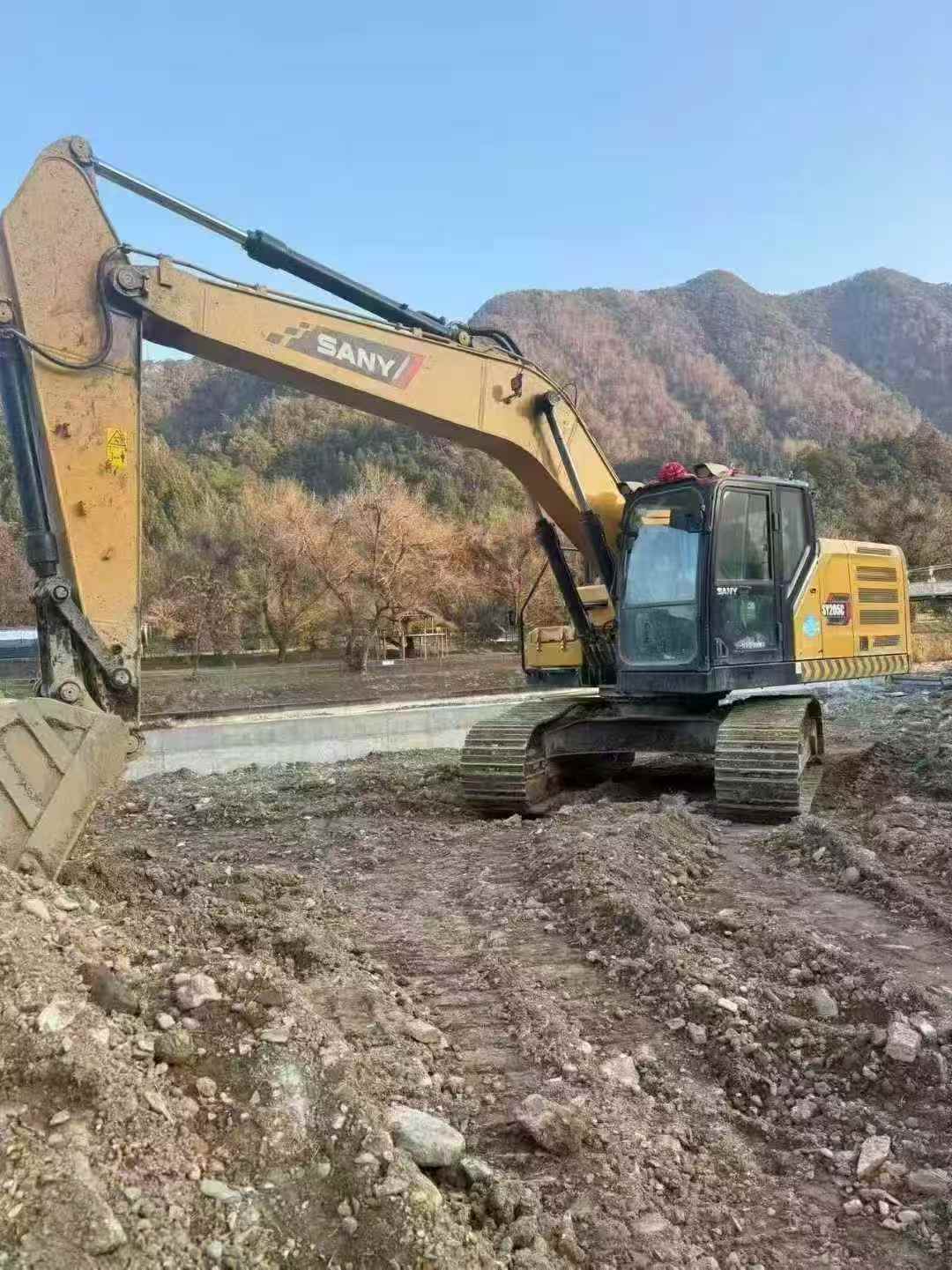

Backed by one of the world's largest construction equipment manufacturers, this 2024 Sany SY205C excavator delivers proven reliability in the 20-ton class. Operating weight of 21,500 kg combines with a powerful 118 kW engine to handle demanding excavation tasks across construction and earthmoving applications. The 0.9-1.1 m³ bucket capacity and impressive 138 kN bucket digging force ensure productive performance in diverse soil conditions.
Sany's extensive global dealer network guarantees parts availability and service support, protecting your investment long-term. With maximum digging depth of 6,600 mm and reach extending to 10,280 mm, this machine tackles foundation work, trenching, and site preparation with consistent efficiency. The SY205C maintains strong resale value due to Sany's reputation for durability and the brand's growing market presence worldwide.
- 20-ton operating weight: 21,500 kg

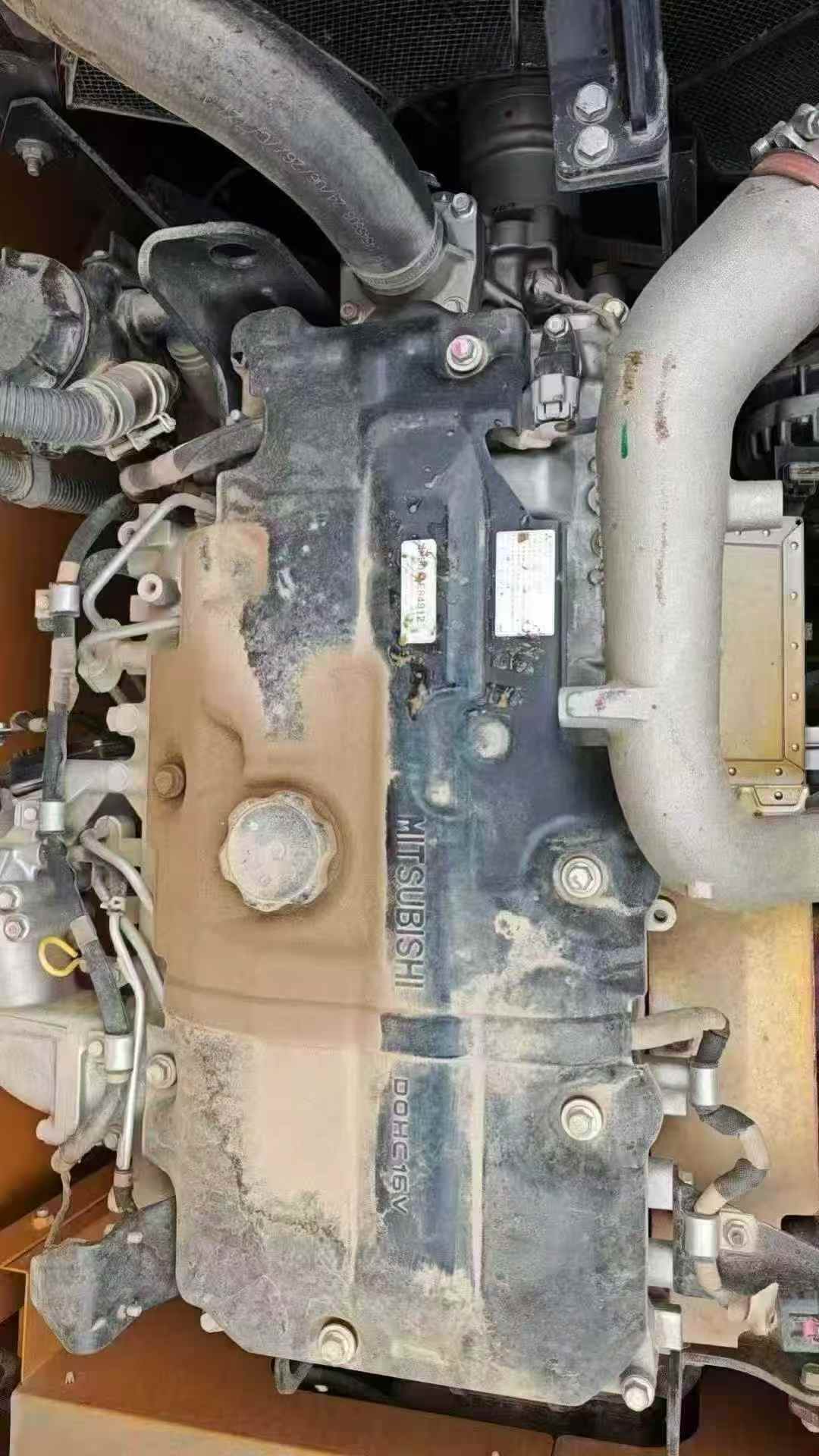

- Rated power: 118 kW at 2,000 rpm
- Bucket capacity: 0.9-1.1 m³
- Maximum digging depth: 6,600 mm
- Maximum digging reach: 10,280 mm
- Located in Jiangsu, China
| Specifications | Value |
|---|---|
| No. | 1024339 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
