Product Description

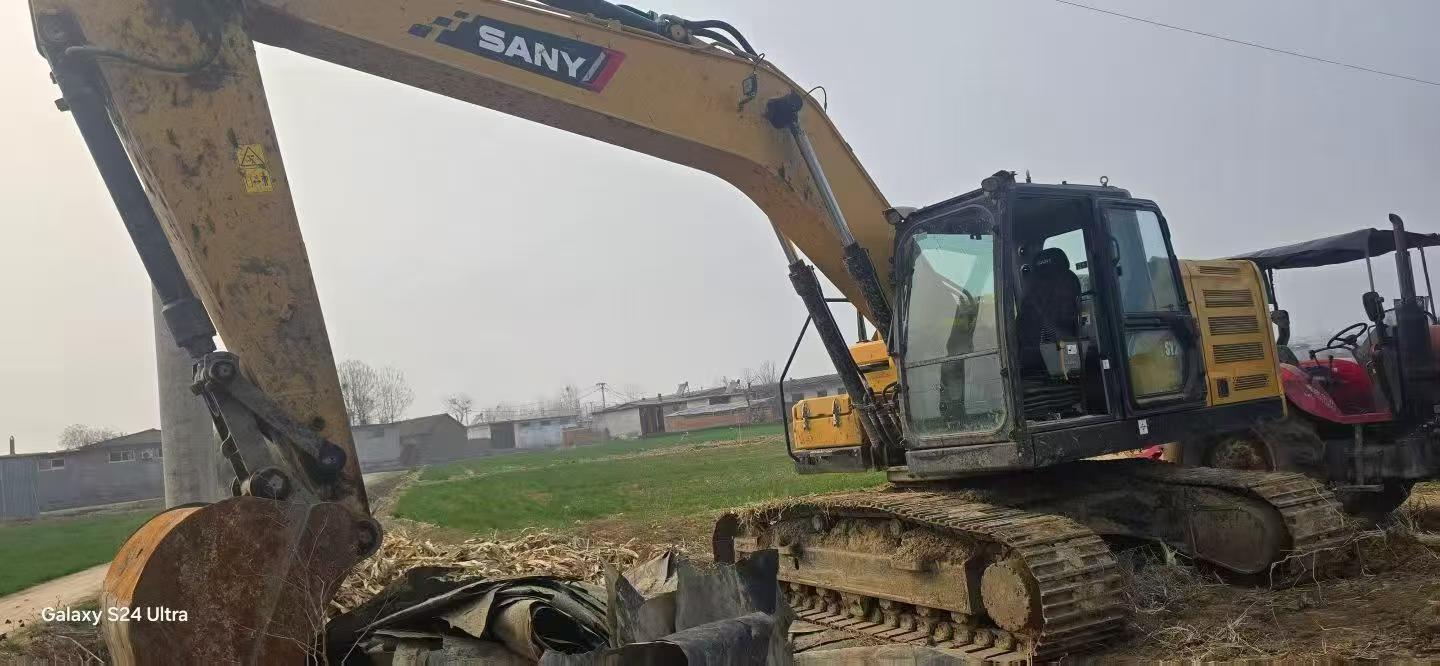

Strengthen your fleet capacity with this 2024 Sany SY205C excavator, currently located in Heze, Shandong. Built for contractors managing multiple jobsites or requiring reliable backup equipment, this 20-ton machine delivers consistent performance across earthmoving, trenching, and loading operations. Powered by a 118kW engine at 2000rpm, it combines proven traditional power with modern operational efficiency.
- Operating Weight: 21,500 kg with 0.9–1.1 m³ bucket capacity
- Digging Performance: 10,280 mm max reach, 6,600 mm depth, 138 kN bucket force
- Mobility: 5.4 km/h travel speed, 70% gradeability, 2,900 mm rear turning radius
- Transport Dimensions: 9,680 × 2,980 × 3,440 mm for standard trailer compatibility
- Track System: 600 mm shoe width, 3,360 mm ground contact, 47.3 kPa ground pressure
Made in China with Sany's quality standards, this SY205C integrates seamlessly into existing fleets. Its 3,730 mm minimum swing radius suits confined sites, while the 6,730 mm dump height handles standard trucks efficiently. Add production capacity without operational disruption—ready for immedi
| Specifications | Value |
|---|---|
| No. | 1033698 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
