Product Description

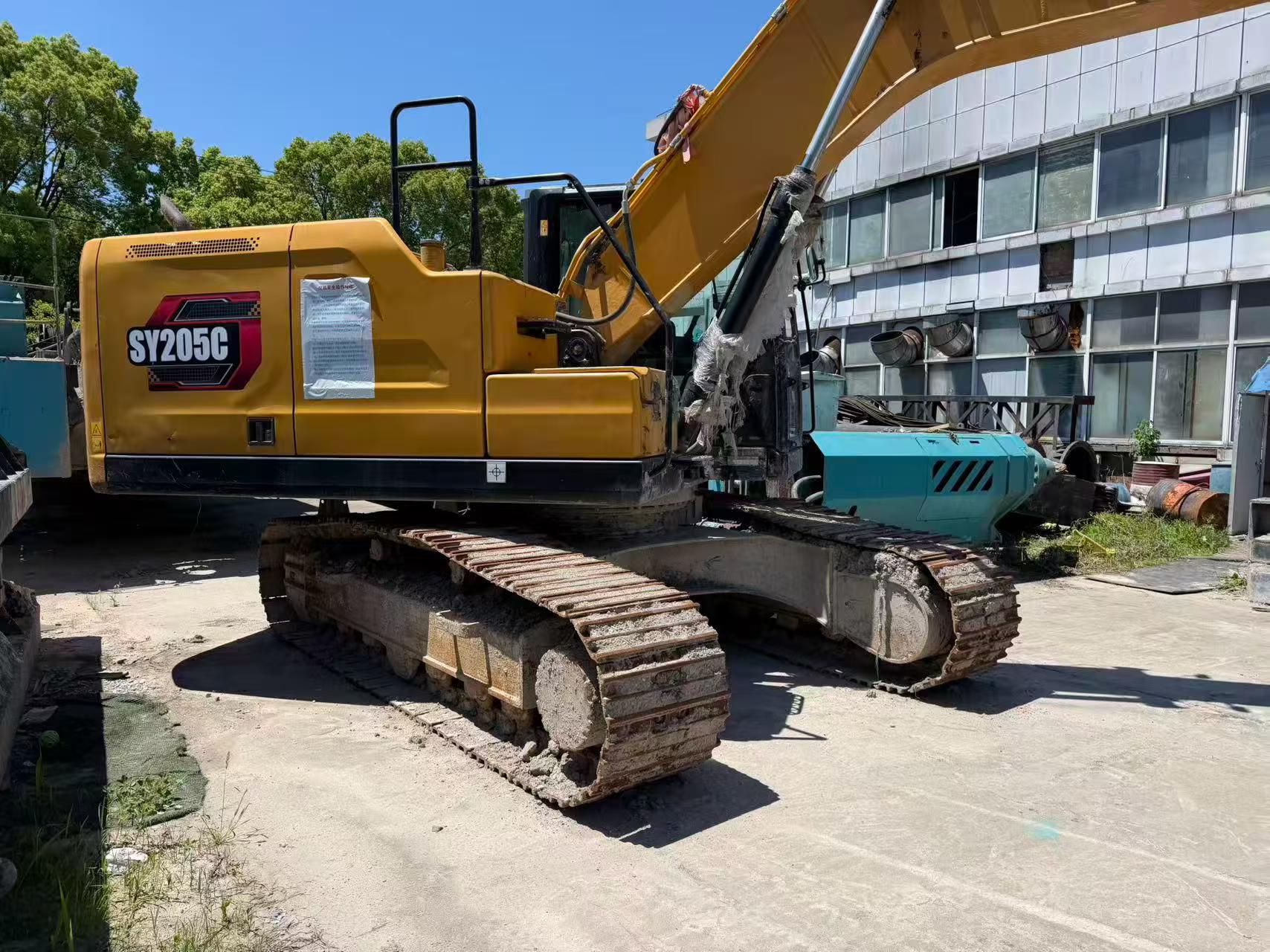

This 2024 Sany SY205C hydraulic excavator represents a reliable solution for medium-duty earthmoving and construction applications. Located in Zhejiang, China, this recently manufactured unit offers the proven performance and durability that Sany's 20-ton class excavators are known for in the global marketplace.
Key features of the SY205C include:
- Operating weight approximately 20,500 kg for stable performance
- Fuel-efficient engine meeting modern emission standards
- Reinforced undercarriage designed for extended service life
- Spacious operator cabin with ergonomic controls
- Versatile bucket capacity suitable for excavation, loading, and grading
- Hydraulic system optimized for responsive cycle times
The SY205C is well-suited for general construction, site development, utility work, and material handling operations. With minimal operating hours since its 2024 manufacture, this excavator is available for immediate deployment. Contact us for detailed specifications, inspection arrangements, and export logistics to your destination.
| Specifications | Value |
|---|---|
| No. | 1086149 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
