Product Description

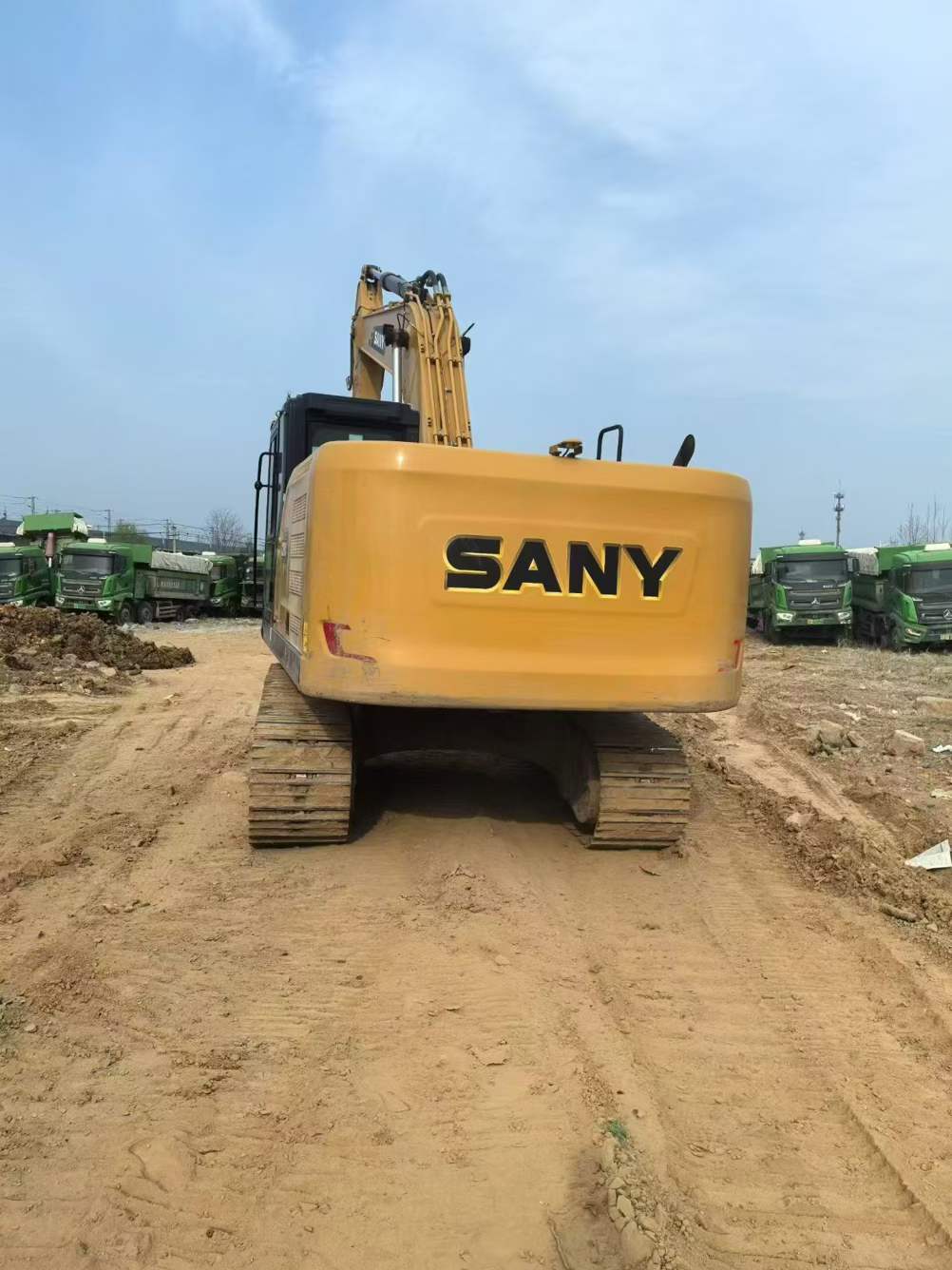

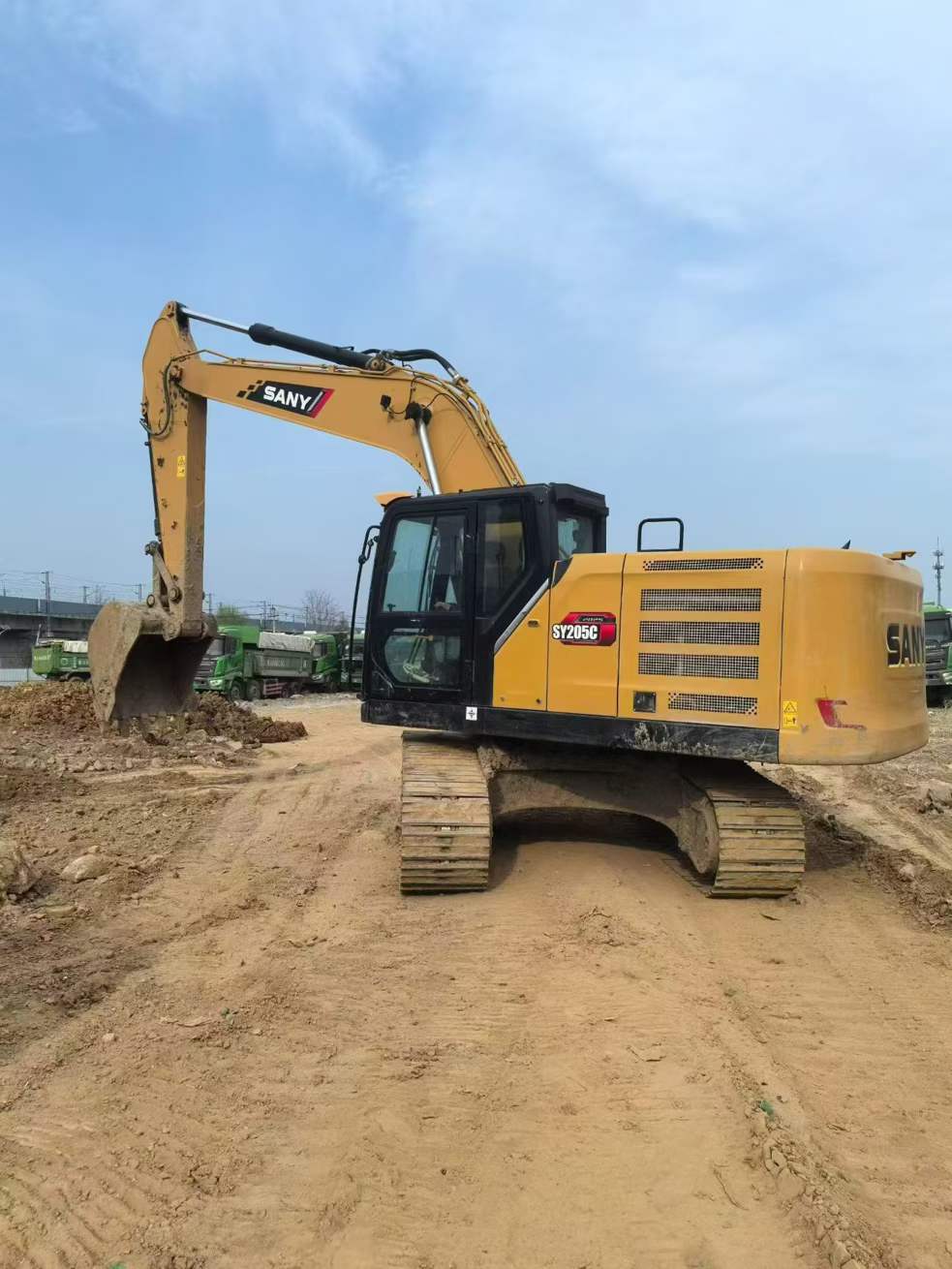

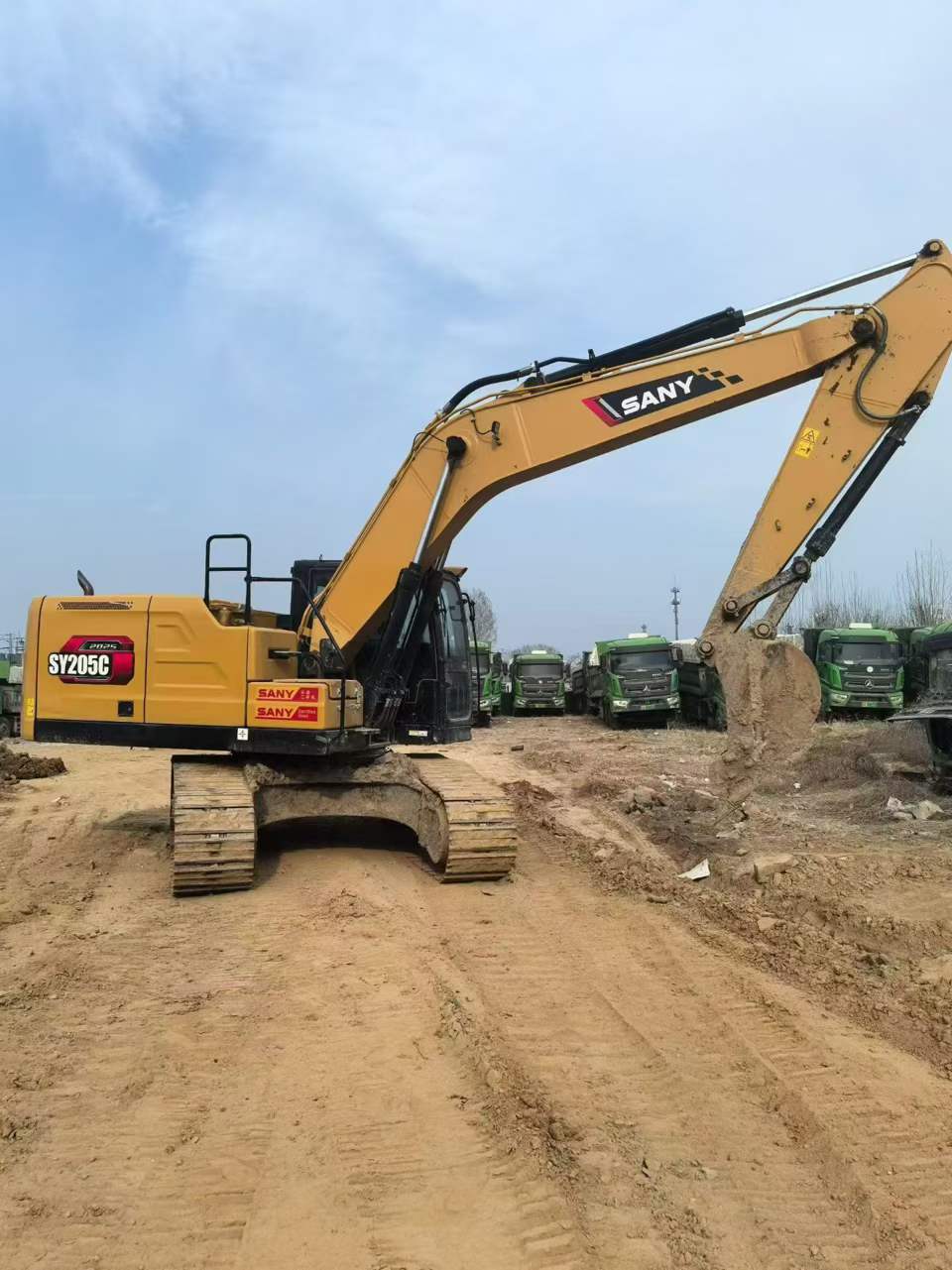

Acquire a 2025 Sany SY205C excavator from Beijing at exceptional value—delivering flagship performance without the premium price tag of brand-new equipment. This 20-ton workhorse combines a robust 118kW rated power output with an impressive 0.9-1.1m³ bucket capacity, engineered to handle demanding excavation projects with professional-grade efficiency. Featuring 138kN bucket digging force and 10,280mm maximum digging radius, this machine tackles heavy-duty applications while maintaining superior fuel economy and operational reliability.
- Working Weight: 21,500 kg with optimized stability
- Digging Performance: 6,600mm max depth, 9,600mm max height

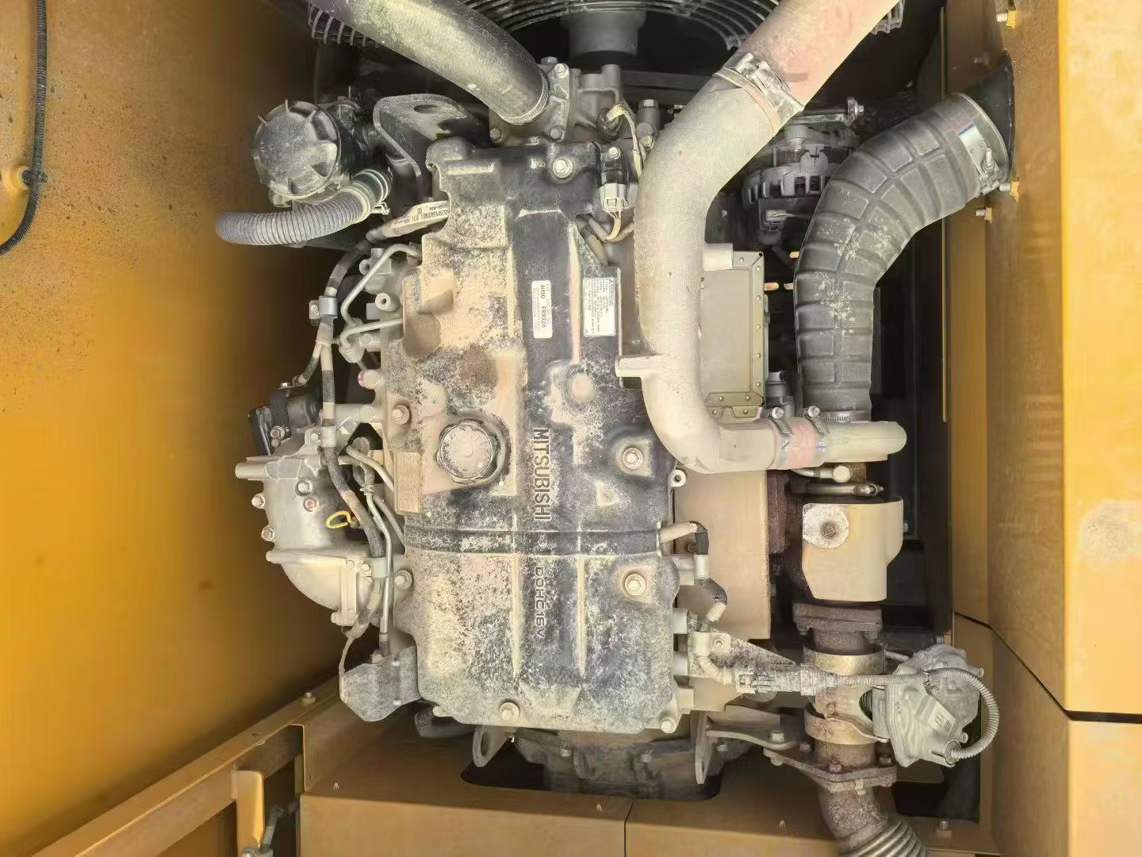

- Power System: Traditional 118kW/2000rpm engine
- Mobility: 70% climbing ability, 5.4 km/h travel speed
- Transport Dimensions: 9,680×2,980×3,440mm

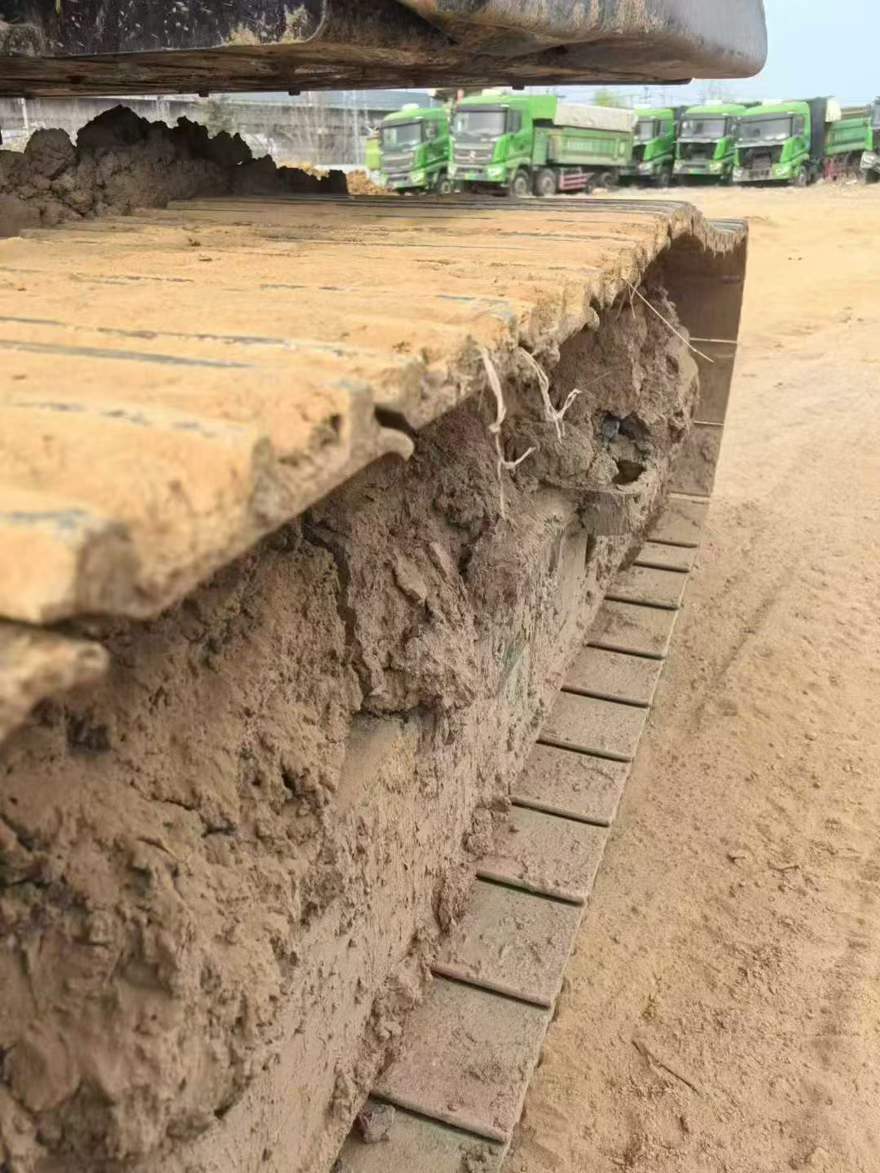

- Track Configuration: 600mm plates, 47.3 kPa ground pressure
Invest strategically in proven Chinese manufacturing quality. This near-new unit offers immediate deployment capability with comprehensive specifications that rival current production models—at a fraction of
| Specifications | Value |
|---|---|
| No. | 1047266 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
