Product Description

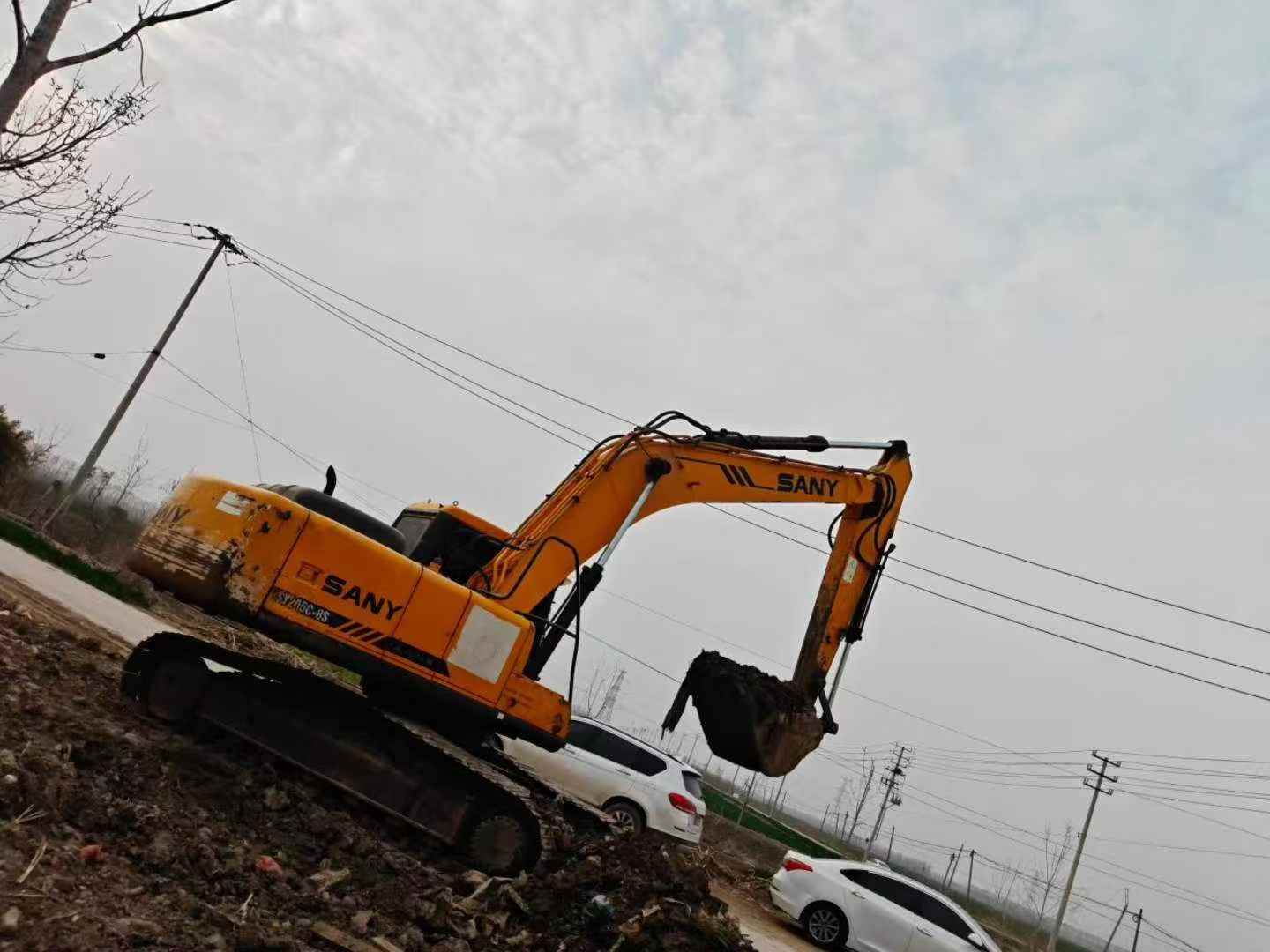

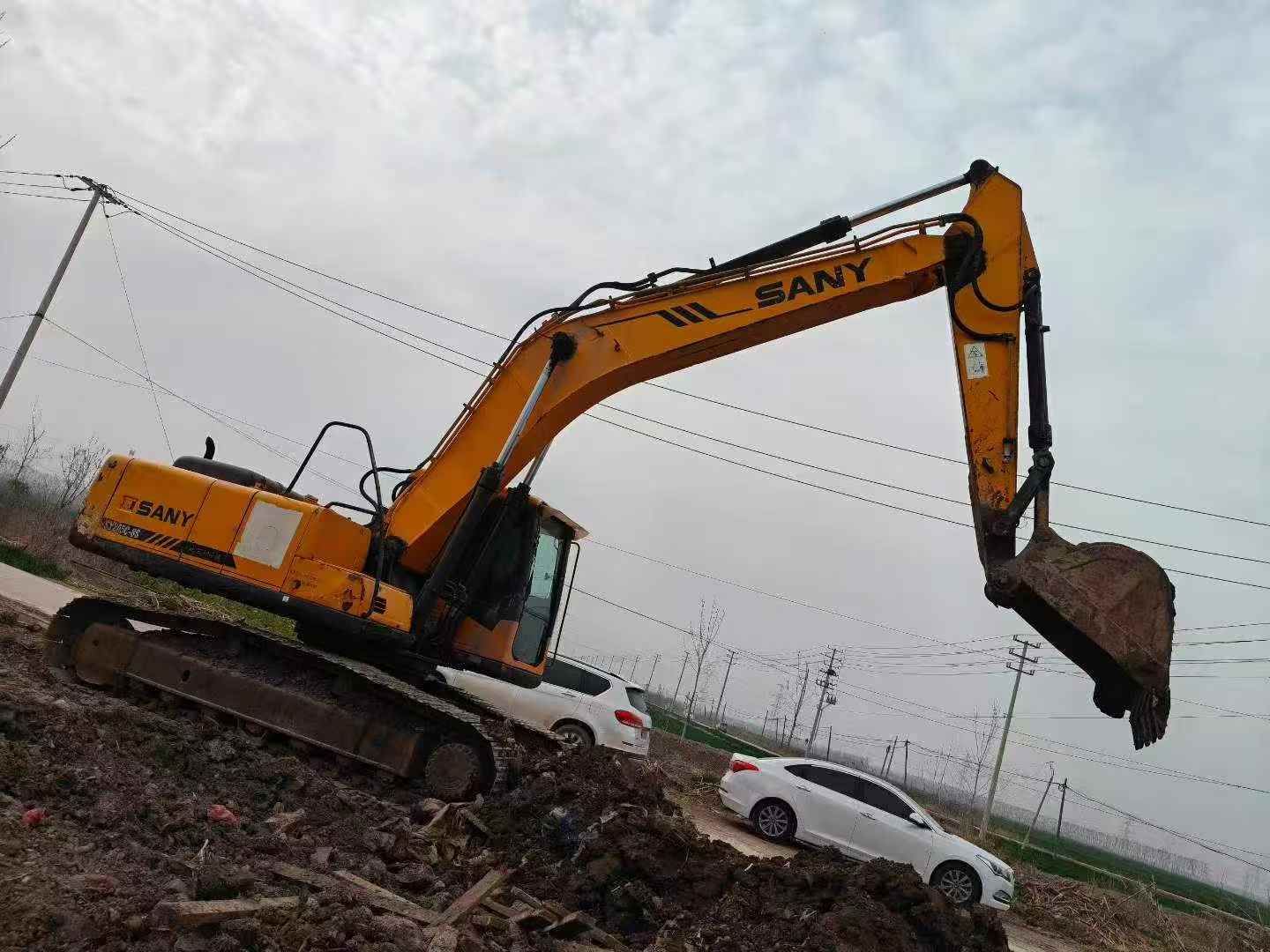

Built in 2011 at Sany's Kunshan facility in Jiangsu Province, this SY205C-8 excavator represents proven engineering backed by one of China's most established heavy equipment manufacturers. Operating at 20 tons with a robust Mitsubishi 6D34TL-20 engine delivering 114kW, this machine combines reliable power with practical performance for mid-sized excavation projects.
Sany's market dominance translates directly into ownership advantages. Parts availability remains excellent across global markets, keeping your machine operational with minimal downtime. Strong resale values reflect buyer confidence in Sany's durability and service network. This model features a 0.83m³ bucket capacity, 9885mm maximum digging reach, and 6630mm digging depth—specifications that handle diverse jobsite demands efficiently.
Key operational benefits include:

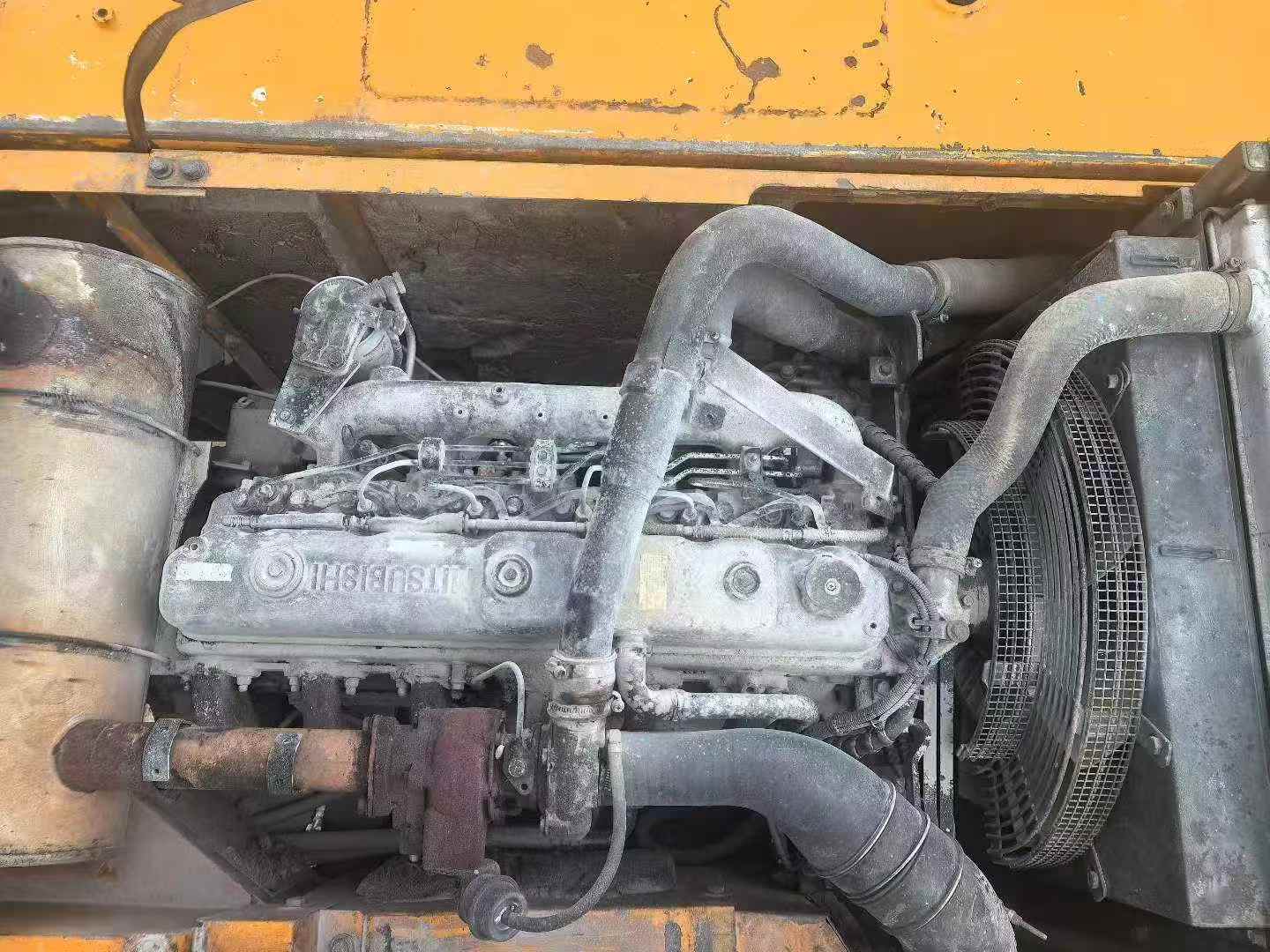

- Mitsubishi engine with water-cooling system for consistent performance

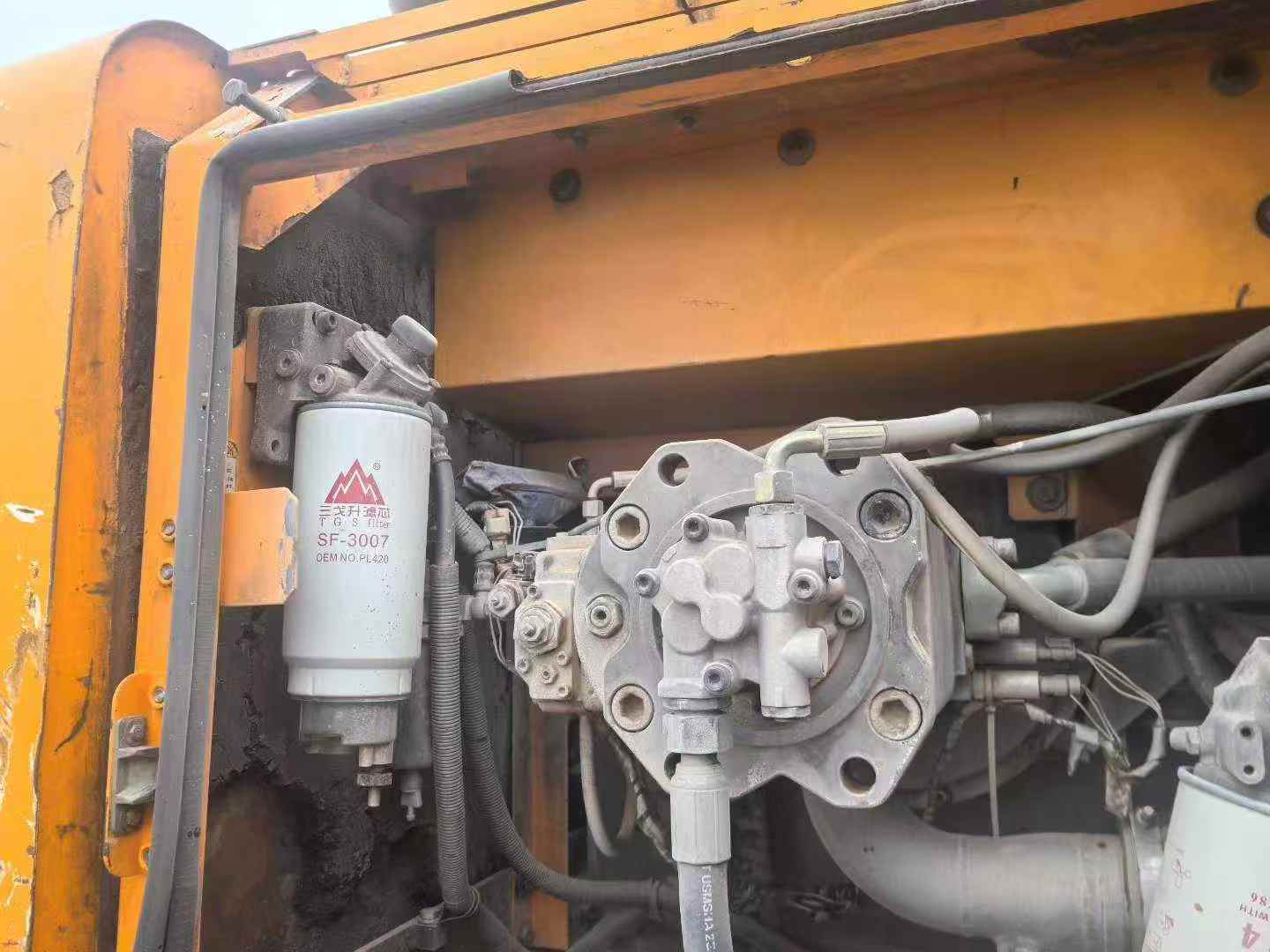

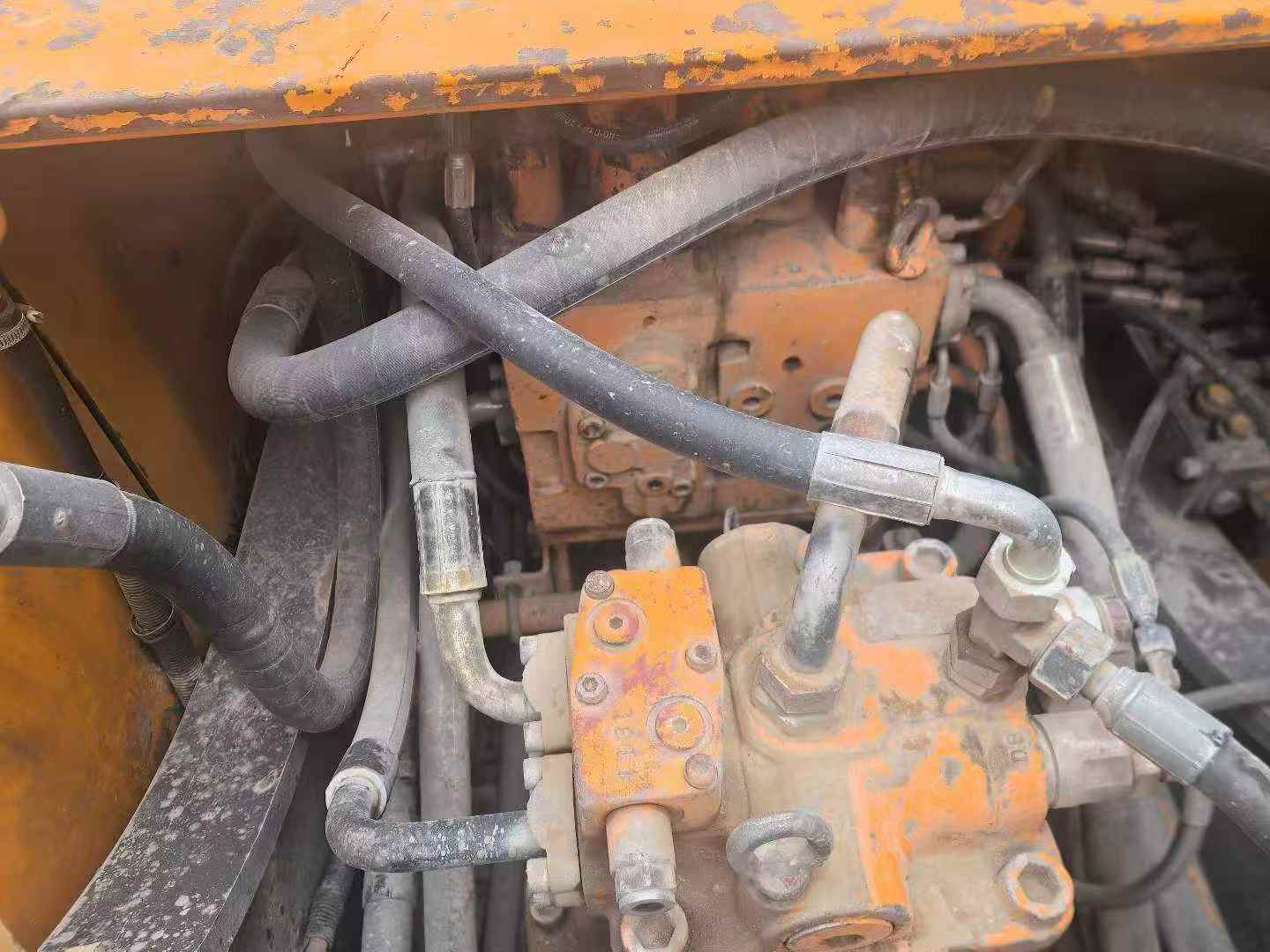

- Dual 210 l/min hydraulic pumps providing responsive control
- 440mm ground clearance and 70% climbing ability for challenging terrain
- Compact 2750mm rear swing radius for confined spaces
- Currently located in Jiangsu for inspection
Investing in used Sany equipm
| Specifications | Value |
|---|---|
| No. | 1039193 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
