Product Description

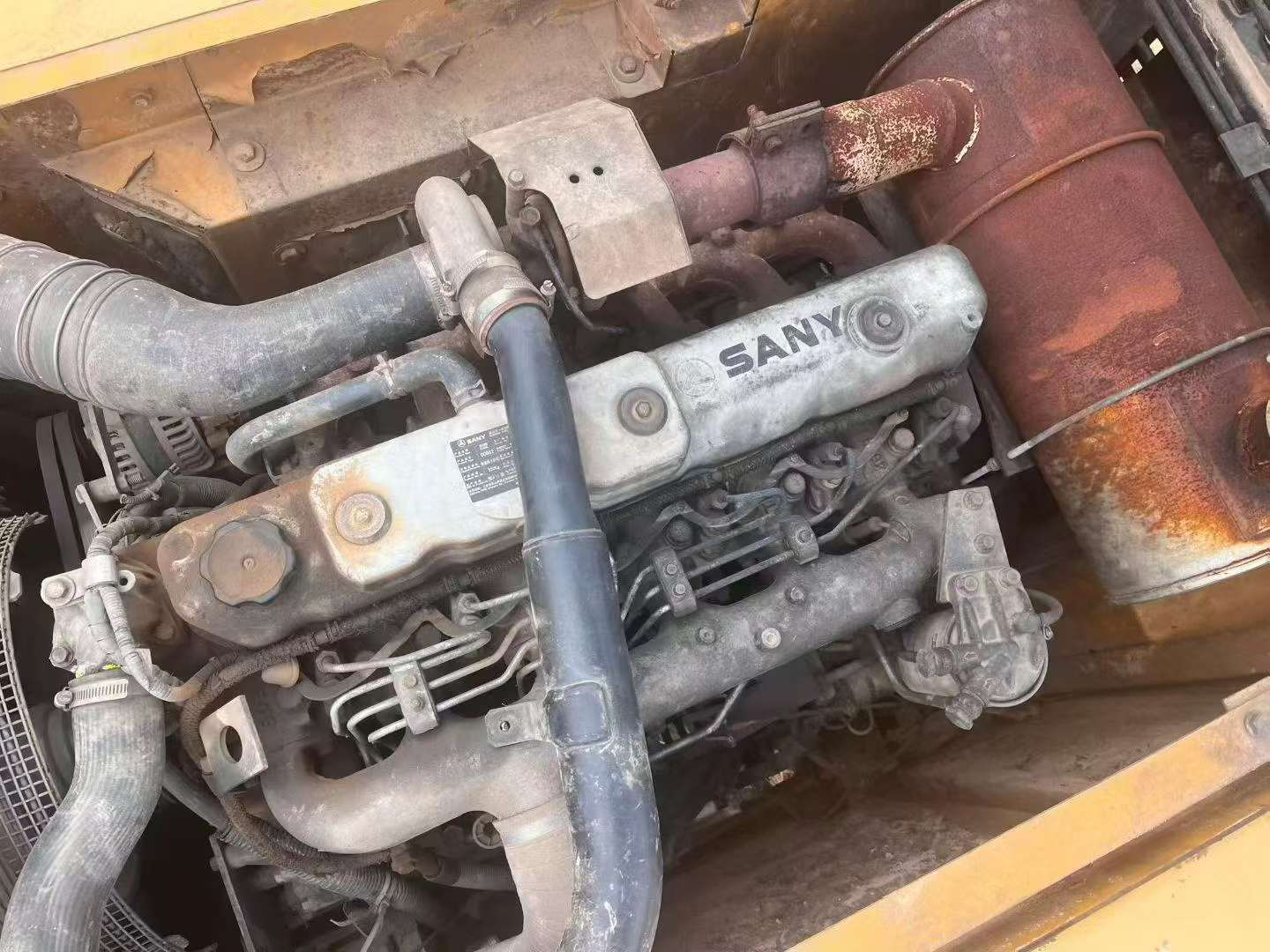

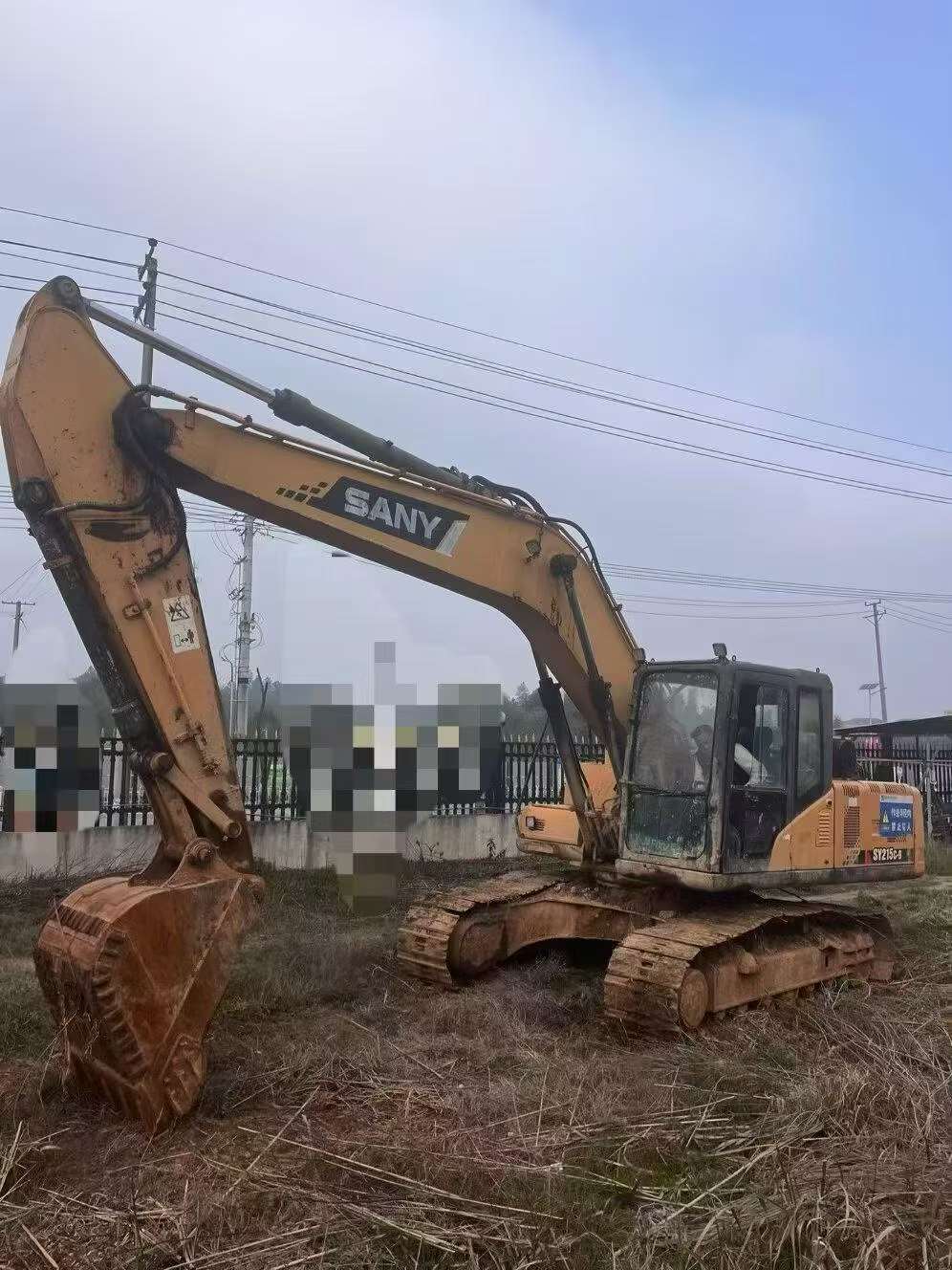

Expand your fleet capacity with this reliable 2015 Sany SY205C-8 excavator, currently located in Wenzhou, Zhejiang. Powered by a Mitsubishi 6D34TL-20 engine delivering 114 kW at 2050 rpm, this 20-ton workhorse provides consistent performance for contractors managing multiple job sites. With a 0.83 m³ bucket capacity and 138 kN digging force, it handles medium-duty excavation, trenching, and site preparation with proven efficiency.
- Operating Weight: 20,300 kg with water-cooled engine system
- Reach & Depth: 9,885 mm maximum digging radius, 6,630 mm digging depth

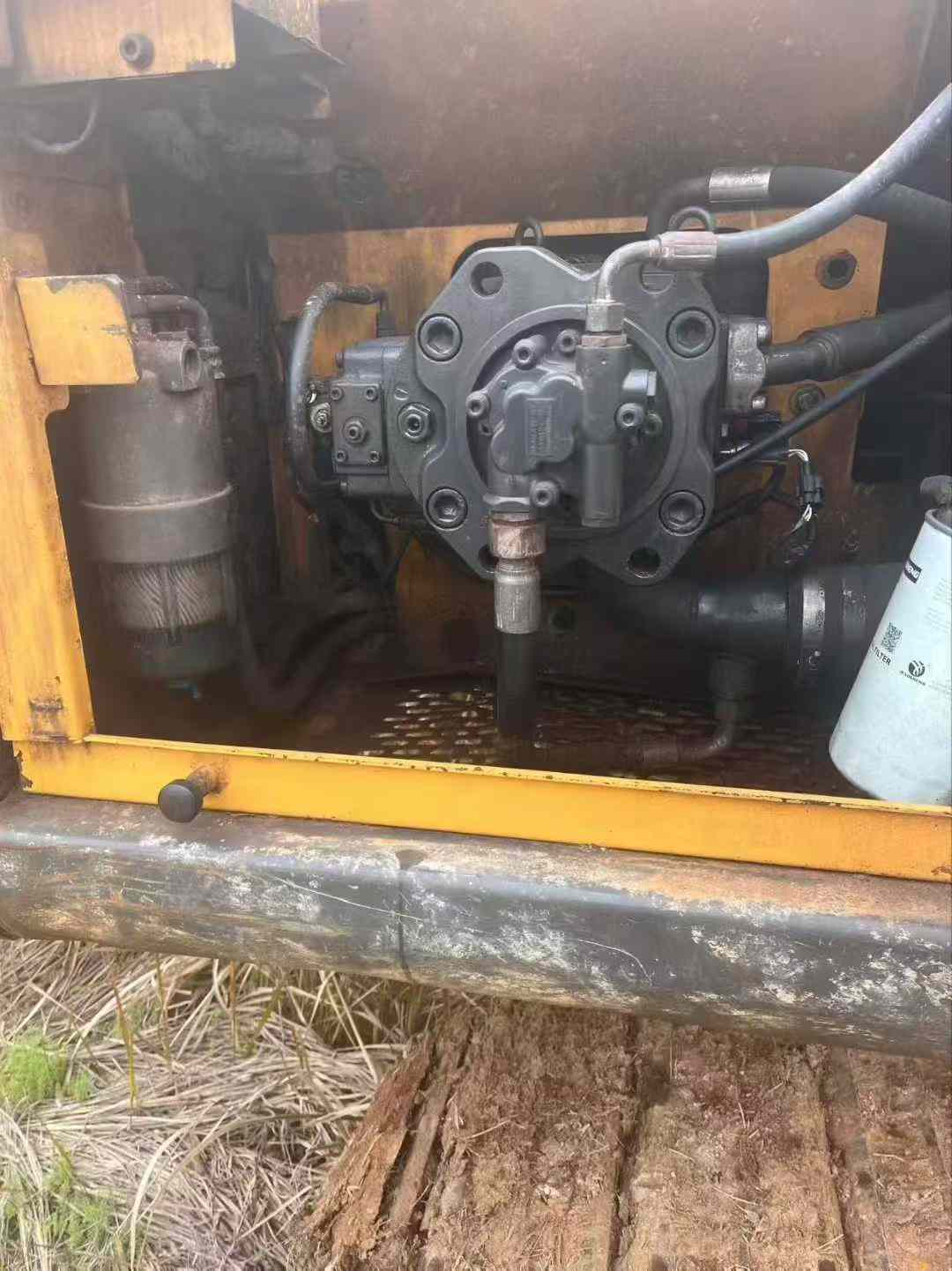

- Hydraulic Performance: Dual 210 l/min main pumps, 34.3 MPa system pressure
- Mobility: 3.2/5.5 km/h travel speeds, 70% (35°) gradeability
- Compact Transport: 9,397 mm length × 2,800 mm width for easy relocation
Ideal as a backup unit or fleet addition, this China-manufactured excavator offers dependable service without the premium price tag of new equipment. Ready to deploy across construction, excavation, and utility projects requiring proven 20-ton class performance.
| Specifications | Value |
|---|---|
| No. | 1030041 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
