Product Description

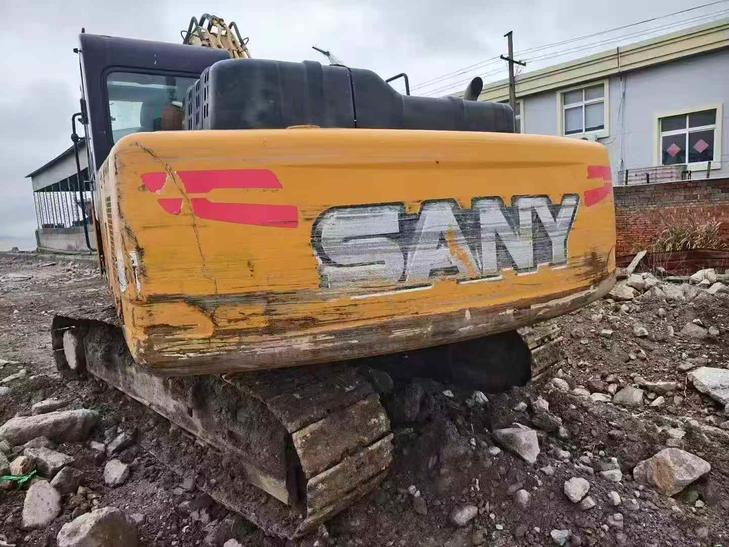

Built for precision and daily productivity, this 2018 Sany SY205C-8 excavator delivers reliable performance across demanding job sites. Operating at 20 tons with a robust Mitsubishi 6D34TL-20 engine producing 114 kW, this machine combines power with refined control for operators managing extended shifts. Water-cooled efficiency and a maximum digging depth of 6,630 mm make it suitable for foundation work, trenching, and site preparation.
Operator-focused design features include:
- Enhanced cabin visibility with 2,930 mm full cab height for superior site awareness
- Stable 2,200 mm track gauge and 44.8 kPa ground pressure for balanced weight distribution
- Responsive hydraulic system with dual 210 l/min pumps ensuring smooth, predictable movements
- Comfortable travel speeds of 3.2/5.5 km/h with minimal vibration transfer
- Compact 2,750 mm rear turning radius for maneuverability in confined spaces
Currently located in Guizhou, this Chinese-manufactured excavator offers proven Sany engineering with straightforward maintenance requirements. Standard backhoe bucket configuration (0.83 m³ capacity) handles varied material types efficiently.
| Specifications | Value |
|---|---|
| No. | 1020256 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
