Product Description

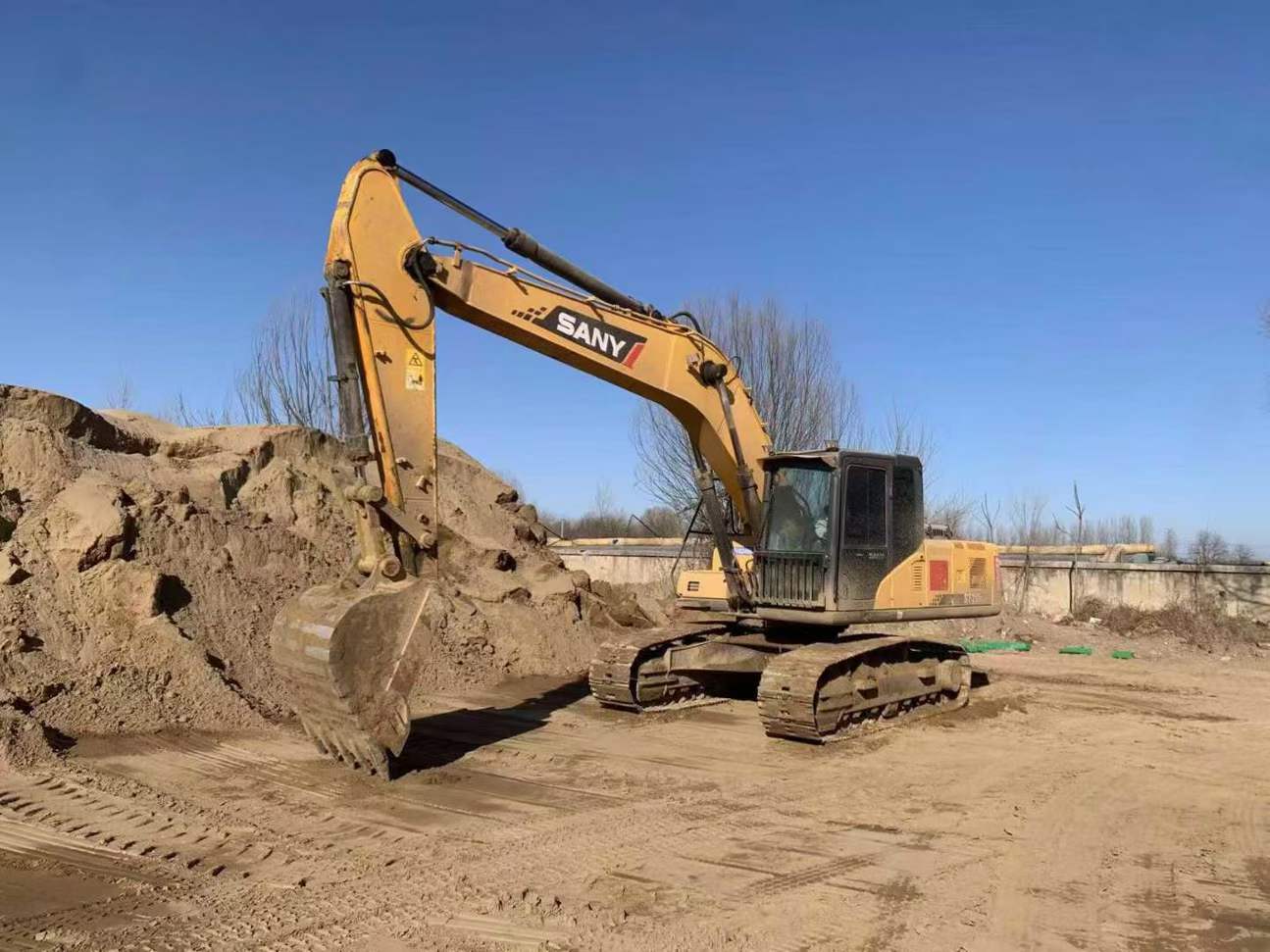

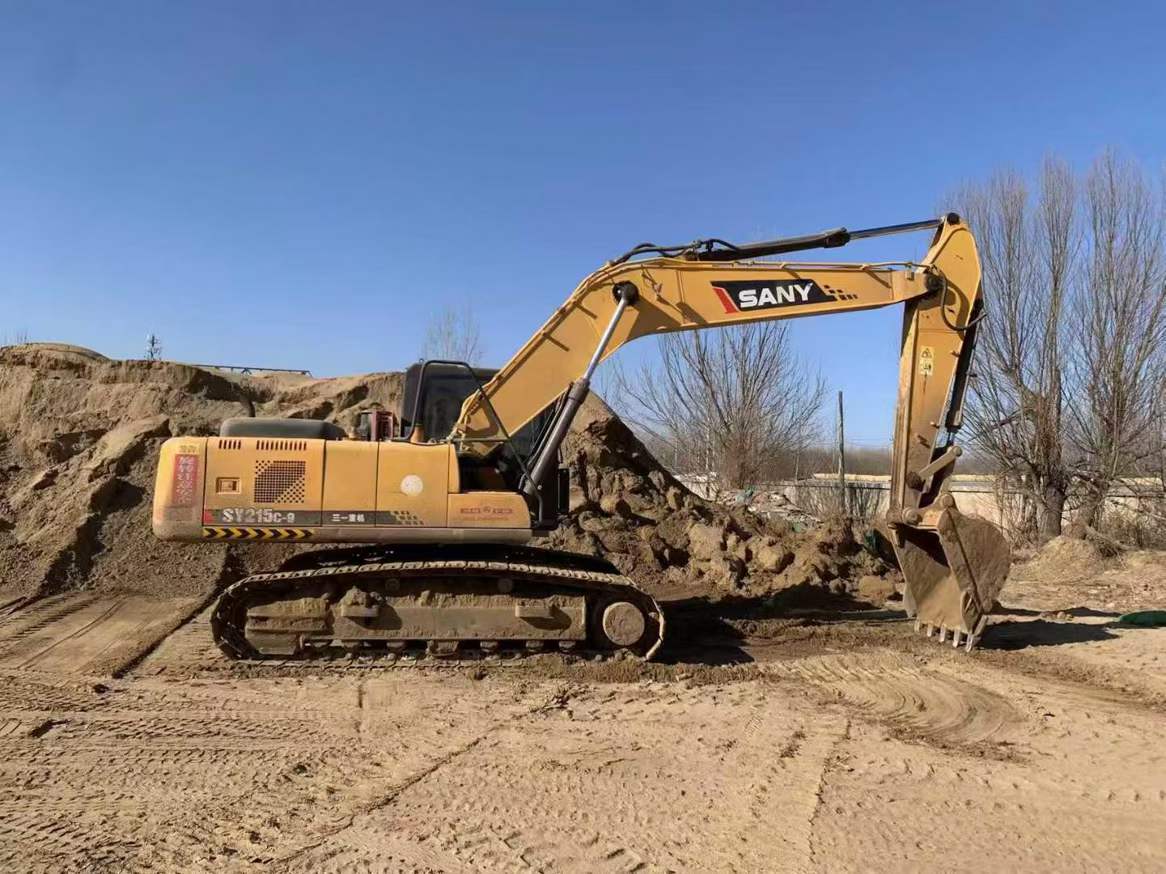

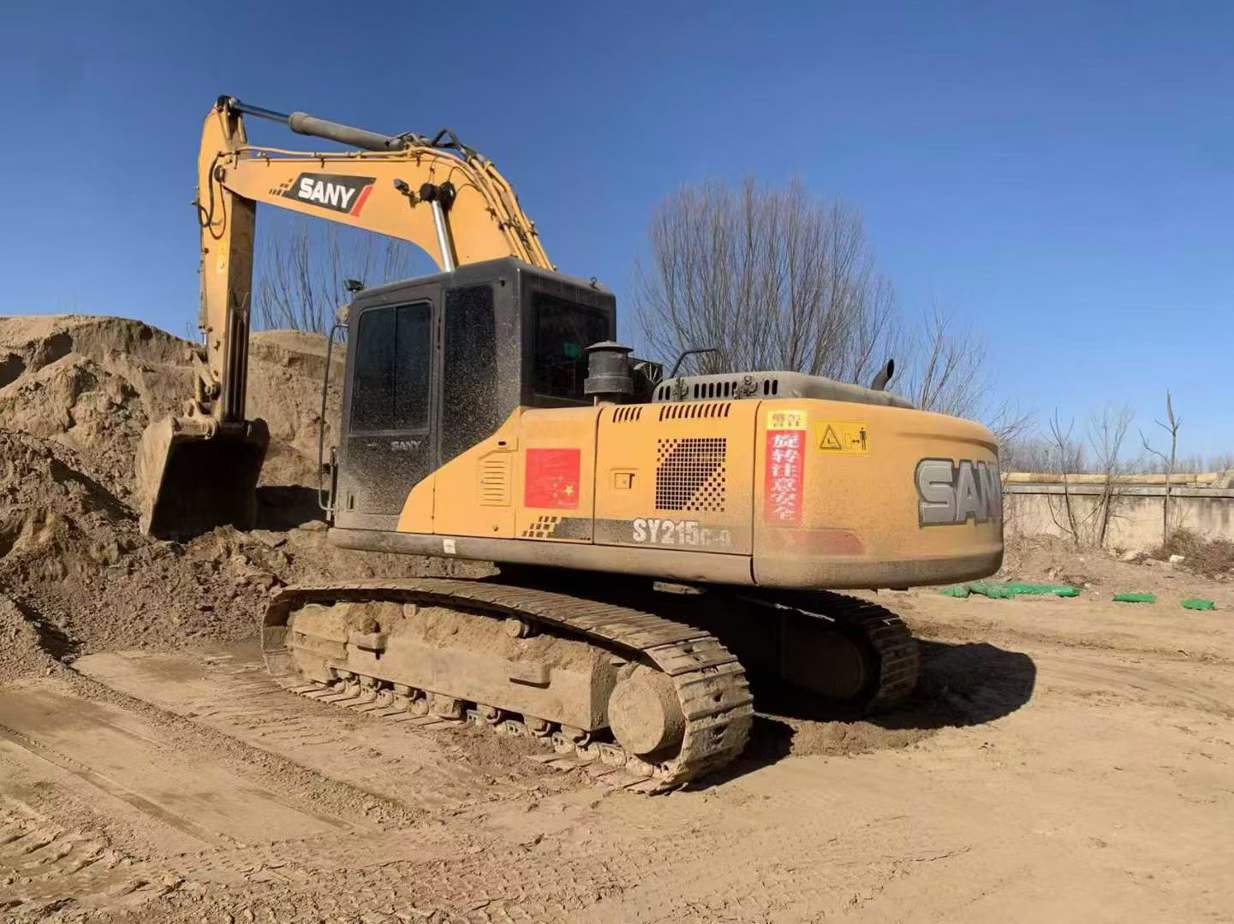

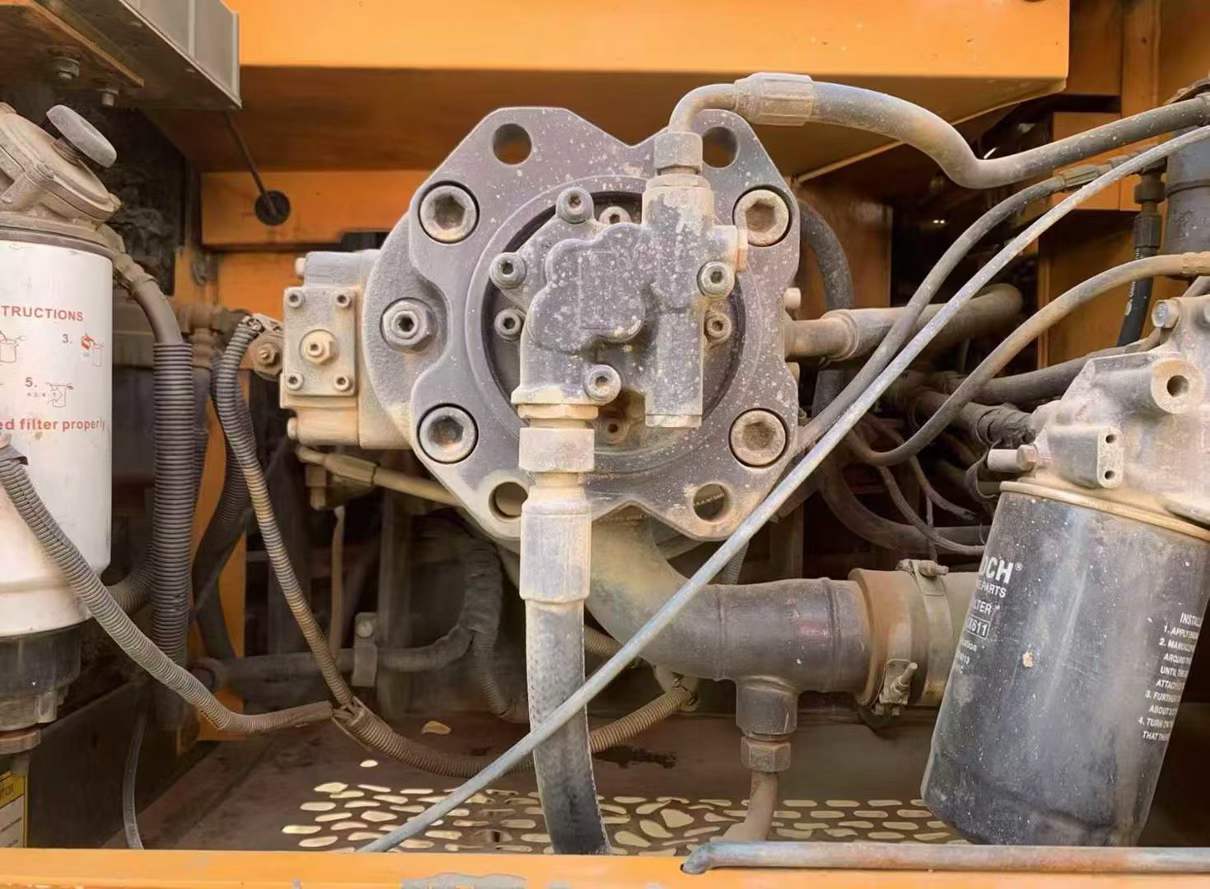

Built for demanding construction environments, this 2016 Sany SY205C-9 excavator delivers reliable 20-ton performance with proven hydraulic systems. Operating at 114kW rated power, the machine provides substantial digging force of 138kN for bucket operations and 103kN for arm work, ensuring efficient material handling across varied job sites.
Operator-focused design features include:
- Spacious cabin with 2990mm height for enhanced visibility and comfort during extended operations

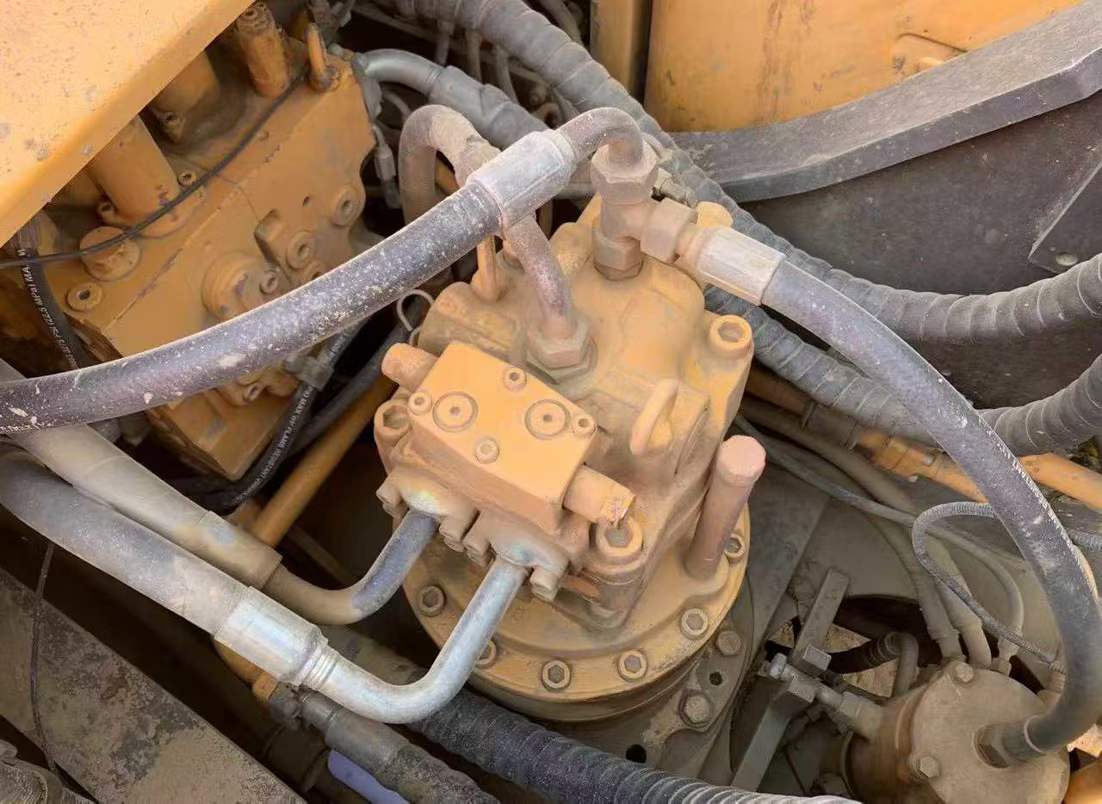

- Responsive hydraulic controls with 11rpm rotation speed for precise positioning

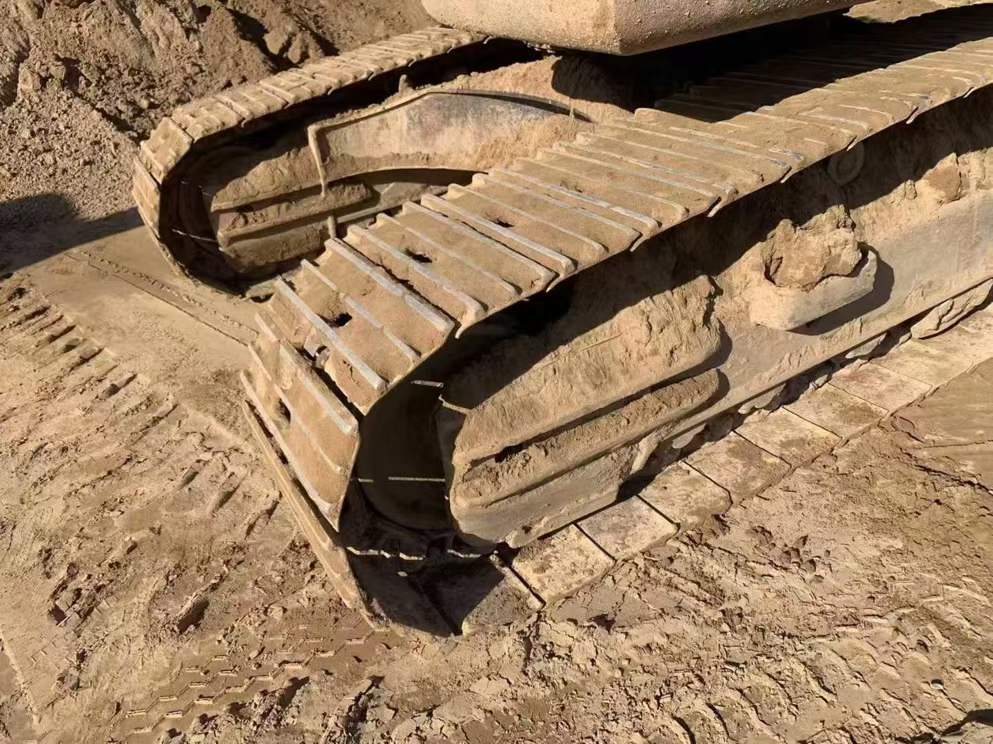

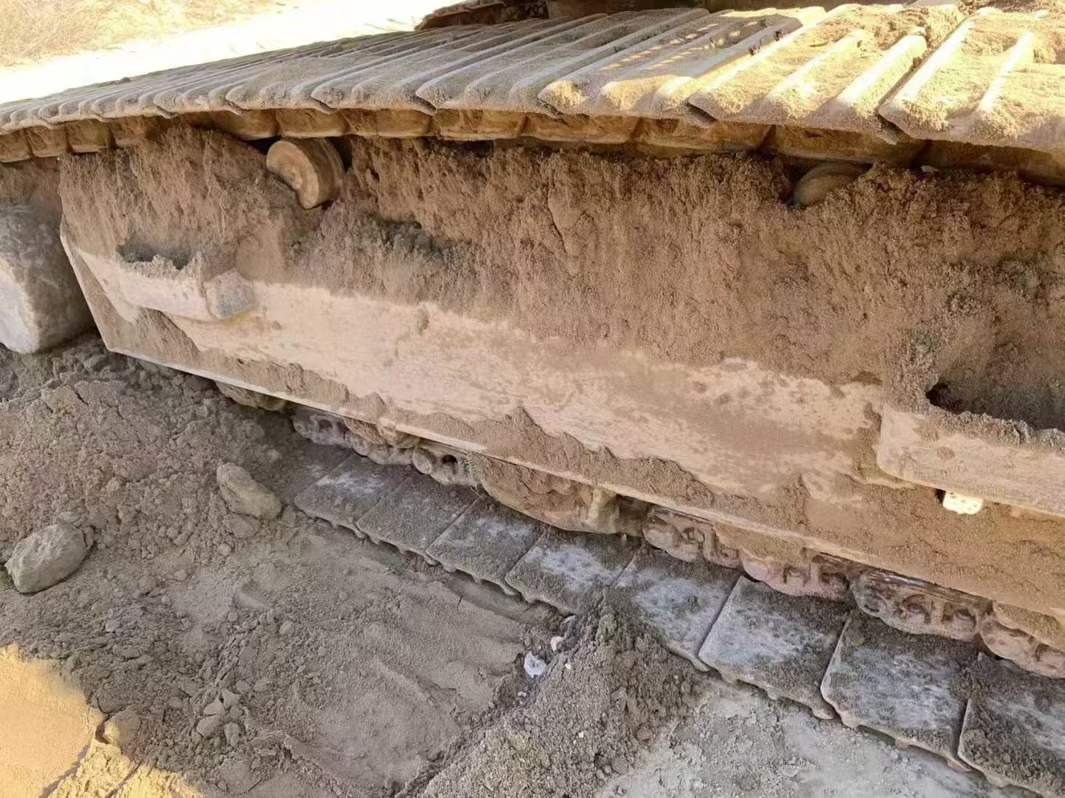

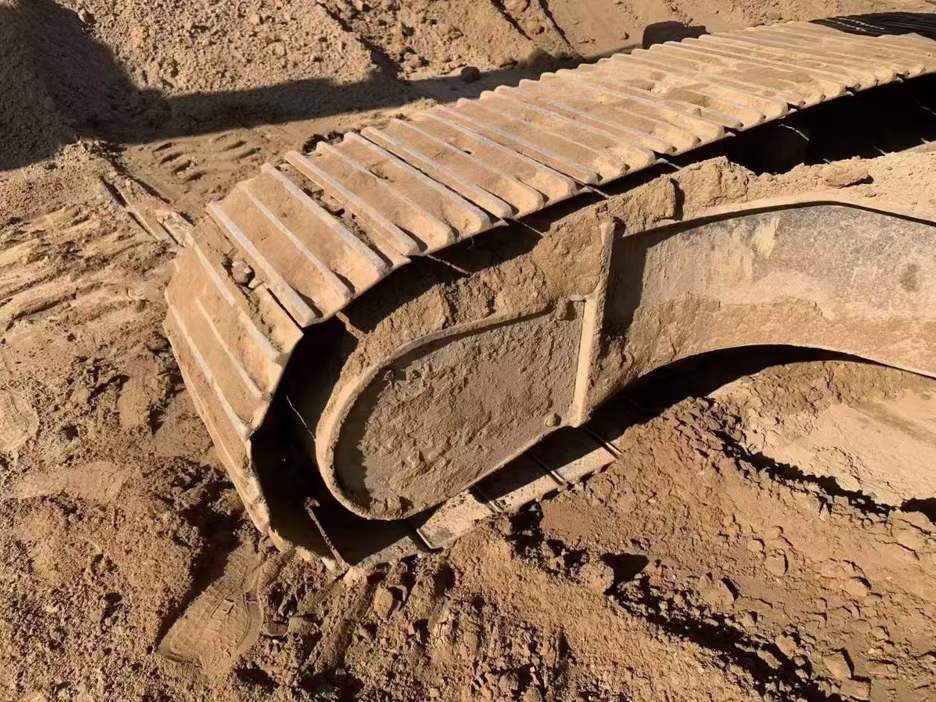

- Stable 2200mm track gauge configuration minimizing ground disturbance at 46.3kPa pressure
- Versatile 0.83m³ bucket capacity with optional sizing from 0.7-1.0m³

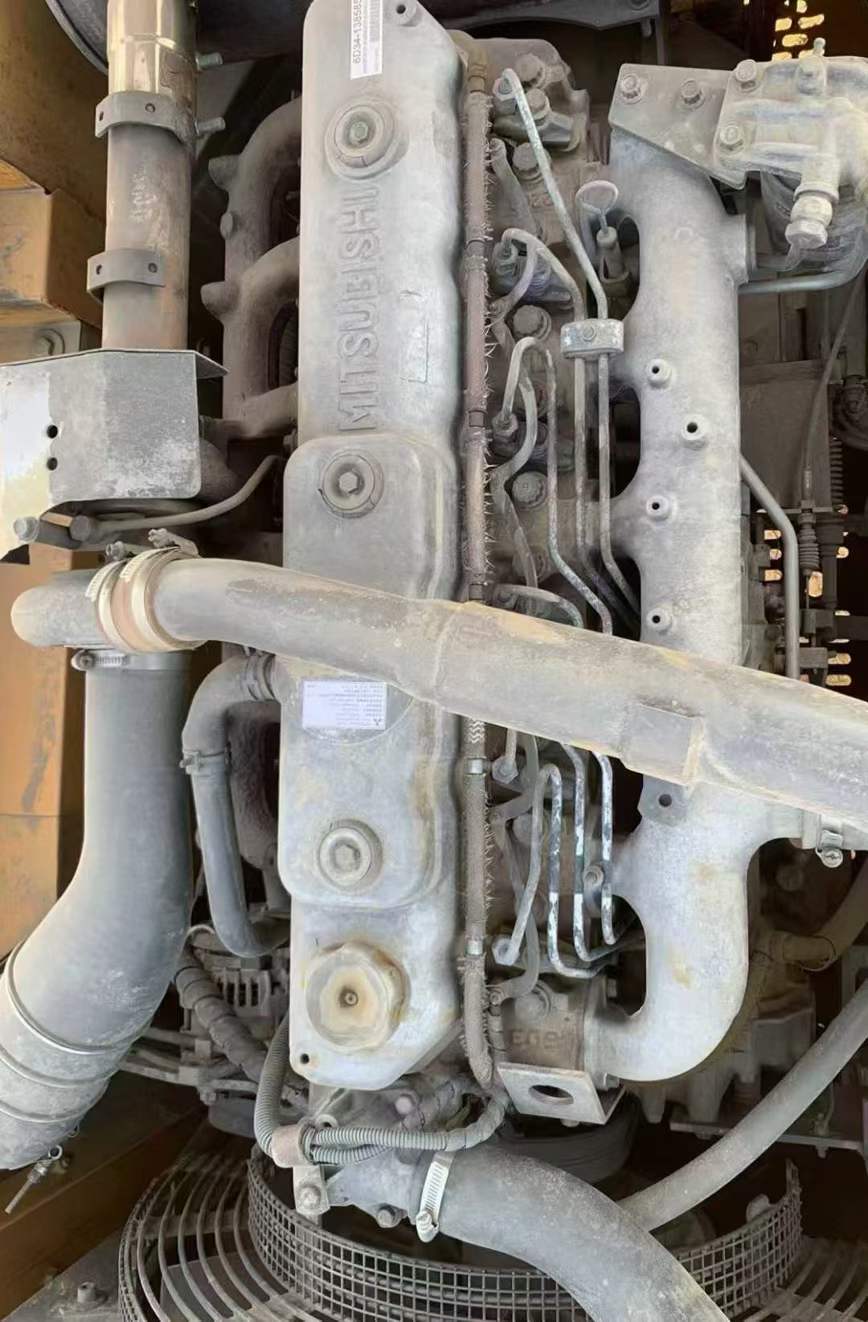

With maximum digging reach of 9950mm and depth capability to 6600mm, this Shanghai-manufactured unit handles diverse excavation tasks. Water-cooled engine system ensures consistent performance, while 70% climbing ability tackles challenging terrain. Currently located in Beijing, this excavator represents solid value for contractors requiring dependable mid-size equipment.
| Specifications | Value |
|---|---|
| No. | 991481 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Track ground length (mm) | 3355 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Maximum excavation radius of stop surface (mm) | 9885 |
