Product Description

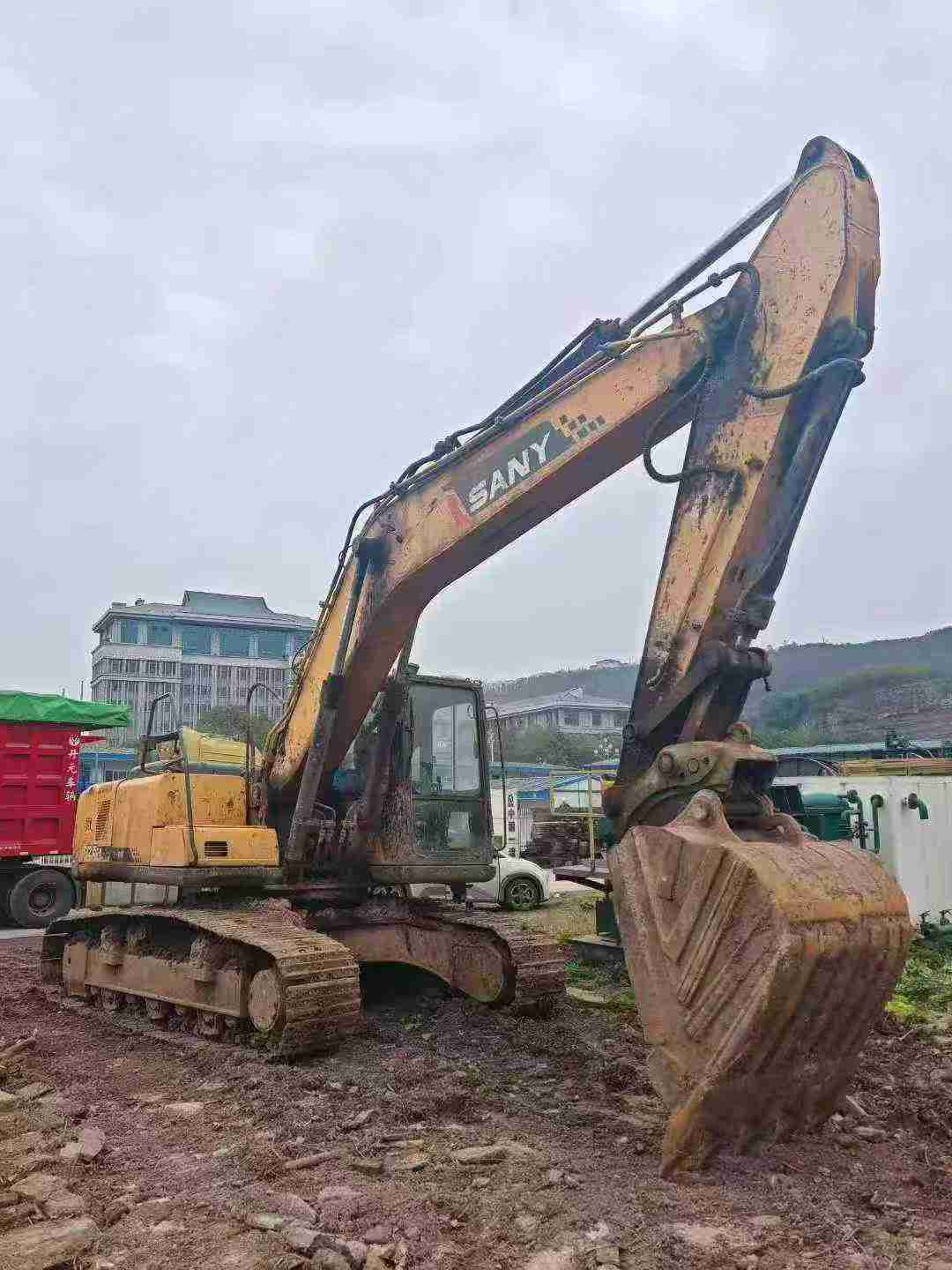

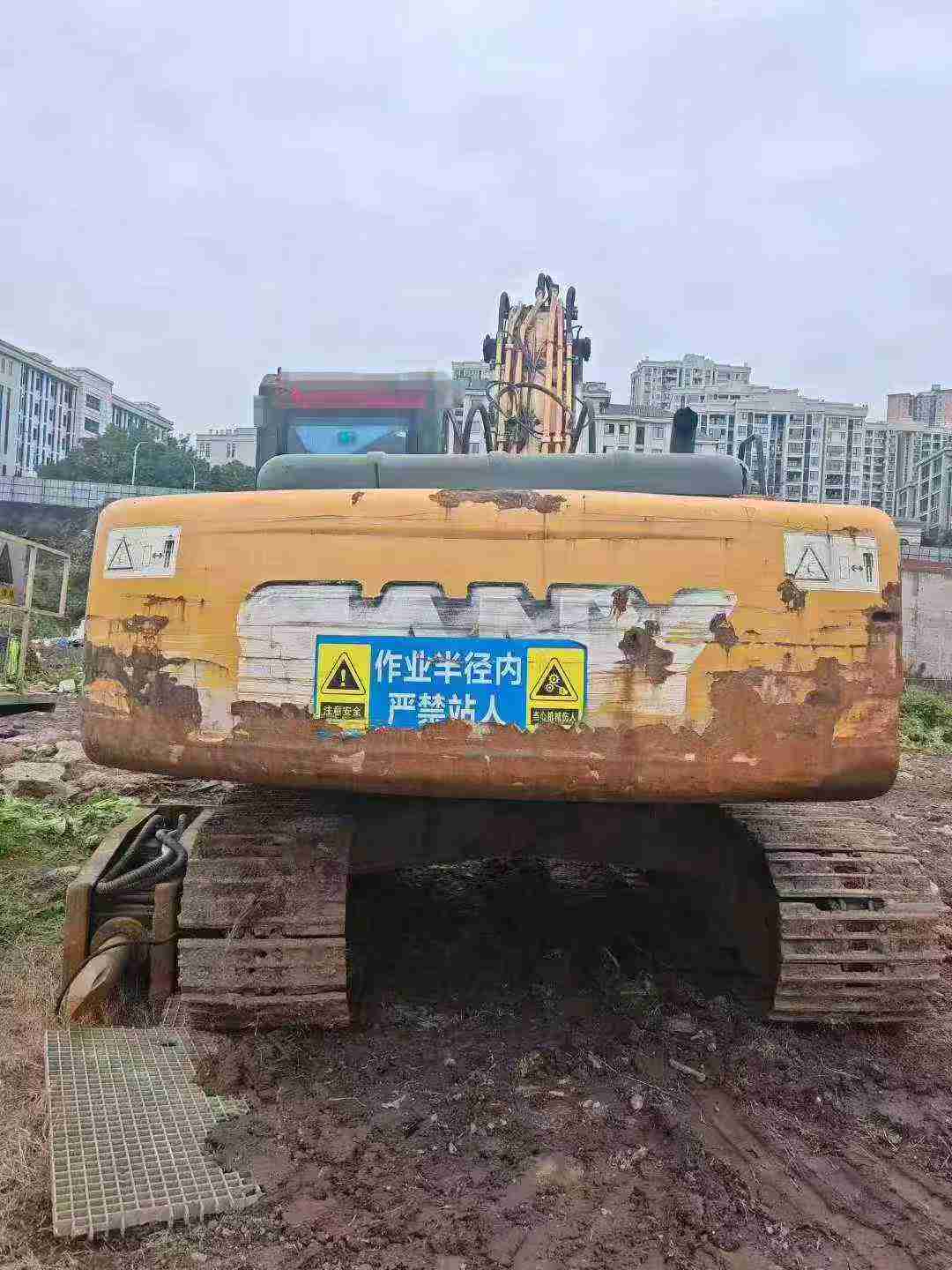

Built for the long haul, this 2015 Sany SY205C8M excavator demonstrates exceptional durability through years of reliable service. Operating at 20 tons with a robust Mitsubishi 6D34TL-20 engine delivering 114kw of rated power, this proven workhorse continues to perform demanding excavation tasks with consistent efficiency. Manufactured in Kunshan, Jiangsu Province, the machine features a substantial 0.83m³ bucket capacity and impressive 138kN digging force, making it ideal for heavy-duty applications.
- Working weight: 20,300kg with water-cooled power system
- Maximum digging reach: 9,885mm with 6,630mm depth capability
- Dual hydraulic pumps: 2 x 210 l/min for responsive operation
- Superior climbing ability: 70% grade (35°) for challenging terrain
- Compact transport dimensions: 9,397mm x 2,800mm x 2,956mm
- Currently located in Luzhou, Sichuan Province
With nearly a decade of field-tested performance, this SY205C8M stands as testament to Sany's engineering excellence. Its proven track record and robust construction ensure continued productivity for contractors seeking dependable equipment that delivers results day after day.
| Specifications | Value |
|---|---|
| No. | 1006358 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
