Product Description

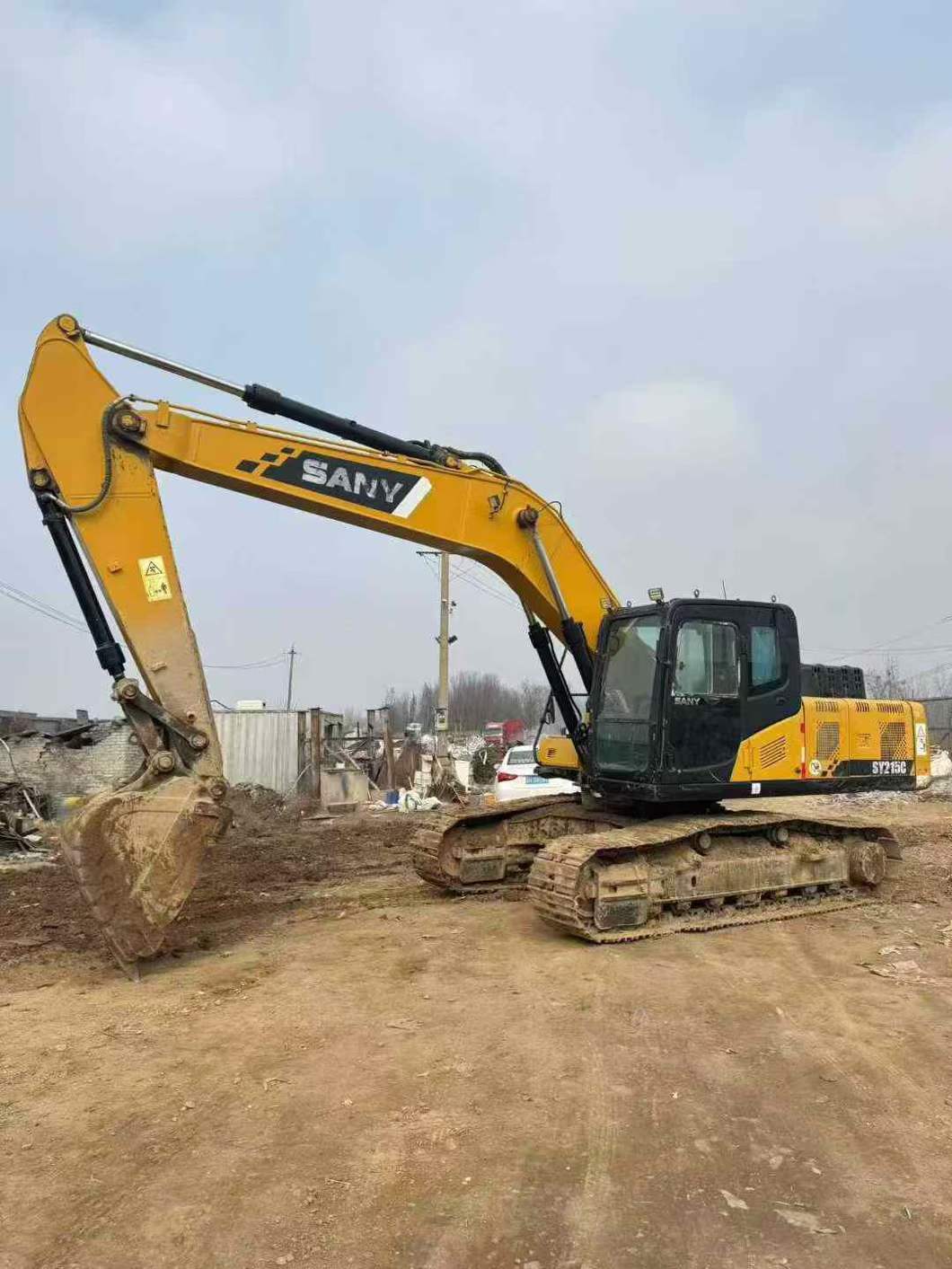

Built for demanding excavation work, this 2018 Sany SY205 DPC represents a proven investment in the used equipment market. Operating at 20 tons with a working weight of 21,500 kg, this machine delivers consistent performance with 138 kN bucket digging force and 109 kN rod digging force. Sany's established manufacturing infrastructure ensures parts availability remains strong across China, reducing downtime and maintenance costs for operators in 山东菏泽 and beyond.
Key specifications include:
- 0.93 m³ bucket capacity with backhoe configuration
- Maximum digging depth of 6,600 mm and excavation height of 9,600 mm
- Dual travel speeds: 5.4/3.3 km/h for operational flexibility
- 70% climbing ability with 47.3 Kpa ground pressure
- Compact transport dimensions: 9,560 mm length × 2,800 mm width
Sany's reputation for robust engineering translates directly to superior resale value retention. With widespread dealer networks and comprehensive technical support, this fuel-powered excavator offers long-term reliability that protects your capital investment while maintaining operational efficiency on job sites.
| Specifications | Value |
|---|---|
| No. | 1004676 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
