Product Description

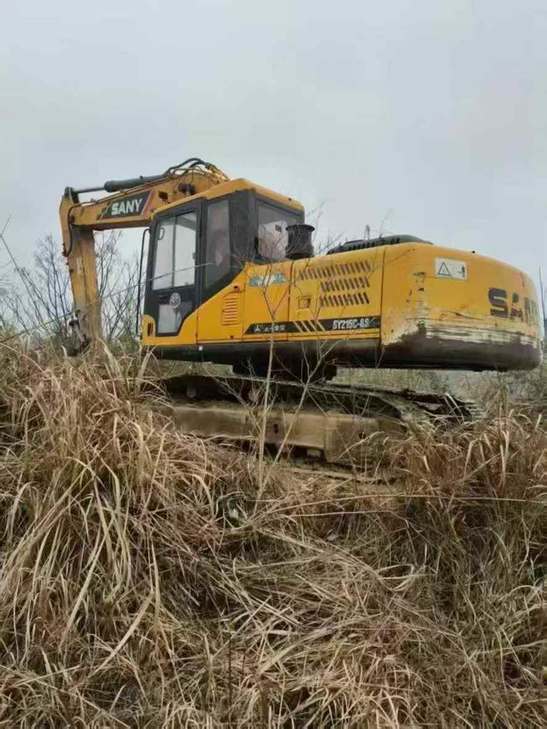

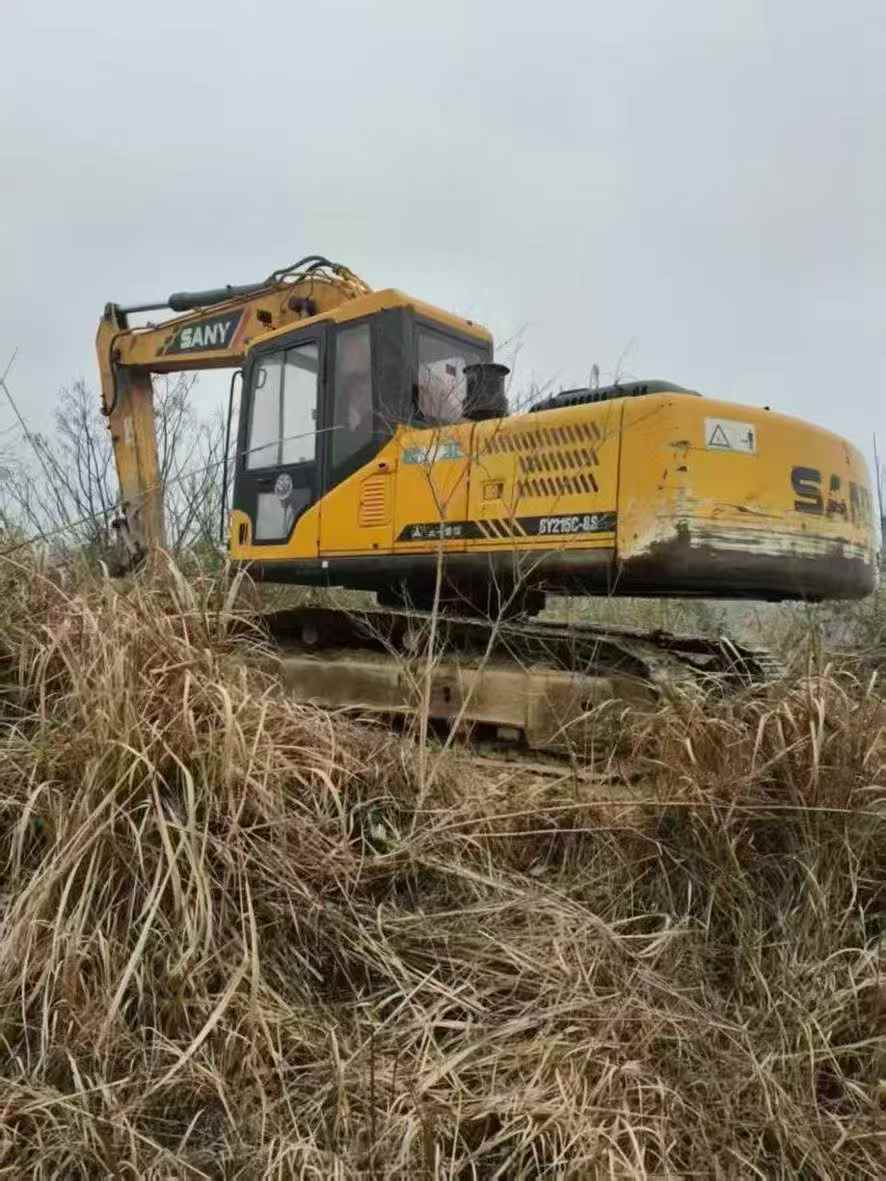

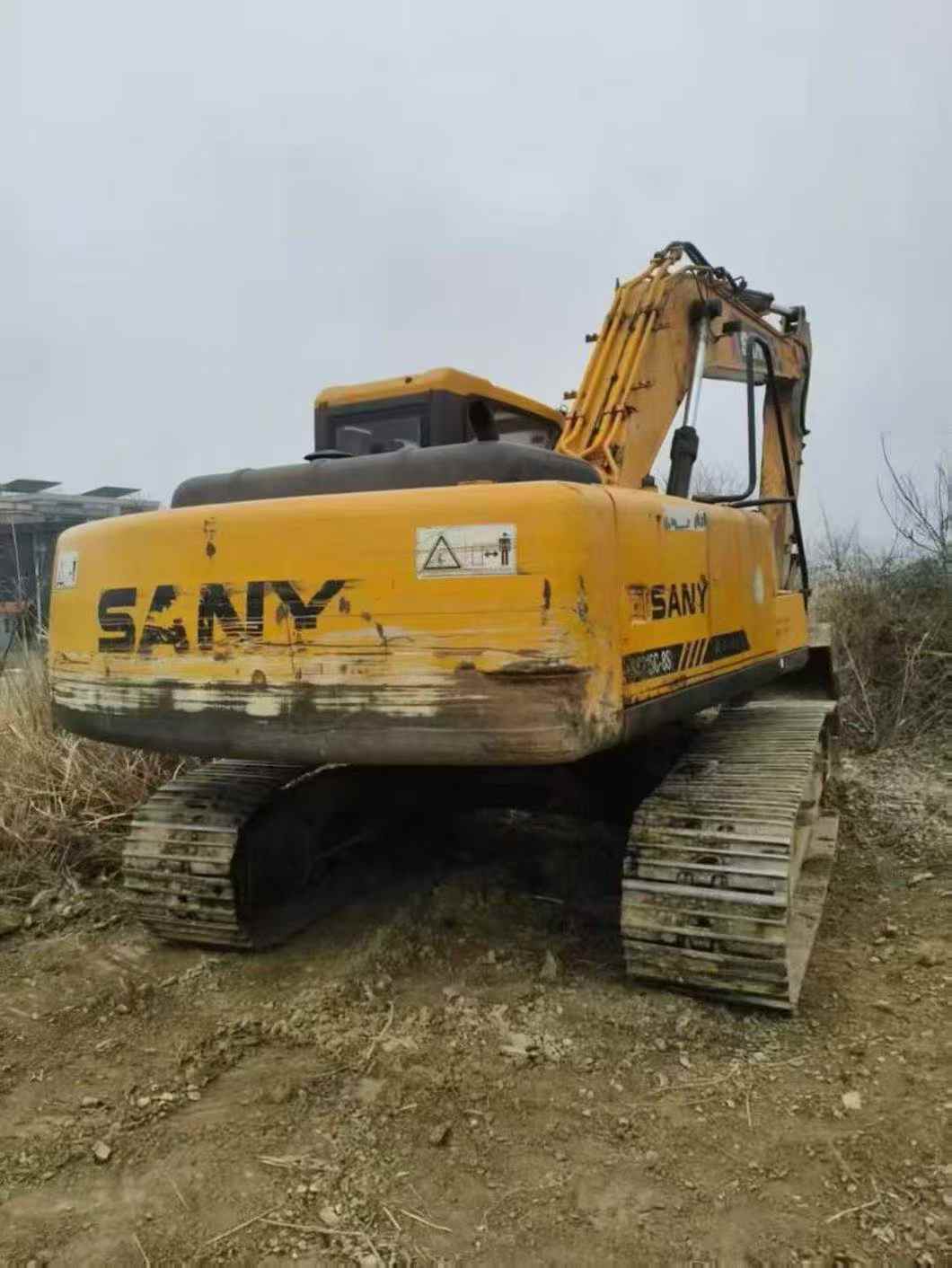

Strengthen your fleet with this 2012 Sany SY215C excavator, a proven 21-ton workhorse engineered for contractors who need reliable backup capacity. Powered by a Mitsubishi 4M50 engine delivering 118 kW at 2000 rpm, this machine handles demanding excavation tasks with a 1.1 m³ bucket capacity and 138 kN digging force. Operating weight of 21,900 kg provides stability across varied terrain, while the maximum digging reach of 10,280 mm and depth of 6,600 mm tackle foundation work, trenching, and site preparation with efficiency.
- Mitsubishi 4M50 water-cooled engine: 118 kW rated power, 580 N.m maximum torque
- Maximum digging radius: 10,280 mm | Maximum depth: 6,600 mm
- Bucket capacity: 1.1 m³ (adjustable 0.8–1.2 m³) with 138 kN digging force
- 70% climbing ability and 440 mm ground clearance for challenging sites
- 390 L fuel tank supports extended operation between refills
- Currently located in Guizhou, China—ready for international delivery
Add dependable capacity to your operation without the premium cost of new equipment. Contact Fair Trade Machinery today for complete inspection reports and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1027659 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
