Product Description

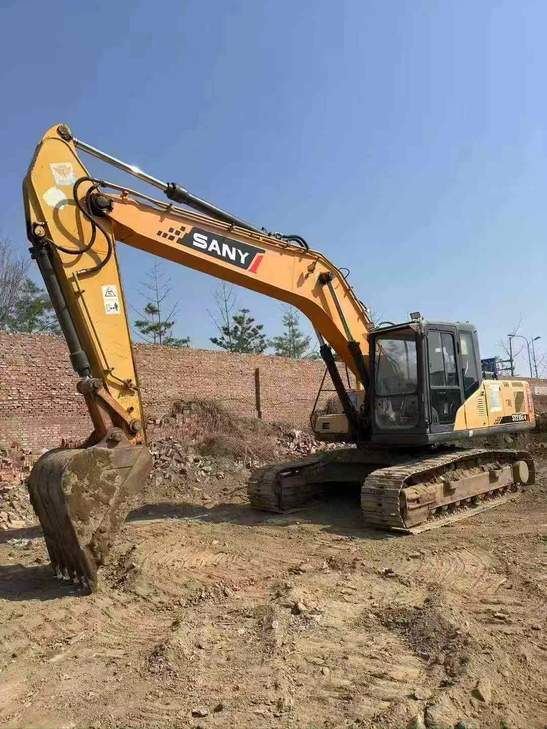

Built for demanding jobsites, this 2012 Sany SY215C delivers 21-ton performance with operator-first engineering. Powered by a reliable Mitsubishi 4M50 engine producing 118 kW at 2000 rpm, this excavator combines proven mechanical strength with practical daily operation. The spacious cab offers excellent visibility across a 10,280 mm maximum digging radius, while intuitive controls and ergonomic layout reduce operator fatigue during extended shifts.
Stability comes standard with a 2,380 mm track gauge and 600 mm-wide track plates, distributing the 21,900 kg working weight across a ground pressure of just 47.4 kPa. Tackle slopes up to 70% (35°) confidently, supported by 138 kN bucket digging force and 103 kN arm force. The water-cooled system and generous 390 L fuel tank ensure consistent performance throughout your workday.
- Maximum digging depth: 6,600 mm
- Bucket capacity: 1.1 m³ (0.8–1.2 m³ range)
- Travel speed: 5.4/3.3 km/h
- Currently located in Beijing, China
- Comprehensive hydraulic system with 239 L tank capacity
| Specifications | Value |
|---|---|
| No. | 1040951 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
