Product Description

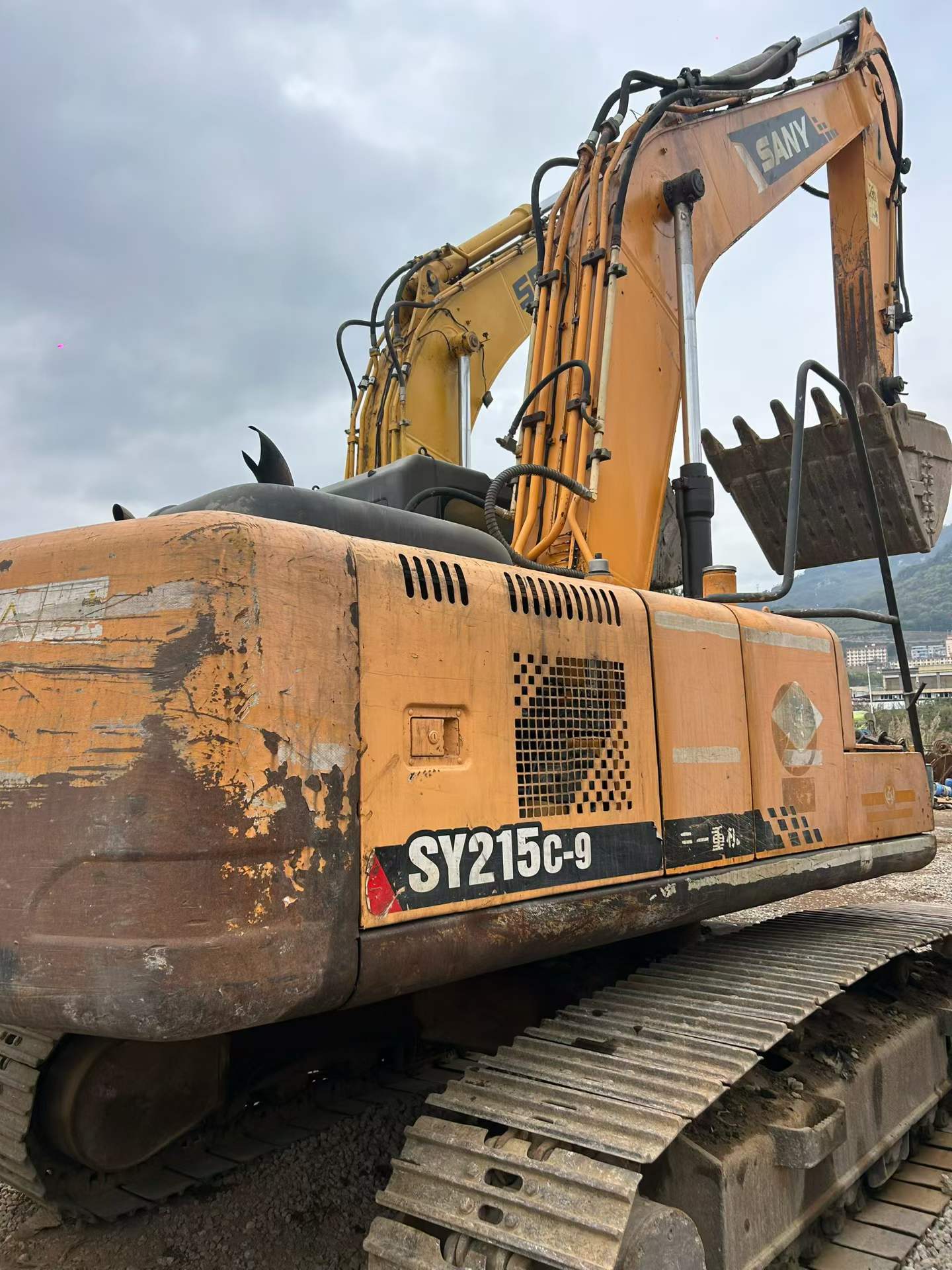

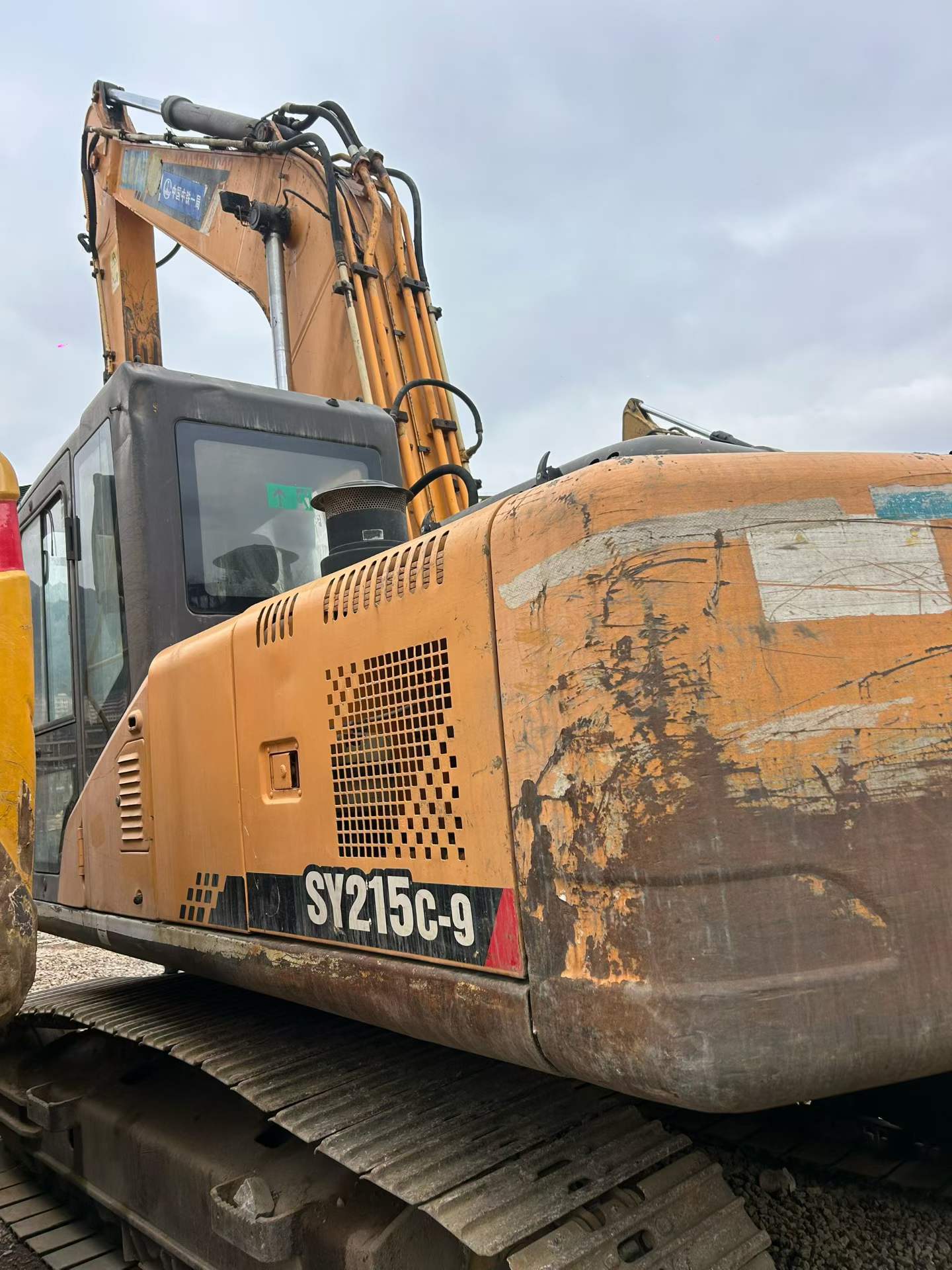

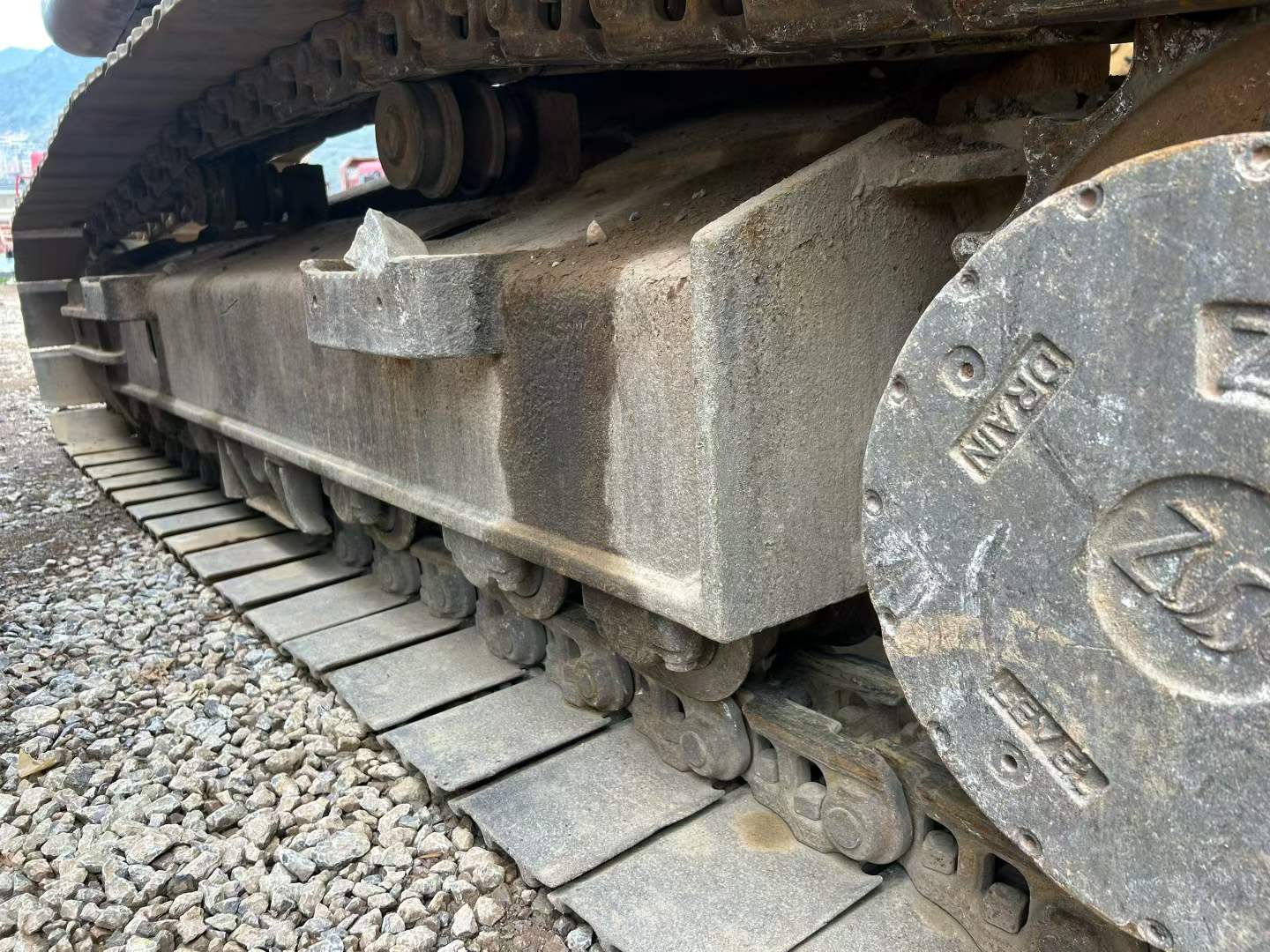

With a robust 21-ton working weight and a powerful Mitsubishi 4M50 engine, this 2013 Sany SY215C excavator is site-ready for your most demanding projects. Featuring a 1.1 m³ bucket capacity, it excels in digging, grading, and demolition tasks. Equipped with a water-cooled system, the machine maintains optimal performance under various conditions.
- Rated power of 118 kW at 2000 rpm ensures reliable operation.
- Maximum torque of 580 N.m at 1600 rpm delivers strong digging forces: 138 kN for the bucket and 103 kN for the rod.
- Travel speed up to 5.4 km/h and a 70% climbing ability (35°) make it versatile on challenging terrains.
- Fuel and hydraulic tanks hold 390 L and 239 L, respectively, reducing downtime for refueling and maintenance.
- Total transport dimensions of 9680 mm x 2980 mm x 3440 mm ensure easy mobility between sites.
Located in 广东茂名, this excavator is ready to tackle your next project with efficiency and precision.
| Specifications | Value |
|---|---|

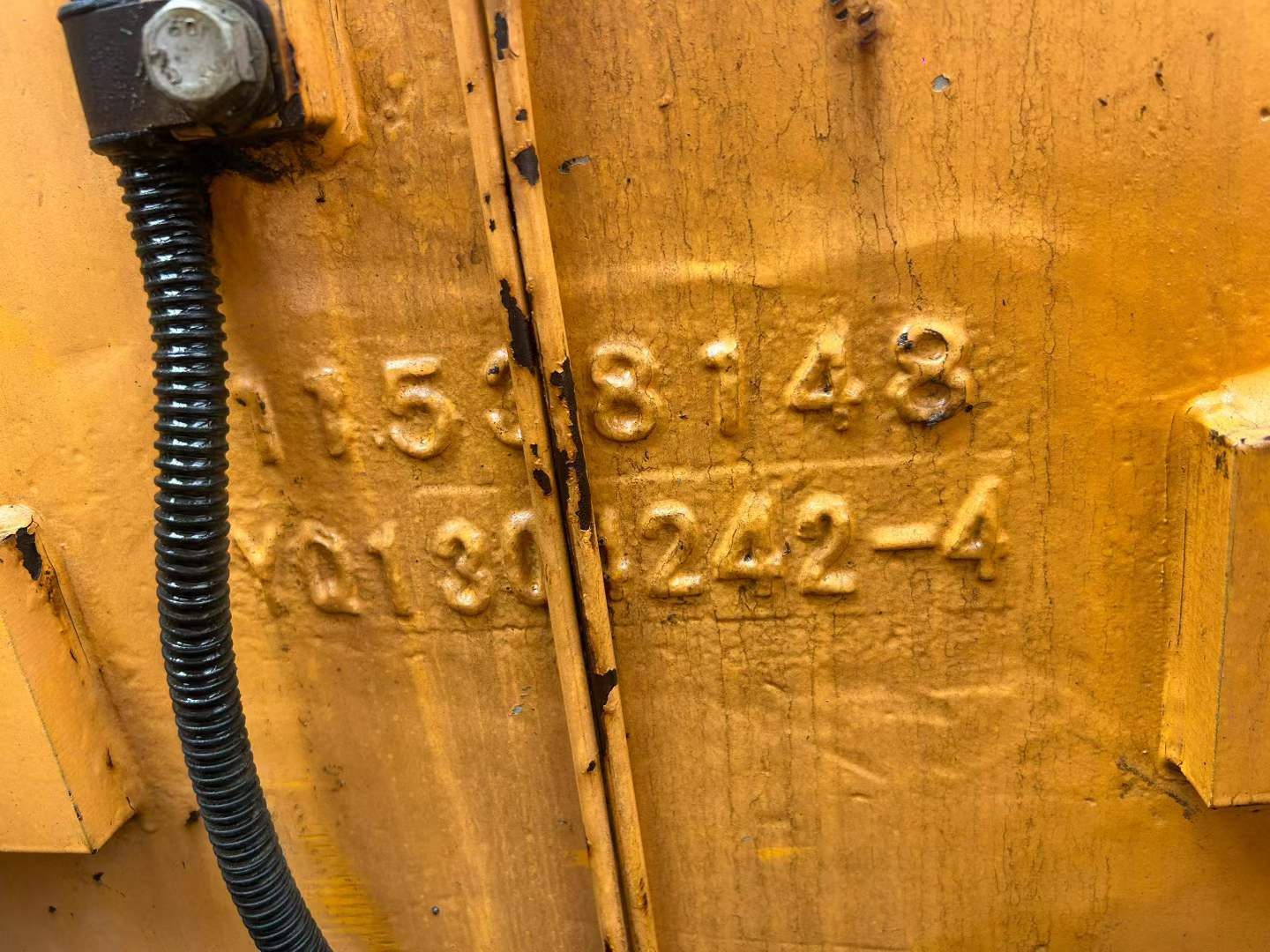

| No. | 1021230 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |

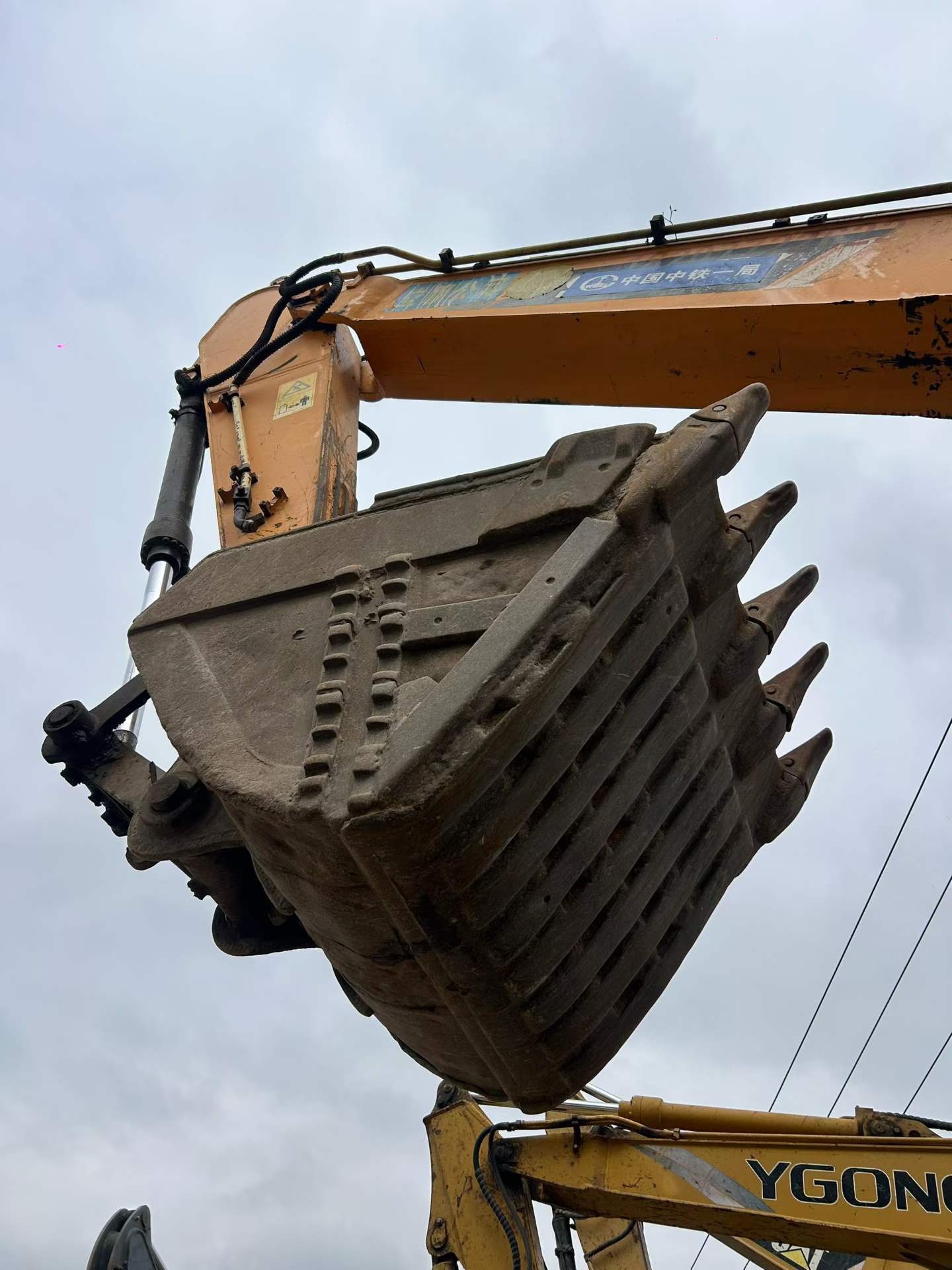

| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

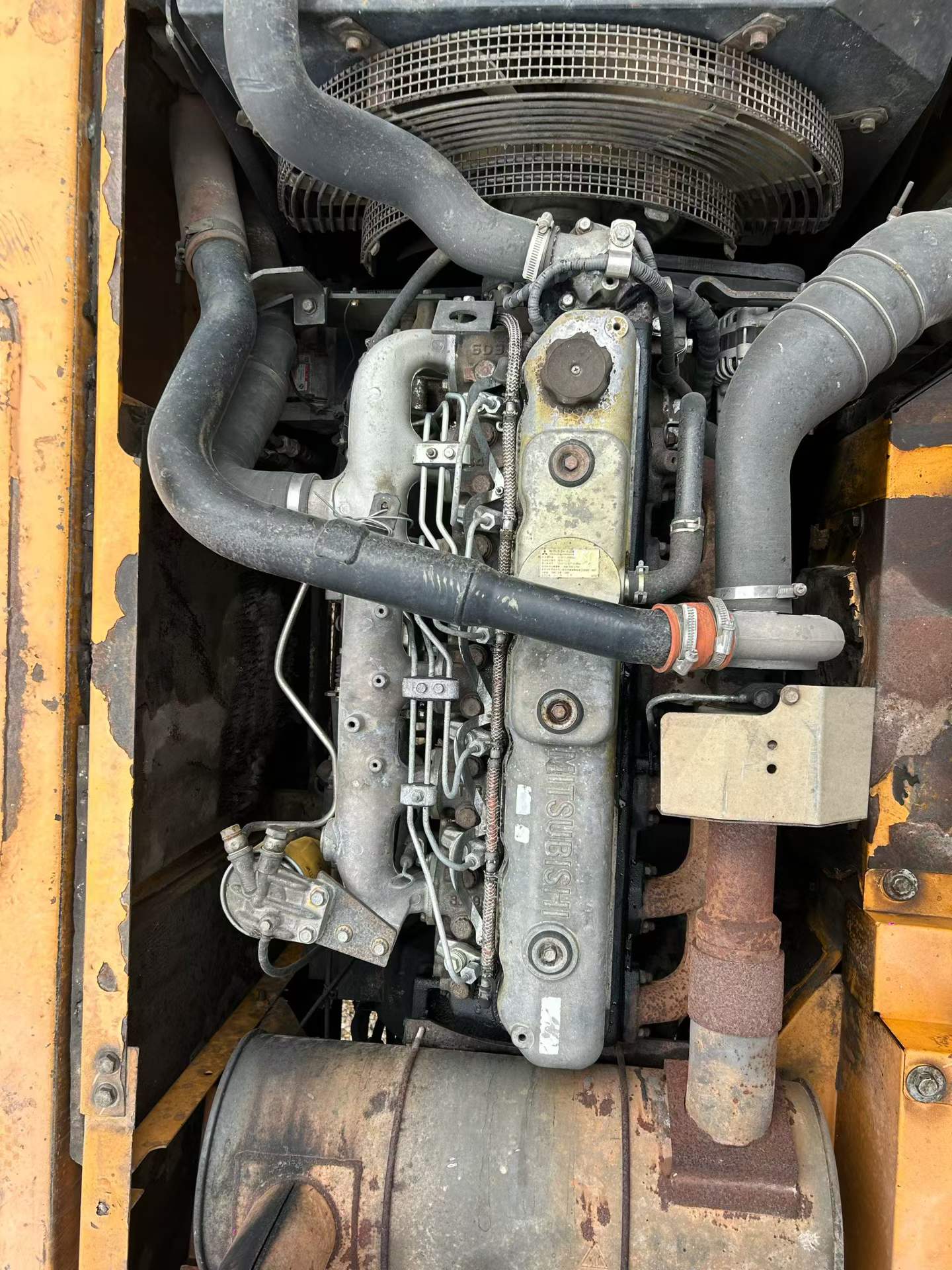

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
